Характеристики
Product Description

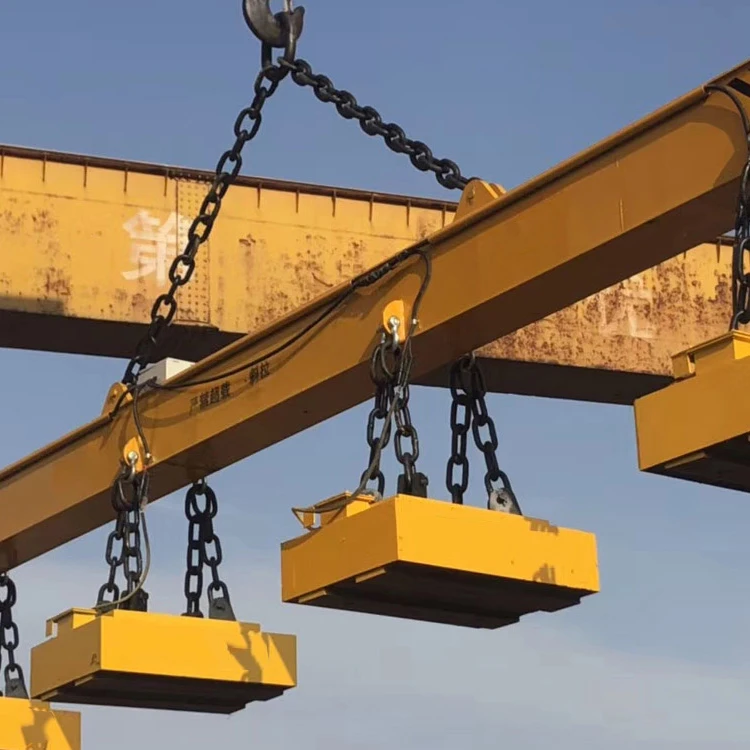

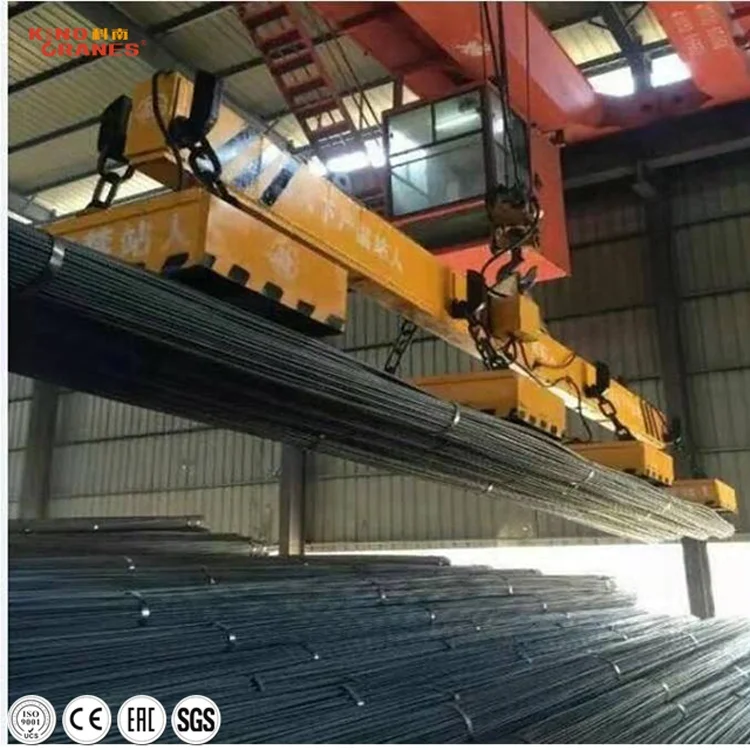

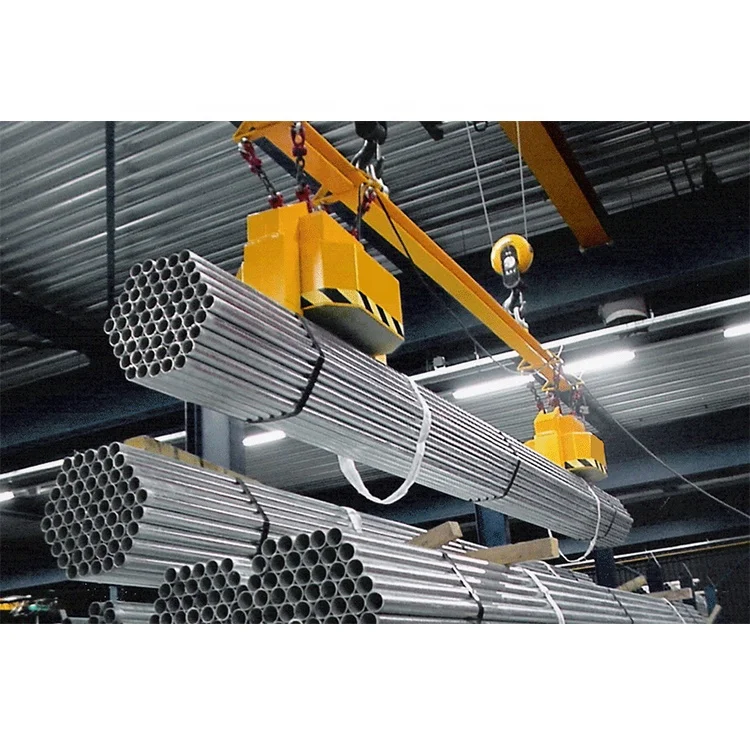

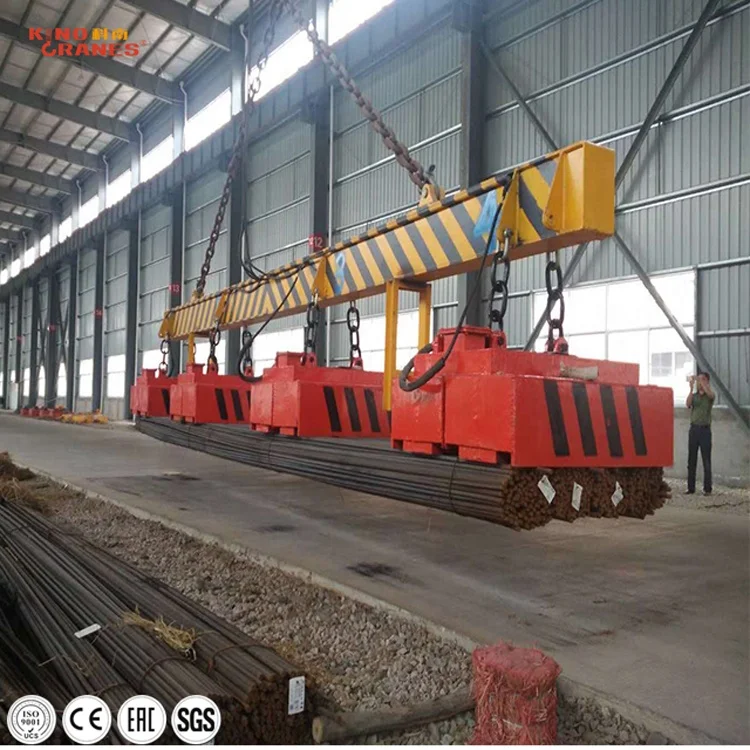

This series of rectangular electromagnets are widely used, mainly for lifting round billets, steel coils, etc., but also for lifting billets, ingots and large scale billets, sections, etc
Specification
Model | Cold-state Power/kw | Cold- state current/A | Overall dimension/mm | Mass/kg | ||||
A | B | C | ||||||
MW25-12080L/1 | 6.2 | 28.2 | 1100 | 800 | 1050 | 1520 | ||
MW25-14080L/1 | 7.7 | 35 | 1400 | 1100 | 1850 | |||
MW25-17080L/1 | 8.9 | 40.4 | 1700 | 1200 | 2330 | |||
MW25-26080L/1 | 14.4 | 65.4 | 2600 | 850 | 1300 | 3480 | ||
MW25-14085L/1 | 7.65 | 34.8 | 1400 | 850 | 1100 | 2210 | ||
MW25-17085L/1 | 9.95 | 45.2 | 1700 | 1200 | 2670 | |||
Product Features
1, using a fully sealed structure, good moisture resistance.
2, optimized by computer design, reasonable structure, light weight, large suction, low energy consumption.
3. Excitation coils are treated by a special process to improve the electrical and mechanical properties of the coils. The heat-resistance grade of the insulation material is up to Class C, the overall insulation of the suction cups is H-class and the service life is long.
4. The rated electrification continuation rate of ordinary electromagnets has been increased from the previous 50% to 60%, which has increased the use efficiency of electromagnets.
5. The high-temperature type electromagnet adopts a unique heat insulation method. The temperature of the sucked object is increased from the previous 600°C to 700°C, which expands the adaptability of the electromagnet.
6, easy installation, operation and maintenance.
2, optimized by computer design, reasonable structure, light weight, large suction, low energy consumption.
3. Excitation coils are treated by a special process to improve the electrical and mechanical properties of the coils. The heat-resistance grade of the insulation material is up to Class C, the overall insulation of the suction cups is H-class and the service life is long.
4. The rated electrification continuation rate of ordinary electromagnets has been increased from the previous 50% to 60%, which has increased the use efficiency of electromagnets.
5. The high-temperature type electromagnet adopts a unique heat insulation method. The temperature of the sucked object is increased from the previous 600°C to 700°C, which expands the adaptability of the electromagnet.
6, easy installation, operation and maintenance.
Product Advantages
Appalication
