Product Description

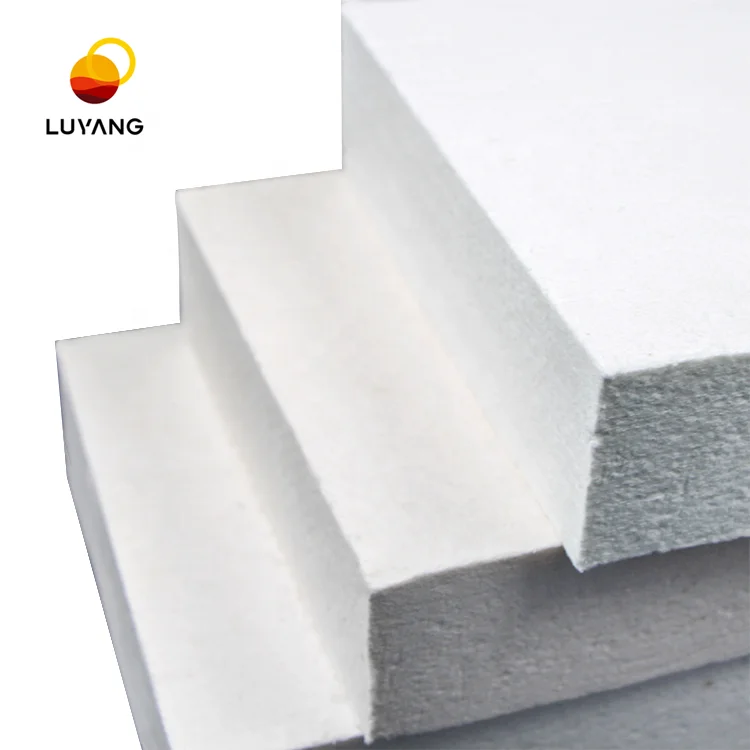

LUYANGWOOL® CERAMIC FIBER BOARD / RCF Board
Luyangwool® ceramic fiber board is manufactured in a wet forming process using Luyangwool® ceramic fiber bulk and binders. Luyangwool® ceramic fiber board is designed for insulation applications experiencing vibration, mechanical stress and erosive forces. Luyangwool® ceramic fiber board can reduce energy costs and cycling times due to high insulating capability, as well as serving to protect refractory surfaces from thermal shock and chemical attack.
LUYANGWOOL ® | ceramic fiber board |
Size & specification | 1. Length: 1200,1000,900,600mm; 2.Width:1000,600,400mm; 3.Thickness:6-50mm |
Density | 280--500kg/m3 |
Working temperature | 1050℃(1922℉) to 1350℃(2462℉) |
Certificate | MSDS, ISO9001, CE Standard: TUV,BV,SGS |
Sample | We supply small cutting sample for free ! |
Package | Carton or Pallet |
Features
♦Excellent heat stability&thermal shock resistance
♦Can be machined, cut and shaped easily
♦High rigidity and light weight
♦Low thermal conductivity
♦Low heat storage
♦Can be machined, cut and shaped easily
♦High rigidity and light weight
♦Low thermal conductivity
♦Low heat storage
♦ structure homogeneity and easy machining
♦ Even fiber with stable property
♦ High compression strength
♦ Non–fragile materials and good toughness
♦ Accurate dimension and good paleness
♦ Even fiber with stable property
♦ High compression strength
♦ Non–fragile materials and good toughness
♦ Accurate dimension and good paleness

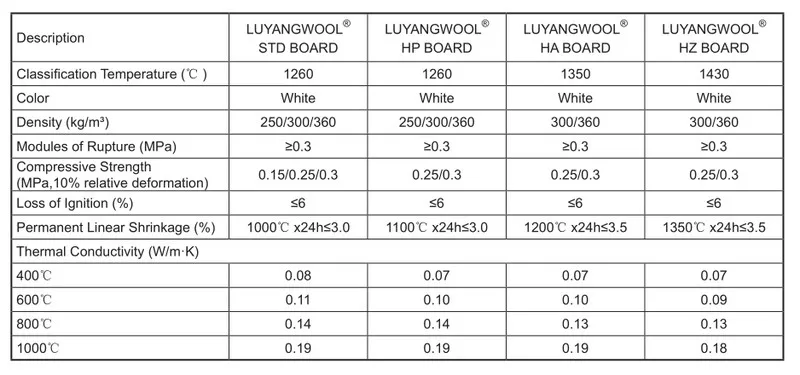

Typical Parameters
Description | LUYANGWOOL® STD BOARD | LUYANGWOOL® HP BOARD | LUYANGWOOL® HA BOARD | LUYANGWOOL® HZ BOARD | ||||
Classification Temperature (℃ ) | 1260 | 1260 | 1350 | 1430 | ||||
Color | White | White | White | White | ||||
Density (kg/m³) | 250/300/360 | 250/300/360 | 300/360 | 300/360 | ||||
Modules of Rupture (MPa) | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.3 | ||||
Compressive Strength (MPa, 10% relative deformation) | 0.15/0.25/0.3 | 0.25/0.3 | 0.25/0.3 | 0.25/0.3 | ||||
Loss of Ignition (%) | ≤6 | ≤6 | ≤6 | ≤6 | ||||
Permanent Linear Shrinkage (%) | 1000℃ x 24h ≤3.0 | 1100℃ x 24h ≤3.0 | 1200℃ x 24h ≤3.5 | 1350℃ x 24h ≤3.5 | ||||
Thermal Conductivity (W/m·K) | ||||||||
400℃ | 0.08 | 0.07 | 0.07 | 0.07 | ||||
600℃ | 0.11 | 0.10 | 0.10 | 0.09 | ||||
800℃ | 0.14 | 0.14 | 0.13 | 0.13 | ||||
1000℃ | 0.19 | 0.19 | 0.19 | 0.18 | ||||
Application
Application
1. High temperature reaction, heating equipment backing insulation and heat insulation
2. Kiln backing insulation in petroleum, chemical and metallurgical industries
3. Heat treatment kiln backing insulation
4. Non-ferrous metal industry backing insulation
5. Backing insulation of kiln in cement and other building materials industries
6. Industrial kiln wall lining, backing material, kiln masonry expansion joint, furnace door, roof cover insulation material
1. High temperature reaction, heating equipment backing insulation and heat insulation
2. Kiln backing insulation in petroleum, chemical and metallurgical industries
3. Heat treatment kiln backing insulation
4. Non-ferrous metal industry backing insulation
5. Backing insulation of kiln in cement and other building materials industries
6. Industrial kiln wall lining, backing material, kiln masonry expansion joint, furnace door, roof cover insulation material

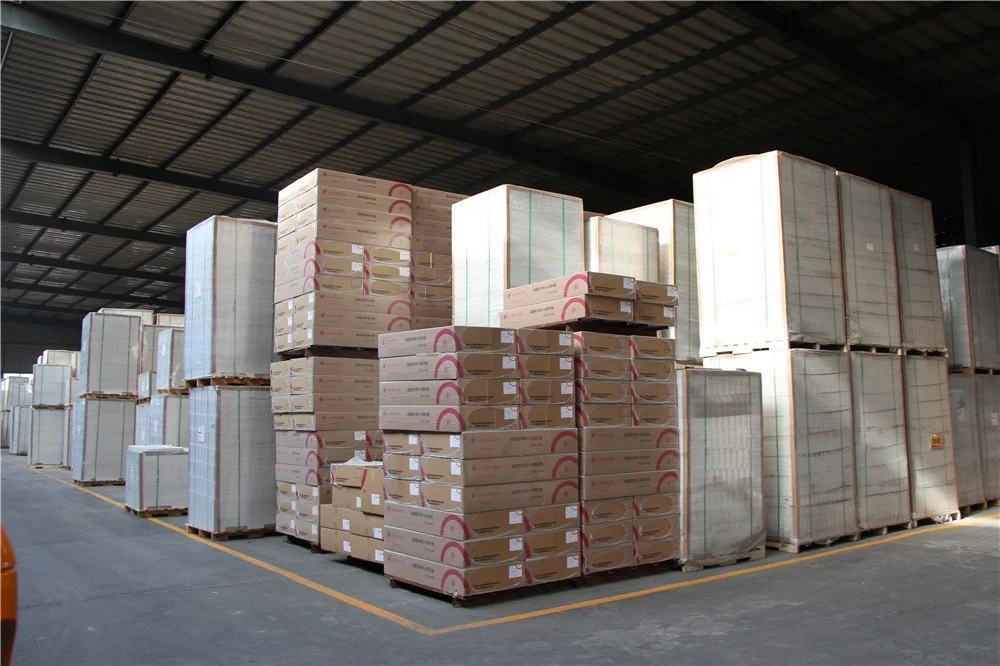

Packing & Delivery
