Система контроля высоты горелки с ЧПУ для оборудования плазменной резки

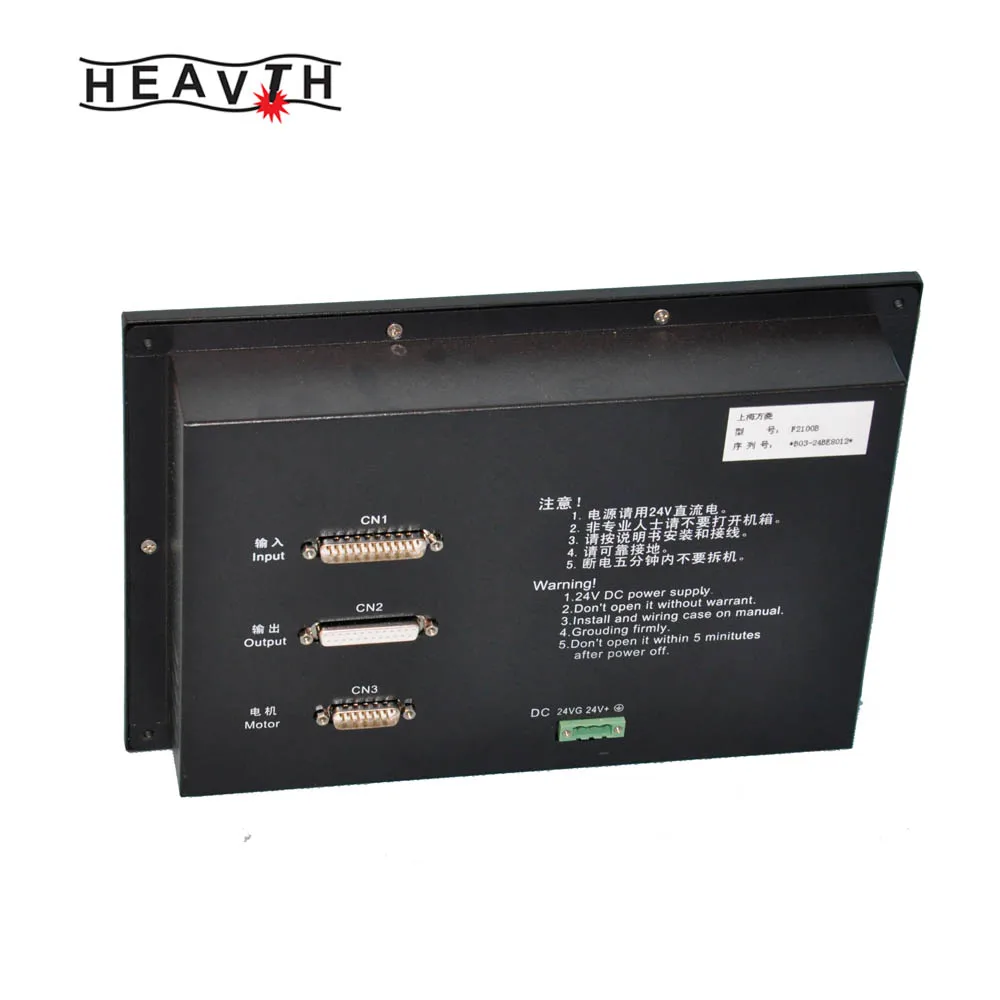

    CNC system of F2300 uses ARM and DSP motor control IC to implement cutting control, and the system is widely applied to oxygen gas cutting and plasma cutting processing industry. The system is designed portably to be installed. The system is easy to be operated and the worker can use the menu and the graphical hints to operate it. All the key buttons are designed in ergonomic considerations to be used conveniently. The front USB port can import and export files conveniently. The system interface includes many languages such as Chinese simplified, English, Russian, French, Japanese and can be used in many countries.

                                           Basic Parameters/ Hardware Configuration:
MCU:ARM9
Number of axis motion:Two axes motion interpolation (can be extended to three axes)
Max code lines:150,000 lines
Single cutting code size: 4MB
File memory space::Electronic bulk memory chip, 512MB
User file memory space:256MB
Controlling accuracy:±0.001mm (millimeter)
Coordinate range:± 99999.99mm
Max pulse frequency:250KHz;Max motion speed:25m/sec.
Time resolving capability:10ms
System power:DC +24V
System working condition:Temperature :0℃ - +55℃;Relative Humidity: 0-95%.
Interface:USB
Frame:Overall metal structure, electromagnetic radiation resistant, anti interference, anti-static
Special configuration:Touch pad, 100m wireless remote controller and wire control box(optional for full range of F2000 series)
Support oxygen gas, plasma, powder and simulation demo mode.
Keyboard: PCB film keyboard,PS/2 interface, OMRON button
