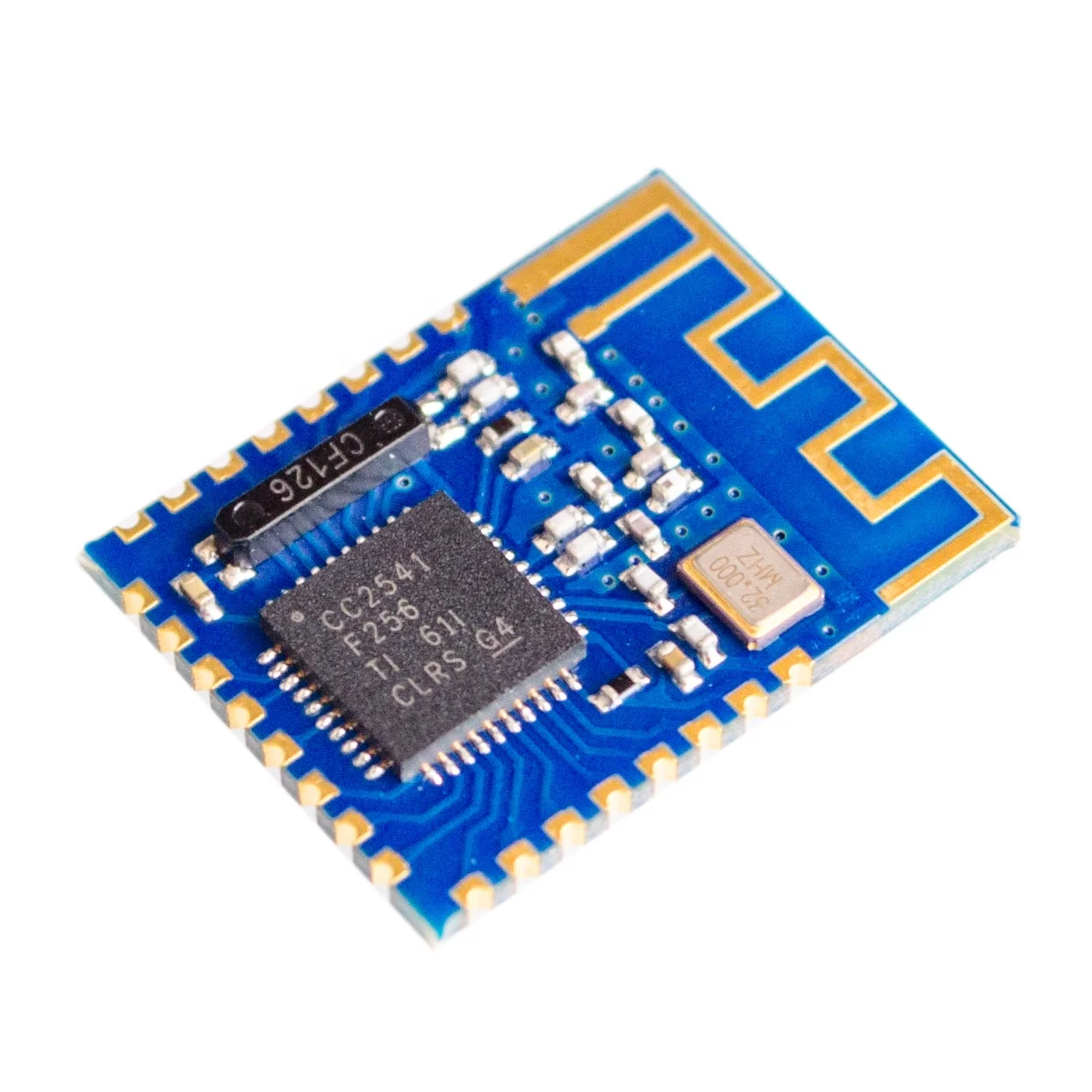

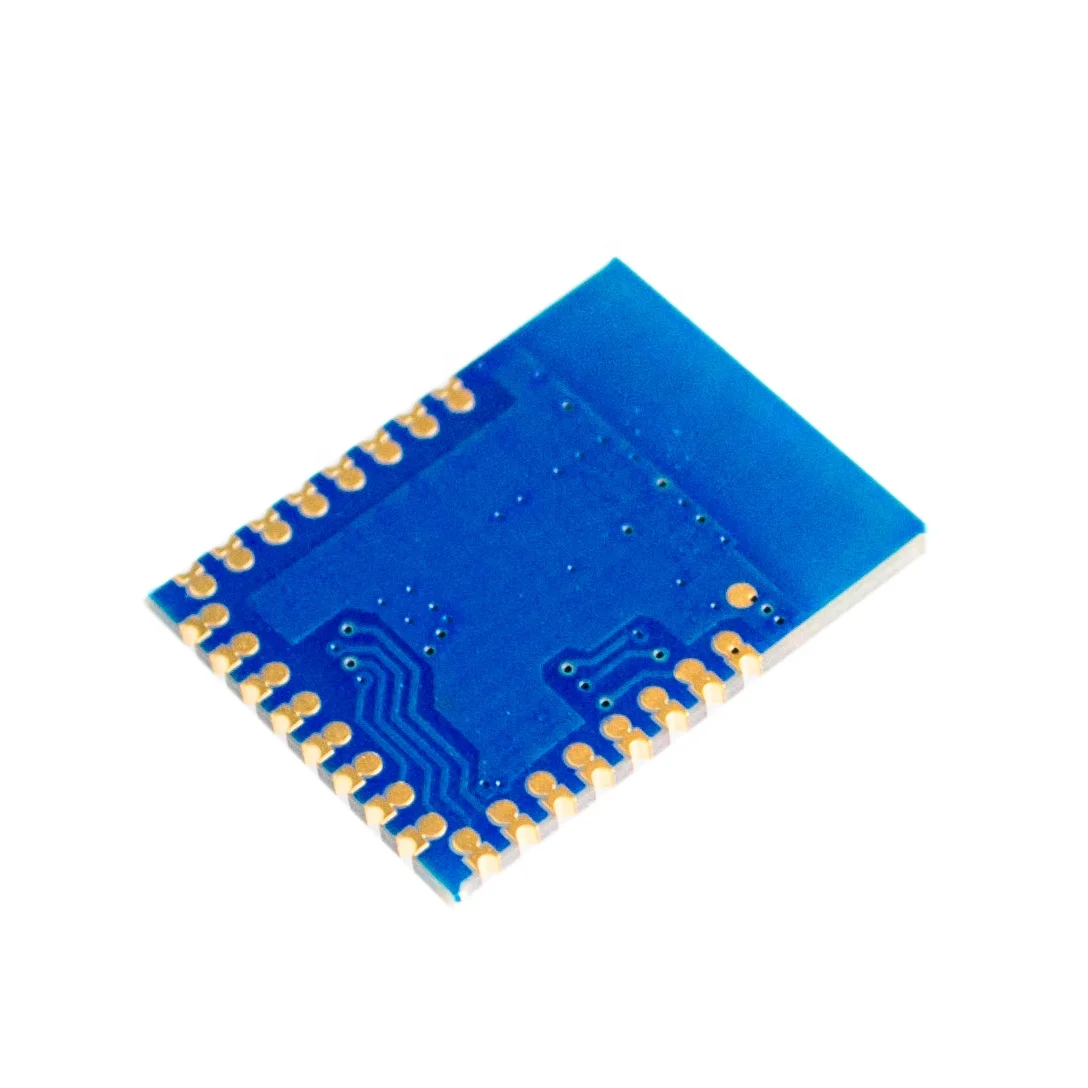

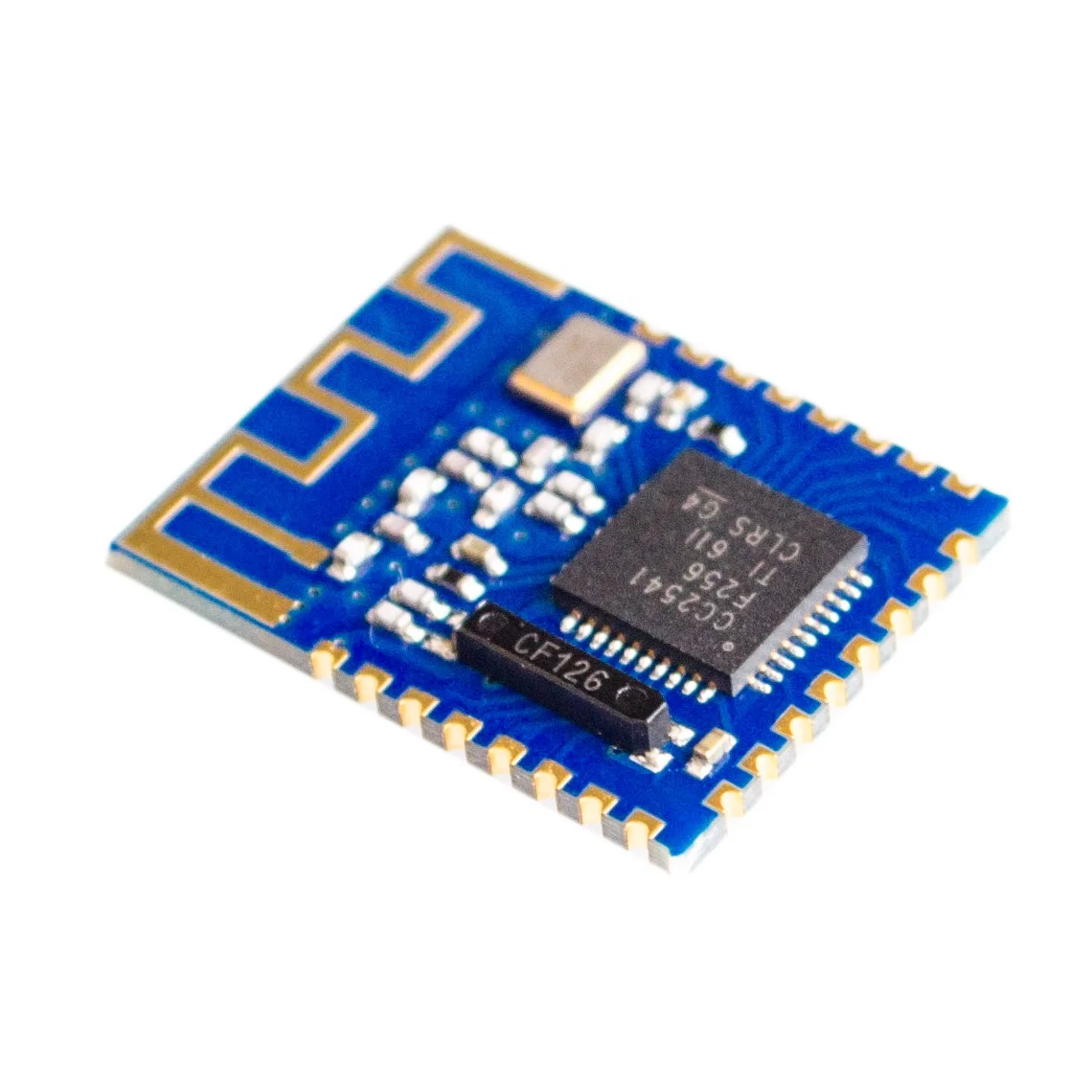

JDY-08 Bluetooth 4.0 BLE Module Bluetooth Module CC2541 Integration IBeacon airsync module



JDY-08 transparent transmission module is based on Bluetooth 4.0 protocol standard, working frequency band is 2.4GHZ range, modulation mode is GFSK, maximum transmission power is 0db, maximum transmission distance is 80 meters, using TICC2541 chip design, support users to modify the device name through AT command , Service UUID, transmit power, pairing password and other instructions, convenient and quick to use and flexible.



Function introduction

1: Support AirSync protocol, used for H5 or manufacturer server communication, including long packet data parsing

2: Support WX control mode (motor speed control, LED light switch control)

3: APP transparent transmission (support Android, IOS data transparent transmission)

4: iBeacon mode (supports WX shake protocol and Apple iBeacon protocol)

5: Sensor mode (temperature, humidity and other sensor data collection applications)

6: Host transparent transmission mode (data transparent transmission between application modules, communication between host and slave)

7: Host observer mode (application of sensors, indoor positioning)

8: PWM mode (applied to motor speed adjustment, LED lamp brightness adjustment)

9: IO mode (applied to mobile phone control relay or LED on and off)

10: Indoor room application (application of data collected by iBeacon to achieve range positioning)

11: RTC mode

12: RTC alarm mode: you can set the RTC alarm time to control the IO port, support two alarm time settings
