Product Description

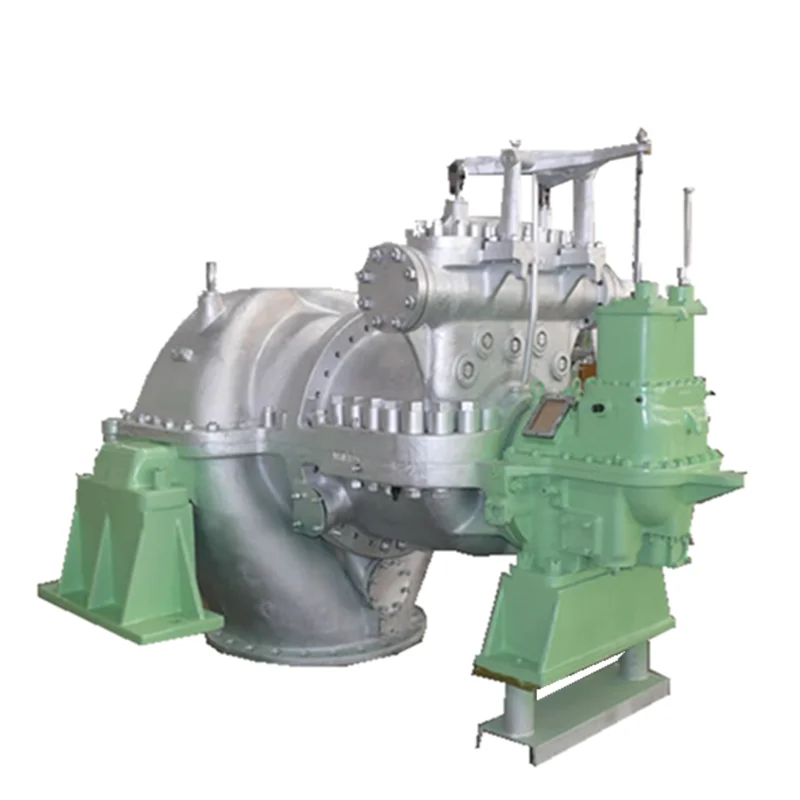

Small Condensing Steam Turbine 1-600KW

Dongturbo Electric Company Ltd. is a professional manufacturer of small and medium-sized back pressure steam turbines and condensing steam turbines. The industrial steam turbines produced by the company can be classified into two types: industrial-driven steam turbines and industrial power-generating steam turbines. In the petroleum, chemical, electric power, metallurgy, building materials, textile and other industrial sectors and enterprises self-supplied power stations, regional cogeneration, waste heat power generation, garbage power stations, olefin-vapor combined cycle.

Parameters

Model	Capacity (KW)	Speed (r/min)	Inlet					Consumption （kg/kw.h）	Exhaust Ptessure (Mpa)	Weight (t)	Overall dimensions (LWH)mm
Model	Capacity (KW)	Speed (r/min)				Pressure (Mpa)	Temp(°C)	Consumption （kg/kw.h）	Exhaust Ptessure (Mpa)	Weight (t)	Overall dimensions (LWH)mm	Flow （t/h）
N0.05-1.27	30-50	1500	1.27	300	0.31	6.2	0.06	0.33	506211621
N0.07-1.27	50-70	1500	1.27	300	0.45	6.42	0.06	0.43	560251652
N0.03-1.27	1-30	1500	1.27	300	0.2	6.67	0.06	0.16	322211351
N0.1-1.27	70-100	1500	1.27	300	0.64	6.36	0.06	0.55	706403666
N0.15-1.27	150	1500	1.27	300	0.95	6.35	0.05	0.62	735432701
N0.2-1.27	200	1500	1.27	300	1.272	6.36	0.05	0.70	821456801
N0.3-1.27	300	1500	1.27	300	1.9	6.33	0.05	0.76	850475855
N0.4-1.27	400	1500	1.27	300	2.66	6.63	0.05	0.81	933520900
N0.5-1.27	500	1500	1.27	300	3.215	6.25	0.05	0.88	988622956
N0.55-1.27	550	1500	1.27	300	3.71	6.74	0.05	0.90	988635975
N0.6-1.27	600	1500	1.27	300	4.02	6.70	0.05	0.95	10107551000
B0.05-1.27/0.2	30-50	1500	1.27	300	0.786	26.2	0.2	0.31	506211621
B0.07-1.27/0.2	50-70	1500	1.27	300	1.321	26.42	0.2	0.43	506211621
B0.03-1.27/0.2	1-30	1500	1.27	300	0.027	26.67	0.2	0.16	322211351
B0.1-1.27/0.2	70-100	1500	1.27	300	1.845	26.36	0.2	0.55	706403666
B0.15-1.27/0.2	150	1500	1.27	300	3.953	26.35	0.2	0.62	735432701
B0.2-1.27/0.2	200	1500	1.27	300	5.272	26.36	0.2	0.70	821456801
B0.3-1.27/0.2	300	1500	1.27	300	7.899	26.33	0.2	0.76	850475855
B0.4-1.27/0.2	400	1500	1.27	300	10.652	26.63	0.2	0.81	933520900
B0.5-1.27/0.2	500	1500	1.27	300	13.125	26.25	0.2	0.88	988622956
B0.55-1.27/0.2	550	1500	1.27	300	14.71	26.74	0.2	0.90	988635975
B0.6-1.27/0.2	600	1500	1.27	300	16.02	26.70	0.2	0.95	10107551000

Our advantages:

1. With a steam turbine manufacture experience of more than 20 years.

2. We offer turnkey service, including project design, production,construction, installation, and adjustment.

3. Low steam consumption rate, high efficiency to help customer save cost.

4. Strong overload capacity, easy to operate, safety guaranteed

5. We offer customed products.

Application

1) Cogeneration: high thermal efficiency, widely used in brewing, sugar refining, pharmaceutical, textile, printing and dyeing, chemical fertilizer, chemical, regional heating and other industries.

2) Waste heat and energy utilization: steel blast furnace gas, metallurgy sintering waste heat, waste heat at the cement kiln head and inlet, glass kiln waste heat, chemical kiln waste heat, coking waste heat, gas turbine waste heat and other waste heat and waste energy.

3) Biomass power generation: wood chip, straw, leaves, husks, furfural residue, bagasse, palm shell and ordinary trash, etc. can be used for power generation.

4) Other fields: low concentration mine gas, coal slime, saturated steam, etc.

5) Industrial drives: energy-saving substitute for electric motor. Widely applied in the petrochemical industry, directly driven
air blowers, compressors, and other highly energy-intensive equipment.

Specification

Manufacturing & Facility

1. GMB2550r CNC gantry miller is processing
runner blade

Manufacturing & Facility

2.CNC coil 12-axis expander imported from France

Manufacturing & Facility

3. Dovetail miller

Manufacturing & Facility

4. 10m Vertical lathe

Manufacturing & Facility

5. A corner of workshop

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Actually, in addition to various steam turbines,we can also provide you with all kinds of steam turbine parts. Please feel free to contact us at any time when you are interested in our products.

spare parts include:
Rotor;
- Moving Blades of Rotor;
- HP/IP/LP Gland Sealings;
- HP/IP/LP Diaphragms;
- Seal Rings;
- Couplings between Steam Turbine and Generator;
- Spcial Studs and Nuts;
- Bolts and Nuts of Turbine Casings;
- Bolts and Nuts of Diaphragms;
- Thrust Bearings and Surport Bearings;
- Gaskets, Srews, Keys, Pins, Washers, Grooved gaskets;
- Turning Gear;
- Babbit Metal Lined Bearings;
- Stem, Disc, Pilot and Sleeve of Main Steam Stop Valves, Combined Steam Valves, Governing Valves;
- Actuators of Control System;
- Steam Strainer;
- Start up Oil Pump and Spare Parts;
- Jacking Oil Pump and Spare Parts;
- Main Oil Pump and Spare Parts;
- Emergency Oil Pump and Spare Parts;
- Condensate Pump and Spare Parts;
- Jet Water Pump and Spare Parts;
- Drainage Pump and Spare Parts;
- Spare Parts of Circulating Water Pump;
- Spare Parts of DEH, TSI, ETS;

Company Profile

Know more about our company

We, Dongturbo Electric Company Ltd.(DTEC). DTEC is an international corporation, with its headquarter in Chengdu, China, and manufacturing bases in Deyang and Kunming, China, mainly engaged in the manufacturing of power & electric equipments, EPCC (engineering, procurement, construction, commissioning), and export and import business. DTEC also has branches and joint venture in Malaysia, Thailand, and Philippine. Our business scope covers EPC, supply equipment and materials for thermal power inc luding boiler, turbine, generator and their auxiliaries, BOP, electric and C& I etc.; EPC and equipment supply for PV, thermal solar power, Wind & PV hybrid and energy storage system.; spare parts supply and power plant overhaul and maintenance;
We have established close partner relationship with design institute, manufacturers, erection company, traders and end customers both in China and all over the world.
We actively and continuously engaged in the domestic and global electrical markets. Our professional Engineering, Project
Management etc. contributed to the success of the contracted projects, meanwhile, we also shared a lot from those success, we became one of the technical expertise for systematic solution for power industry.
We are willing to grow with our customers, and we always believe our success can only rely on the success of our customer. We are always prepared to provide the best solution to our customer, provide the best service to our customer, and make the most gain to our customer.
