Product Description

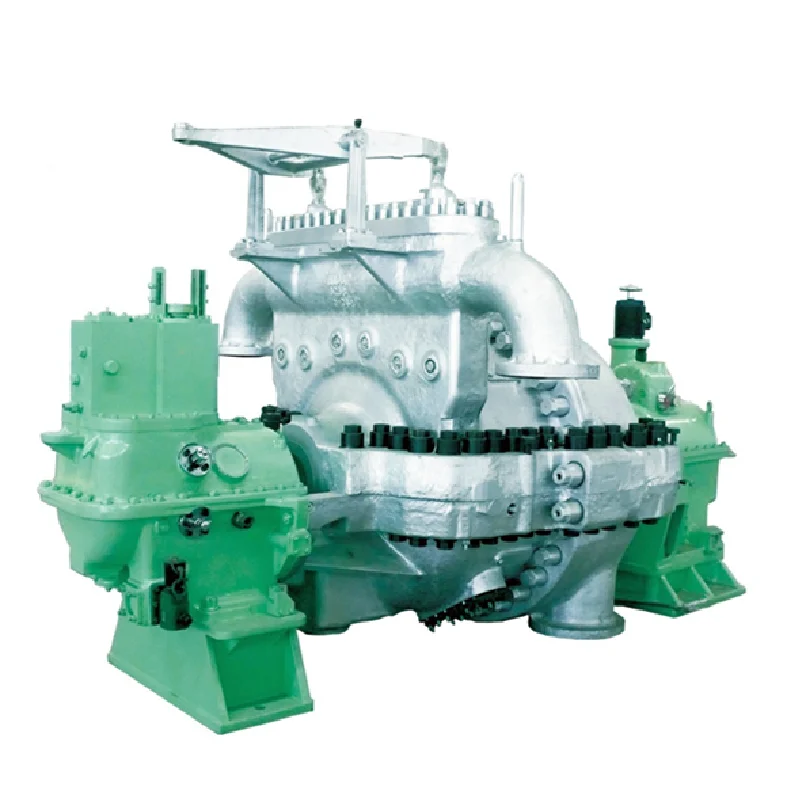

Small Condensing Steam Turbine 1-30KW
Dongturbo Electric Company Ltd. is a professional manufacturer of small and medium-sized back pressure steam turbines and condensing steam turbines. The industrial steam turbines produced by the company can be classified into two types: industrial-driven steam turbines and industrial power-generating steam turbines. In the petroleum, chemical, electric power, metallurgy, building materials, textile and other industrial sectors and enterprises self-supplied power stations, regional cogeneration, waste heat power generation, garbage power stations, olefin-vapor combined cycle.


Parameters


Model
Capacity
(KW)
Speed
(r/min)
Inlet
Consumption
（kg/kw.h）
Exhaust
Ptessure
(Mpa)
Weight
(t)
Overall
dimensions
(L*W*H)mm
Pressure
(Mpa)
Temp(°C)
Flow
（t/h）
N0.05-1.27
30-50
1500
1.27
300
0.31
6.2
0.06
0.33
506*211*621
N0.07-1.27
50-70
1500
1.27
300
0.45
6.42
0.06
0.43
560*251*652
N0.03-1.27
1-30
1500
1.27
300
0.2
6.67
0.06
0.16
322*211*351
N0.1-1.27
70-100
1500
1.27
300
0.64
6.36
0.06
0.55
706*403*666
N0.15-1.27
150
1500
1.27
300
0.95
6.35
0.05
0.62
735*432*701
N0.2-1.27
200
1500
1.27
300
1.272
6.36
0.05
0.70
821*456*801
N0.3-1.27
300
1500
1.27
300
1.9
6.33
0.05
0.76
850*475*855
N0.4-1.27
400
1500
1.27
300
2.66
6.63
0.05
0.81
933*520*900
N0.5-1.27
500
1500
1.27
300
3.215
6.25
0.05
0.88
988*622*956
N0.55-1.27
550
1500
1.27
300
3.71
6.74
0.05
0.90
988*635*975
N0.6-1.27
600
1500
1.27
300
4.02
6.70
0.05
0.95
1010*755*1000
B0.05-1.27/0.2
30-50
1500
1.27
300
0.786
26.2
0.2
0.31
506*211*621
B0.07-1.27/0.2
50-70
1500
1.27
300
1.321
26.42
0.2
0.43
506*211*621
B0.03-1.27/0.2
1-30
1500
1.27
300
0.027
26.67
0.2
0.16
322*211*351
B0.1-1.27/0.2
70-100
1500
1.27
300
1.845
26.36
0.2
0.55
706*403*666
B0.15-1.27/0.2
150
1500
1.27
300
3.953
26.35
0.2
0.62
735*432*701
B0.2-1.27/0.2
200
1500
1.27
300
5.272
26.36
0.2
0.70
821*456*801
B0.3-1.27/0.2
300
1500
1.27
300
7.899
26.33
0.2
0.76
850*475*855
B0.4-1.27/0.2
400
1500
1.27
300
10.652
26.63
0.2
0.81
933*520*900
B0.5-1.27/0.2
500
1500
1.27
300
13.125
26.25
0.2
0.88
988*622*956
B0.55-1.27/0.2
550
1500
1.27
300
14.71
26.74
0.2
0.90
988*635*975
B0.6-1.27/0.2
600
1500
1.27
300
16.02
26.70
0.2
0.95
1010*755*1000


Our advantages:

1. With a steam turbine manufacture experience of more than 20 years.

2. We offer turnkey service, including project design, production,construction, installation, and adjustment.

3. Low steam consumption rate, high efficiency to help customer save cost.

4. Strong overload capacity, easy to operate, safety guaranteed

5. We offer customed products.


Application

1) Cogeneration: high thermal efficiency, widely used in brewing, sugar refining, pharmaceutical, textile, printing and dyeing, chemical fertilizer, chemical, regional heating and other industries.

2) Waste heat and energy utilization: steel blast furnace gas, metallurgy sintering waste heat, waste heat at the cement kiln head and inlet, glass kiln waste heat, chemical kiln waste heat, coking waste heat, gas turbine waste heat and other waste heat and waste energy.

3) Biomass power generation: wood chip, straw, leaves, husks, furfural residue, bagasse, palm shell and ordinary trash, etc. can be used for power generation.

4) Other fields: low concentration mine gas, coal slime, saturated steam, etc.

5) Industrial drives: energy-saving substitute for electric motor. Widely applied in the petrochemical industry, directly driven
air blowers, compressors, and other highly energy-intensive equipment.




Specification


Manufacturing & Facility
1. GMB2550r CNC gantry miller is processing
runner blade


Manufacturing & Facility
2.CNC coil 12-axis expander imported from France


Manufacturing & Facility
3. Dovetail miller


Manufacturing & Facility
 4. 10m Vertical lathe


Manufacturing & Facility
5. A corner of workshop


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Actually, in addition to various steam turbines,we can also provide you with all kinds of steam turbine parts. Please feel free to contact us at any time when you are interested in our products.
spare parts include:
Rotor;
- Moving Blades of Rotor;
- HP/IP/LP Gland Sealings;
- HP/IP/LP Diaphragms;
- Seal Rings;
- Couplings between Steam Turbine and Generator;
- Spcial Studs and Nuts;
- Bolts and Nuts of Turbine Casings;
- Bolts and Nuts of Diaphragms;
- Thrust Bearings and Surport Bearings;
- Gaskets, Srews, Keys, Pins, Washers, Grooved gaskets;
- Turning Gear;
- Babbit Metal Lined Bearings;
- Stem, Disc, Pilot and Sleeve of Main Steam Stop Valves, Combined Steam Valves, Governing Valves;
- Actuators of Control System;
- Steam Strainer;
- Start up Oil Pump and Spare Parts;
- Jacking Oil Pump and Spare Parts;
- Main Oil Pump and Spare Parts;
- Emergency Oil Pump and Spare Parts;
- Condensate Pump and Spare Parts;
- Jet Water Pump and Spare Parts;
- Drainage Pump and Spare Parts;
- Spare Parts of Circulating Water Pump;
- Spare Parts of DEH, TSI, ETS;


Company Profile






Know more about our company
We, Dongturbo Electric Company Ltd.(DTEC). DTEC is an international corporation, with its headquarter in Chengdu, China, and manufacturing bases in Deyang and Kunming, China, mainly engaged in the manufacturing of power & electric equipments, EPCC (engineering, procurement, construction, commissioning), and export and import business. DTEC also has branches and joint venture in Malaysia, Thailand, and Philippine. Our business scope covers EPC, supply equipment and materials for thermal power inc luding boiler, turbine, generator and their auxiliaries, BOP, electric and C& I etc.; EPC and equipment supply for PV, thermal solar power, Wind & PV hybrid and energy storage system.; spare parts supply and power plant overhaul and maintenance;
We have established close partner relationship with design institute, manufacturers, erection company, traders and end customers both in China and all over the world.
We actively and continuously engaged in the domestic and global electrical markets. Our professional Engineering, Project
Management etc. contributed to the success of the contracted projects, meanwhile, we also shared a lot from those success, we became one of the technical expertise for systematic solution for power industry.
We are willing to grow with our customers, and we always believe our success can only rely on the success of our customer. We are always prepared to provide the best solution to our customer, provide the best service to our customer, and make the most gain to our customer.
