Product Description


The independent smart pole is off grid hybrid wind and solar powered unit with built-in rechargeable energy storage.
It has wide range of applications, in past years, the systems have been successfully installed in many countries, such as Ireland, US, Germany etc, mainly used for lighting, traffic management, environmental monitoring.



KEY BENEFITS

* Off grid power solution -
up to 80W continuous power 24/7.

* Provides secure, reliable off-grid power
for critical applications, including:

• Surveillance
• Traffic Management
• Communications
• Environmental Monitoring
• Lighting
• Public Safety

* UL/CE certified.

*Substantial immediate savings by
avoiding trenching and cabling.

*Eyecatching statement of your
green credentials.

*All structural steel parts are galvanised and powder coated, designed life 20 years.




Specification


WIND ENERGY (PERMANENT MAGNET GENERATOR)
SOLAR POWER
Rated Power Output
400W
Panels Number
2
Max. Power Output
490W
Rated
720 Wp Total (STC)
Cut-in/Rated/ Max Windspeed
2 / 11.5 / 15 m/s
Cell Type/Panel Efficiency
Sunpower X-22-360-COM Maxeon TM cells/ 22.2% (STC)
Rated/Maximum RPM
640/700
Glass
High-transmission tempered anti-reflective
ENERGY STORAGE TOWER
TOWER
Batteries
2 no. 12V 260Ah AGM
Material
Steel Q345
Storage Capacity
6240 Wh
Finish
Galvanised and Powder Coated
Battery Endurance
Up to 3 days @ 40W continuous
Installation Method
Hydraulic rams or mechanically assisted
Location
Inside tower base
Maximum Height
9.096m from ground level
CONTROLLER SYSTEM
REMOTE COMMUNICATIONS
Controller
SUSIE IV+ Airsynergy Hybrid Charge Controller
Router
Geneko GWG-40 Gateway (Optional)
Output Voltage to battery
24V
Wirelesss
3G/4G/ LTE
Performance Monitoring
Via on-board 2G/Zigbee
Security
IPsec, SSL, & VPN Client
Location
Inside tower
Location
Inside tower


Inside Details




Controller & Protection Devices

•Inspectable connections for NEC.

•UL listed LiFePO4 battery cells.
•Ventilation

•Adapted pole, cradle to accept
new UL components, including
heavily modified SUSIE 4+
Controller.

•Improved rear fixing details for
ease of assembly.


Web & Mobile Monitoring


•All of the operating parameters for each of the generation, storage and load components are displayed.
•All control parameters can be modified depending on the user level assignment.







Application


Wide range of uses
Based on the smart pole, and wireless communication, it can fulfill many different demand from different users, such as street lighting, traffic management, environmental monitoring, etc.


Project


We works with major partners and clients across the globe. We are currently engaged with leading technology companies, utilities, global retailers, manufacturers, universities and municipalities.
These are some company we have cooperated with:

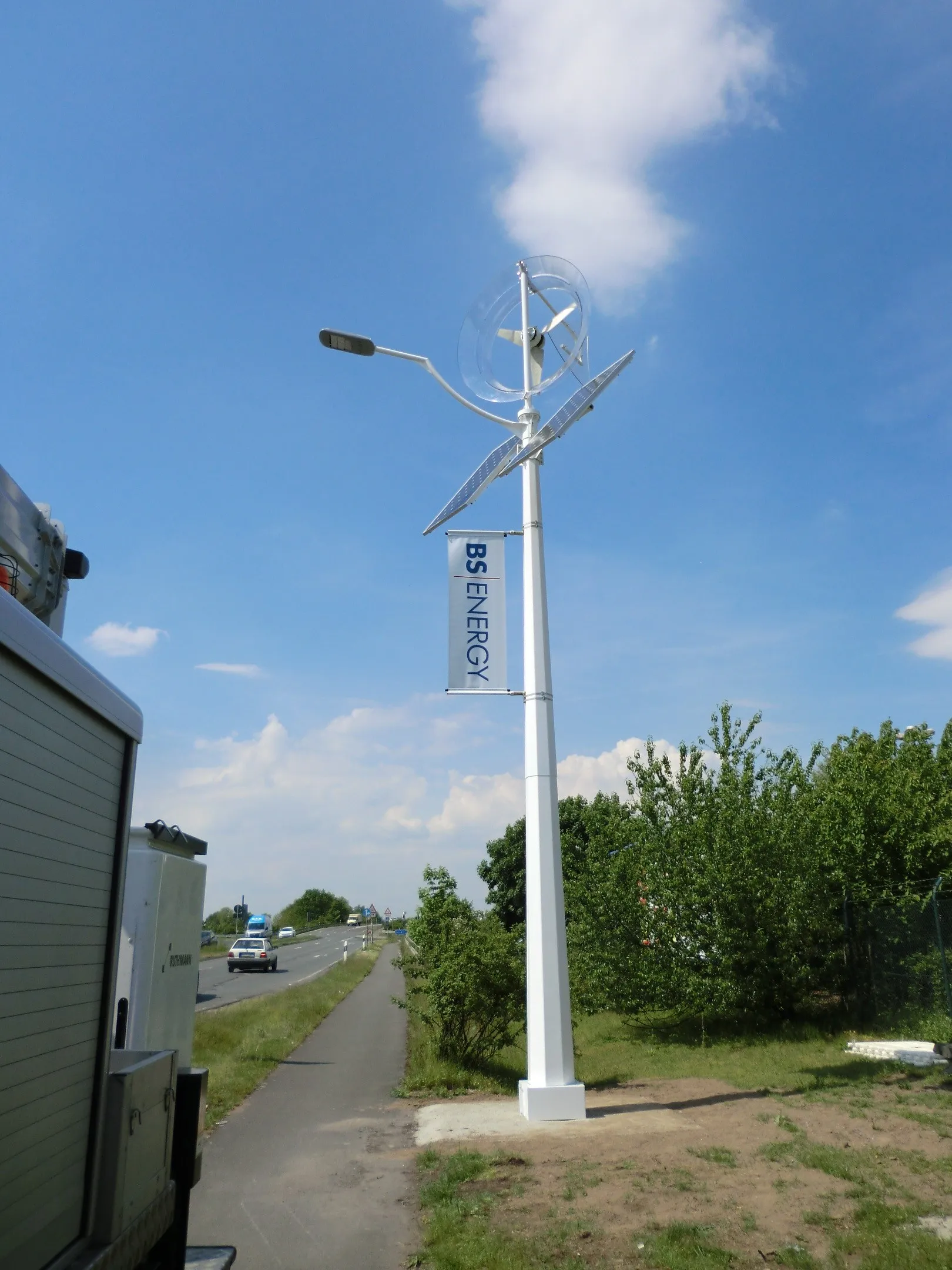

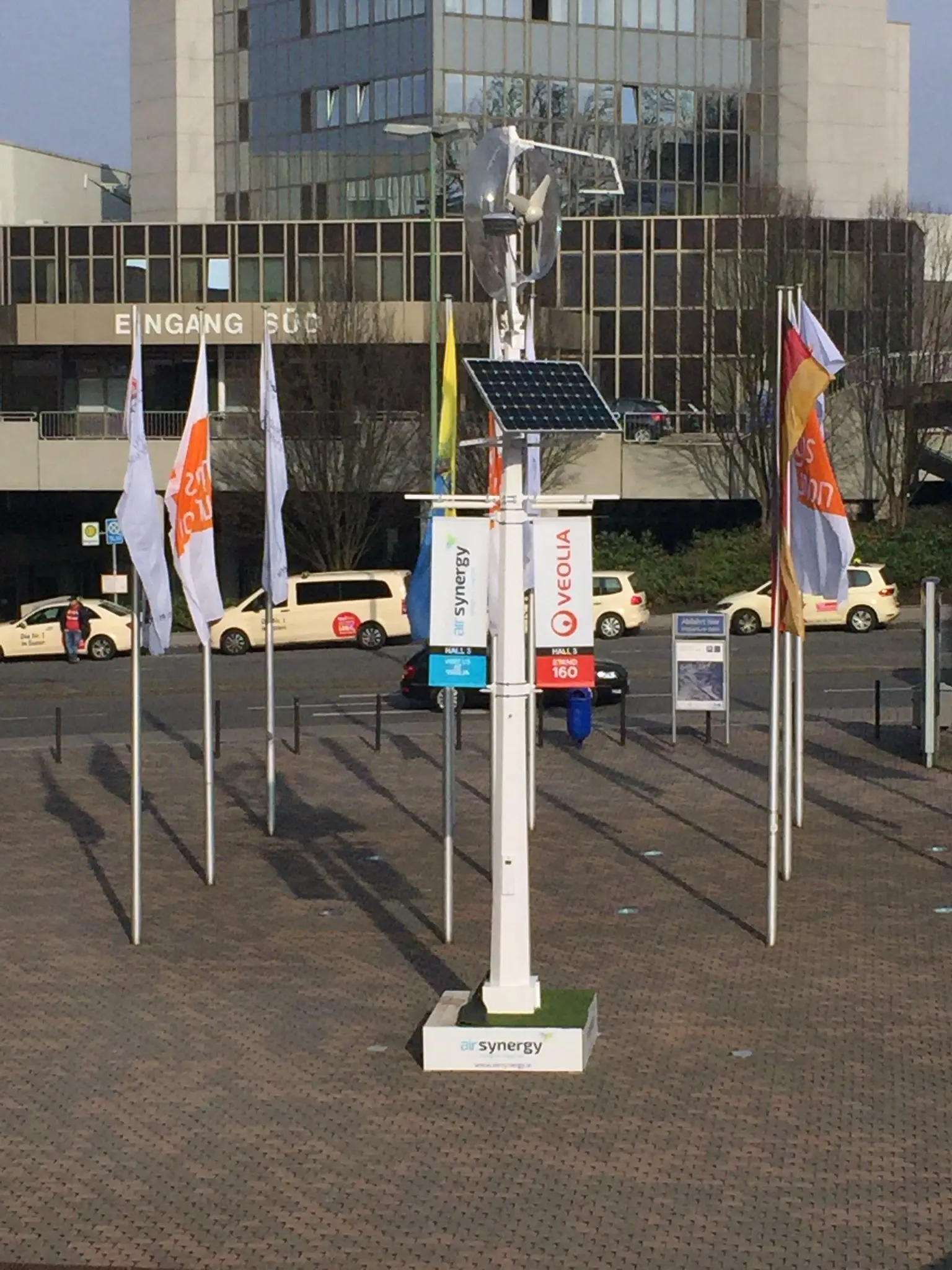

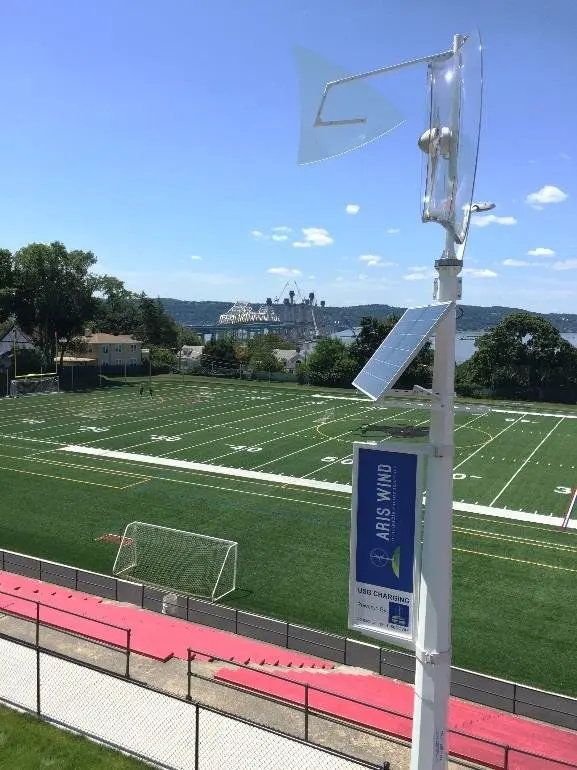

Projects Photos from customers

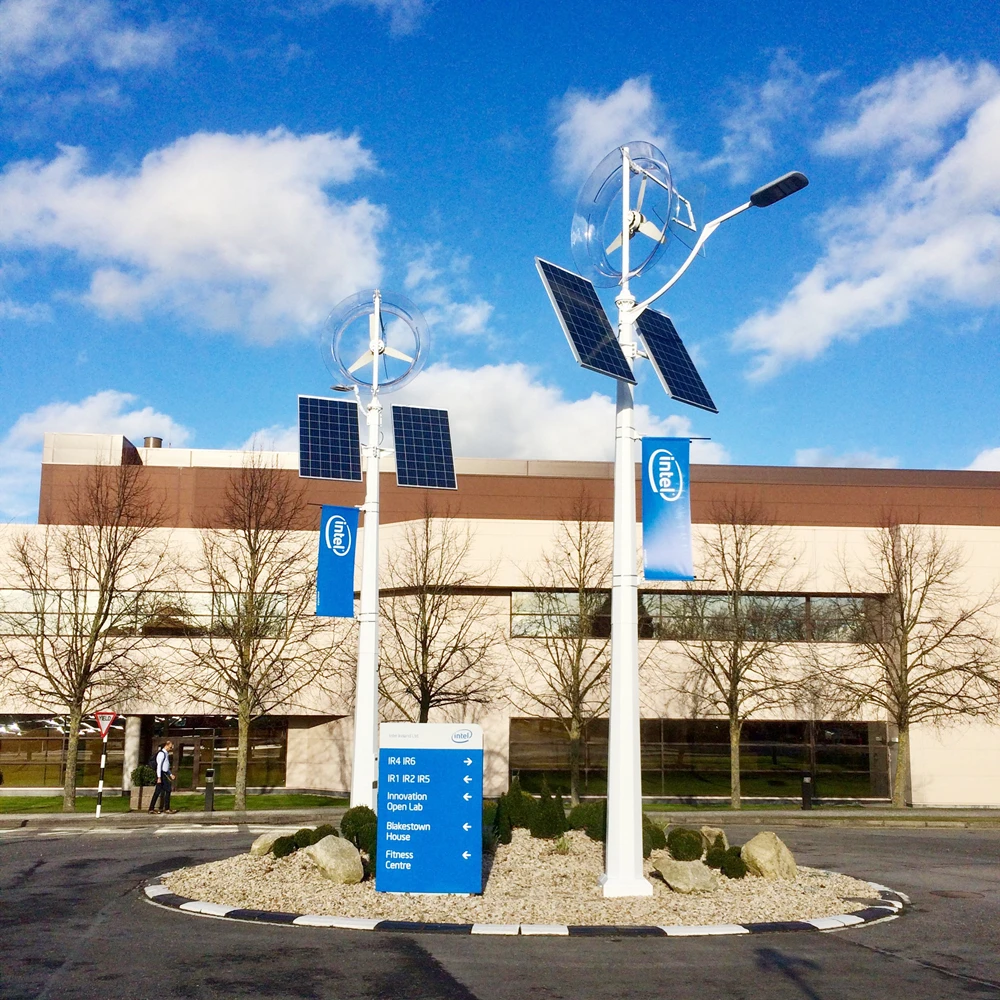

Intel
Airsynergy ISP’s at the main entrance to Intel’s European flagship facility.
Microsoft
Airsynergy ISP’s at Microsoft.
Kings County Hospital, US
Airsynergy ISP 11 Unit installation at
Brooklyn, New York


Certifications


The whole wind solar hybrid system has been passed UL certification, and the wind solar hybrid controllers, wind generator and other parts are all certificated by CE, FCC and UL.
A lot of effort are put into obtaining these certifications, so that customers can use them with confidence.


CE certification
FCC certification
UL certification


FAQ


1. If I purchase the system, how to install?
Airsynergy has many branches in Australia , Asia Pacific regions, Europe and North America, we can help to install, or guide you to finish it. Usually installation can be finished in 4 hours.
2. is this system certificated?
Yes, the ISP1/2 has been CE, FCC and UL certificated.
3. Can it support customize?
Yes sure, we can customize the system based on your demand.
4. Where is the manufacturer location?
We have two locations, one is in Ireland, the other is us- HUAXIAO in Shenzhen, China.
Capacity is approximately 2000 units per annual.
5. How can I purchase it?
You can purchase from us directly, the system will be exported from Shenzhen, China.
T/T or Alibaba order are available.
