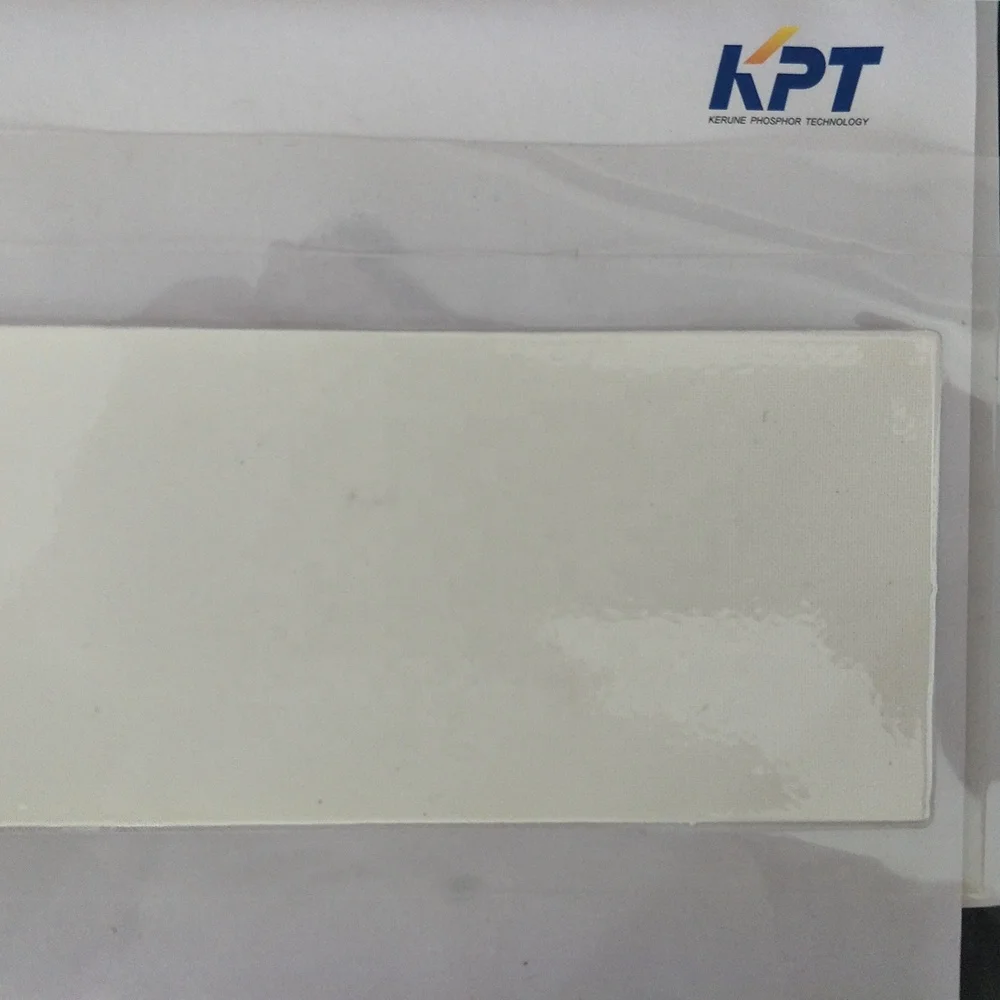

1. Scintillator Plate,Alpha Film for security X-ray Scanner
2. OEM for size, thickness detection effiency
2. Made of GOS, LIF, ZnS: AG
X-ray Screen Application
1.Dual energy detectors for baggage / end-of-line inspection
2. Which can be precision-cut in strips according to the customers requirements
3.according to the customers requirements, are the ideal scintillator choice for low energy detectors
4 Radiographic inspection of large-scale objects X-ray and gamma radiography of large objects such as sculptures, large engine blocks or rocket nozzles
5 They can be mounted on aluminium or other rigid substrates for ease of handling and deployment.
6 X-ray cabinets for postal screening
7 Other Applications Scintacor’s X-ray scintillator screens can be successfully used in a wide range of applications including, but not limited to security X-ray, end of line inspection X-ray, X-ray diffraction (XRD), X-ray powder diffraction, general X-Ray radiography, non-destructive testing (NDT), end-of-line inspection.
Applications include flash-radiography for industrial, scientific and defence research applications.
Single Unit /Customs-cut to any shape size
The Below is X-ray material introduction
Radiation Detecting and Imaging Luminescent Material
Name: Scintillator Powder Luminescent Materials
Application Goal:Detecting x, γ rays, neutrons, protons and other high-energy
particles excited by tritium radiation.
Application Area:Medical imaging, industrial detection, safety ray detection, cosmic
ray detection, detection instrument.
Nuclear physics experiment, oil well detection, microscopic
They are inorganic powder materials.They can be used independently or support scintillator single crystal materials.Manufacture finished products by printing, spraying, pressing and moulding.They have simple process, low cost, stable and are not liable to deliquesce .
Our company made a new generation of X340 high sensitive detection material.It is environmental protection,safety and can be used to support the organic scintillator.Make the 0.03 mm thickness film placed on the front of the organic scintillator bar.It can improve the sensitivity more than 20%.It can also be used independently in the photoelectric multiplier tube.
KPT can provide processing of imaging plates and customize different shapes, thickness and functional products.
KPT also provides high-energy ion absorbing materials and protective boards for neutron and X-ray absorption barriers.
