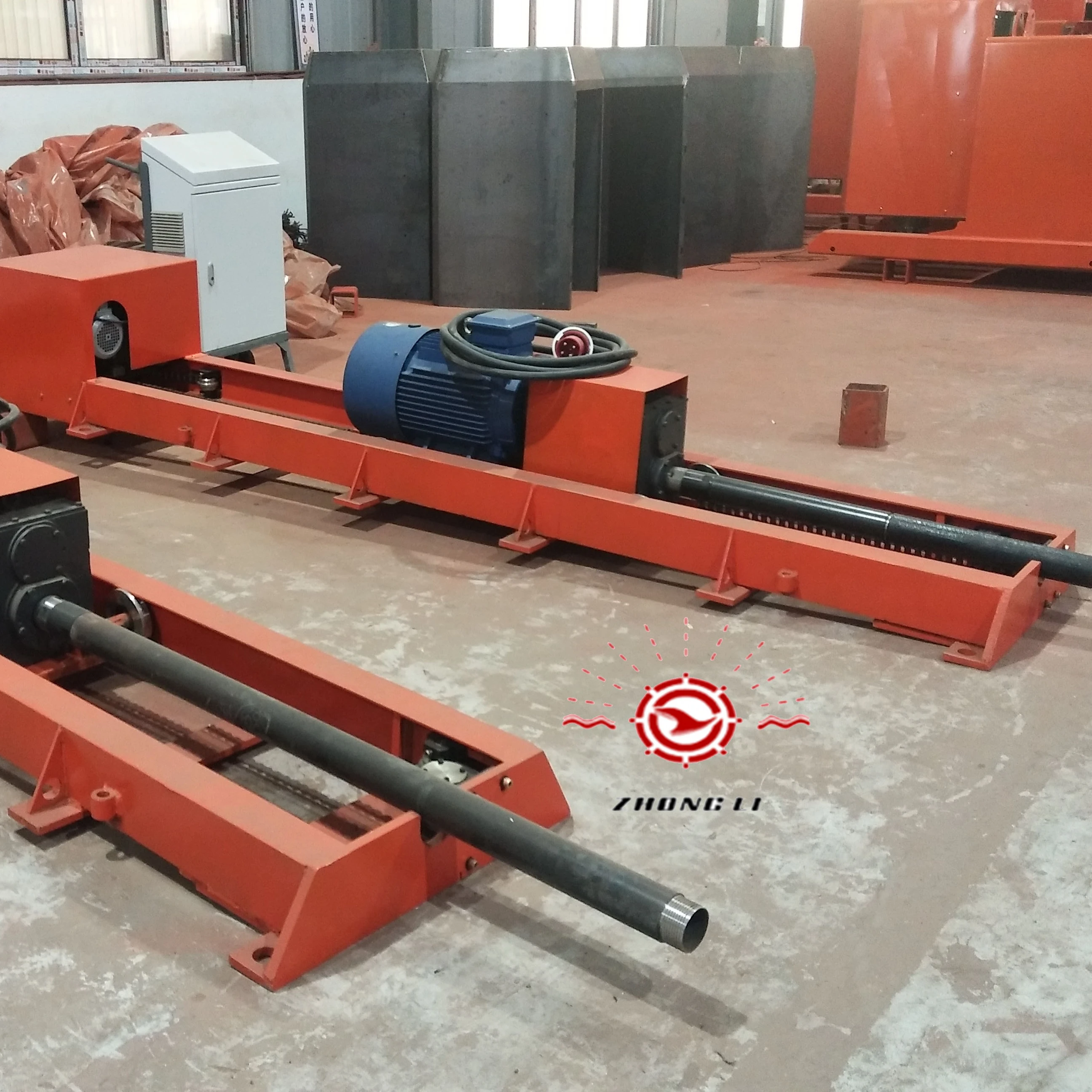

Horizontal Drilling Machine






Product Description


Specification






















































































ModelZL-15DOU FALZL-15 FAT
Bit dia.Φ75mmΦ75mm
Max depth of drilling30m30m
Speed of drilling3-5m/h3-5m/h
Walking speed of machine0-144m/h(slow:36cm/min;fast:240cm/min)
Main motor power15KW15KW
Total power16KW16KW
Walking motor power0.75KW
Main motor RPM0-980r/min0-980r/min
Rod specification(dia.*length)Φ73*150mmΦ73*150mm
Min. water-supply pressure0.1Mpa0.1Mpa
Drilling directionHorizontalHorizontal
Power feeding deviceStepless speed controlled by inverter
Allowed working temperature-15℃, +40℃
VoltageThree-phase, AC380±10%, 50HZ
Weight750KG 750KG
Dimension L*W*H3600*720*510mm3600*720*510mm







Application


Horizonttal drilling in large rock stripping and blasting operation, also widely used to holes before cutting of wire saw machine.





Features


The drilling operation of the horizontal stringing hole for the mining of granite, marble and stone mines, which has the characteristics of high drilling efficiency, long lifespan, convenient hole alignment and small error.


The drill autofeeder of the machine adopts the frequency inverter to drive the automatic feeding of the reducer. The control panel real-time displays the load current and feed speed.

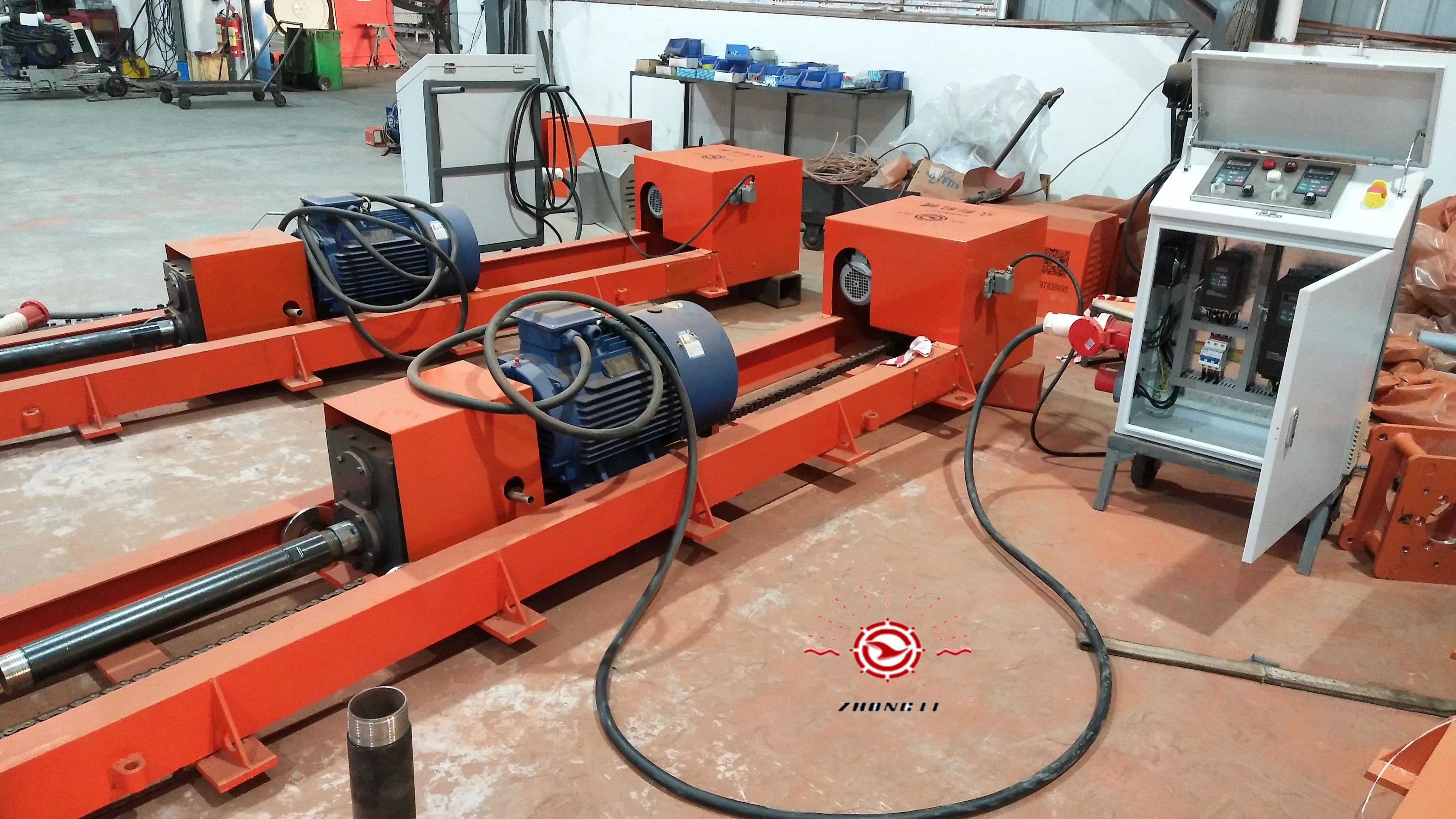

The operation is simple, saving time and effort. The main motor and the control cabinet are connected by aviation plug, which is easy to be installed and disassembled.


It is convenient, safe and reliable, meanwhile it has safety protection measures in case of lack of phase and overload.


High cost performance and low failure rate.





Contact Now, Ensuring quality and safety is our culture!!!


Contact uswe can OEM and ODM customized producing for you.


.jpg










1


























Diamond SegmentDiamond Wire SawDiamind Saw BladeDiamind Wire Saw Machine








Company Information




Established in 1991, Jiangxi Zhongli Superhard Material Tools Co., Ltd, has more than 20 years experience of Superhard Tools industry production. With an annual production capacity of hundred million pcs of segment, ZOOMLI now is Top 1 diamond superhard production enterprise in the world and its annual diamond consumption now in the front of ranks of countries.



ZOOMLI owns a international technical team, its technical talent force, hardware and software conditions, research and development ability are all in leading position of the same industry all over China. ZOOMLI is dedicated to its core value of “Customers spread all over the world, Benefit reach to each person” and its enterprise spirit of being “Unity, Integrity, Creative, Development” in order to keep moving towards its initial goal of focusing on products.








Packaging & Shipping









Transport ways choose:


a. Urgent order with less weight or samples we recommend express service.


b. Normal (regular) orders which weight over 45kgs we recommend Air Cargo.


c. Big diameter saw blades or heavy weight we recommend Sea Cargo.








Our Services


Our Services


a. MOQ: Any quantity you need is welcomed.


b. Customized Design: We can produce according to your request.


c. Good Service: We treat you need with high professionalism and passion.


d. Good Quality: Strict quality control system.Products get great feedback from customers.


e. Fast Delivery: We can delivery our cargo in 7 days, as soon as possible.





After-sales Service


a.Reply within 24 Hours


b.Professional consultation service is available within 24 hours after receiving your feedback regarding the items that that you bought.





Global Insurance Service


Global insurance service guarantees the safety of items when installation and application.





Compensation Policy


Any quality problem caused by our company side with enough evidence, we promise you that if could be re-produced for free.








FAQ


Q1. Are you a factory or trading company?


A1. We are a factory.





Q2. What's your MOQ?


A2. For our common specification, usually our MOQ should be 20pcs to 50pcs, but we accept lower quantity for your trial order.





Q3. How is your quality?


A3. We have a very seriously control system. We guarantee the high performance of our products.





Q4. Can we use our brand?


A4. Yes, we provide OEM service, just send your packaging design and Logo to us.





Q5.What is the Warranty for your products?


A5. For one year from the date of purchase, If any problem on our side, we will make prompt response, and take the shipping cost and send replacement.





Q6. Do you have different quality for different kind of stone?


A6. Yes, according hardness of stone and stone’s feature, we have different typology respectively.





Q7. If we need technical support, can you offer us?


A7. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product management staff, engineers and technicians.





Q8. How can we be your agent in our country?


A8. Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution for you.





Q9. Do you offer free samples?


A9. Normally we do not offer free samples, but we guaranty our product’s quality.





Q10. Is there cheap shipping cost to import to our country?


A10. For small order, Express will be the best, And for bulk order, sea ship way is best but take longer time. For urgent orders, we suggest via air to airport or by Express send to your door.





Q11. Which Express company you send? How many days we can receive?


A11. We are official partner of DHL, it will take only 3-5 days after we sent.





Q12. When you can reply to me when I send you an Inquiry?


A12. We promise to reply within 24 hours(not including holidays) on receipt of your inquiry.
