Огнеупорная деревянная печь LUYANGWOOL 1050c огнеупорная керамическая волоконная плита для изоляции печи
- Категория: Ceramic Fiber Boards >>>
- Поставщик: Luyang,Energy-Saving,Materials,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 4.94 $* | 4.29 $* |
| Jul-16-2025 | 3.73 $* | 3.34 $* |
| Jun-16-2025 | 4.26 $* | 4.8 $* |
| May-16-2025 | 4.94 $* | 4.15 $* |
| Apr-16-2025 | 3.18 $* | 3.46 $* |
| Mar-16-2025 | 4.88 $* | 4.35 $* |
| Feb-16-2025 | 4.31 $* | 4.82 $* |
| Jan-16-2025 | 4.45 $* | 4.53 $* |
Характеристики
Product Description

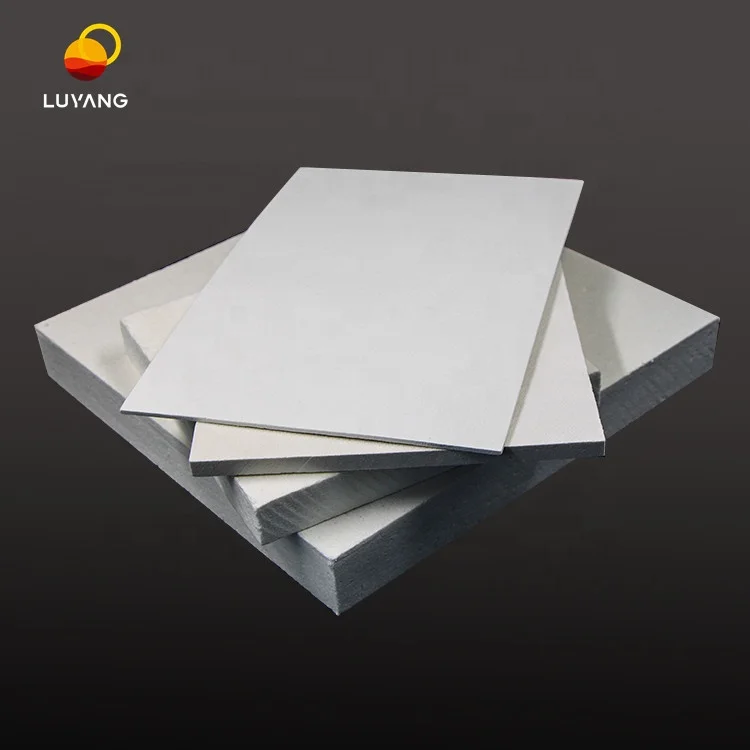

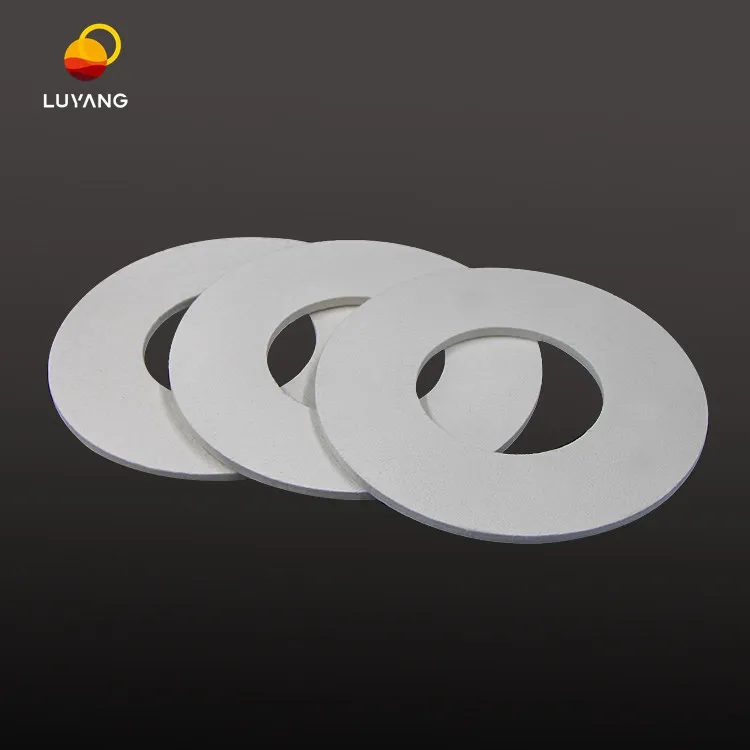

LUYANGWOOL® CERAMIC FIBER BOARD / RCF Board
Luyangwool® ceramic fiber board is manufactured in a wet forming process using Luyangwool® ceramic fiber bulk and binders. Luyangwool® ceramic fiber board is designed for insulation applications experiencing vibration, mechanical stress and erosive forces. Luyangwool® ceramic fiber board can reduce energy costs and cycling times due to high insulating capability, as well as serving to protect refractory surfaces from thermal shock and chemical attack.
LUYANGWOOL ® | ceramic fiber board |
Size & specification | 1. Length: 1200,1000,900,600mm; 2.Width:1000,600,400mm; 3.Thickness:6-50mm |
Density | 280--500kg/m3 |
Working temperature | 1050℃(1922℉) to 1350℃(2462℉) |
Certificate | MSDS, ISO9001, CE Standard: TUV,BV,SGS |
Sample | We supply small cutting sample for free ! |
Package | Carton or Pallet |
Features
♦Excellent heat stability&thermal shock resistance
♦Can be machined, cut and shaped easily
♦High rigidity and light weight
♦Low thermal conductivity
♦Low heat storage
♦Can be machined, cut and shaped easily
♦High rigidity and light weight
♦Low thermal conductivity
♦Low heat storage
♦ structure homogeneity and easy machining
♦ Even fiber with stable property
♦ High compression strength
♦ Non–fragile materials and good toughness
♦ Accurate dimension and good paleness
♦ Even fiber with stable property
♦ High compression strength
♦ Non–fragile materials and good toughness
♦ Accurate dimension and good paleness
Typical Parameters
Description | LUYANGWOOL® STD BOARD | LUYANGWOOL® HP BOARD | LUYANGWOOL® HA BOARD | LUYANGWOOL® HZ BOARD | ||||
Classification Temperature (℃ ) | 1260 | 1260 | 1350 | 1430 | ||||
Color | White | White | White | White | ||||
Density (kg/m³) | 250/300/360 | 250/300/360 | 300/360 | 300/360 | ||||
Modules of Rupture (MPa) | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.3 | ||||
Compressive Strength (MPa, 10% relative deformation) | 0.15/0.25/0.3 | 0.25/0.3 | 0.25/0.3 | 0.25/0.3 | ||||
Loss of Ignition (%) | ≤6 | ≤6 | ≤6 | ≤6 | ||||
Permanent Linear Shrinkage (%) | 1000℃ x 24h ≤3.0 | 1100℃ x 24h ≤3.0 | 1200℃ x 24h ≤3.5 | 1350℃ x 24h ≤3.5 | ||||
Thermal Conductivity (W/m·K) | ||||||||
400℃ | 0.08 | 0.07 | 0.07 | 0.07 | ||||
600℃ | 0.11 | 0.10 | 0.10 | 0.09 | ||||
800℃ | 0.14 | 0.14 | 0.13 | 0.13 | ||||
1000℃ | 0.19 | 0.19 | 0.19 | 0.18 | ||||
Application
Application
1. High temperature reaction, heating equipment backing insulation and heat insulation
2. Kiln backing insulation in petroleum, chemical and metallurgical industries
3. Heat treatment kiln backing insulation
4. Non-ferrous metal industry backing insulation
5. Backing insulation of kiln in cement and other building materials industries
6. Industrial kiln wall lining, backing material, kiln masonry expansion joint, furnace door, roof cover insulation material
1. High temperature reaction, heating equipment backing insulation and heat insulation
2. Kiln backing insulation in petroleum, chemical and metallurgical industries
3. Heat treatment kiln backing insulation
4. Non-ferrous metal industry backing insulation
5. Backing insulation of kiln in cement and other building materials industries
6. Industrial kiln wall lining, backing material, kiln masonry expansion joint, furnace door, roof cover insulation material
Packing & Delivery
Production Line
Company Profile
Luyang Energy-saving Materials Co., Ltd. was established in 1984 and listed in Shenzhen Stock Exchange in 2006 (Stock Code: 002088). Going through more than 30 years development, Luyang has become a world famous enterprise for new energy-saving materials researching, manufacturing and selling in the field of ceramic fibers, soluble fibers, alumina fibers, rock wool fibers and insulating firebricks.
Luyang is a professional inorganic fiber materials manufacturer; drafting unit of international standards and national standards; leaders in energy-saving and environmental protection materials. Luyang has national-recognized enterprise technology center and State Key Laboratory of enterprise. Luyang has 126 patents and 54 scientific and technological achievements.
Luyang is a professional inorganic fiber materials manufacturer; drafting unit of international standards and national standards; leaders in energy-saving and environmental protection materials. Luyang has national-recognized enterprise technology center and State Key Laboratory of enterprise. Luyang has 126 patents and 54 scientific and technological achievements.
Luyang has an annual output of 350,000 tons of various ceramic fiber products and 180,000 tons of rock wool products. Luyang has five production bases in Shandong, Inner Mongolia, Xinjiang, Guiyang and Suzhou. Luyang has maintained a leading position in scale, technology, variety and efficiency in domestic industries for many years and ascends among the world's ceramic fiber industry forefront. Luyang products are in great demand nationwide and sold in more than sixty countries and regions, such as USA, EU, Japan, Vietnam. Luyang products are applied widely in the field of petrochemical refractory insulation, long-distance pipe network insulation, building fire insulation, shipping fire prevention, household appliances fire insulation, high-temperature insulation etc.
Our service
1. Strict QC & Fast delivery.2. Free samples are available by freight collect.
3. High quality goods, Perfect Pre-sales, and good designing service.
4. Welcome to visit our factory at anytime on site or online .
5. We will update you the production process after placing order by photos or online.
6. We have special after-sales team to solve your problem during using our products.
3. High quality goods, Perfect Pre-sales, and good designing service.
4. Welcome to visit our factory at anytime on site or online .
5. We will update you the production process after placing order by photos or online.
6. We have special after-sales team to solve your problem during using our products.
FAQ
1.You are a manufacture or a trading company ?
We are a manufacturer founded in 1984, located in Shandong China, with 8 branches.We not only provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.
2.What kind of product can you offer ?
Our company can offer all kind of refractory insulation materials. For example: Ceramic Fiber Products, Soluble Fiber Products,Alumina Fiber Products, Microporous Board, Insulating Firebricks, Calcium Silicate Products, Mineral Wool, Rock Wool Etc.
3.Can you provide free samples ?
Free samples are available !
4.What is your MOQ?
We don't have particular MOQ, we can accept any order for any different projects.Price depends on quantity.
5.Can we have a visit to your factory ?
Yes! Of course,welcome to visit our factory at anytime on site or online !
2.What kind of product can you offer ?
Our company can offer all kind of refractory insulation materials. For example: Ceramic Fiber Products, Soluble Fiber Products,Alumina Fiber Products, Microporous Board, Insulating Firebricks, Calcium Silicate Products, Mineral Wool, Rock Wool Etc.
3.Can you provide free samples ?
Free samples are available !
4.What is your MOQ?
We don't have particular MOQ, we can accept any order for any different projects.Price depends on quantity.
5.Can we have a visit to your factory ?
Yes! Of course,welcome to visit our factory at anytime on site or online !
