Product Overview

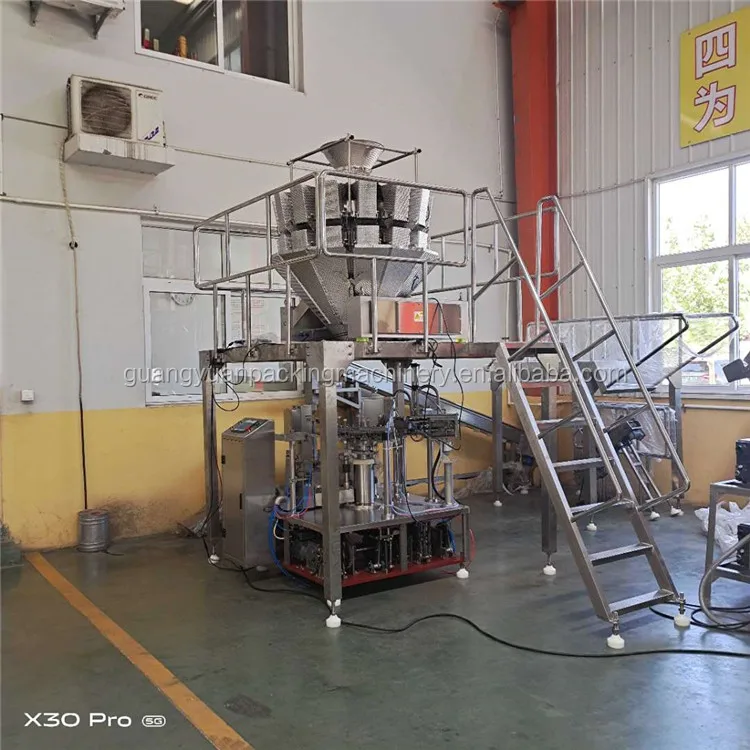

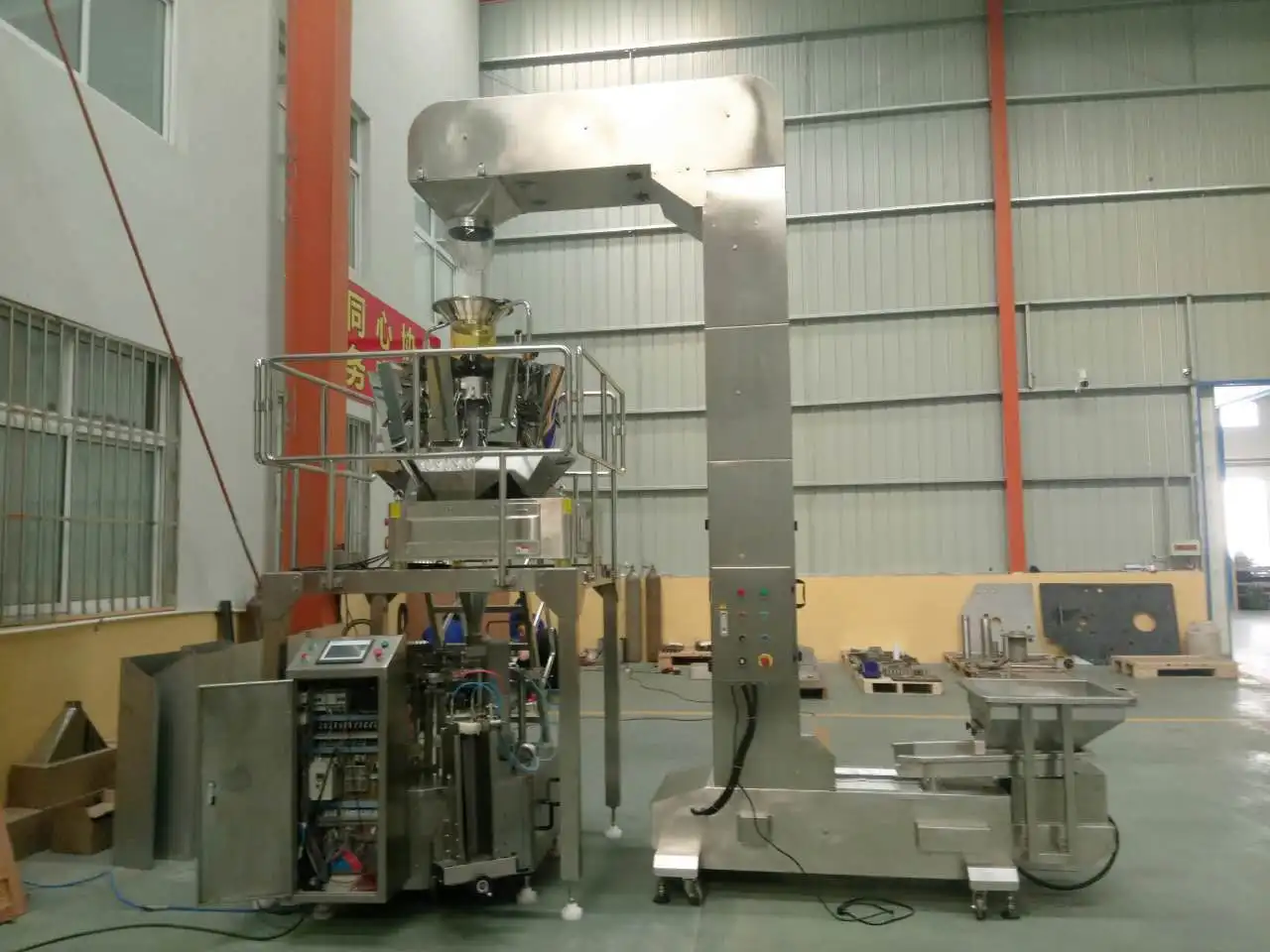

This whole plant consists of 10-head weigher, 8-working station type automatic pouch offer packing machine, support frame platform etc. The packing machine will finish a series of packing material feeding, weighing filling, pouch offer, opening, vacuum, sealing, date coding function.
All parts is SUS304 comply to food safety grade. The working principle is automatic combination weighing filling vacuuming sealing, this will make the weighing much accuracy and higher packing speed. Widen Application This plant is design for packing food, vegetable, fruit, potato chips, fried snacks, popcorn, frozen food etc. It is suit for all type of pre-made pouch: zipper pouch, flat pouch, gusset pouch etc..
The packing machine will finish a series of packing material feeding, weighing filling, pouch offering, opening, vacuuming, sealing, date coding function.
Our Features：
[1]Control System: SIEMENS PLC; SIEMENS 10 inches colorful simulation touch screen; Delta variable frequency drive system; Schneider and OMRON electric appliance;SMC electromagnetic pneumatic system.
[2]Pneumatic Speed Compensation System(QSC):This system is Guangyuan original system, and solve the problem of pneumatic system delay.
[3]Gear and CAM drive: the main drive of this machine adopts gear drive and CAM drive, and the working surface is all heat-treated, which greatly improves the service life of the drive system and the stability of the whole machine. Important CAM groove CAM mode, the cancellation of the reset spring, no longer have to worry about spring fracture damage to the equipment.
[4]Self-locking structure of mechanical claw: the original self-locking structure of mechanical claw completely subvert the previous way of spring providing clamping force, completely eliminate the bag spring, greatly reduce the force of opening claw, reduce mechanical wear and improve service life.
[5]Flexible mechanical drive system. All the hard points of the machine are flexible buffering, so that the whole machine is running very smoothly, effectively protect the service life of the parts.
[6]Split-type body: the only split-type and fully processed body in China, the rocker arm and support seat inside the frame are all made of stainless steel 304 material, which is guaranteed for life.
[7]Automatic detection function: it can automatically detect whether there is a bag in the bag box, automatically detect whether the bag is opened and decide whether to feed, and automatically detect whether there is a material in the bag and decide whether to seal.
[8]Empty bag recovery system: bags that are not opened, put into the bag, bag without feeding, etc., will not be sealed. They will be collected in the last station and can be reused.
[9]Single CAM system for bagging
[10]Vacuum part of the original full track
[11]The unique installation method of separate floating heating strip and the original intelligent
temperature control system of heating strip can greatly improve the service life of heating strip and maintain the sealing quality for a long time, maintain the stability of sealing, and greatly reduce the rate of defective products.
[12]Water rinsing: except for the electric cabinet and upper bag box, other surface parts can be rinsed with water, saving a lot of time and difficulty in cleaning.
All parts is SUS304 comply to food safety grade. The working principle is automatic combination weighing filling vacuuming sealing, this will make the weighing much accuracy and higher packing speed. Widen Application This plant is design for packing food, vegetable, fruit, potato chips, fried snacks, popcorn, frozen food etc. It is suit for all type of pre-made pouch: zipper pouch, flat pouch, gusset pouch etc..
The packing machine will finish a series of packing material feeding, weighing filling, pouch offering, opening, vacuuming, sealing, date coding function.
Our Features：
[1]Control System: SIEMENS PLC; SIEMENS 10 inches colorful simulation touch screen; Delta variable frequency drive system; Schneider and OMRON electric appliance;SMC electromagnetic pneumatic system.
[2]Pneumatic Speed Compensation System(QSC):This system is Guangyuan original system, and solve the problem of pneumatic system delay.
[3]Gear and CAM drive: the main drive of this machine adopts gear drive and CAM drive, and the working surface is all heat-treated, which greatly improves the service life of the drive system and the stability of the whole machine. Important CAM groove CAM mode, the cancellation of the reset spring, no longer have to worry about spring fracture damage to the equipment.
[4]Self-locking structure of mechanical claw: the original self-locking structure of mechanical claw completely subvert the previous way of spring providing clamping force, completely eliminate the bag spring, greatly reduce the force of opening claw, reduce mechanical wear and improve service life.
[5]Flexible mechanical drive system. All the hard points of the machine are flexible buffering, so that the whole machine is running very smoothly, effectively protect the service life of the parts.
[6]Split-type body: the only split-type and fully processed body in China, the rocker arm and support seat inside the frame are all made of stainless steel 304 material, which is guaranteed for life.
[7]Automatic detection function: it can automatically detect whether there is a bag in the bag box, automatically detect whether the bag is opened and decide whether to feed, and automatically detect whether there is a material in the bag and decide whether to seal.
[8]Empty bag recovery system: bags that are not opened, put into the bag, bag without feeding, etc., will not be sealed. They will be collected in the last station and can be reused.
[9]Single CAM system for bagging
[10]Vacuum part of the original full track
[11]The unique installation method of separate floating heating strip and the original intelligent
temperature control system of heating strip can greatly improve the service life of heating strip and maintain the sealing quality for a long time, maintain the stability of sealing, and greatly reduce the rate of defective products.
[12]Water rinsing: except for the electric cabinet and upper bag box, other surface parts can be rinsed with water, saving a lot of time and difficulty in cleaning.
FEATURES AT A GLANCE
Original mechanical claw self-locking structure, overturn the previous way in which spring provide clamping force.
The bag clamping spring is completely eliminated, the force for opening the claw is greatly reduced to reduce mechanical wear and increse the service life.
Prefect detection safety system to ensure that the equipment will not collide with the machine.
The bag clamping spring is completely eliminated, the force for opening the claw is greatly reduced to reduce mechanical wear and increse the service life.
Prefect detection safety system to ensure that the equipment will not collide with the machine.
PRODUCT SPECIFICATIONS
Model | 8SK | ||||||
Work station | 8 | ||||||
Bag material | Composite film, PE film, PP, aluminum foil, etc | ||||||
Bag size | W:100-220mm L:120-320mm | ||||||
Speed | 15-60 pouches/min（The speed depends on the product status and flling weight） | ||||||
Weight | 1500KG | ||||||
Power | 380V，50HZ ( Acording your requirements) | ||||||
Voltage | 3.2KW | ||||||
Air compressor | 0.5m3/min(supply by consumer) | ||||||
Size(mm) | 2500(L)X1900(W)X1750(H) | ||||||
