15 Вт DC солнечная энергетическая система для
- Категория: Светильник на солнечной батарее >>>
- Поставщик: Foshan,Snat,Energy,Electrical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 24.57 $* | 25.73 $* |
| Aug-15-2025 | 24.82 $* | 25.2 $* |
| Jul-15-2025 | 20.39 $* | 21.0 $* |
| Jun-15-2025 | 23.61 $* | 24.3 $* |
| May-15-2025 | 20.37 $* | 21.83 $* |
| Apr-15-2025 | 23.28 $* | 24.50 $* |
| Mar-15-2025 | 23.73 $* | 24.98 $* |
| Feb-15-2025 | 22.73 $* | 23.25 $* |
| Jan-15-2025 | 22.63 $* | 23.8 $* |
Характеристики

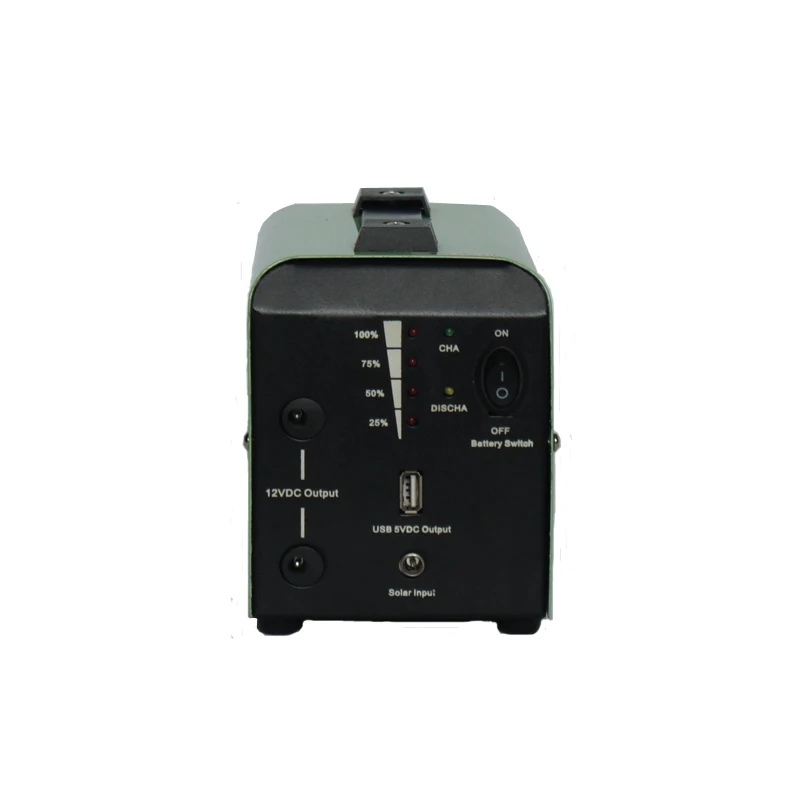

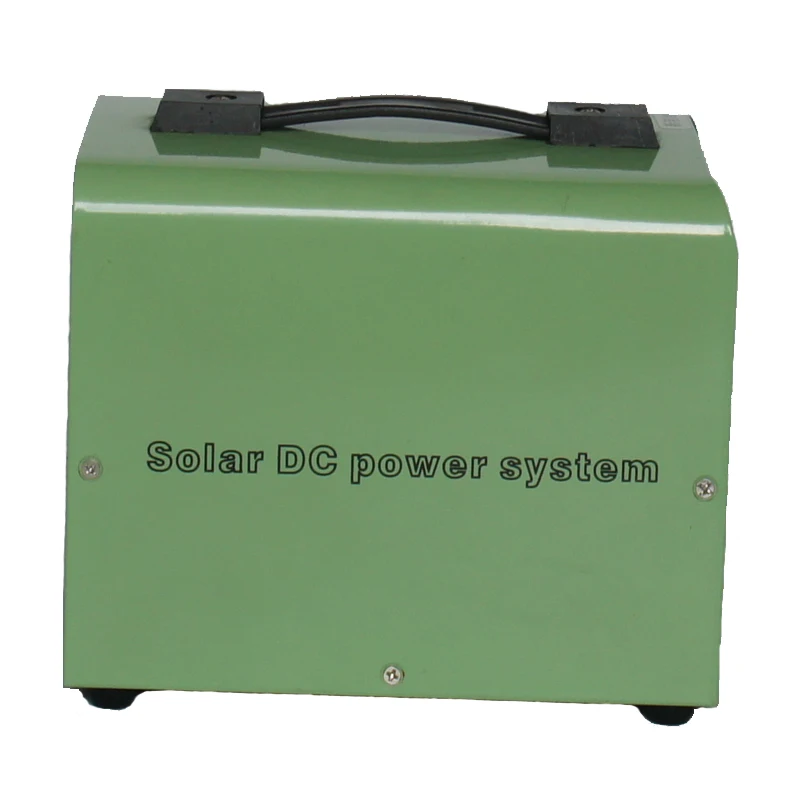

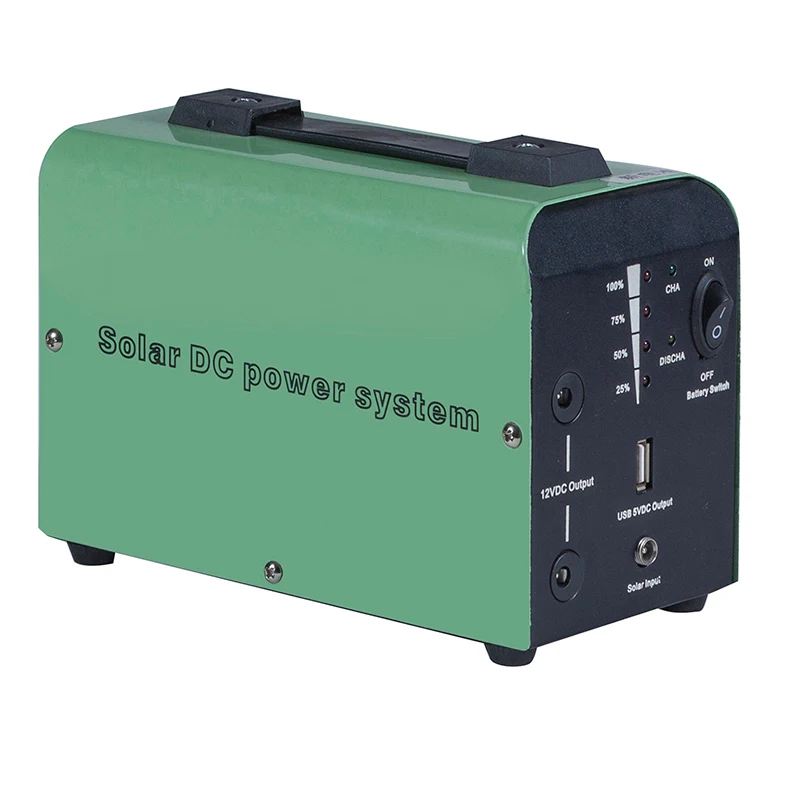

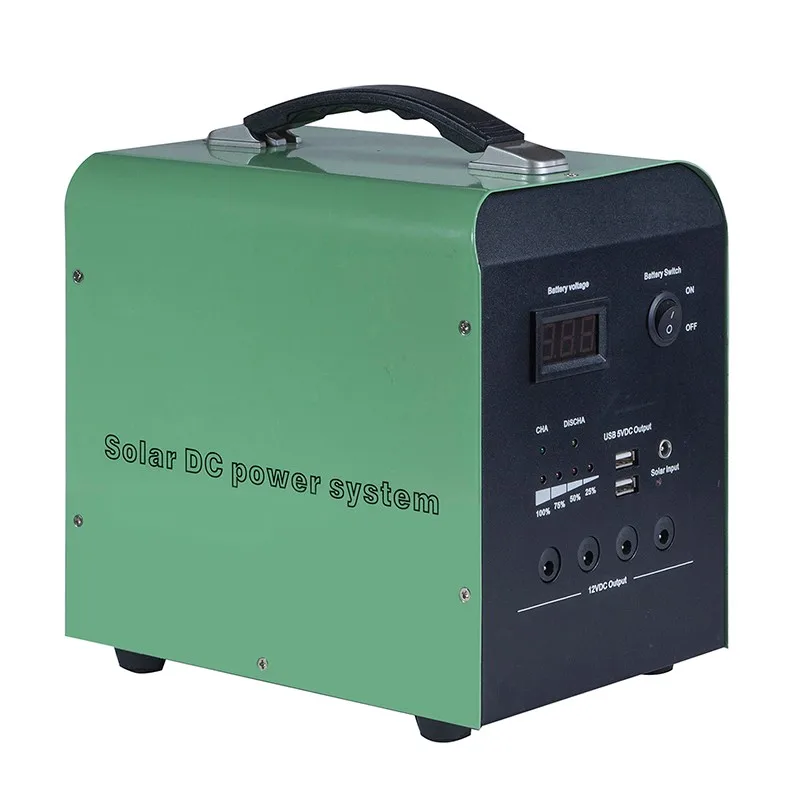

15W 12V 7AH portable solar panel kit for home
SNADI 15W portable solar panel kit for home is included 7Ah 12V DC solar system and 15W solar panel, 2 DC 3W LED lights for charging and lighting go camping, desert, house using.
We're factory to accept orders do customized design order, various specification and certificated by CE, ISO.
Product display
Model | DL-15W | DL-20W | DL-50W | DL-100W | DL-150W |
Solar power | 15W | 20W | 50W | 100W | 150W |
Battery capacity | 7AH | 12AH | 24AH | 50AH | 100AH |
USB (Regular) | 5VDC X2 | ||||
Lights (Regular) | 12VDC X2 | 12VDC X4 | 12VDC X5 | 12VDC X6 | |
Product Description
This 15W portable solar panel kit for home uses portable design, built-in battery and solar power controller, which is dedicated to supply the power to small power DC load ;
Main features:
1, the single chip microcomputer intelligent control, optimize the SOC algorithm.
2, the built-in temperature sensor, which can effectively increase the built-in battery charging efficiency.
3, with the charge and discharge, electronic short circuit protection, overload protection, automatic control for the protection of the unique reverse.
4, main circuit adopted tandem PWM charging, which made the charging circuit of voltage loss than using diode charging circuit to reduce the nearly half, charging efficiency is higher 3%-6% than the non-PWM , increases the utilization of time.
5, put the ascension of charging, normal straight charger, floating automatic control method make the system have a longer service life.
6, intuitive digital pipe + LED display system.
Name: | 15W portable solar panel kit for home | |||||
Mode:DL | 7AH | 12AH | 24AH | 50AH | 100AH | |
solar panel | Monocrystalline dilicon or polycrystalline silicon panel of class A | |||||
Rated power | 10W | 20W | 30W | 50W | 100W | |
solar panel dimensions | 96*136*193 | 126*156*193 | 163*244*234 | 176*279*288 | 213*300*383 | |
battery tpye | Deep -cycle maintenance -free lead -acid battery | |||||
Batterycapacity | 12V/7AH 12V/12AH | 12V/24AH 50AH | 100AH | |||
Controller | solar mode | Efficient PWM | ||||
Charge current | 5A/12V 10A/12V | |||||
protection function | overcharge protection,overdischarge protection,electronic circuit short circuit protection,overload protection | |||||
Voltage of overcharge protection | 14.3v | |||||
voltage of boosting charge | 14.0v | |||||
Voltage of floating charge | 13.8V;×2/24V;×4/48V;×8/96V; | |||||
Display of nixie tube | Current voltage of the battery | |||||
| voltage of overdischarge protection | 10.5v | |||||
indication of LEDs | charge indication ,load indiction ,and battery indication | |||||
DC output | maximum output power | 60W(12V/5A) 120W (12V 10A) | ||||
DC12v |
2 Output port 4 output port 5 output port 6 output port | |||||
DC5VUSB | 1USB output port (MAX.2A) 2USB output port(MAX .3A) | |||||
accessories included
| 12VDC LED indicator
| A 3w LED and a 5W LED(inculding 2 lamp holders ,a 3M lamp wire and a 5w lamp wire |
TWO 3w LEDs and two 5W LEDs (including 4 lamp holders ,two 3m amp wires and two 5w lamp wire )
| |||
USB charge line
| A universal charge line | |||||
solar panel bracket
| A set (including 2 pieces) | |||||
electric wire of the solar panel | 5M | |||||
AC charge | An optional accessory when there is no solar power supply and charging by mains supply | |||||
Product Display

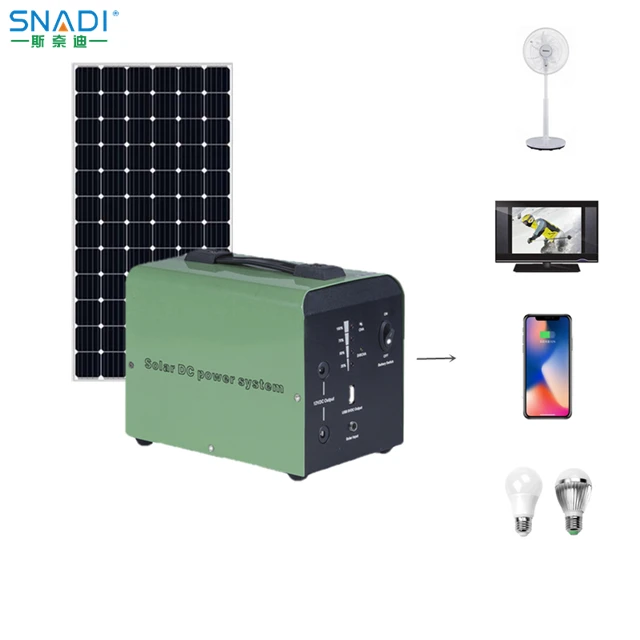

Application
Certifications
A. More than 10 years technical experience and advanced equipment
Our products are selling to all over the world, such as North America, south America,Eastern Europe, Southest Asia ,Africa and Mid-East,etc…
B. Quality Certification
80% electronic components are imported,to make sure the products with high quality and reliable excellent performance.
All of our products have CE certification, ISO9001:2008.
C. OEM & ODM
OEM & ODM are available which can meet your any request with our professional engineering team.
D. Quality Service
Any inquiry replied within 12 hours
Any problem resolved within 24 hours
With 12 months warranty
E. As a leading manufacturer,the price of our products is competitive.
Company Information
Foshan SNAT Energy Electrical Technology Co. Ltd is established in 2004. As a world's leading supplier for solutions for electric energy and new energy, SNAT has powerful strength and is engaged in field of solar energy kits for home, solar inverters, solar inverters with built-in solar controller, solar controllers, UPS
Production Processes
Packaging & Shipping
Product Recommended
Contact US
Click here to contact me immediately for more information.
