XSD колеса песок стиральная машина с новой технологией речная Песочная транспортная моющее оборудование для
- Категория: Sand Washer >>>
- Поставщик: Zhengzhou,Shibo,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 4736.85 $* | 4973.13 $* |
| Aug-19-2025 | 4696.82 $* | 4931.96 $* |
| Jul-19-2025 | 3940.12 $* | 4137.98 $* |
| Jun-19-2025 | 4617.29 $* | 4848.98 $* |
| May-19-2025 | 4020.96 $* | 4221.36 $* |
| Apr-19-2025 | 4537.58 $* | 4764.63 $* |
| Mar-19-2025 | 4497.58 $* | 4722.9 $* |
| Feb-19-2025 | 4458.33 $* | 4681.98 $* |
| Jan-19-2025 | 4418.87 $* | 4639.51 $* |
Характеристики

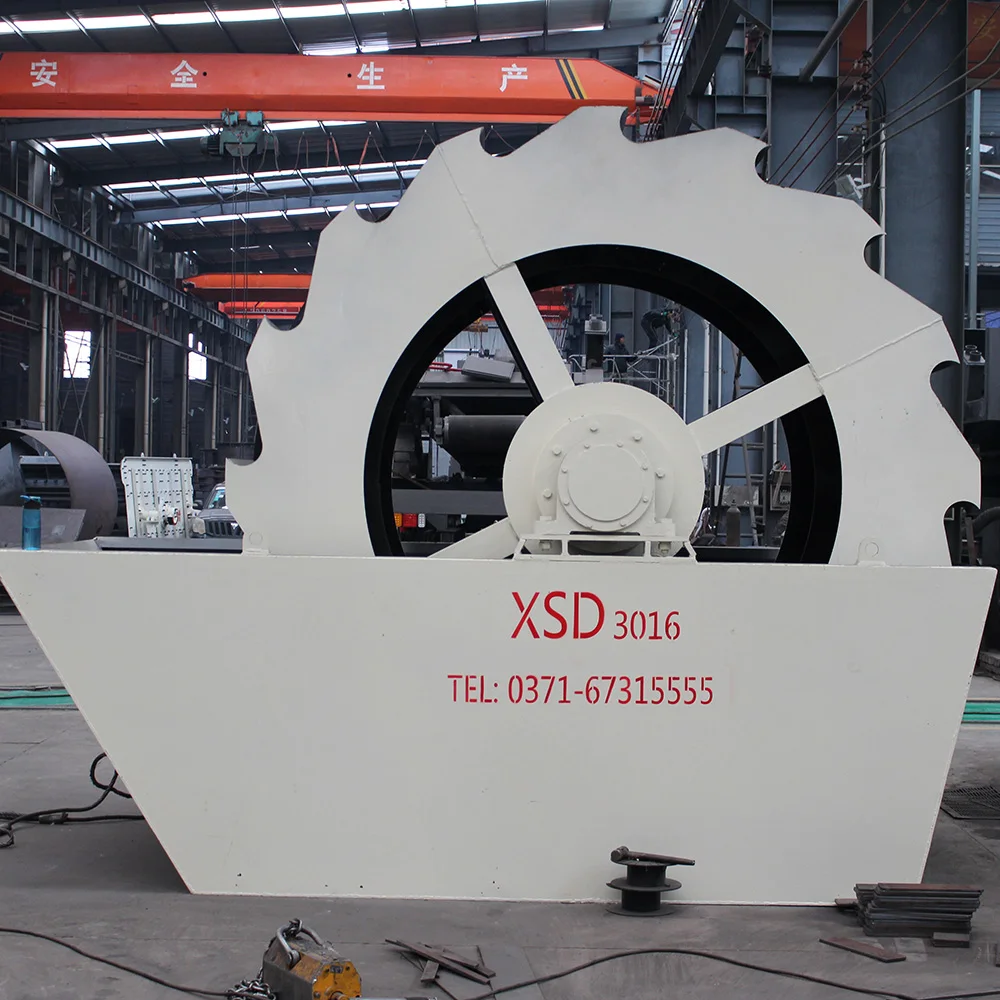

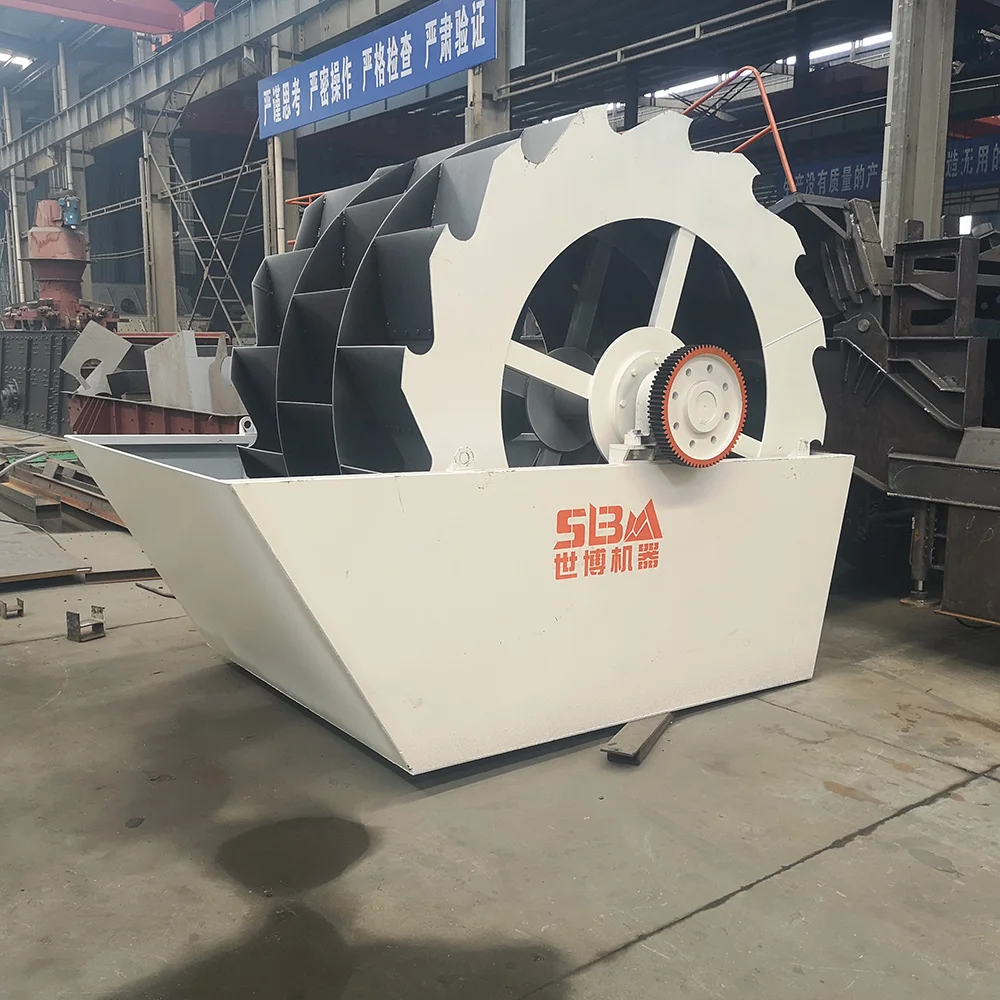

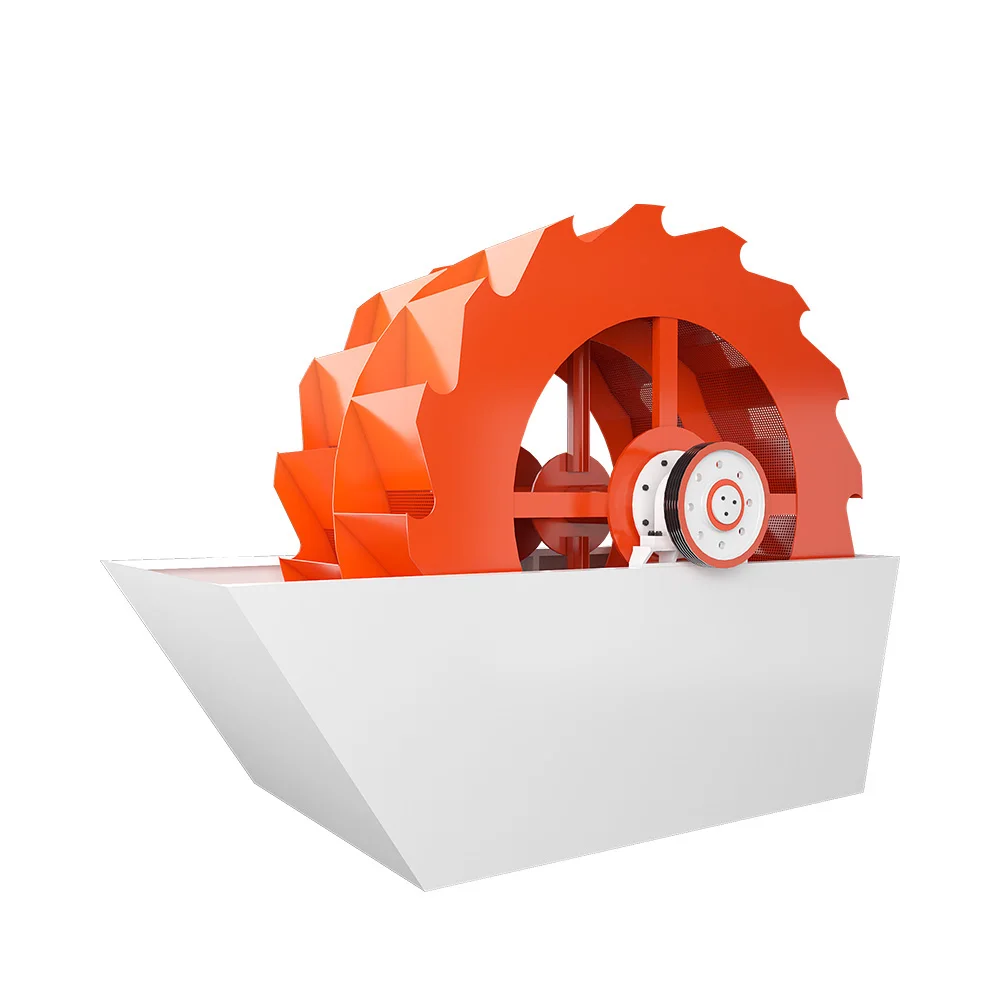

Bucket Wheel Sand Washer Silk Sand Washing Plant Line River Sand Washing Machine
Product Description
Wheel bucket sand washer is one kind of sand washing machine working together with sand making machine, it can clean and separate dust from sand. It's new seal-structure and reliable driving device can make sure the cleaning effective. Bucket sand washer is mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc.
Working Principle
When the machine works, the motor drives the impeller run slowly after being decelerated by v-belt, reducer and gear; Sand enters the wash trough through feeding tank, rolls pushed by the impeller, and rubs mutually to remove the impurities covering on the surface of the sand, it breaks the water vapor which favors dewatering; At the same time, the strong water flow takes the impurities away and discharged from the overall; The clean sand is taken away by the impellers, when rising, the water drops down to the wash through from the nets, this can both dewater the sand and save waste; Finally, the sand is poured into the discharge chute and finished cleaning.
When the machine works, the motor drives the impeller run slowly after being decelerated by v-belt, reducer and gear; Sand enters the wash trough through feeding tank, rolls pushed by the impeller, and rubs mutually to remove the impurities covering on the surface of the sand, it breaks the water vapor which favors dewatering; At the same time, the strong water flow takes the impurities away and discharged from the overall; The clean sand is taken away by the impellers, when rising, the water drops down to the wash through from the nets, this can both dewater the sand and save waste; Finally, the sand is poured into the discharge chute and finished cleaning.
Features
1.Simple structure;
2.The bearing device of impeller drive is separated from water and 1 materials with water, to avoid the damage of the bearing;
3.New sealing structure and reliable transmission device;
4.Reasonable structure;
5.High capacity, low power consumption;
6.Easy structure, stable operation.
1.Simple structure;
2.The bearing device of impeller drive is separated from water and 1 materials with water, to avoid the damage of the bearing;
3.New sealing structure and reliable transmission device;
4.Reasonable structure;
5.High capacity, low power consumption;
6.Easy structure, stable operation.
Model | Impeller (mm) | Feeding size (mm) | Capacity (t/h) | Motor power (kw) |
XSD2610 | 2600 | ≤10 | 30-60 | 7.5 |
XSD2900 | 2900 | 50-90 | 15 | |
XSD3016 | 3000 | 80-120 | 18.5 | |
XSD3220 | 3000 | 120-200 | 22 | |
XSD3620 | 3600 | 150-280 | 30 |

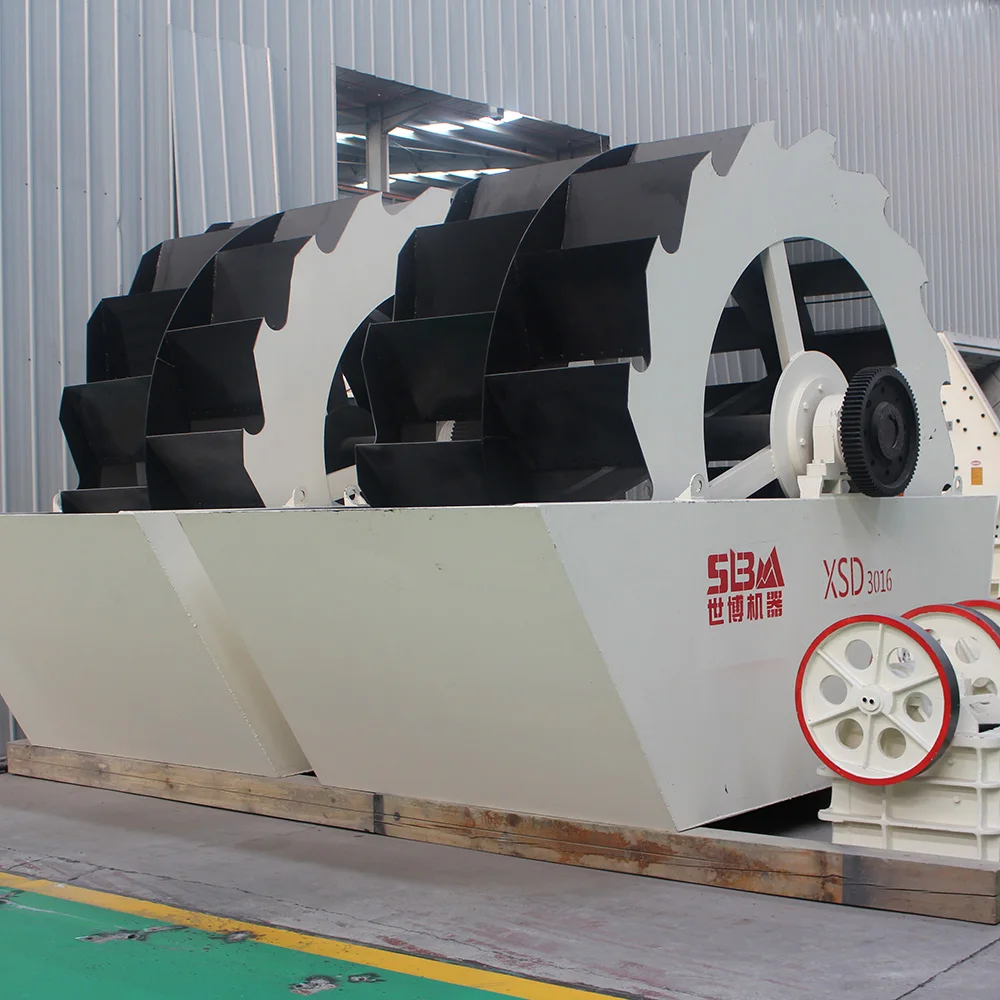

Three wheel bucket sand washer with fine sand recycling machine
Packing&Shipping
Company Introduction
Zhengzhou Shibo Machinery Manufacturing Co., Ltd. is committed to the research, development, production and sales of technical equipment in the mining industry. It mainly produces large-scale crushing, grinding and sand production lines.
Our company has 11 service outlets in China, and also exported products to Europe, America, Asia, Africa etc. more than 30 Country and region. Our company owns an experienced and skilled sales and service team which compose a perfect service network. We will
professional engineers to the installation sites and provide guidance for the installation, commissioning and initial run as well as planning administration of the equipment after purchase. And welcome all our client to visit our factory in Zhengzhou.
professional engineers to the installation sites and provide guidance for the installation, commissioning and initial run as well as planning administration of the equipment after purchase. And welcome all our client to visit our factory in Zhengzhou.
Our Service
Pre-sale services:
(1) Advice of model choice.
(2) Design and manufacture machines according to customer's special requirements
(3) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the
best processes and program
After-sale services :
(1) Arrange technicians to go to the site to guide installation
(2) If your machine is out of warranty period, you can go to the Nile's overseas office to buy spare parts.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site
production of 1 month, until the user' satisfaction.
(1) Advice of model choice.
(2) Design and manufacture machines according to customer's special requirements
(3) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the
best processes and program
After-sale services :
(1) Arrange technicians to go to the site to guide installation
(2) If your machine is out of warranty period, you can go to the Nile's overseas office to buy spare parts.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site
production of 1 month, until the user' satisfaction.

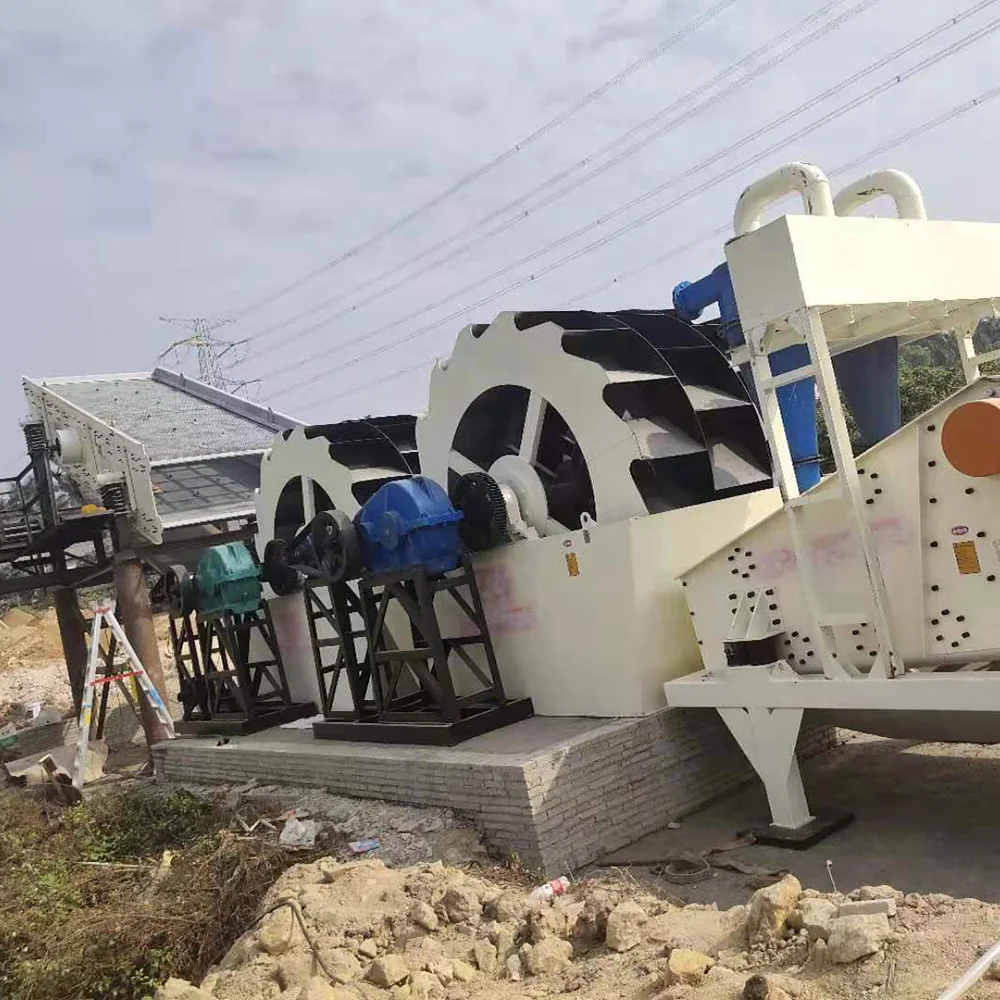

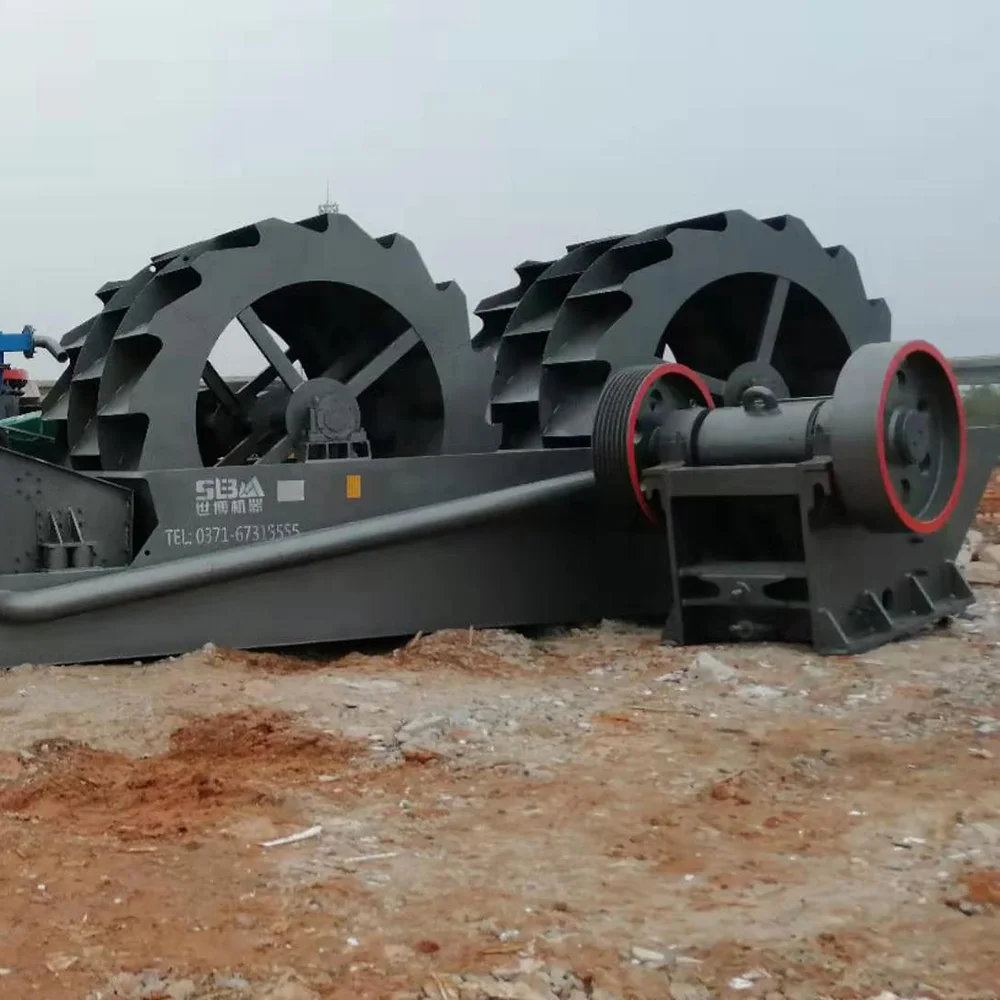

Customer Photos
FAQ
Q1: Are you factory or trade company?
A1: We are factory.
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A3: Our senior engineer will guide the installation and commissioning as well as the initial production at
Q4: How about the wear parts supply?
A4: We offer wear parts to our customer with our most favorable price. If there are problems you can't handle, we will send our technicians to your place and you are therefore, responsible for all the cost involved
Q5: What about the payment method?
A5:T/T, L/C Paypal is available
Q6: What about after-sale service?
A6:12 months warranty for all kinds of products.
A1: We are factory.
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A3: Our senior engineer will guide the installation and commissioning as well as the initial production at
Q4: How about the wear parts supply?
A4: We offer wear parts to our customer with our most favorable price. If there are problems you can't handle, we will send our technicians to your place and you are therefore, responsible for all the cost involved
Q5: What about the payment method?
A5:T/T, L/C Paypal is available
Q6: What about after-sale service?
A6:12 months warranty for all kinds of products.
