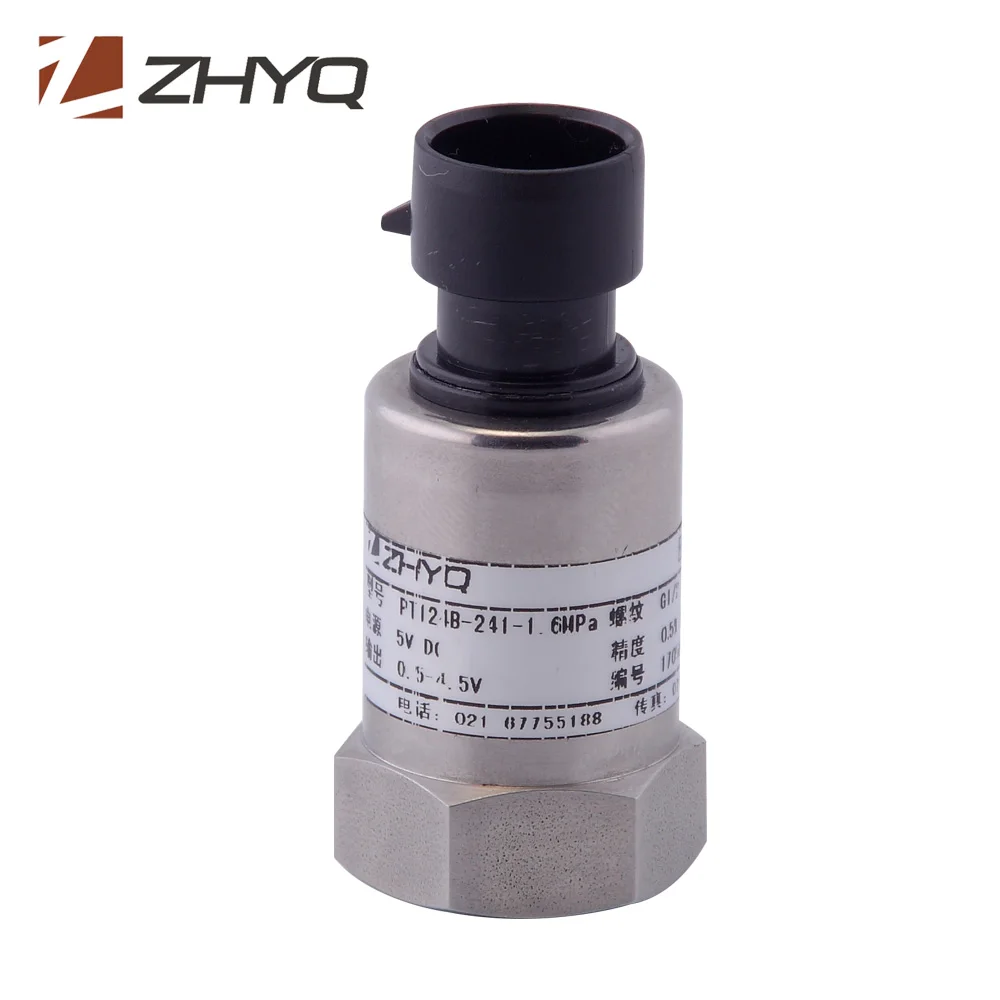

ABS system automotive pressure transmitter   (PT124B-241)



Description

PT124B-241 series ABS system automotive pressure transmitter , this pressure transmitter adopts thick film pressure sensor chips and specific integrated circuit (ASIC). It can add over-voltage protection, reverse polarity protection and short circuit protection, EMC protection function; this pressure transmitter is especially suitable for the bad environment, can be used in the conditions of high and low temperature, vibration, thermal shock and mechanical shock, chemical pollution and so on, this automotive pressure transmitter is mainly used for the pressure measurement in auto engine oil and gear box engine oil.



Application

Engine oil

ABS system

Fuel pump

Fuel cylinder high-pressure common rail system

Automotive & air-condition pressure measuring



Feature

Superior long term stability

Temperature compensated over wide range

Low power consumption

Excellent repeatability/Hysteresis

Special design for customer

Many OEM options



Specification

Name	ABS system automotive pressure transmitter
Model	PT124B-241
Range	0…1500bar
Accuracy	0.5%FS
Linear	0.02%FS
Reliability	0.05%FS
Output	0.5-4.5V; 0-5V ; 1-5V; 4-20mA,
Input Voltage	5VDC, 24(12-36V)DC
Operating Temperature	-20°C~120°C
Compensation Temperature	0~70°C(Standard compensation)
Over Pressure	150%FS
Case material	304 SS
Electric Connection	Packard connector
Process Connection	1/4NPT, 1/8-27NPT, 7/16-20UNF (Optional)





Ordering guide with * are required, with --- is optional

Model	Range	Output	Process Connection	Electric Connection	Other requirement
PT124B-241	*	*	*	*	---
Example: PT124B-241-10Bar-4/20mA-G1/8- Packed connector
