Медицинский инструмент ЛОР-устройство одноразовая система диляции надувных


Поделиться:


Цена:300,00 $ - 400,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 357.87 $* 375.64 $*
Aug-16-2025 354.74 $* 372.80 $*
Jul-16-2025 297.19 $* 312.73 $*
Jun-16-2025 348.53 $* 365.46 $*
May-16-2025 303.33 $* 318.78 $*
Apr-16-2025 342.57 $* 359.3 $*
Mar-16-2025 339.24 $* 356.67 $*
Feb-16-2025 336.9 $* 353.19 $*
Jan-16-2025 333.80 $* 350.25 $*

Характеристики





Sinus Balloon Dilation System











Product Description


 Sinus balloon dilation is a procedure involving placing a tiny and flat balloon in the sinus ostium with the assistance of nasal endoscope. When the balloon inflates, the sinus passage which was contracted or blocked due to the inflammation, will be restored to normal or slightly enlarged , so that the air enters into the sinus smoothly, and later with the saline flushing in the sinus cavity, the treatment reaches its intended outcomes. Studies show that the procedure can successfully dilate the sinus ostia and spaces without causing any complication or adverse reaction and its safety is also verified by the CT scans before and after the procedure, multi-dimension endoscopic and general examinations .







 Intended use: dilate the narrow or blocked maxillary sinus, frontal sinus and sphenoid sinus, or adjunctive to medication or functional endoscopic sinus surgery (FESS) .





Indication: chronic rhinosinusitis(CRS)patients who fails medical management such as antibiotics, local hormones, or antiallergic medication, but in need of nasal endoscopy; and also those in the effective stage after the standardized treatment, but the sinus CT manifests abnormal, and sinusitis occurs more than 3 times a year.





Contraindications: extensive nasal polyps; multiple records of nasal surgery, extensive hyperosteogeny, nasal tumors, ciliary function loss, cystic fibrosis, clear anatomical abnormalities, and inflammation in acute stage.

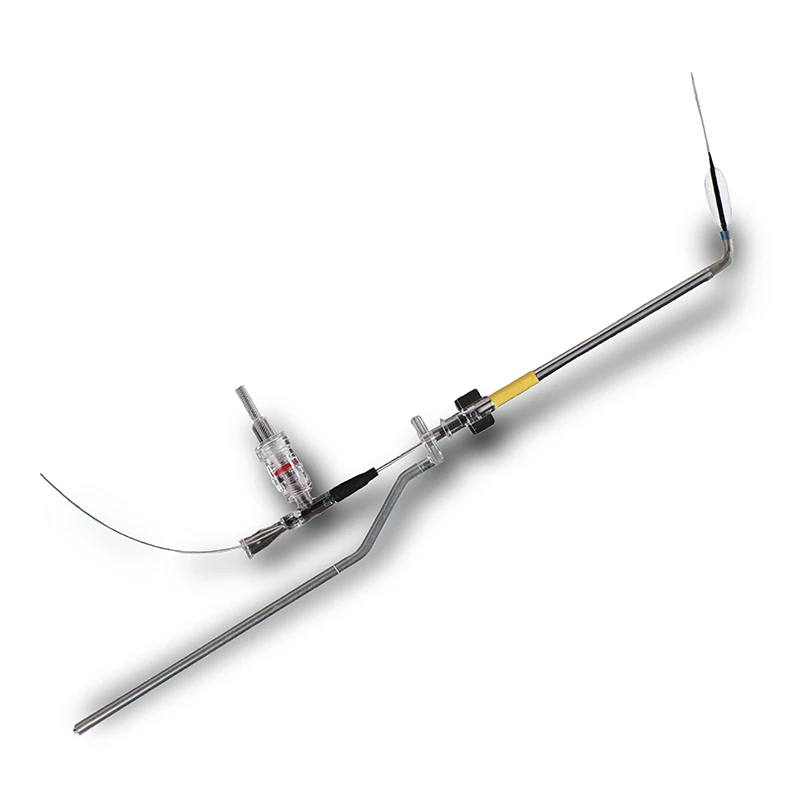

Work Theory





sinus balloon-22.jpg














Product structure and introduction

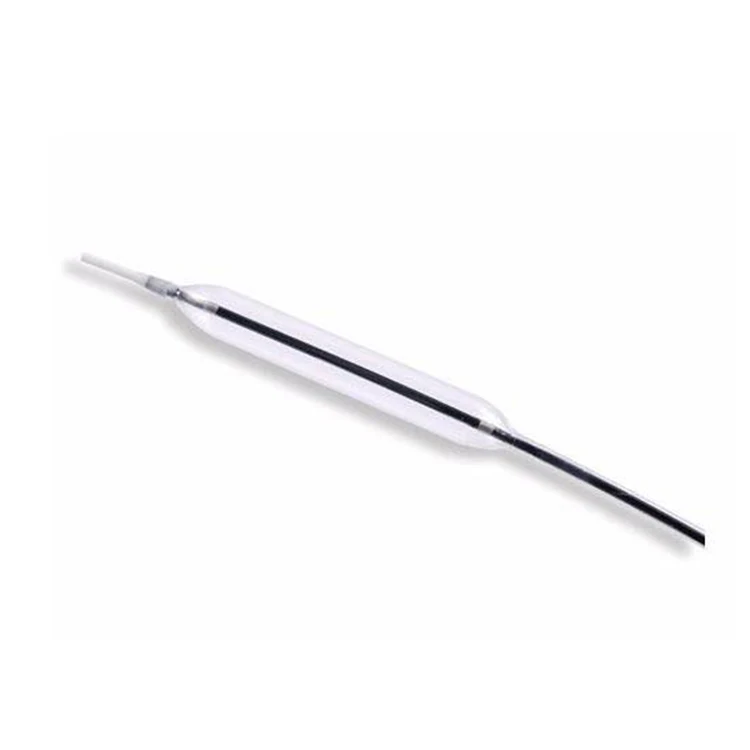

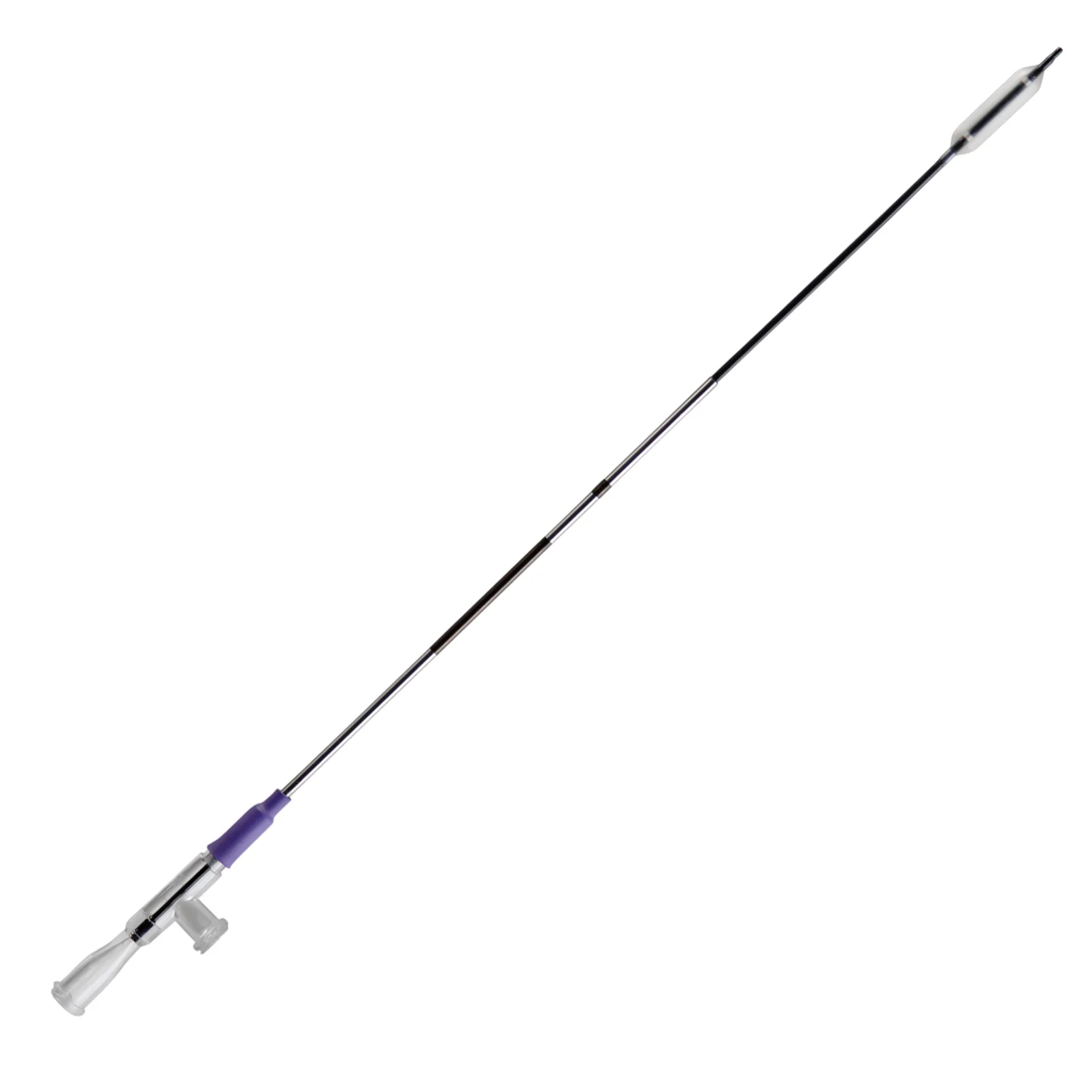

Sinus balloon catheter




1.The balloon features with high pressure resistance and low inflation


2.Design of tough distal end and soft proximal end provides the catheter with a good performance of pushing forward and frontal bending.


3.The radiopaque marker on the balloon enables the balloon operating with the imaging equipment in complicated cases.

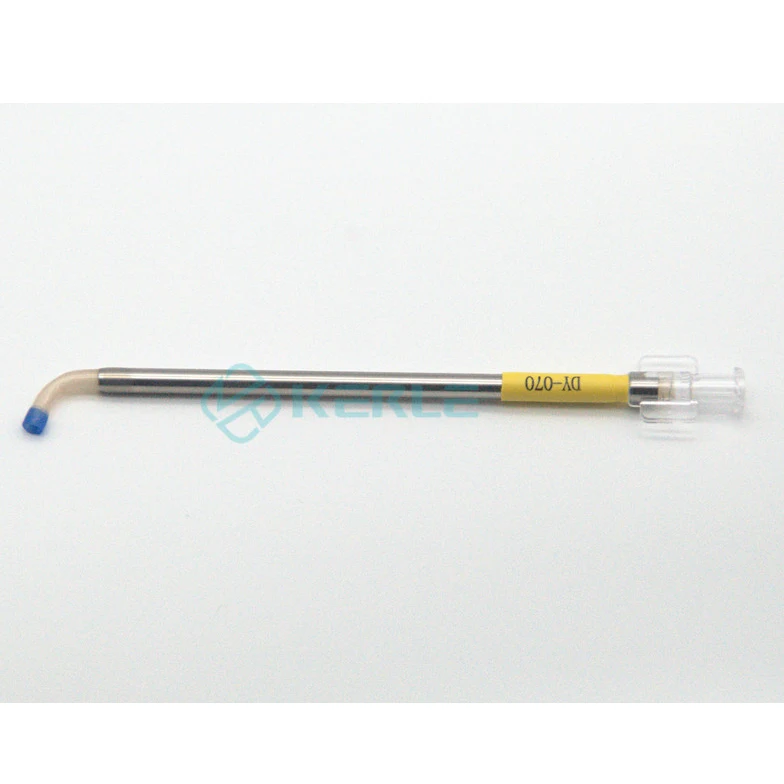

Sinus Guide Catheter


guide catheter12132.jpg





Angles of the Sinus guide catheter includes 0°,30°,70°,90°,110° suitable for the different sinus ostia.





Irrigation Catheter







intended to irrigate from within a target sinus for therapeutic procedures and to facilitate diagnostic procedures.





Guide Wire




Illuminating wire is intended to position the targeted sinus cavity.

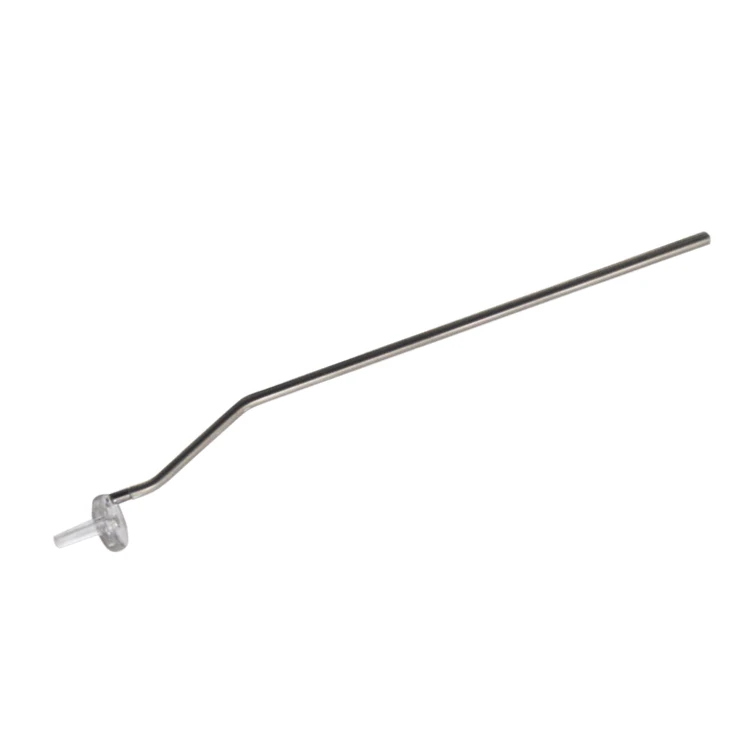

Guide Handle


Sinus guide handle.png


Intended to create an extension from a Sinus Guide Catheter








Models




















































Models



KEL0516



KEL0524



KEL0616



KEL0624



KEL0716



KEL0724



Sinus Balloon Catheter



KELQN0516



KELQN0524



KELQN0616



KELQN0624



KELQN0716



KELQN0724



Guide Catheter



KELDY000



KELDY030



KELDY070



KELDY090



KELDY110



Sphenoid Sinus



Frontal Sinus



Maxillary Sinus



Guide Wire



KELGW100



Irrigation Catheter



KELCX20



Guide Handle



KELCH160












Comparison with the traditional sinus surgery

































Traditional Sinus Surgery



Sinus Balloon Dilatation



Damages on the sinus drainage passage and mucosa cilia system, as a portion of normal anatomical structures are excised



No incision and no damage to any bone or structures, mucosa cilia system remains intact.



Possible complications



No complication and phenomenal treatment  outcomes



Extensive wound and huge pain for the patients



Minimal invasiveness, less bleeding, less pain



Long recovery time



Fast recovery. Patient usually recovers within 24h after the procedure.



Long surgery time, high risk



Easy operation, short surgery time.







Packaging & Shipping






















































Product



Size



Weight



Balloon Catheter



42x9x2 CM(box)



0.0624 KG



Guide Catheter



22X9X2CM(box)



0.0370 KG



Guide Handel



22X9X2CM(box)



0.0378 KG



Irrigation Catheter



48X9X2CM(box)



0.0710 KG



Guide Wire



28.5X25.5X1CM(box)



0.094 KG



Connector



10X9CM(pouch)



0.0083KG



Pump



26X12.5X7CM(box)



0.318KG



Whole set



50.5X28X10CM(box)



1.700 KG









Company Information





Established on Feb 18th 2014, later among the first group of hi-tech enterprises in 2017, Guangdong Kangerle Medical Equipment Co.,Ltd (Kangerle Medical) set its production base in Pengjiang District, Jiangmen and operation center in Baiyun District, Guangzhou.





Owning its independent intellectual property, Kangerle is a hi-tech enterprise specialized in high-value medical consumables and integrating with the R&D, production and sales of medical equipment.





Kangerle Medical passed the audit of Guangdong Food and Drug Administration, and obtained the production license for medical devices (Certificate no.20142584 issued by Guangdong Food and Drug Administration on the approval of the medical equipment production); later passed the audit by TUV sud, and obtained the certificate of Quality System ISO13485-2016, CE MDD product certificates of Sinus Balloon Dilation System, Cervical Ripening Balloon Catheter and Vacuum Wound Drainage Kit.








So far the products of Kangerle Medical range from the section of ENT, Obstetrics, Cardiology, to general surgery, including such following registered devices as Eustachian tube balloon dilatation catheter, Sinus balloon dilatation system, disposable gastric tube, disposable cervical ripening balloon catheter, disposable vacuum wound drainage kit, disposable Balloon uterine stent, and disposable endometrial sampler. GMP compliant production base is equipped with the Class 10k clean room, Class 10k(partial Class 100) sterile test room, bacteria lab, positive control lab and state-approval EO sterile equipment, and professional medical device production and test instruments.








Kangerle Medicals quality management system complys with ISO13485 and GMP which puts the production procedure in effective control and ensures the finished products meet the registered standards.


Equipped with high quality production lines, advanced production and test instruments, and professional R&D and QC team, Kangerle medical is able to provide every medical institutes with high quality products and high efficiency service.





Kangerle Medical holds the management and business principle of Manage with care, manufacture with minds, service with heart, devotes to the research, production and sales of hi-tech medical equipment, and provides the market with the most cost-effective medical equipment.








Company Development


2014: Establishment


2015: Register of Sinus Balloon Dilation System


2016: Approval of Medical Device Production. Register of Disposable Gastric Tube and Disposable Cervical Ripening Balloon Catheter


2017:Register of Disposable Vacuum Would Drain Kit


2018: Register of Guide Needle. Register of Category II Medical Equipment Business License.


2019: Register renewal and adding models of Sinus Balloon Dilation System. Register of Nasal Irrigator and Nasal Guide Kit.


2020: Register of Eustachian Tube Balloon Dilation Catheter. Certificate ISO13485-2016 issued by  TUV sud. CE MDD certificate of Sinus Balloon Dilation System, Cervical Ripening Balloon Catheter, and Vacuum Wound Drainage Kit.
