IP65 IK08 40 Вт Светодиодная флуоресцентная чистая аварийная линейная муфта светодиодное
- Категория: Светодиодный паронепроницаемый светильник >>>
- Поставщик: Shenzhen,Hongnaxin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 31.86 $* | 33.28 $* |
| Aug-15-2025 | 31.48 $* | 33.54 $* |
| Jul-15-2025 | 26.55 $* | 27.33 $* |
| Jun-15-2025 | 30.58 $* | 32.46 $* |
| May-15-2025 | 26.3 $* | 27.6 $* |
| Apr-15-2025 | 30.51 $* | 32.36 $* |
| Mar-15-2025 | 29.87 $* | 30.88 $* |
| Feb-15-2025 | 29.69 $* | 30.99 $* |
| Jan-15-2025 | 29.7 $* | 30.30 $* |
Характеристики

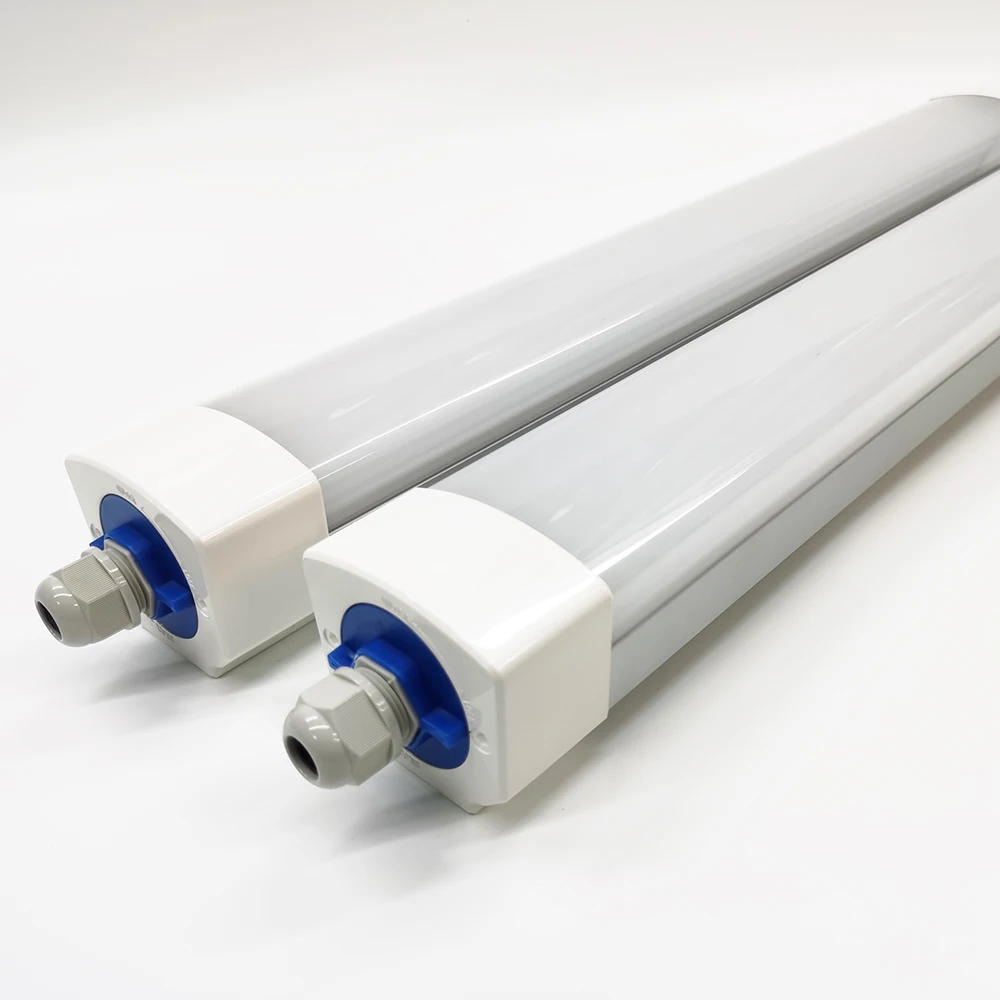

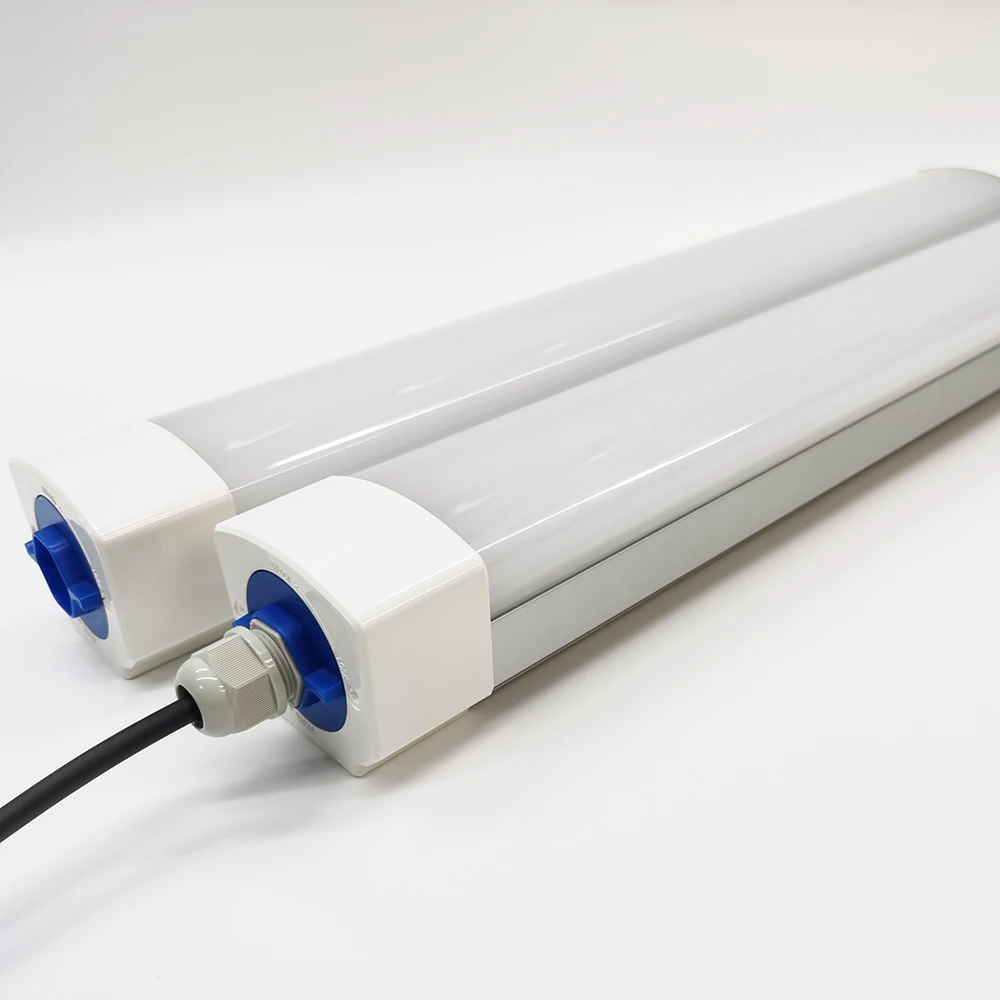

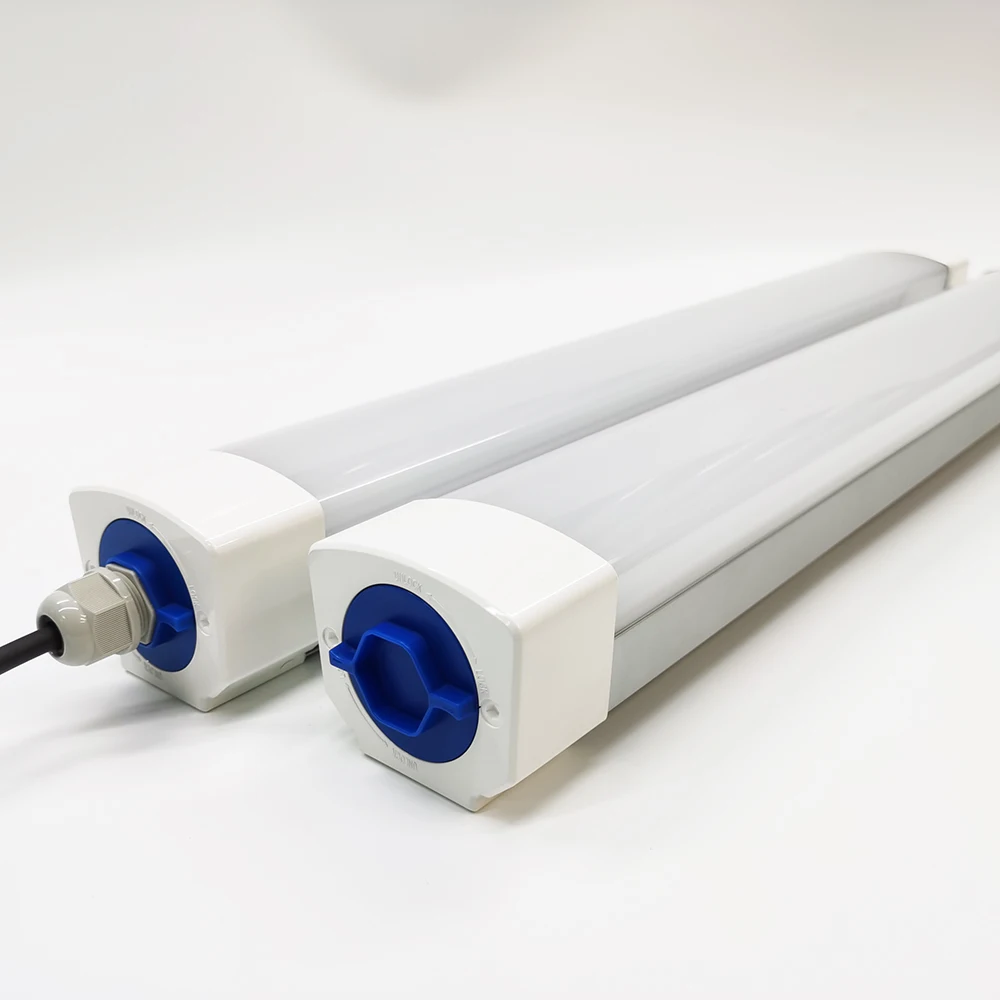

IP65 IK08 40w led flourescent clean emergency linear batten led lighting fitting
Product Description
- Aluminum Housing with Opal Frosted and Clear Strip Diffuser for option
- Available in different sizes from 0.6 m /2ft to 1.8 m / 6ft and powers from 20 watt to 80 watt

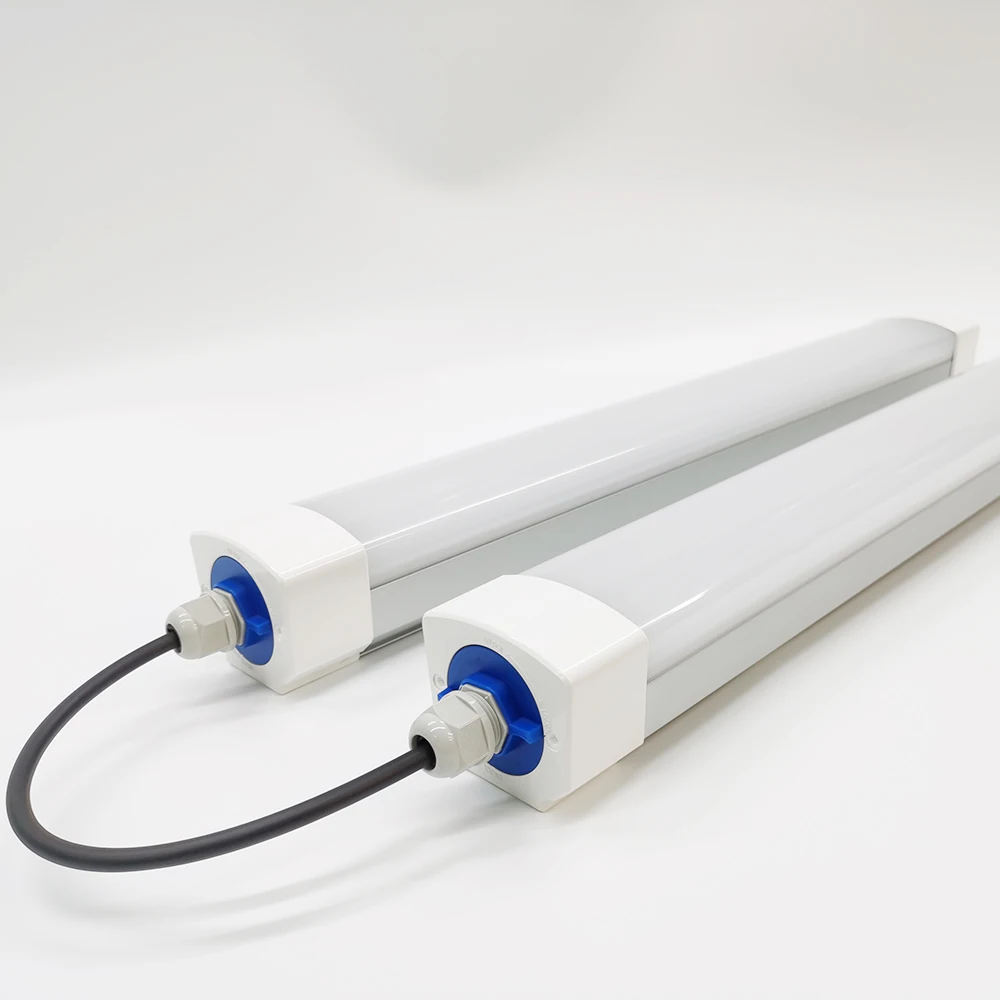

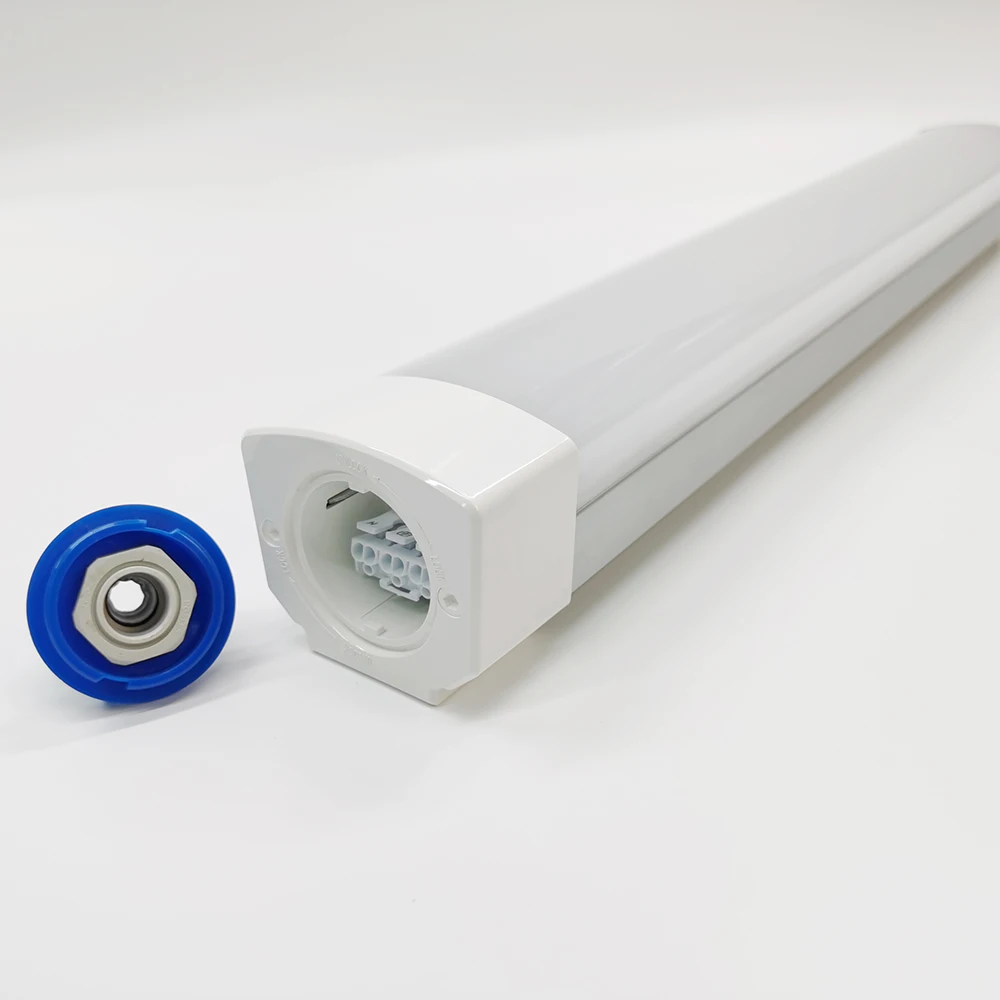

- Cable self-mounted, plug-and-play connection, detachable end cap fit for self-wiring connection
- 100~110 lm/w , 130~140 lm/w
- IP65 waterproof, IK07, Mini size for special area .
- L80B50 (Ta = 25℃): 75,000 hrs
With 6 years of continuous improvement and innovation, led tri proof light has been evolved to be one of HonLight products series to offer an extensive application range from commercial to industrial for any retrofit or new installation, also it is a genuine champion for being energy-efficient and cost-effective.
If you are looking for an ideal luminaire for your parking lot, garage, warehouse, supermarket, workshop, corridor, shop, etc, it will be your best option.
Technical Details
| Model Name | Macro Series | ||
| Model Number | HNX-TM65-20W2F | HNX-TM65-40W4F | HNX-TM65-60W5F |
| Material | Aluminum Housing + PC Diffuser | ||
| Power | 20 Watt | 40 Watt | 60 Watt |
| Length | 600mm / 2ft / 24 inch | 1200mm / 4ft / 48 inch | 1500mm / 5ft / 60 inch |
| Beam Angle | 120 degree | ||
| CRI | > 83ra | ||
| Power Factor | >0.95 | ||
| Lumen Efficacy | 100-140lm/w | ||
| IP Rate | IP65 | ||
| IK Rate | IK08 | ||
| Working Temperature | -25~+45℃ | ||
| Storage Temperature | -40~+70℃ | ||
| Microwave Motion Sensor | Optional | Optional | Optional |
| 1-10V Dimmable | Optional | Optional | Optional |
| Emergency (Built-in) | Optional | Optional | Optional |

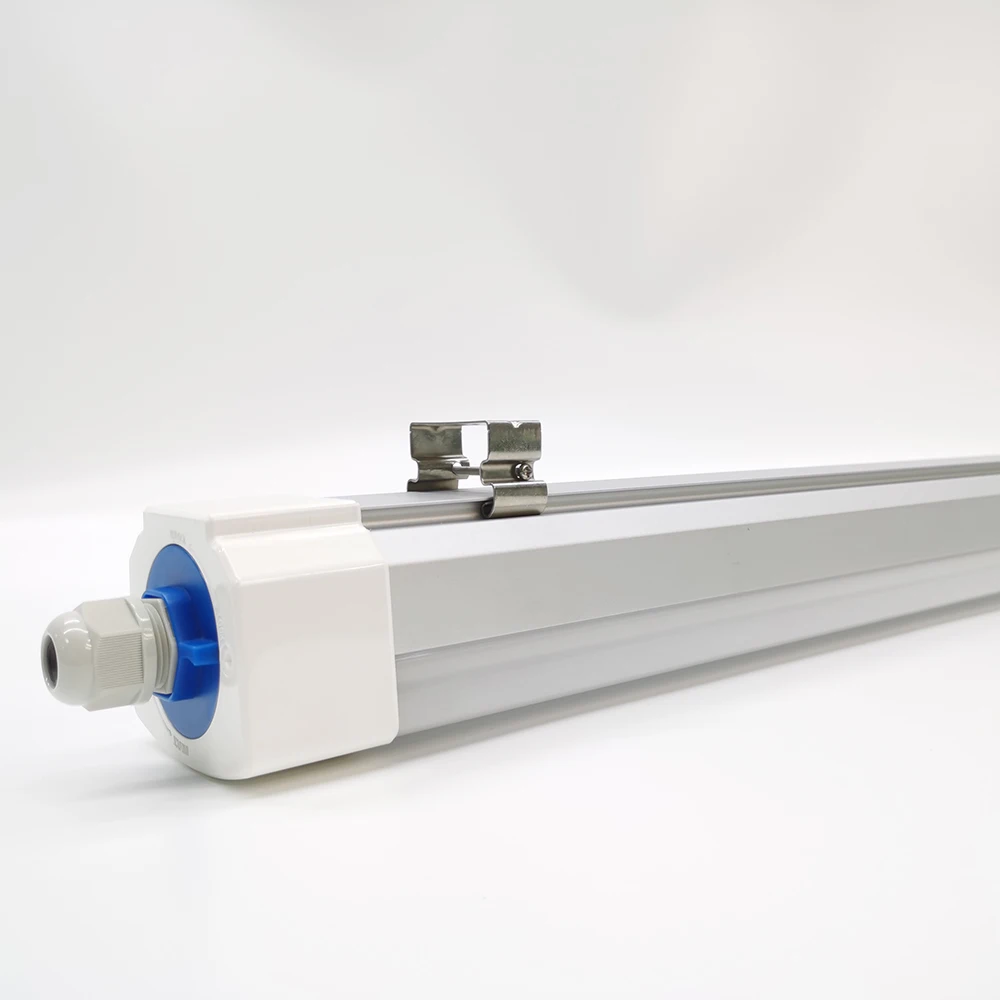

| Installation | Ceiling Mounted or Suspened Mounted | ||
| Power Supply | Single end power wiring or Double end power wiring (linkable) | ||
| Certificate | CE ROHS LVD EMC | ||
Packaging & Shipping
| Model No | Qty/CTN | GW/CTN (KG) | CTN Size (CM) |
| HNX-TM65-20W2F | 9 pcs | 10.5 | 68*34*31 |
| HNX-TM65-40W4F | 9 pcs | 17.5 | 128*34*31 |
| HNX-TM65-60W5F | 9 pcs | 20.0 | 158*34*31 |
Certifications
Our Services
Company Information
Contact & FQA
Q1. Where is your main market for this ip65 ik08 tri proof led linear batten lighting fixture ?
A: The main market for this ip65 ik08 tri proof led linear batten lighting fixture in EU and North America.
Q2. What about the lead time this ip65 ik08 tri proof led linear batten lighting fixture ?
A: Generally samples lead time for this ip65 ik08 tri proof led linear batten lighting fixture is around 2-5 working days, mass production time needs 1-3 weeks for different bulk order quantity.
Q3. Do you have any MOQ limit for this ip65 ik08 tri proof led linear batten lighting fixture order?
A: In our initial stage, we don’t set MOQ for your service.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT, which normally takes 3-5 days for delivery. Airline and sea shipping ways for bulk order are also optional, and delivery time is different based on different destination.
Q5. How to proceed an order for this ip65 ik08 tri proof led linear batten lighting fixture ?
A: Step 1, Let us know your requirements or application
Step 2, We quote according to your requirements or our suggestion
Step 3, Customer confirms the samples and places deposit for formal order
Step 4, We arrange the production.
Q6. Do you offer guarantee for this ip65 ik08 tri proof led linear batten lighting fixture ?
A: Yes, we offer 5-7 years warranty to our products.
Q7: Is it OK to print my logo on this ip65 ik08 tri proof led linear batten lighting fixture ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q8: How to deal with the faulty for this ip65 ik08 tri proof led linear batten lighting fixture ?
A: Step 1, Our products are produced in strict quality control system and the defective rate will be less than 0.3%.
Step 2, During the guarantee period, we will send new lights with new order for small quantity.
Step 3, For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation
Q9: What is your led chips? light efficiency? CRI? CCT? SDCM?
A: Our chips are Epistar SMD2835, CRI>83, CCT: 3000k/4000k/5000k/6000k, SDCM<4, light efficency: 90-140lm/w
Q10: How should I contact you to start business?
A: You can send enquiry to us, pls click "Send" now. Thank you very much.
Directly Contact Way:
Email: bonnie(at)hongnaxin.com
Wechat/Phone/Whatsapp: +86 15919405861
www.hongnaxincom
