Минимальная система Inkson STM32F103C8T6 модуль Интернета вещей для модуля макетной платы ARM
- Категория: Макетные доски и наборы >>>
- Поставщик: Shenzhen,Katuo,Chuangxin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 7.65 $* | 7.32 $* |
| Aug-20-2025 | 7.11 $* | 7.84 $* |
| Jul-20-2025 | 6.14 $* | 6.96 $* |
| Jun-20-2025 | 7.49 $* | 7.41 $* |
| May-20-2025 | 6.41 $* | 6.23 $* |
| Apr-20-2025 | 7.25 $* | 7.6 $* |
| Mar-20-2025 | 7.87 $* | 7.29 $* |
| Feb-20-2025 | 7.10 $* | 7.95 $* |
| Jan-20-2025 | 7.57 $* | 7.42 $* |
Характеристики
Inkson

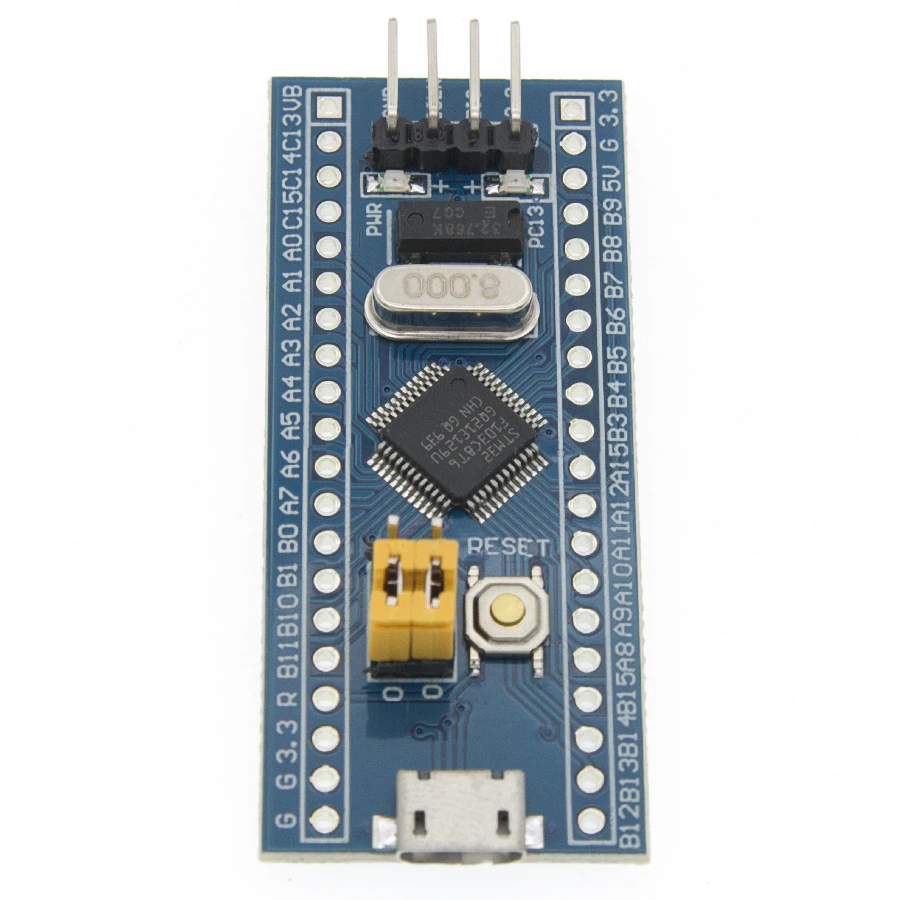

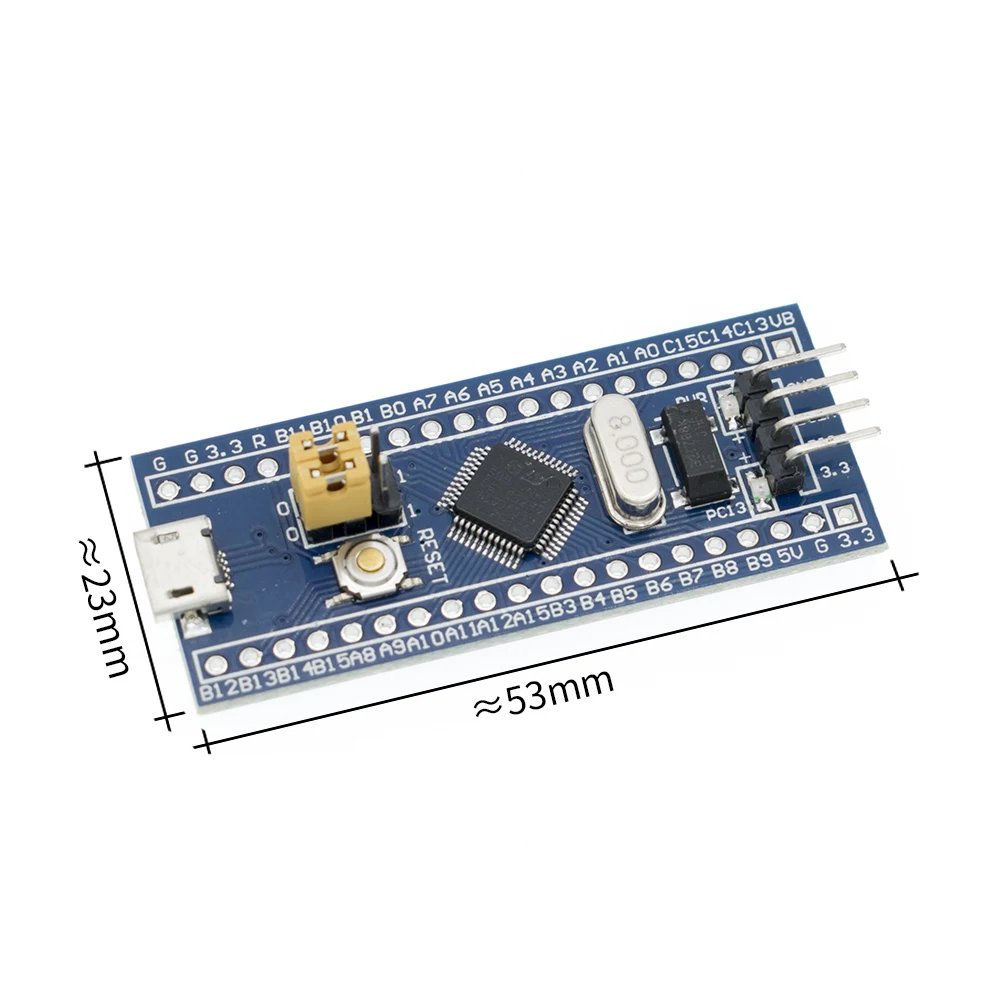

Product Introduction
This is a core chip based on for CS32F103C8T6 ARM core board, features are as follows:
1, the board based on the most basic MCU circuit, 8M and 32768 crystal circuit, USB power supply circuit.
2, the core board is divided into two rows leads to all the I / O port.
3, with SWD simulation debug download interface, simple and convenient, debugging speed.
4, the use of the Mirco USB interface, you can do USB communication and power supply, USB interface,
compatible with the ordinary Andrews mobile phone charger interface.
6, RTC crystal Epson brand, easy to start, more stable.

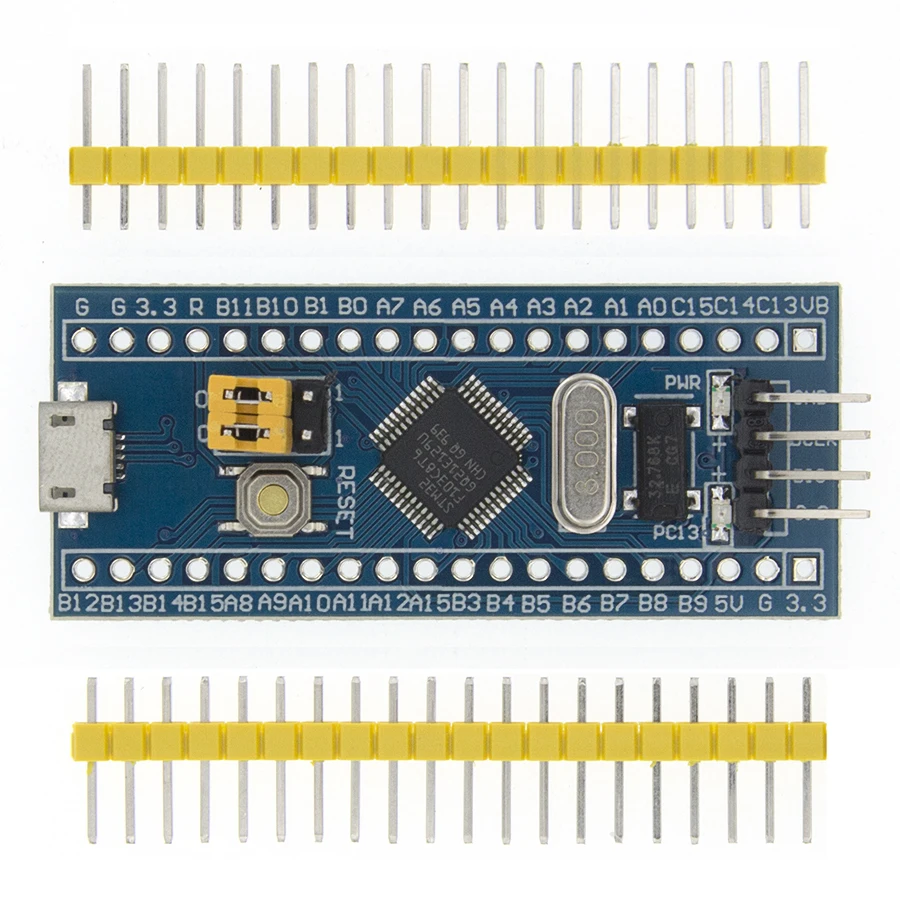

7, with double pin, but the pin does not default welding, the user according to their own application scenarios
to choose their own welding direction. If welding is required, please tell the owner.
Keil can be used to compile, IAR compiler, can be downloaded through the J-Link or USART1 procedures,
the procedures are the owner and debugging procedures, there are problems can consult the owner.
Chip Description:
1, 32F103C8T6
Package Type: LQFP;
Number of pins: 48;
Kernel: Cortex-M3;
Operating frequency: 72MHz;
Storage resources: 64K Byte Flash, 20KByte SRAM;
Interface Resources: 2x SPI, 3x USART, 2x I2C, 1x CAN, 37x I / O ports,
Analog-to-digital conversion: 2x ADC (12-bit / 16-channel)
Timers: 3 general timers and 1 advanced timer
Debug Download: Support JTAG / SWD debug interface to download, support for IAP.
2, RT9193: 3.3V regulator chip, the maximum output of 300mA.
Interface description:
1, SWD interface: support for simulation, download and debug.
2, Mirco USB interface: power supply and USB communication, does not support the download.
3, USART1 interface: USART1 can be used to download the program, or use the USART1 for communication.
4, MCU pin interface: leads all I / O port pins, easy to connect with peripherals.
5, 5V and 3.3V power input and output interface: commonly used in external power supply, or with other modules for common ground treatment
1. Are these parts Original and New?
Yes, there are original and local factory products, if you have not mentioned, we will always sell you original and new parts.
2.When will parts ship after payment?
Normally parts we ship in 1-2 days after payment, if you are really urgent,please feel free to send me message, and we can push.
3.Are they real stocks? Can have discount if need large quantity?
Yes, parts you can order directly all have in stock. If you need large quantity, please message us first, we will apply best price for you.
