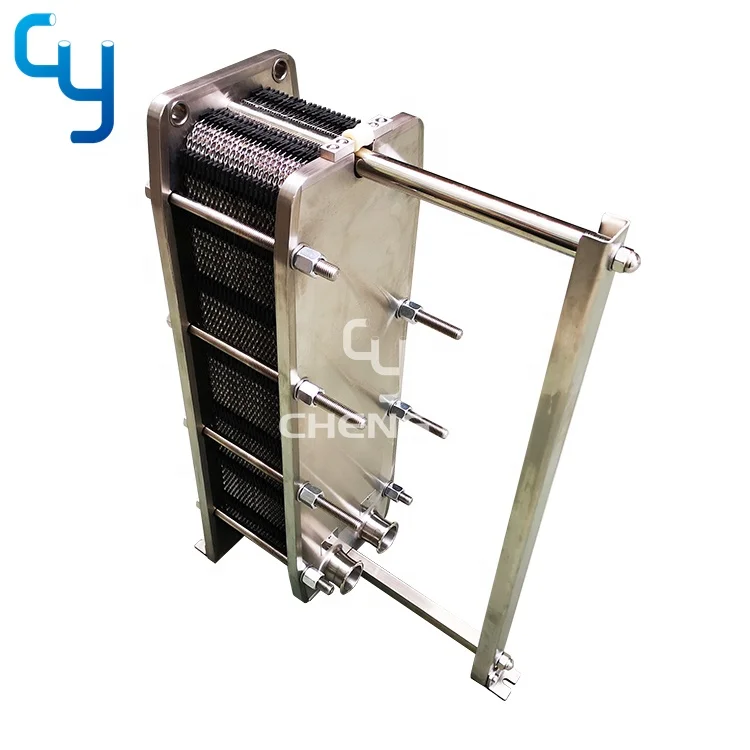

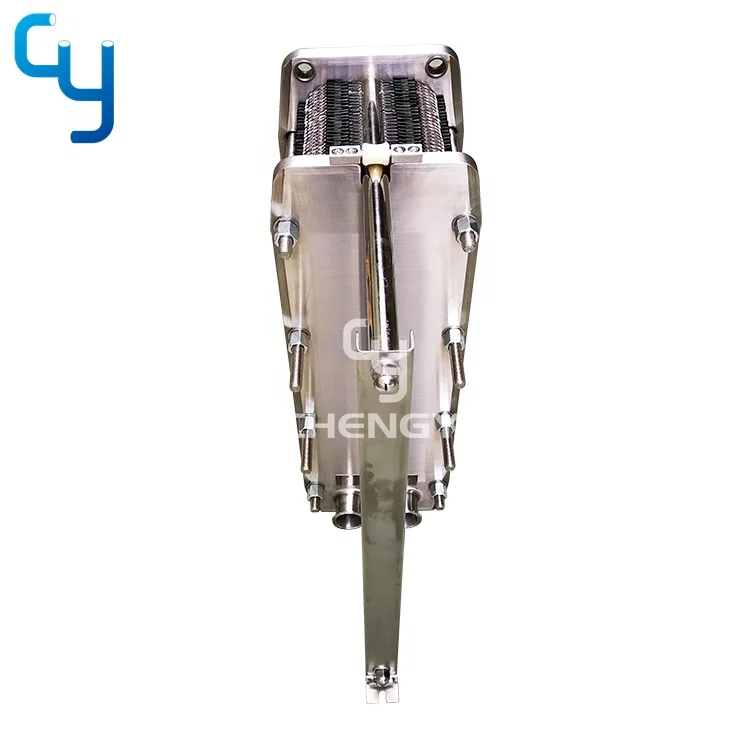

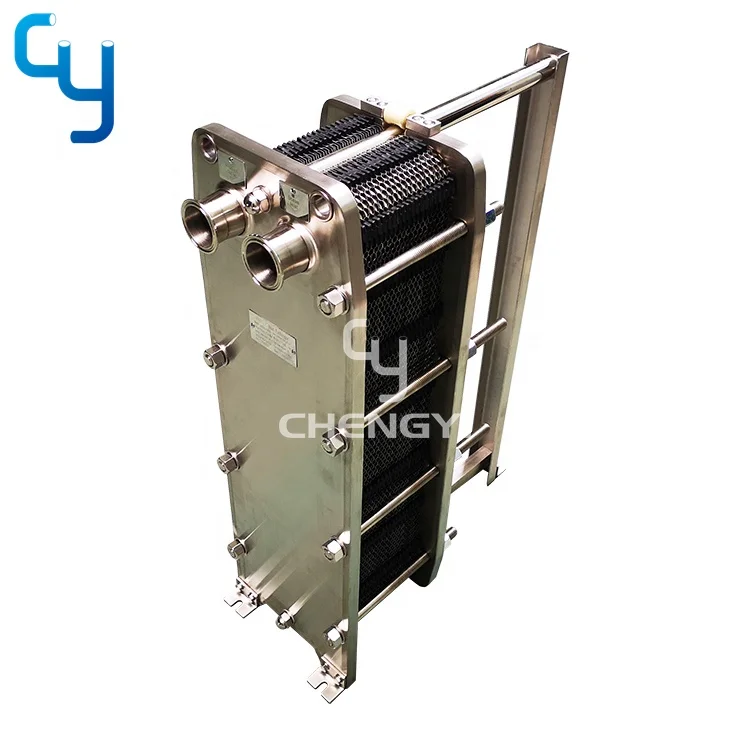

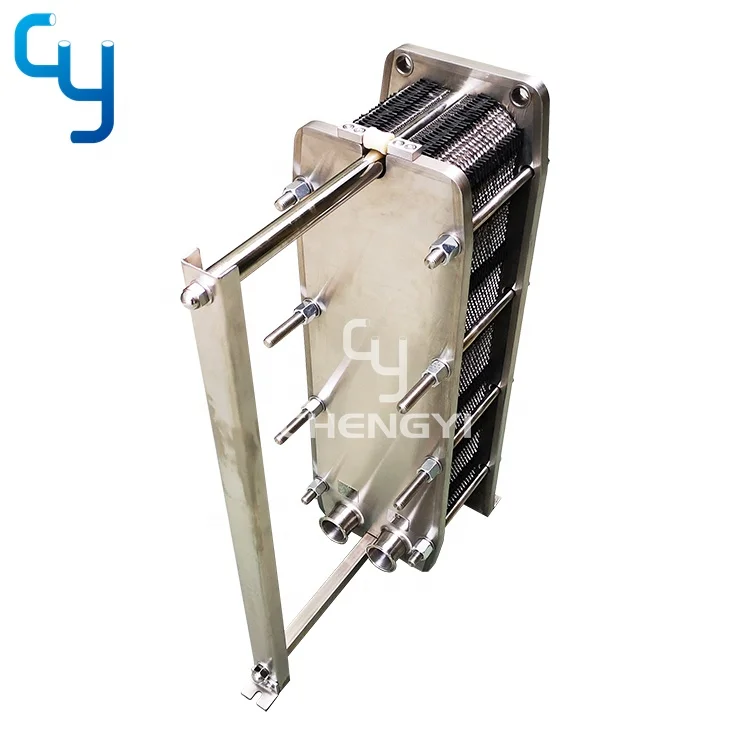

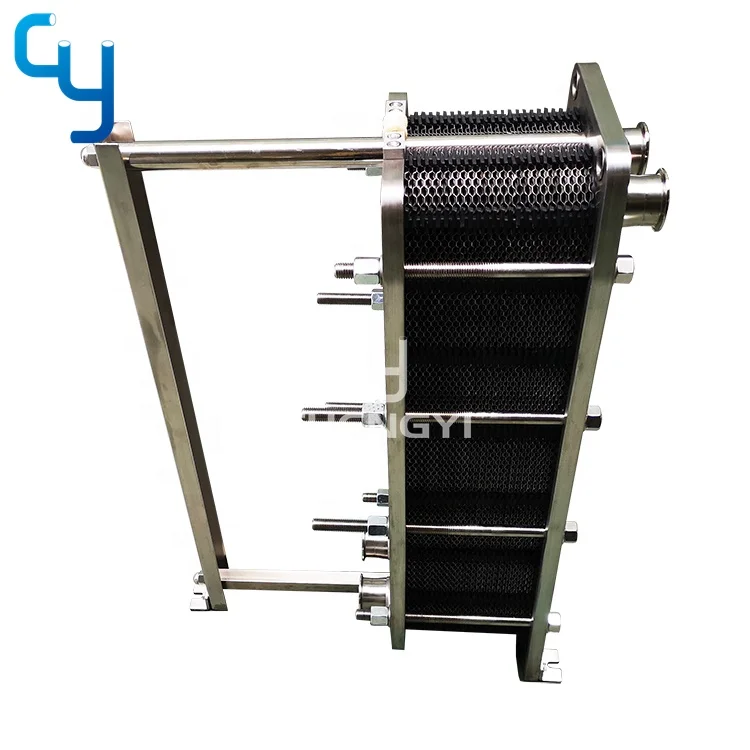

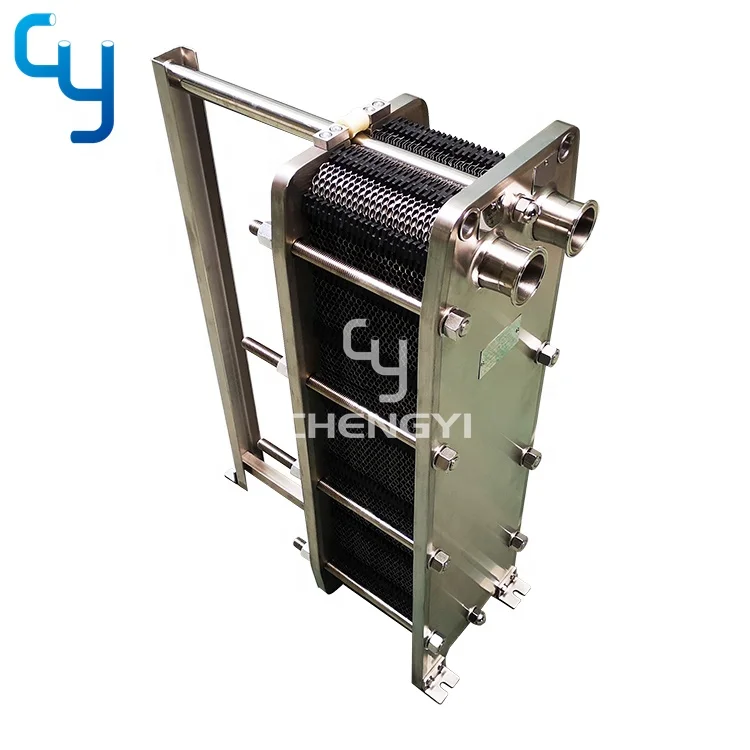

Пластинчатый теплообменник из нержавеющей стали для воды PW 4 квадратных

Описание и отзывы

Трекер стоимости

Характеристики

Application

Pasteurization

Normal cooling and heating in dairy, brewage, beverage, food industries, etc

Heating and cooling in pharmaceutical industry



Standard design

Frame

The plates and compression plates are suspended from the upper load bar and are positioned by means of the lower guide rods which are fixed through the struts and ard fitted with washers on the tensioning bolts for disassembly of the equipment, frames and columns with adjustable supports.

A device may include many heat exchangers, which are separated by connection boards with interchangeable connectors.



Front plate

The front plate is used for meeting higher requirements in food processing. The combination of the high pressure depth, plate type and relatively few contacts make the running time longer and there will have no interruption. The diversing type can ensure that the liquid flows the whole plate. The end diameter enables it to carry out CIP cleaning with the same fluid it uses during the use.



Sealing gasket

The heat exchanging plate is provided with the sealing gasket that is not bonded by glue. Users can carry out easy replacement operatio of the sealing gasket even when the plate suspends inside the frame.



Working principle

Pasteurization

Normal cooling and heating in dairy, brewage, beverage, food industries, etc

Heating and cooling in pharmaceutical industry



The plate heat exchanger is composed of group of corrugated metal plates. The holes on it form channel for liquids to flow, and the heat will be transferred between two kinds of liquids.



The plates are assembled between a fixed frame board and a moveable clamping board and are tightened by the tightening bolts.



These plates are installed with sealing gasekts. The sealing gaskets play the sealing function on the channels between plates and make the liquids flow into adjacent channels. The quantity of plates are determined by flow, physical properties and temperture of liquids. The joints can be located on the frame board and claming board.



Standard materials

The frame and clamping board can be subjected to painting on the surface or coated by stainless steel. The movable nut on the fastening bolt is made of carbon steel and stainless steel.

Plate type

BR-0.06, 0.13, 0.22, 0.3, 0.5, 0.65 Plate: Stainless steel SS304, 316, 316L

Sealing gasket type

NBR or EPDM, Silicone Q

Technicals

Mechancial designed pressure/temperature

Designed pressure 1.0Mpa

Woring pressure 0.6Mpa

Working temperature -10 degree to 150 degree

Joint type

DIN, SMS, ISO, males thread or customized



For more information or any question, please feel freely to contact with us here!

Plate heat exchanger specifications:

There are two types of plate heat exchangers: BR type and BRB type. The specifications of a variety of plate heat exchangers are as follows: Code:

B R 0.13 1.0 8 N I

No.: 1 2 3 4 5 6 7

Comments are as follows:

No. 1 represents plate heat exchanger

No. 2 representative plate type is herringbone ripple

No. 3 represents 0.13 type, also means single sheet heat exchange area is 0.13m²

No. 4 represents design pressure 1.0Mpa

No. 5 represents the entire heat exchange area of 8m²

No. 6 represents NBR rubber seal

No. 7 represents the frame shape structure is double-support frame type (also known as hanging type)

Specification description

Flow chart

Flow combination:

The plate heat exchanger is provided with various flow combination types, which are all realized by adopting different reversal plates and different assembling methods. The flow combination is divided into signel flow, multiple flow and mixed flow, which shall be selected according to the technological requirements. Generally, the medium with its temperture difference higher than 1.8 times the logarithmic average temparature difference should adopts the multiple flow, with an inter-plate flow rate of 0.3-0.5 M/S; if the flow rate is too low, the double flow or multiple flow should be applied.



Parallel connection flow combination figure

Mixed connection flow combination figure





For more information or any question, please feel freely to contact with us here!

Q: What is the delivery time?
A: We have strong stock of standard products, generally delivery time within 3-10 days.

Non-standard products or big quantity will take 7-30days depend on quantity.
Q: How long is the guarantee?
A: We promise guarantee as one year for non-human damage factor.
Q: What is the MOQ?
A: 1 set
Q: Can you do OEM & ODM?
A: Yes
Q: Where is your nearest port?
A: Ningbo/Shanghai Port
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Wenzhou City, China.You can fly to Wenzhou Yongqiang airport directly.

Q:Why do you choose us?

We have wide range stock of stainless steel products.
We have experienced technical people, labor worksers. High effective sales team. Some of us had been in this industry for more than 17 years.

Mass production capacity ensure on time deivery.
One year warranty; perfect after-sales service for spare parts
Best prices with good quality and reliable performance
Easy maintenance.
Our logo or OEM

 About company

Wenzhou chengyi machinery co., ltd. is a company integrating design, production, sales and service. The main products are sanitary diaphragm valves, sanitary ball valves, butterfly valves, sampling valves, angle seat valves, check valves, safety valves, filters, strainers, centrifugal pumps, negative pumps, self-priming pumps, fittings, elblows, tees, cross, reducers, clamps, unions, cleaning ball, sight glass, manholes, pipings, bottom magnetic mixers, emulsifer, and  stainless steel tanks. Comply with GMP, QS, HACCP requirements. Chengyi machinery technology team has more than 10 years of mechanical manufacturing experience and professional equipment knowledge, to provide customers with reasonable and effective solutions. Chengyi machinery professional technology, high quality products, meet the pharmaceutical, food, biological, daily chemical, chemical and other fields.



The company introduces professional production equipment and manufacturing technology, and the vessels are manufactured in accordance with GB, JB, ASME, CE standards. Pipe fittings in accordance with ISO, DIN, IDF, 3A and SMS industrial standards; All kinds of non-standard products are customized according to the requirements of customers. Our products meet international standards and are in the leading position in the industry. Products can be traced back to the manufacturing and time of each process to ensure the quality of products.



The company adheres to the "quality first, reputation first, service first" business purpose, adheres to the "honest, pragmatic, win-win" business philosophy, to provide clients with the best service, best product quality and perfect after-sales service to win the majority of customers rely on and support. Chengyi machinery is willing to work together with every new and old customer to create brilliant future!



YOUR RELIABLE PARTNER



For more information or any question, please feel freely to contact with us here!

1. The Quick reply: We will reply you right now in work time, if it is not in work time, we will reply no more than 12 hours.

2. The Strong package: Our package group is professional, steps: bubble-plastic bag-carton or plywood wooden case or metal frame.

3. The Quick Delivery: We usually will arrange valves and fitting no more than 3~10 days, if quantity is big, no more than 30 days.

4. The Best After-sales service: If the problems existing problem itself, we will responsible for it.

5. Long life services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.



How to place an order?

Step 1: please contact with salesman, tell him the URS (user requirements), including item name/size/material/standard. For example: manual diaphragm valve/ DN25, clamp end/ SS316L/ 3A.

Step 2: After you confirm the details with salesman, he will send you an offer accordingly.

Step 3: If you are agree with the price, you can tell the salesman you want to finalize the order.

Step 4:Our sales man will make an Order with you at the first time, then you can pay for it.

Step 5:Will arrange the products as soon as you pay for it and we will delievery you at the speedy way.
