1500*3000 мм cnc машина для плазменной резки воздушно-плазменный
- Категория: Плазменная резка с ЧПУ >>>
- Поставщик: Shandong,U-May,Cnc,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.76 $* | 0.42 $* |
| Aug-16-2025 | 0.93 $* | 0.84 $* |
| Jul-16-2025 | 0.74 $* | 0.14 $* |
| Jun-16-2025 | 0.55 $* | 0.59 $* |
| May-16-2025 | 0.29 $* | 0.62 $* |
| Apr-16-2025 | 0.19 $* | 0.99 $* |
| Mar-16-2025 | 0.57 $* | 0.29 $* |
| Feb-16-2025 | 0.7 $* | 0.10 $* |
| Jan-16-2025 | 0.91 $* | 0.96 $* |
Характеристики
Product Description

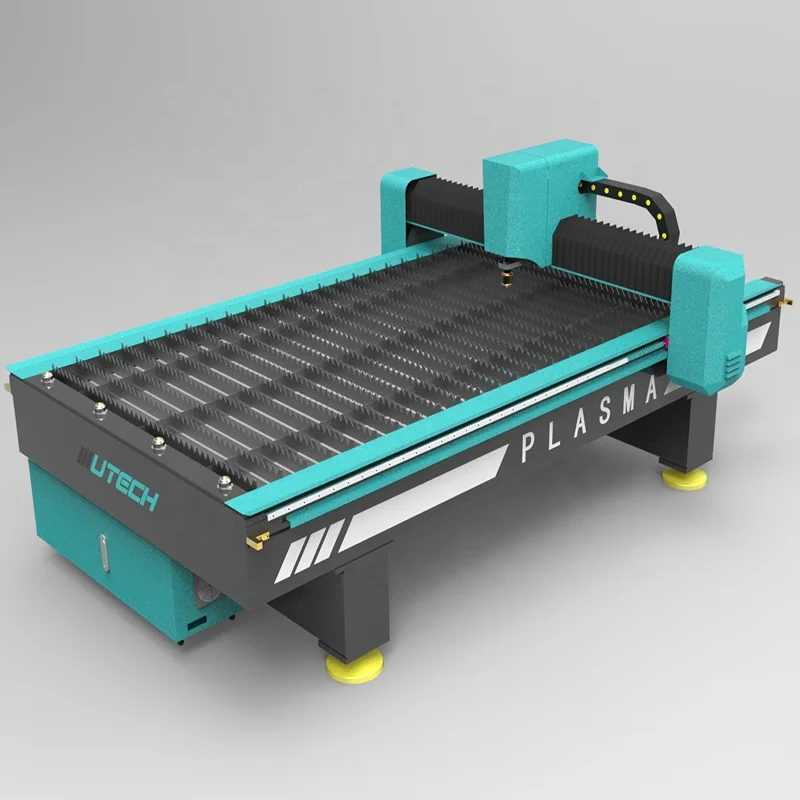

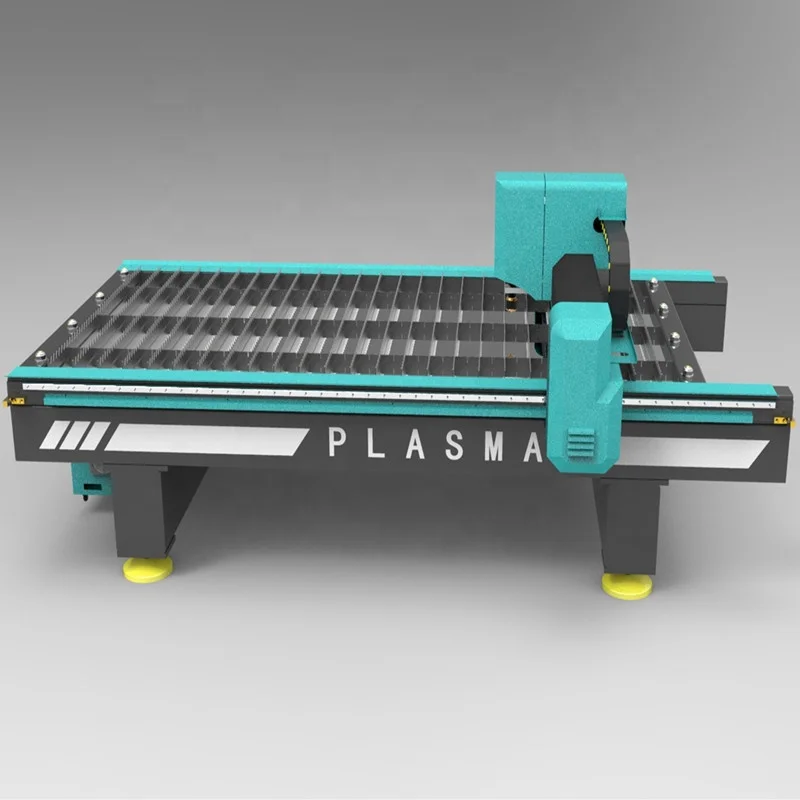

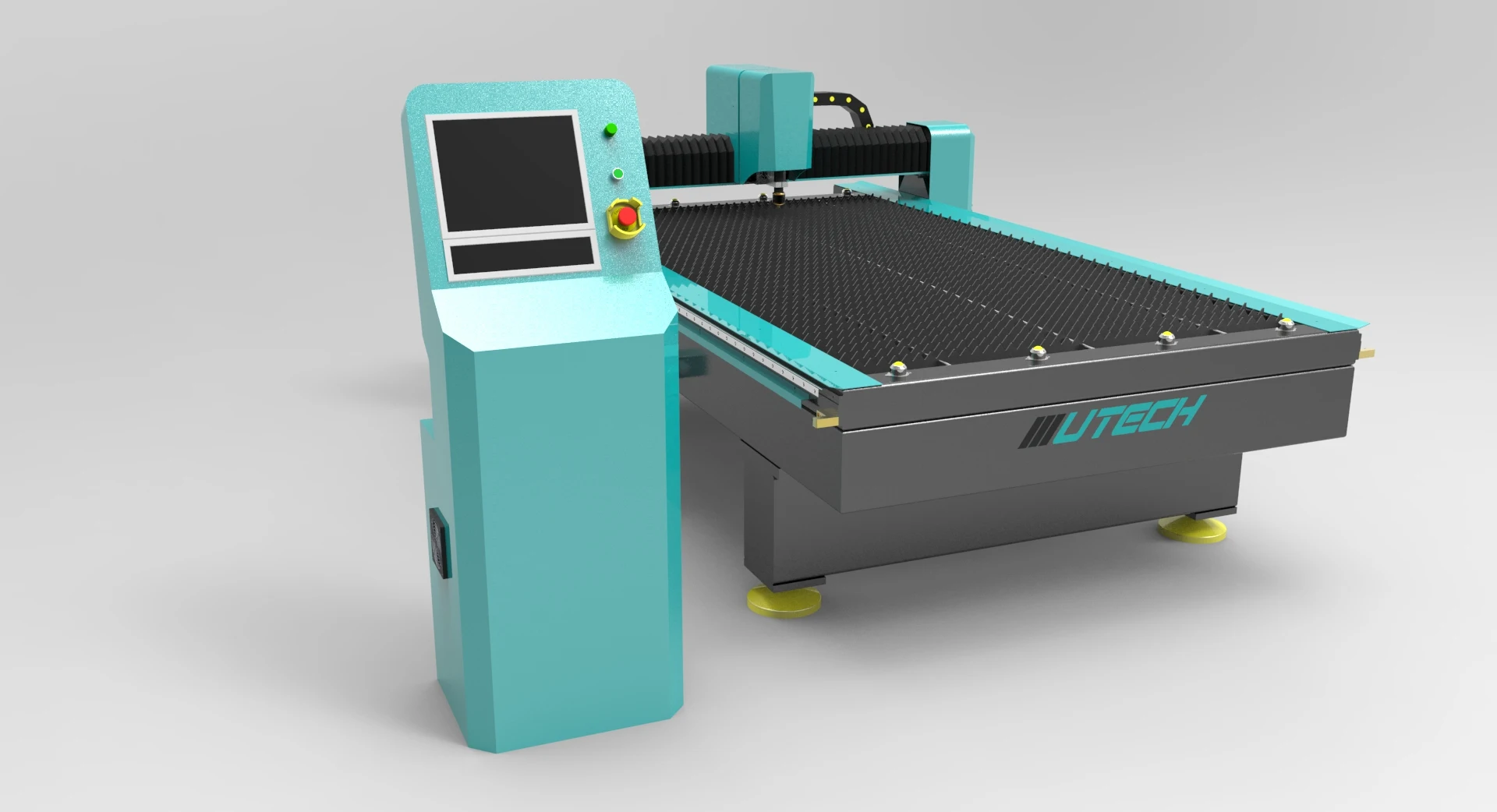

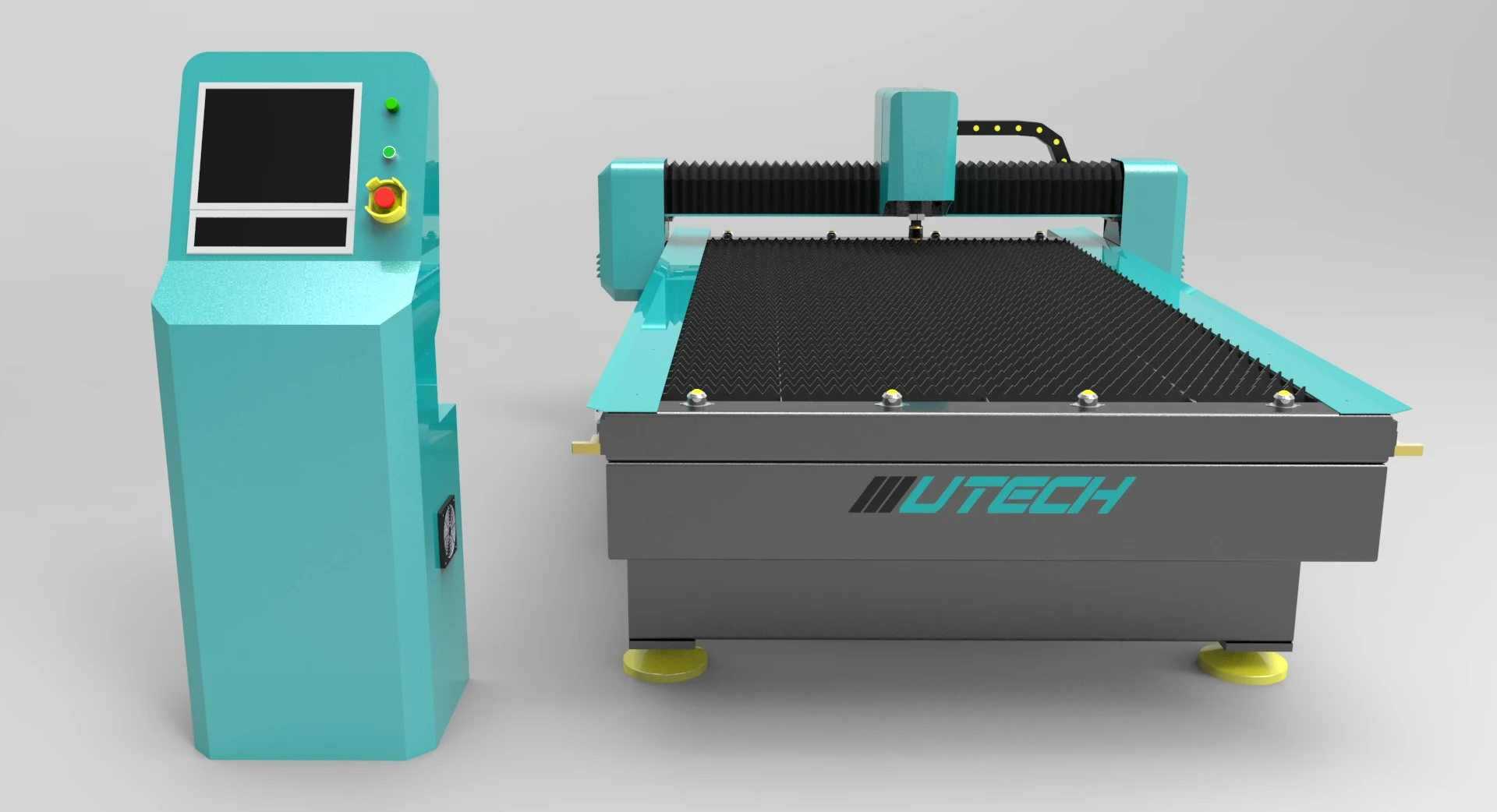

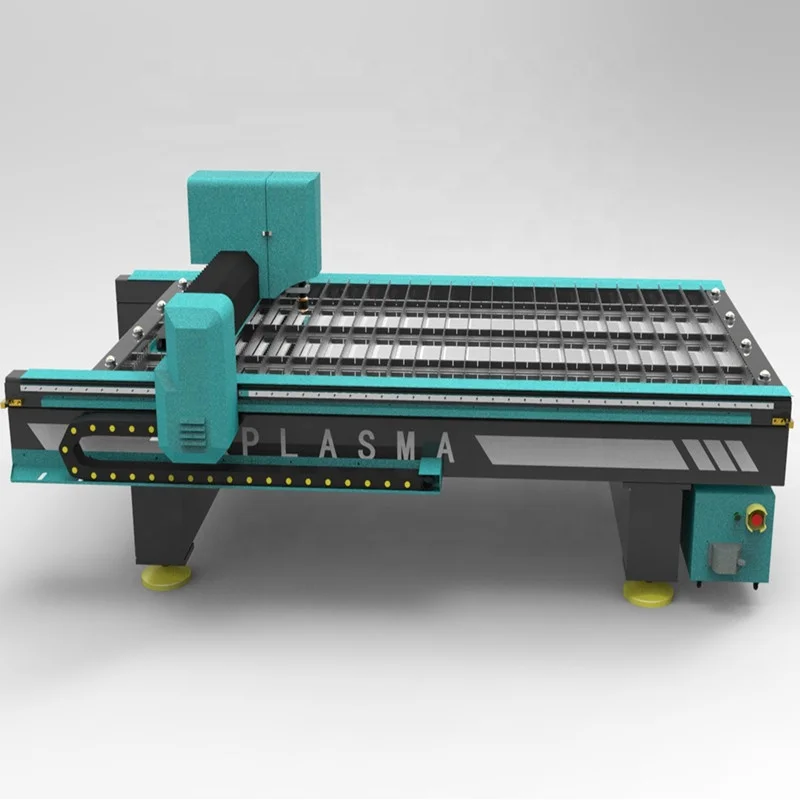

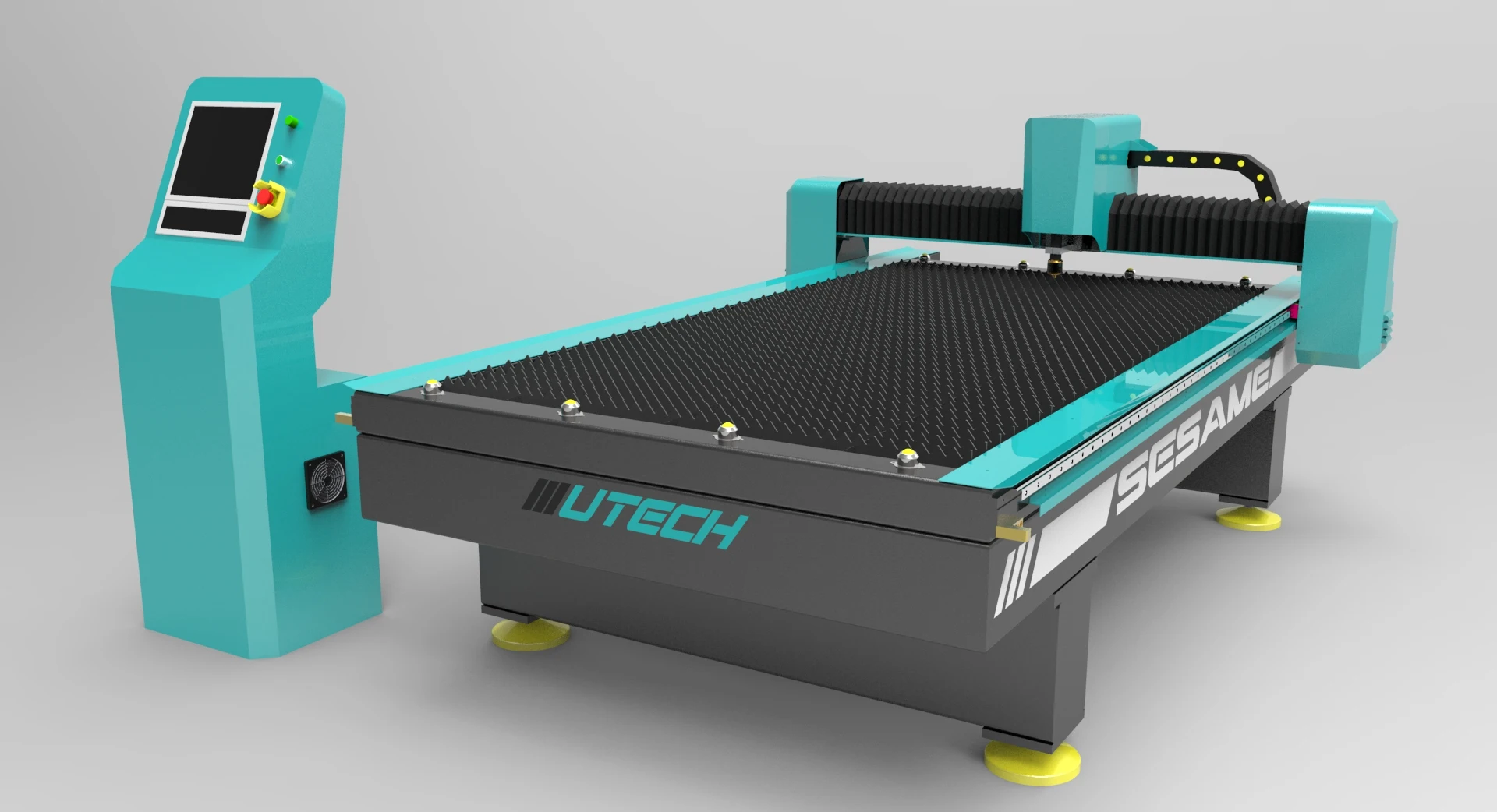

1500*3000mm cnc plasma cutting machine air plasma cutter
CNC Plasma Cutting Machine is automatic and high efficiency cutting equipment. CNC Plasma Cutting Machine is widely used in all kinds of carbon materials cutting, mild steel materials cutting and nonferrous metal precision sheet metal cutting.
Working area: 1200*1200mm, 1300*2500mm, 1500*3000mm, 2000*4000mm etc.
Plasma power: Huayuan 63A, 100A, 120A, 160A, 200A
Hypertherm 45A, 65A, 85A, 105A, 125A
Plasma power: Huayuan 63A, 100A, 120A, 160A, 200A
Hypertherm 45A, 65A, 85A, 105A, 125A
Applicable Materials:
Aluminum, Copper, Titanium, Nickel, Iron, Galvanized Sheet, White Steel, Titanium Plate, Carbon Steel, Stainless Steel, Alloy
Steel, Composite Metal.
1. Cutting faster, more accurate control, the cutting surface is more smooth, no glitches, no black; cutting holes in high quality
2. Stability and reliability for light path system and control system
3. Humanizing design, convenient operation
4. High-performance price ratio, low operating cost >High cutting efficiency, and quality, no noisy. Small heat influence area, cutting seam smooth and no deformation, post-treatment is not needed
5. The machine adopts Beijing START plasma control system, standard high sensitivity arc voltage device 6. High precision stepper motor and driver, ensure the efficiency and accuracy, increasing the stability and reliability greatly
2. Stability and reliability for light path system and control system
3. Humanizing design, convenient operation
4. High-performance price ratio, low operating cost >High cutting efficiency, and quality, no noisy. Small heat influence area, cutting seam smooth and no deformation, post-treatment is not needed
5. The machine adopts Beijing START plasma control system, standard high sensitivity arc voltage device 6. High precision stepper motor and driver, ensure the efficiency and accuracy, increasing the stability and reliability greatly
MACHINE PARAMTER | ||
Processing area | 1300*2500mm | |
Working thickness | 30mm | |
Z axis feeding height | 180mm | |
Working material | Iron, aluminum, titanium, stainless steel and others | |
Running speed | 0-15000mm/min | |
Cutting speed | 0-10000mm/min | |
Power | 10.5KW | |
Input voltage | 380V/220V/110V | |
Power supply frequency | 50HZ/60HZ | |
Plasma power supply | 100A | |
File transfer mode | USB interface | |
Working method | Non contact arc | |
Driving mode | Gear driving | |
Mode of motion | Gantry driving | |
X axis motor and drive | JMC Stepper motor and drive | |
Overall dimension | 2200*3300mm | |
Ventilation system install mouth | Double ventilation mouths | |
Weight | 1000kg | |
Cooling System | DSP A12S or STARFIRE | |
Guide rail | Taiwan PMI linear square rail | |
Plasma generator(power) | Huayuan or Hypertherm plasma(USA) | |
Plasma cutting gun | huayuan or Hypertherm plasma cutting gun | |
Floating cutting gun mode of motion | Automatic and Pneumatic test | |
System | Beijing Start controlling system | |
Floating adjustable block | Beijing Start Floating adjustable block | |
Body configuration | Steel | |
Table configuration | Steel table frame iron lattice | |
Material fixed mode | Electrode plate | |
processing cutting instruction | EMG, G-code, U00, MMG, NC | |
Machine positioning | ±0.15/300mm | |
Standard Configurations:
1) standard working area 1300*2500mm working area
2) Beijing STARFIRE control system 63A+ARF Height Controller(Automatic Rise and Fall)
3) JMC stepper motor&driver
4) Gear rack and square rail guide transmission
5) Sawtooth table
6) Heavy duty machine body with 5mm thick square tube
7) FASTCAM software
8) Instruction of STARFIRE control system and FASTCAM software.
9)Huayuan 120A plasma Power(Optional: Hypertherm power supply)
10)Cutting Material Collection Box with wheels, for easy take out products
2) Beijing STARFIRE control system 63A+ARF Height Controller(Automatic Rise and Fall)
3) JMC stepper motor&driver
4) Gear rack and square rail guide transmission
5) Sawtooth table
6) Heavy duty machine body with 5mm thick square tube
7) FASTCAM software
8) Instruction of STARFIRE control system and FASTCAM software.
9)Huayuan 120A plasma Power(Optional: Hypertherm power supply)
10)Cutting Material Collection Box with wheels, for easy take out products
Optional parts:
1) Servo motor&driver(any brnad)
2) Huayuan 63A, 100A, 120A, 160A, 200A;
Hypertherm 45A, 65A, 85A, 105A, 125A
3) Water tank/Water table
4) Flat table Etc.
2) Huayuan 63A, 100A, 120A, 160A, 200A;
Hypertherm 45A, 65A, 85A, 105A, 125A
3) Water tank/Water table
4) Flat table Etc.
Detailed Images
sawtooth table
you can also choose blade table
water tank
add water tank can absorb cutting smoke, and keep clear cutting environment,water cooling to guarantee cutting performance
Optional Parts
Hypertherm 45A/65A/85A/105A/125A/200A
USA Hypertherm 105A power source can cut less than 22mm sheet , its cutting thickness same as China HUAYUAN 160A power source
Or you can contact me, I will help you choose suitable
2. Janpan Yaskawa servo
motor
it can cut more complex drawing , cutting precision is more better than step motor , and cutting is more smooth.
it can cut more complex drawing , cutting precision is more better than step motor , and cutting is more smooth.
3. Red light position
Red light follows cutting torch , to make sure the cutting position , then confirm the cutting precision
More Function
4 Aaxis round pipe
Round pipe and sheet cutting not only can cut sheet, still can cut the round pipe and square pipe surface.
4 Axis square pipe
It can cut square and round pipe together with 4 axis control system, sheet, round pipe , square pipe, all is ok. square pipe not
only can cut pipe sheet, also can cut Angle
only can cut pipe sheet, also can cut Angle
Drilling
If your want to cut with more small hole, drilling function is the best choose, its max diameter can be 30mm
Plasma and flame cutting
add Flame cutting , you can cut thin sheet , also can cut thick sheet , more than 30mm, flame cutting is more better and economic , its max cutting thickness can be 300mm
Red light position
Red light follows cutting torch , to make sure the cutting position , then confirm the cutting precision
Red light position
Red light follows cutting torch , to make sure the cutting position , then confirm the cutting precision
Related Products
Packing&Shipping
Packing:
1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.
2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.
Shipping:
We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via
express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.
You can choose any way you'd prefer, we also will give you some proper suggestions.
1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.
2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.
Shipping:
We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via
express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.
You can choose any way you'd prefer, we also will give you some proper suggestions.
Company Introduction
Shandong U-MAY CNC Technology CO., LTD. Specializes in machinery R&D, development, production. Our "UTECH" brand CNC Router has occupied CNC Router market with absolute advantage. Since the establishment of our company has been committed to professional CNC Router research and development production. We adhere to the "integrity-based, innovative products, effective communication, quality service" for the company's purpose, "technical service customers" based team spirit, and formed a complete set of one-stop service system for design, installation, commissioning, training and maintenance .
1. Independent research and development of High Precision&Speed CNC Cutting Machine.
2. The industry's first electronically controlled fully automated start-stop device.
3. The whole machine thermal aging treatment.
4. High precision T6 aviation aluminium profile machined parts.
5. Humanized design concept.
6. High Engraving processing efficiency, smooth cutting edge, good processing quality.
Smart Solution, Better Tomorrow!
Our Services & Strength
1. Whole machine with one year warranty, within one year, if there has parts broken, you can send back to us, then we'll send a new one to you.
2. Free training course at our plant or on line.
3. After the warranty period, we'll provide the consumable parts at an agency price when you need replacement.
4. 24 hours on line service each day, free technical support.
5. Before machine delivery, we'll install all parts and test machine for you. We'll take machine's working video and machine photos for you for checking, if confirmed there're no problem, then we'll delivery machine. And if dont dismantle the gantry (if working area more than 1325, then need dismantle machine gantry for putting it into container), after machine arrived, you just need connect plasma power supply, software etc, it's more easily for you. If you're worried, we can take a teaching video for you at that time. By the way, during the production of machine, we also can share the process with you.
6. As for training, firstly we'll take more teaching video for you, and we also can remote control, most important, if you need, we can provide our technicians for on-site training and on-site teaching. And if you wanna, welcome to visit us, you can operate and learn your machine by yourself.
7. After machine shipped, I'll prepare some documents, like B/L, Packing List, Commerical Invoice, Commerical Contract, CE certificate for helping you pick up your machine.
FAQ
Q1. How do you get the best price? As you may know, the different type of CNC machine apply to the different material, and the different model apply to the different material. Please tell me what's material you want to cutting or engraving? And what's MAX size and thickness of carved material? Then I will recommand the most suitable model and the best price for you.
Q2: How long is the delivery time?
For standard machines, it would be 15-20 days, if small machine, such as our mini cnc 3020, 3040, 4060, within
one week; For non-standard machines and customized machines according to clients specific requirements, it would be 20 to 30 days.
Q3: In case of failure, how to do?
Call us----our enginners are online for 24-hours,and ready to serve you. Replacement of damaged parts for free---For more information,please contact us The CD and operation manual----It show the most common failure in working processing and how to solve this problems.
Q4: How is the packing?
1) For CNC engraving machine: Machine would packed with wrapping film, EPE foam, and standard export plywood box. 2) For fiber laser cutting machine: Machine body covered with plastic film, laser source, control cabinet packed with plywood case and put on the machine body, chiller packed with plywood alone, usually fiber laser cutting machine packed with a whole 20GP container.
Q2: How long is the delivery time?
For standard machines, it would be 15-20 days, if small machine, such as our mini cnc 3020, 3040, 4060, within
one week; For non-standard machines and customized machines according to clients specific requirements, it would be 20 to 30 days.
Q3: In case of failure, how to do?
Call us----our enginners are online for 24-hours,and ready to serve you. Replacement of damaged parts for free---For more information,please contact us The CD and operation manual----It show the most common failure in working processing and how to solve this problems.
Q4: How is the packing?
1) For CNC engraving machine: Machine would packed with wrapping film, EPE foam, and standard export plywood box. 2) For fiber laser cutting machine: Machine body covered with plastic film, laser source, control cabinet packed with plywood case and put on the machine body, chiller packed with plywood alone, usually fiber laser cutting machine packed with a whole 20GP container.
