Профессиональные PCBA OEM услуги micro sd карта памяти pcba
US $0.12-$1.00
Бытовые электронные весы панель управления печатной платой производственные услуги для интеллектуальных весовых
- Категория: Блок печатных плат >>>
- Поставщик: Shenzhen,Wells,Electronic,Technology,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.64 $* | 0.31 $* |
| Aug-17-2025 | 0.61 $* | 0.11 $* |
| Jul-17-2025 | 0.88 $* | 0.56 $* |
| Jun-17-2025 | 0.64 $* | 0.91 $* |
| May-17-2025 | 0.12 $* | 0.3 $* |
| Apr-17-2025 | 0.99 $* | 0.88 $* |
| Mar-17-2025 | 0.40 $* | 0.5 $* |
| Feb-17-2025 | 0.38 $* | 0.23 $* |
| Jan-17-2025 | 0.20 $* | 0.78 $* |
Характеристики

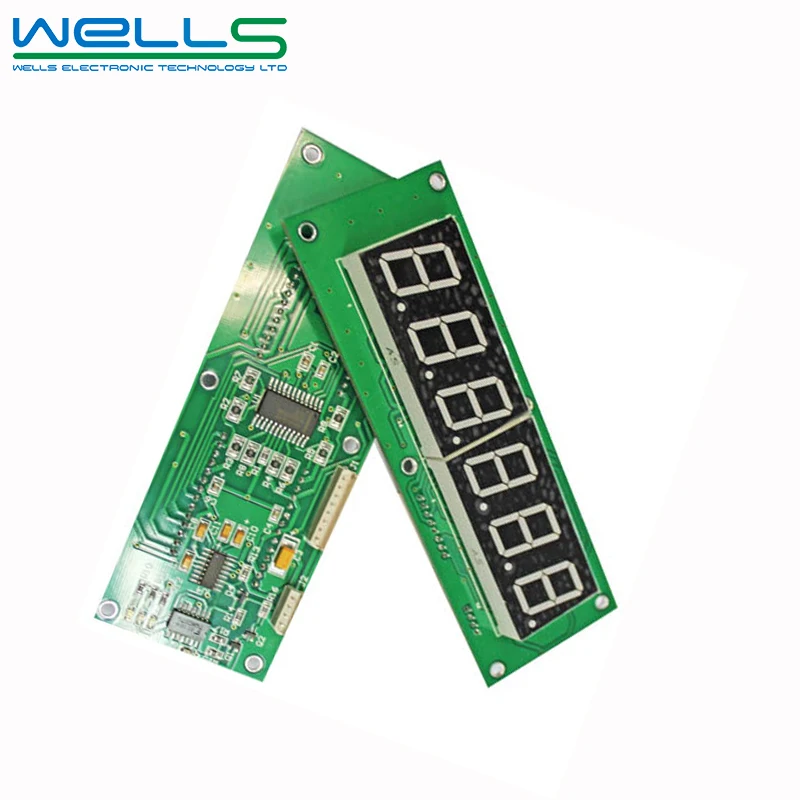

Household Electronic Scale Control Panel PCB Manufacturing Service For Smart Weighing Scales
Product Description
| Items | Rigid PCB Capability | |
| 1 | Layers | 1-30layers |
| 2 | Material | FR-4, High TG FR4 , Halogen-free FR4 , Rogers, Aluminium ,Ceramic(96% Alumina) |
| 3 | Copper Thickness | 1/3OZ-7OZ |
| 4 | Surface Treatments | HASL, HAL, Immersion Gold/Silver/Tin, OSP, Plated Gold, Carbon Ink, etc. |
| 5 | Min. Line/Space | 0.075mm(3mil) |
| 6 | Min. Hole Size | 0.1mm(4mil) for laser drilling, 0.2mm(8mil) for mechanical drilling holes |
| 7 | Max. Board Size | 530mm*620mm(20.9"*24.4") |
| 8 | Hole Tolerance | PTH:+/-0.076mm(+/-3mil), NPTH:+/-0.05mm(+/-2mil) |
| 9 | Soldermask Color | Green, White, Black, Red, Yellow, Blue, etc. |
| 10 | Silkscreen Color | White, Black, Yellow, Blue, etc |
| 11 | Impedance Control | +/-10% |
| 12 | Profiling Punching | Routing, V-Cut, Chamfer |
| 13 | Special Holes | Blind/Buried Holes, Countersunk Holes |
| 14 | Reference Standard | IPC-A-600H Class 2, Class 3 |
| 15 | Certificates | UL, ISO9001, ROHS, SGS |
| Items | FPC Capability | |
| 1 | Types | Single-Sided, Double-Sided, Multi-Layers(Max. 6Layers), Flex-Rigid PCB |
| 2 | Surface Finishing | HASL, Gold Plating, Electroless nickel immersion Gold, Immersion Tin, OSP |
| 3 | Material | Polyimide(PI), Polyester(PET), FR4 |
| 4 | Copper Foil | ED/RA |
| 5 | Min. Line/Space | 0.05mm(2mil) |
| 6 | Min. Hole Size | 0.2mm(8mil) |
| 7 | Max. Board Size | 400mm*800mm(15.8"*31.5") |
| 8 | Min. Board Thickness | 0.1mm(4mil) |
| 9 | Min. Soldermask Thickness | 10um(0.4mil) |
| 10 | Soldermask Color | Green, Yellow, Black, White, Blue, Red |
| 11 | Profiling | Punching, Routing, V-Cut |
| 12 | Soldering Thermal Resistance | 300 degree/10 seconds |
| 13 | Peeling Strength | >1.4kg/cm |
| 14 | Surface Resistance | 105mΩ |
| 15 | Insulation Resistance | 105mΩ |
| 16 | Dielectric Strength | 9.8*105V/cm |
| 17 | Flammability | UL-94V-0 |
Our Services
Company Information
Wells electronic technologe ltd was founded in 2008, which is a factory that is committed to providing customers with one-stop services such as component purchasing, SMT processing, test assembly, etc. The company has multiple high-end SMT production lines and test assembly lines with high quality Stable and fast delivery advantages; provide satisfied one-stop hardware innovative manufacturing solutions for customers in wireless communication, AI intelligent hardware, industrial automation, medical, military and other fields! And has been selected as the outstanding supplier of the year by leading domestic and foreign companies!
Production process
Certifications
