Цифровой сервопривод с алюминиевым корпусом и стальной шестерней углом управления 360 для радиоуправляемого
- Категория: Radio Control Toys >>>
- Поставщик: Shenzhen,FEITE,Model,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 12.99 $* | 13.28 $* |
| Aug-16-2025 | 12.99 $* | 13.84 $* |
| Jul-16-2025 | 10.62 $* | 11.67 $* |
| Jun-16-2025 | 12.86 $* | 13.0 $* |
| May-16-2025 | 10.24 $* | 11.35 $* |
| Apr-16-2025 | 11.46 $* | 12.67 $* |
| Mar-16-2025 | 11.8 $* | 12.97 $* |
| Feb-16-2025 | 11.80 $* | 12.59 $* |
| Jan-16-2025 | 11.37 $* | 12.35 $* |
Характеристики
Product Description
Product Name | PWM Aluminium Case Full Steel Gear Digital Servo with 360 Control Angle For Robot RC Car |
Material | Aluminum middle,Steel Gears,Core Motor |
Function | Multi-turn 0-360°controllable |

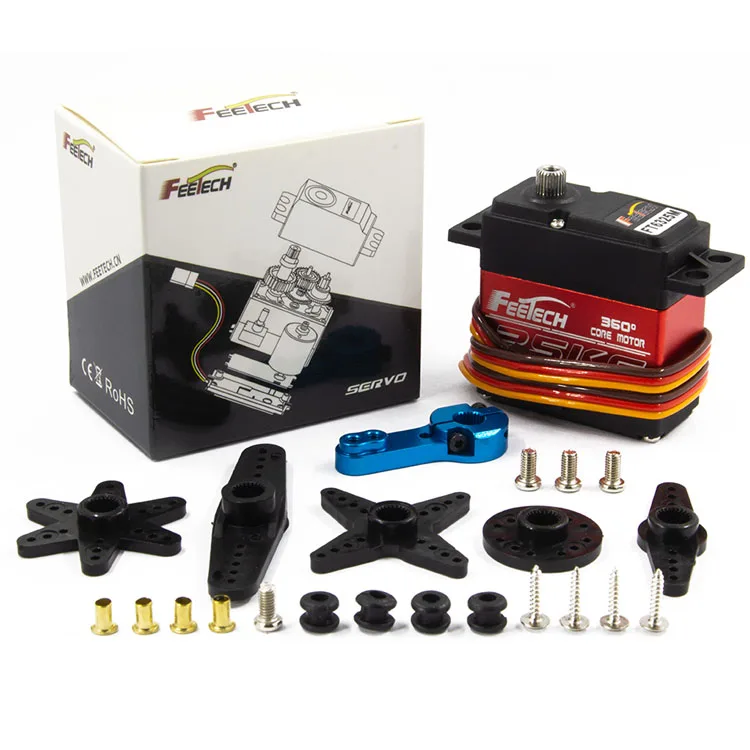

Package | Servo with accessories(plastic servo horn,fixed screw, vibration-damping rubber cover and other parts) |
Product performance description

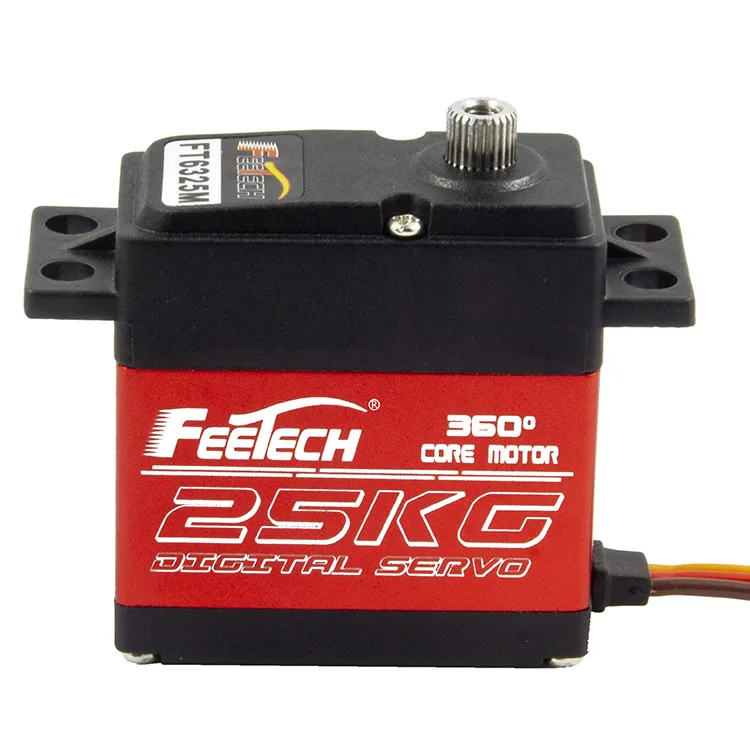

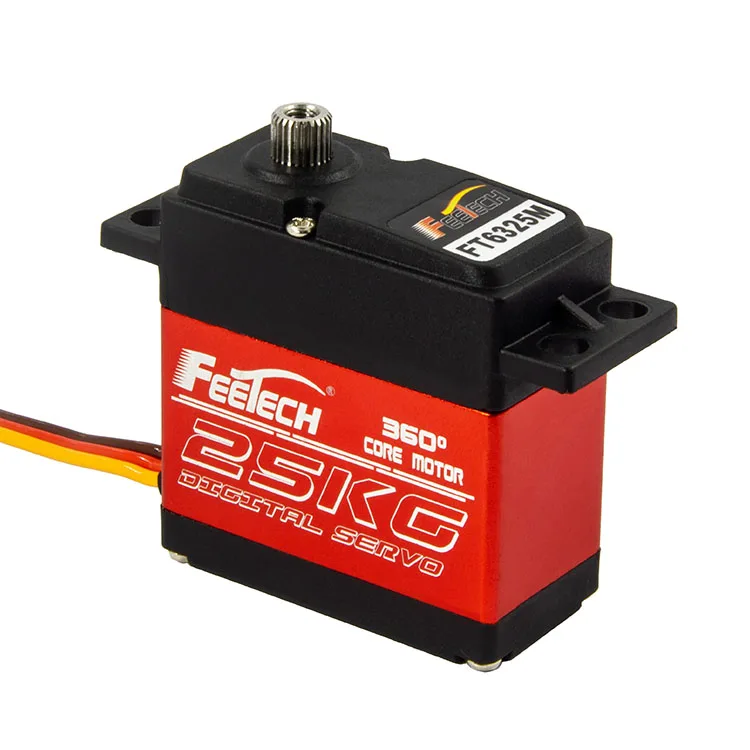

Feetech FT6325M is a full steel gear standard digital servo,
with 20.5kg.cm @6V,High torque more powerfull,

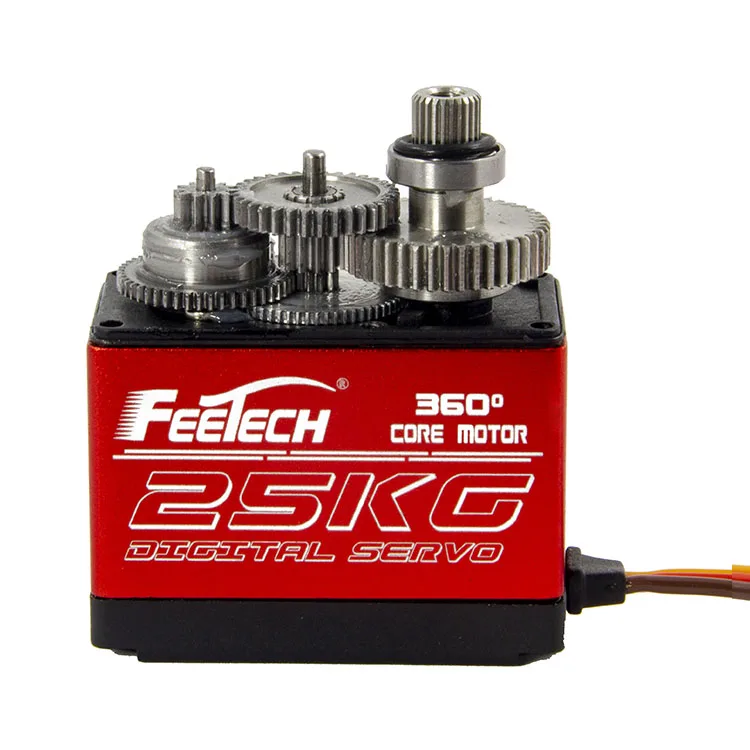

Full steel gears,improve servo's accuracy and extend its service time.
Internal Hall effect position sensor,
Controllable angle range from 0 to 360 degrees, for Robotic, RC,Industry
and others large angle control requirements.
Aluminum Case enhances heat dissipation and ensures servo motor work properly
Excellent linearity, precision control,
It is also a Multi Turn servo,5 turns*360 °（500-2500us）
No need to manually “center” the servo,
PWM Command Signal
with 20.5kg.cm @6V,High torque more powerfull,
Full steel gears,improve servo's accuracy and extend its service time.
Internal Hall effect position sensor,
Controllable angle range from 0 to 360 degrees, for Robotic, RC,Industry
and others large angle control requirements.
Aluminum Case enhances heat dissipation and ensures servo motor work properly
Excellent linearity, precision control,
It is also a Multi Turn servo,5 turns*360 °（500-2500us）
No need to manually “center” the servo,
PWM Command Signal
Details Images
Feetech FT6325M is a full steel gear standard digital servo,
with 20.5kg.cm @6V ,High torque more powerfull
with 20.5kg.cm @6V ,High torque more powerfull
Full steel gears,improve servo's accuracy and extend its service time
Aluminum Case enhances heat dissipation and ensures servo motor work properly
Internal Hall effect position sensor,Excellent linearity, precision control
Product Usage
Servo Potential Applications.
1. Electric lock (anti-heft door lock servo)
2. Luggage case lock servo
3. Washing machine safety mechanism servo
4. Water/gas valve control Servo
5. Smart lamp Switch Servo
6. Camera gimbal control servo
7. UAV heavy duty servo
8. Servo Release Servo Drop
9. Curtain Servo
10. Automatic Perfume and liquids Sprayer Servo
11. Smart bike gear change servo
12. Electric car mirror servo
13. Car seat adjustment servo
14. Car window winding servo
15. Medical equipment servo
16. safety lock servo
Product Verification
ISO9001,CE,Rohs
Related Products
Packing&Shipping
1.Small size:with PE bage
2.Stardard size analog servo:with PE bage
3.Stardard size digital servo:with box
Company Introduction
Shenzhen Feetech RC Model Co., Ltd. founded in 2011,
The brand of “FEETECH” is based on the concepts of Flying, Excellent, Efficient and Technology,
are professional servo solution expert, can provide electronic design,
structure design and production of one-stop customized service,
our creative team is devoted to design & develop a most ideal servo for all project.
The products have been involved in RC models, logistics warehousing, urban security,
smart home, medical, military, education, robotics and other industries.
And has passed ISO 9001:2015 quality management system certification and CE, RoHS, REACH certification.
The brand of “FEETECH” is based on the concepts of Flying, Excellent, Efficient and Technology,
are professional servo solution expert, can provide electronic design,
structure design and production of one-stop customized service,
our creative team is devoted to design & develop a most ideal servo for all project.
The products have been involved in RC models, logistics warehousing, urban security,
smart home, medical, military, education, robotics and other industries.
And has passed ISO 9001:2015 quality management system certification and CE, RoHS, REACH certification.
Our Services & Strength
Specialized in ODM and OEM and Custom Made
we can provide electronic design,
structure design and production of0 one-stop customized serive,
Please feel free to share with me your idea.
we can provide electronic design,
structure design and production of0 one-stop customized serive,
Please feel free to share with me your idea.
FAQ
Q.Are you a trading company or manufacturer?
A: We are a manufacturer in China.
Q.How do I know if your products are good quality?
A: Sample order is acceptable for testing your market and checking our quality. And we have strict quality
control systems from raw material incoming till finished product delivery out.
Q.what is your mass production lead time?
A: Our production lead time is only around 7-15 days (according to the order QTY) .
Q.Do you test all the goods before delivery?
A: Yes, we have 100% test before delivery.
Q.What the product warranty you can offer?
A: For different servo, we can provide you a warranty from 6 months to 1 year.
A: We are a manufacturer in China.
Q.How do I know if your products are good quality?
A: Sample order is acceptable for testing your market and checking our quality. And we have strict quality
control systems from raw material incoming till finished product delivery out.
Q.what is your mass production lead time?
A: Our production lead time is only around 7-15 days (according to the order QTY) .
Q.Do you test all the goods before delivery?
A: Yes, we have 100% test before delivery.
Q.What the product warranty you can offer?
A: For different servo, we can provide you a warranty from 6 months to 1 year.
