JIECANG JC37B умная система подъема кухонного
- Категория: Прочие детали мебели >>>
- Поставщик: Zhejiang,Jiecang,Linear,Motion,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 248.93 $* | 253.12 $* |
| Jul-16-2025 | 201.53 $* | 205.22 $* |
| Jun-16-2025 | 244.72 $* | 249.9 $* |
| May-16-2025 | 242.65 $* | 247.32 $* |
| Apr-16-2025 | 193.37 $* | 197.86 $* |
| Mar-16-2025 | 238.49 $* | 243.94 $* |
| Feb-16-2025 | 236.64 $* | 241.84 $* |
| Jan-16-2025 | 234.38 $* | 239.17 $* |
Характеристики
Product Description
Features
* Small installing dimension with a long stroke length capacity
* Low noise level with a high load capacity
* Fitful for kitchen appliances
* Low noise level with a high load capacity
* Fitful for kitchen appliances
Dynamic Load Pull(N) | 500 | ||
Static Load(N) | 500 | ||
Input voltage(VDC) | 24 | With Jiecang Control Box | |
Max.Speed at Full Load(mm/s) | 33 | 30 | |
Current at 0 Load(Amp) | 1.5 | 1.3 | |
Current at Full Load(Amp) | 4.5 | 4.6 | |
Stroke Length(mm) | ≤640 | ||
Color | White | ||
Installing Way | Fix the rear panel by screws | ||
Overload Protection | Yes | ||
Limit Switch | No | ||
Duty Cycle | 10%，max 2 min. Continuous use | ||
IP Grade | IP43 | ||
Ambient Temperature | +5°C ~ +40°C | ||
Options | Hall Sensor | ||

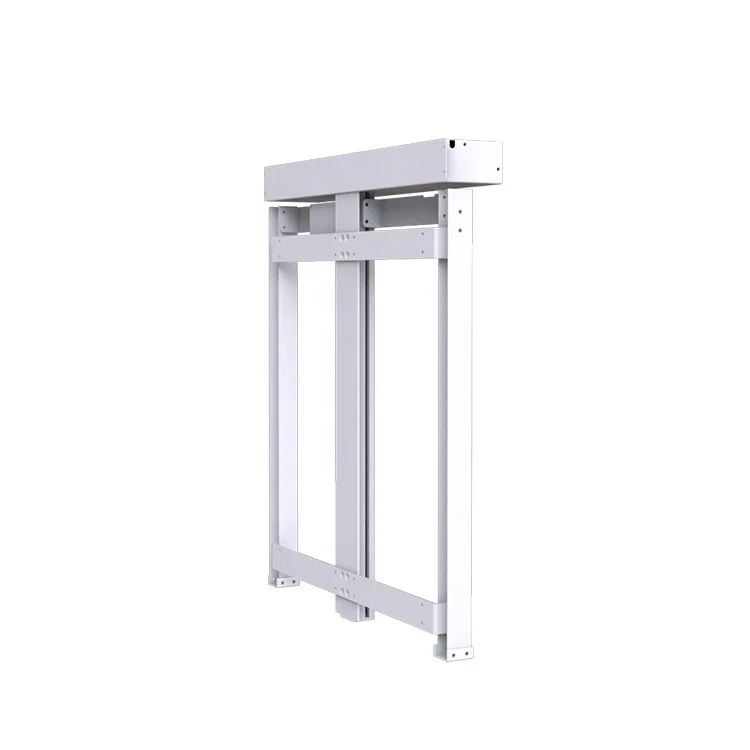

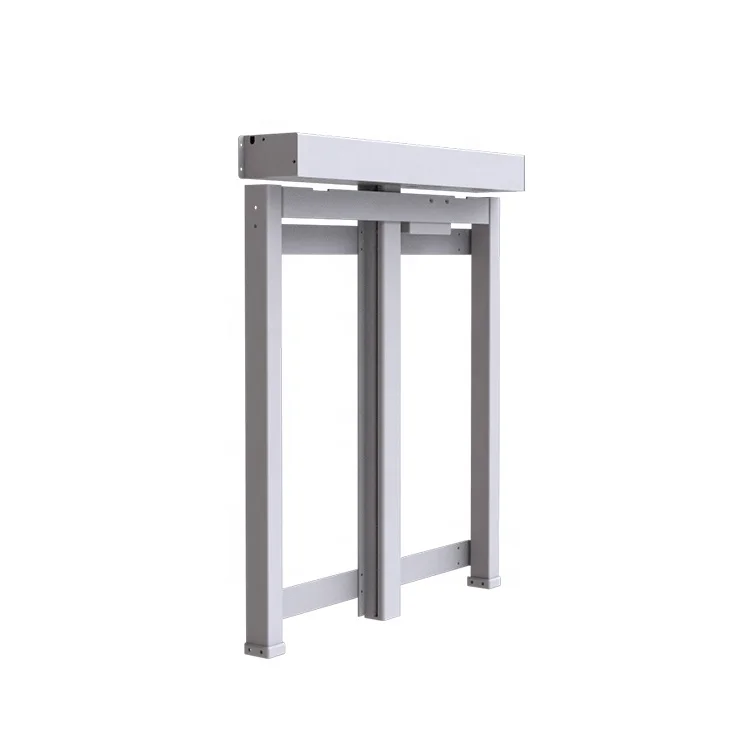

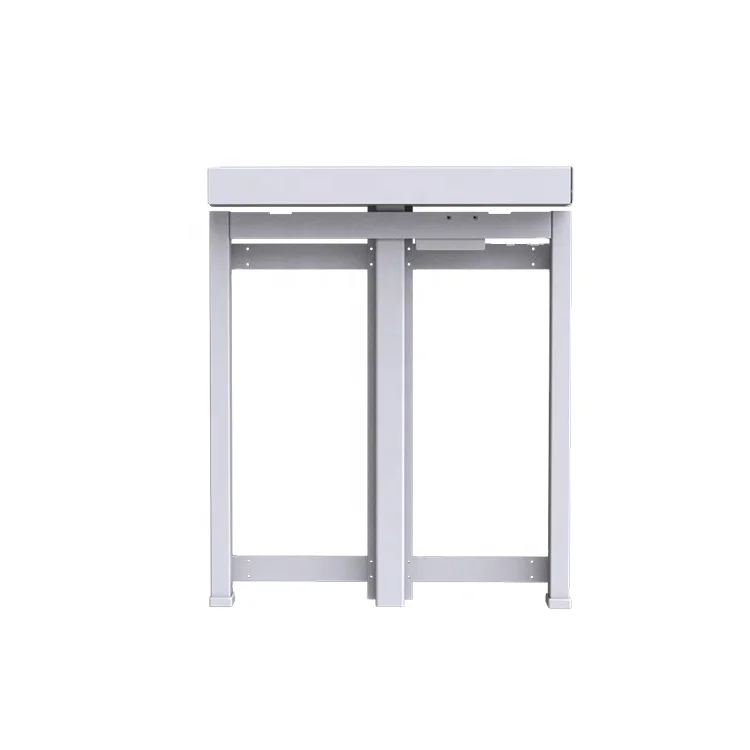

Detailed Images
Title goes here.
*670mm height electric cabinet compatible mating with 700mm outer cabinet (including cabinet plate thickness)
*770mm height electric cabinet compatible mating with 800mm outer cabinet (including cabinet plate thickness)
*770mm height electric cabinet compatible mating with 800mm outer cabinet (including cabinet plate thickness)
Related Products
Company Introduction
FAQ
Q: What is the shipping port?
A: Shanghai or Ningbo Port.
Q: How can i get the quotation?
A: Usually you need to send up information, our sales wil contact you within 12 hours.You should provide your company information
and official email address. About product, the prices are different specifications for different. Need to communicate with sales.
Q: May i have a sample order before bulk one?
A:Of course, we can provide a sample for you.
Q: Do you get the relevant certifications?
A: Yes, so far, we have got certification of CE, TUV, UL, PSE, KC, SAA, ROSH, ISO9001:2015, ISO14001:2015, OHSAS18001:2007 and so on.
When you have any questions, please feel free to contact us. And any comments or precious advice are welcomed.
A: Shanghai or Ningbo Port.
Q: How can i get the quotation?
A: Usually you need to send up information, our sales wil contact you within 12 hours.You should provide your company information
and official email address. About product, the prices are different specifications for different. Need to communicate with sales.
Q: May i have a sample order before bulk one?
A:Of course, we can provide a sample for you.
Q: Do you get the relevant certifications?
A: Yes, so far, we have got certification of CE, TUV, UL, PSE, KC, SAA, ROSH, ISO9001:2015, ISO14001:2015, OHSAS18001:2007 and so on.
When you have any questions, please feel free to contact us. And any comments or precious advice are welcomed.
