Индивидуальный Регулируемый гидравлический цилиндр для фитнеса
US $2.90-$10.00
Высокоскоростной Электрический цилиндр линейный привод бесщеточный двигатель прецизионный шариковый винт
- Категория: Цилиндры >>>
- Поставщик: Guangzhou,Nanjie,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 333.47 $* | 350.0 $* |
| Aug-19-2025 | 330.53 $* | 347.10 $* |
| Jul-19-2025 | 277.69 $* | 291.79 $* |
| Jun-19-2025 | 325.21 $* | 341.23 $* |
| May-19-2025 | 283.43 $* | 297.62 $* |
| Apr-19-2025 | 319.1 $* | 335.37 $* |
| Mar-19-2025 | 316.81 $* | 332.52 $* |
| Feb-19-2025 | 314.49 $* | 330.9 $* |
| Jan-19-2025 | 311.21 $* | 327.66 $* |
Характеристики
Product Description

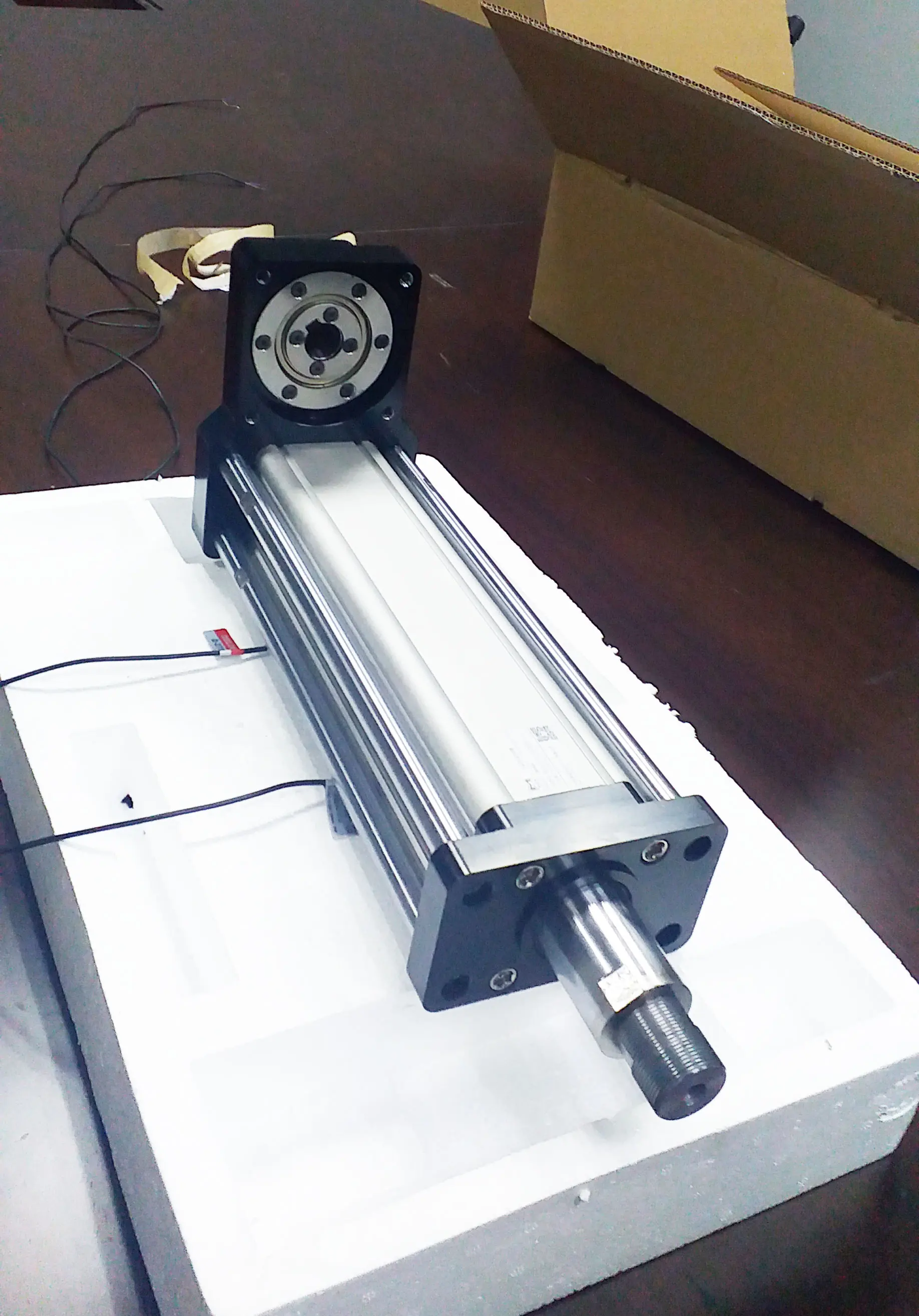

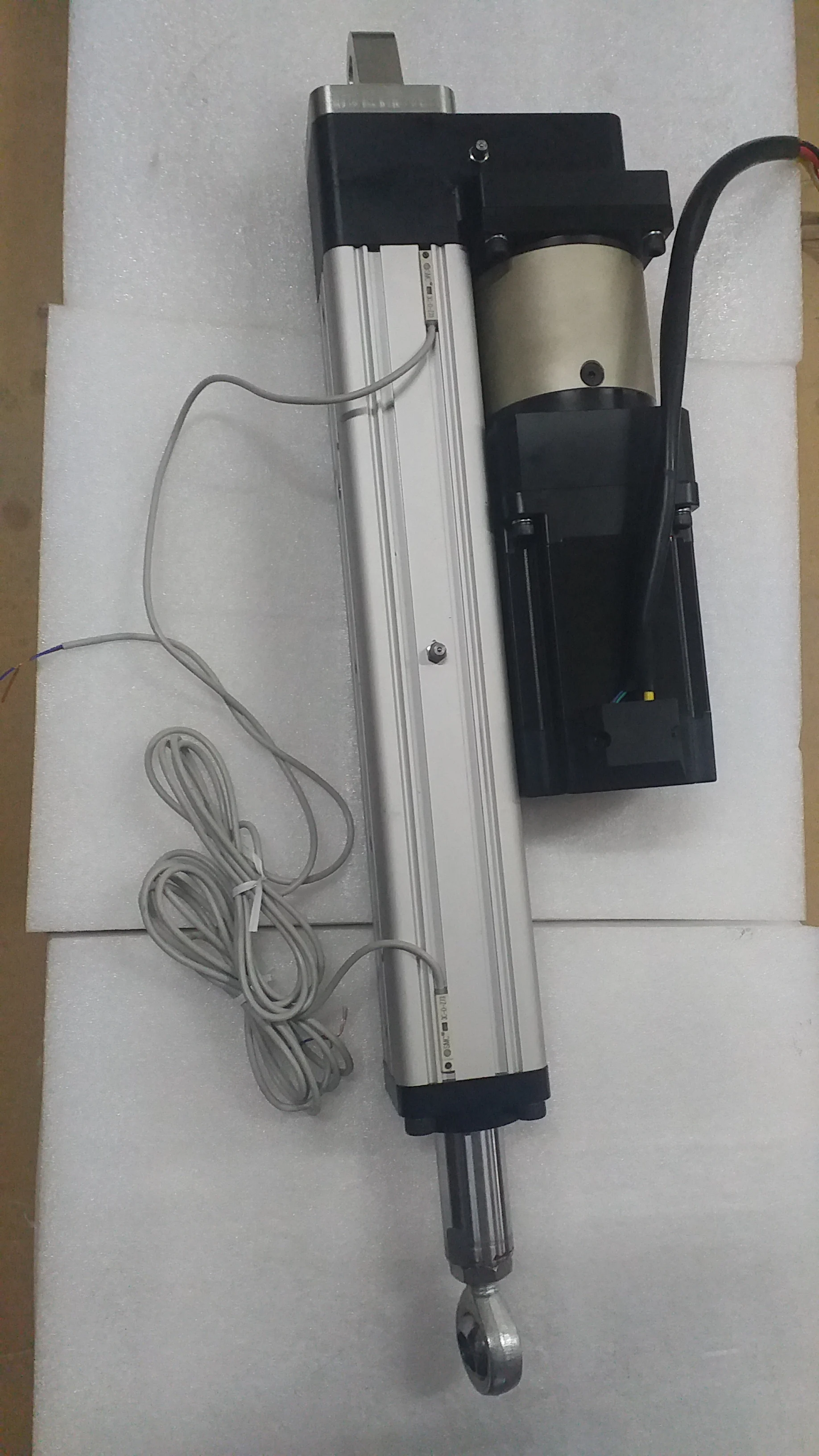

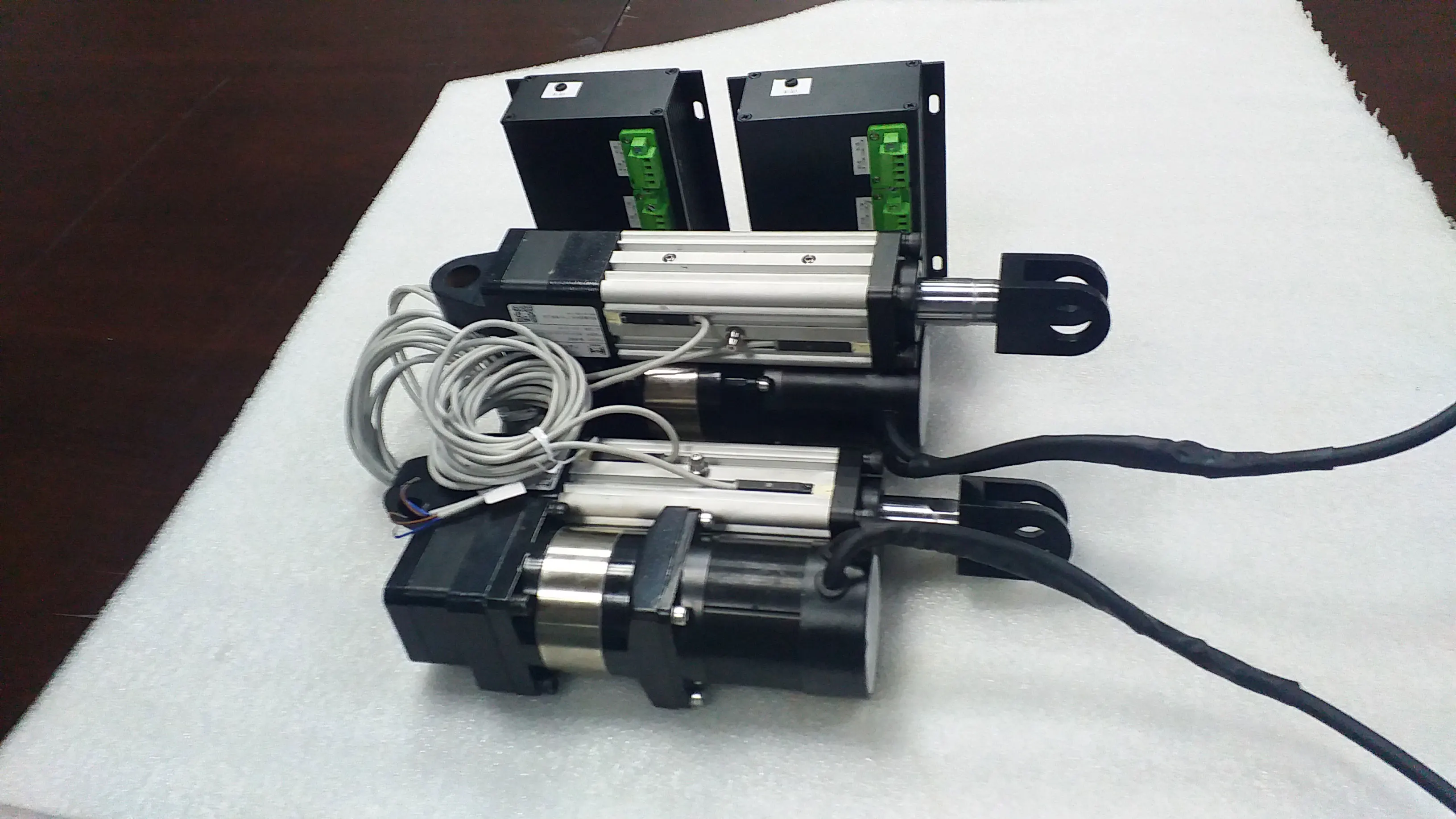

SPG series high-speed electric cylinders are driven by brushless motor (standard power-off brake) and precision ball screw. The power supply is DC24V, DC48V, AC220V, AC380V, and the power is 200W-3000W. The thrust is 80 kg-4 tons, the speed is 60mm/S-500mm/S, the installation is simple and fast, only need to connect the power supply and the movement direction control line to operate, with the encoder and PWM control can be connected with PLC, single chip, motion controller Realize low-cost motion control, speed and thrust can be customized.
Specification
Cylinder Diameter/mm | 32 | 40 | 50 | 50 | 63 | 63 | 80 | 80 | |||
Power/W | 210 | 300 | 550 | 570 | 1000 | 1500 | 2000 | 3000 | |||
Voltage/V | DC24V/DC48V | DC24V/DC48V | DC24V/DC48V/AC220V | DC24V/DC48V/AC220V | AC220V | ||||||
Rated Speed/mm/s | 60mm/s-250mm/s | 60mm/s-250mm/s | 60mm/s-500mm/s | 60mm/s-1000mm/s | 60mm/s-1250mm/s | ||||||
Rated Thrust/KG | 320KG, 240KG, 80KG | 450KG, 330KG, 110KG | 800KG, 600KG, 200KG, 120KG | 1100KG, 800KG, 280KG, 150KG | 1450KG, 1100KG, 380KG, 190KG, 100KG | 2200KG, 1650KG, 550KG, 280KG, 150KG | 2800KG, 2100KG, 700KG, 350KG, 180KG, 150KG | 4000KG, 3000KG, 1000KG, 500KG, 250KG, 200KG | |||
Standard Stroke/mm | 5-400mm | 5-400mm | 5-500mm | 5-600mm | 5-800mm | ||||||
Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Guangzhou Nanjie Machinery Manufacturing Co., Ltd.
We are a high-tech company integrating with r&d, design, production, sales and after-sales services. With the advanced technical
level, we quickly moved to the field of industrial intelligence. We have successfully developed and launched a series of electric
products, such as electric trolley, electric flat cart stand driving or sitting type, electric lifting trolley, intelligent
driverless all-terrain vehicle UGV, linear motile electric cylinder and so on. Our products widely used in bank vault, hospital
pharmacy and laundry, airport or station logistics, hotel rooms and laundry, warehouse logistics, library or archives,
administrative organization logistics, factory production line and other industries. With skills as the core, quality as the life,
and customers as the god, we are dedicated to providing customers with efficient, safe, environmentally friendly and intelligent
electrical equipment. Super first-class product quality and technical services have won praise from users. We continuously
exchanges and cooperates with domestic scientific research institutions and colleges to develop and design new product together.
Our innovation ability keeps improving and we have become the technology innovation leader in the domestic electric equipment
industry.
