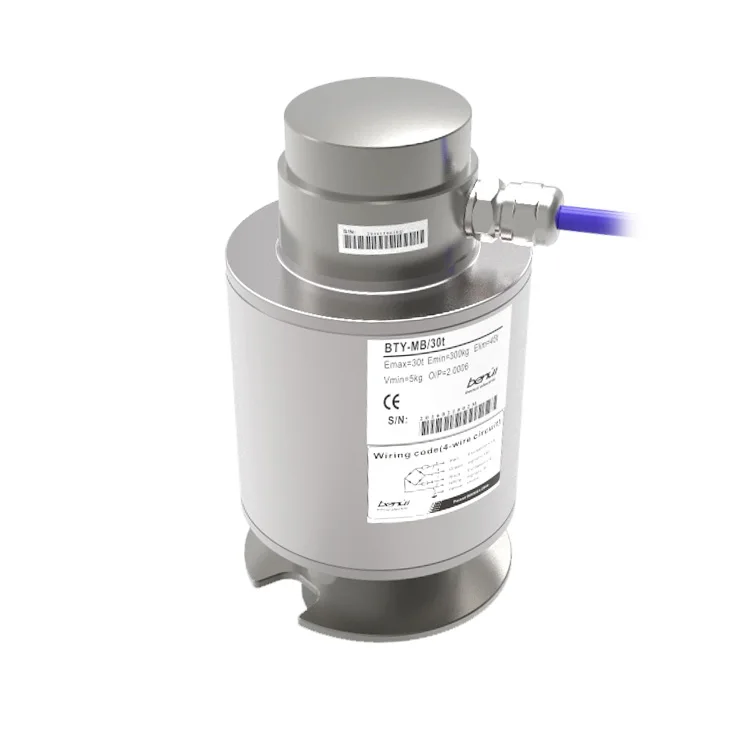

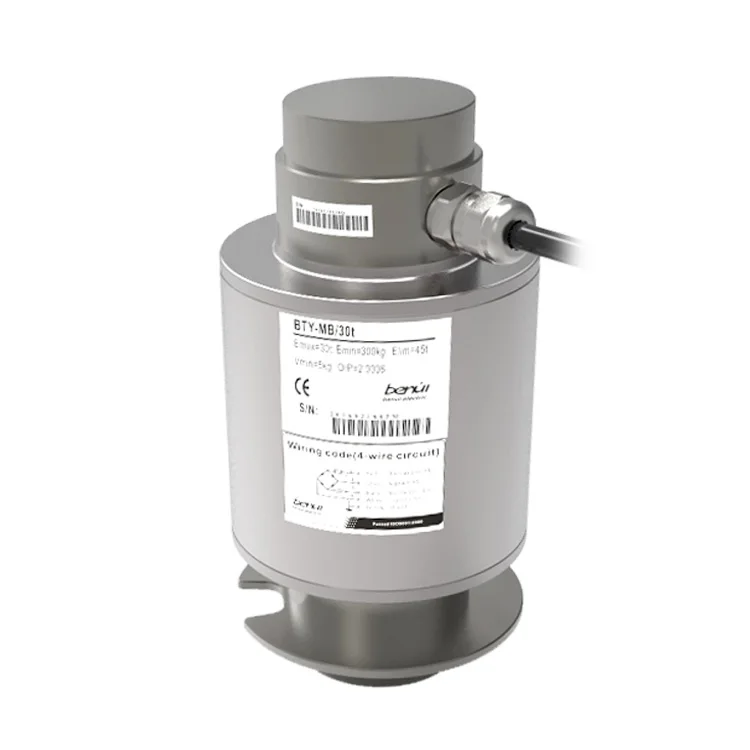

Датчик высокой температуры с температурной компенсацией 10T 20T 30T 40T 50T

Датчик высокой температуры с температурной компенсацией 10T 20T 30T 40T 50T

Категория: Other Sensors old >>>
Поставщик: Ningbo,Majia,Electromechanical,Co.,Ltd.

Цена:45,00 $ - 58,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	57.84 $*	58.45 $*
Jul-16-2025	46.15 $*	47.32 $*
Jun-16-2025	56.95 $*	57.23 $*
May-16-2025	56.42 $*	57.33 $*
Apr-16-2025	45.51 $*	46.3 $*
Mar-16-2025	55.41 $*	56.99 $*
Feb-16-2025	54.70 $*	55.76 $*
Jan-16-2025	54.56 $*	55.78 $*

Характеристики

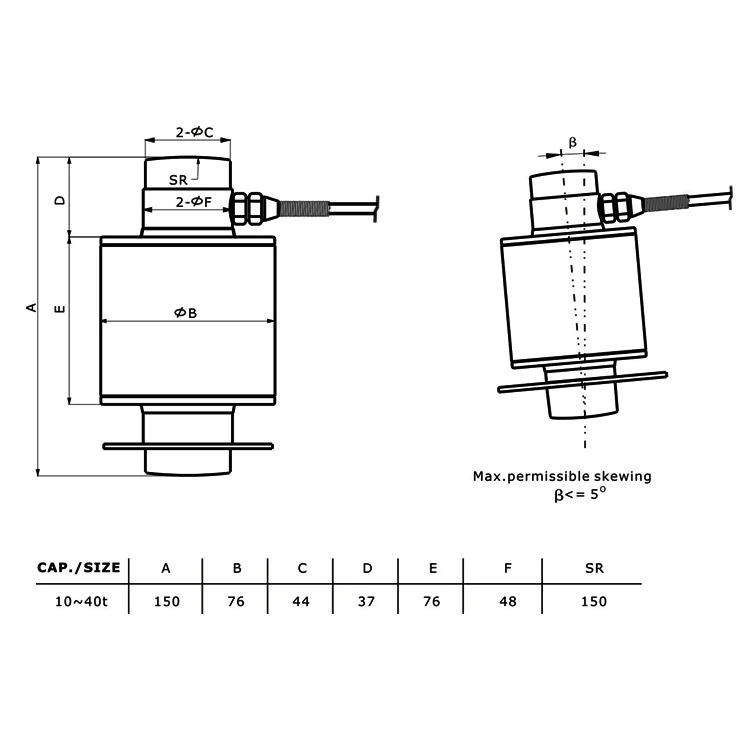

Dimensions (In mm. 1mm = 0.03937 inches)

Specification

Rated Capacity	10t, 20t,30t,40t, 50t, 60t	Capacidade
Full Scale Output	2.0mV/V ± 0.1%	Sensibilidade
Zero Balance	± 0.02mV/V	Balanco de zero
Non-linearity	< ± 0.023%F.S	Nao Linearidade
Repeatability	< ± 0.030%F.S	Repetibilidade
Hysteresis Error	< ± 0.030%F.S	Histerese erro
Creep in 30 minutes	< ± 0.030%F.S	Creep(30 minutos)
Input Resistance	775Ω ±10Ω	Impedancia de entrada
Output Resistance	702Ω ± 2Ω	Impedancia de saida
Recommended Excitation	10V (15V Maximum)	Tensao recomendata de excitacao
Insulation Resistance	> 5000MΩ (50V DC)	Resistencia de isolamento
Temperature Effect on Sensitivity	< ±0.0012% of Cn/k	Efeito da temp. na sensibilidade
Temperature Effect on Zero Balance	< ± 0.0040% of Cn/k	Efeito na temp. no zero
Working Temperature Range	-30°C to 70°C/-20°F to 160°F	Faixa de temp. operacao
Storage Temperature Range	-50°C to 85°C/-58°F to 185°F	Faixa de temp. homologada
Safe Overload	150%F.S	Sobrecarga segura
Breaking Overload	300%F.S	Sobrecarga maxima
Seal Type	Welded sealed	Tipo de sello
IP Rating	IP68	Grau de protecao
The data for deviation of synthesis error,TK0,TKc are typical values. The sum of these data meets the requirements according to OIML R60

Company Profile

NingBo Maken Electric company which focus on designing, producing and selling load cells and auto control system. We Maken have the plant cover 12,000 square meters, equipped with state of art devices for production, testing & calibration. Its working condition is very nice and R&D ability is strong, we Maken with the annual producing capacity more than 500,000 pieces or sets of load cells, and more than 55% are sold abroad.
We Maken has already passed the approval of ISO9001, OIML R60 C3, CE and Anti-explosion, and obtained many patents and certificates on weighing field. Meantime we Maken established the management system like OA and ERP, sales net almost covered all of China and most of major countries in the world.

We Maken is not only producing but also focus on supplying for technical solution and superior service. We Maken steps forward through improve existed old items, develop new products and focus on superior advance products into Modular, digital, intelligent. Especially, we successfully develop first weighing system or load cells connected to mobile phone with functions like remote wireless control, management and updates etc. We strong believe this kind of system and load cells will be become the most popular new generation intelligent product with the development of the mobile phones and applying of 5G service in the near future.

Every features of Maken is the point why you chose our products & service！
