Характеристики
Product Description
.Cheap 50 in. x 16ft. galvanized cattle panel
Short description:

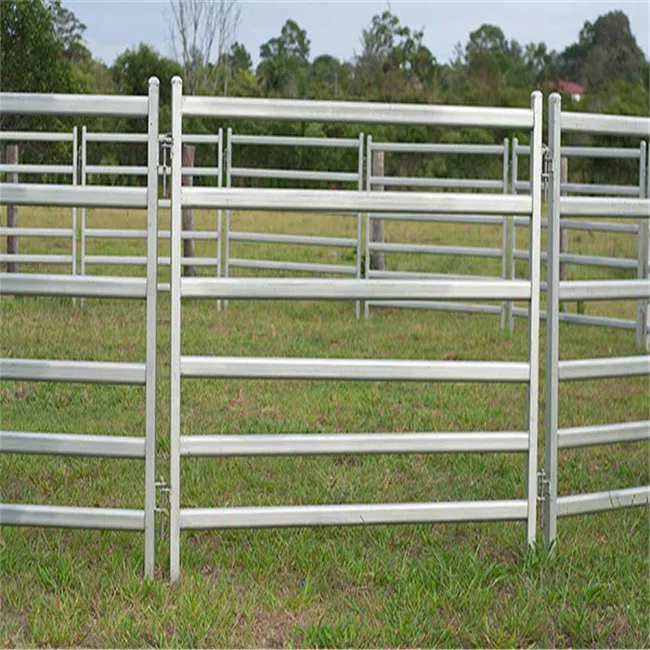

Cattle panel can be used as a portable or permanent fencing solution for livestock.
The Panels are perfect for uneven or steep terrain and the measure 2.1m x 1.8m high
and are made out of heavy duty hot dipped galvanised pipe to the Australia standard.
Short description:
Cattle panel can be used as a portable or permanent fencing solution for livestock.
The Panels are perfect for uneven or steep terrain and the measure 2.1m x 1.8m high
and are made out of heavy duty hot dipped galvanised pipe to the Australia standard.
Specification
Popular size | ||
Height x Length | 1.8m x 2.1m, 1.6 x 2.1m, 1.8m x 2.4m and so on | |
Pipe style | Round pipe or square tube or oval tube | |
Pipe specification | 32mmO D, 40mmO. D, RHS40mm, 30x60 42x115 oval tube etc. | |
Package details | In steel pallet | |
Special size is available | ||
Our cattle panels is a good solutions for easy and fast to build a yard for you control cattles. ,cattle panels made by high
quality minimum 15 microns zinc layer galvanized steel 360 ° full welds pipes to make sure panels are stronger to face any impacr from cattles or horse,Horizontal Rails with the oval pipes design to avoid hurt of livestock .The advantage of Light Duty panels allow you to build a easy cattle yard at a fastest time ,It is a ideal solutions for quite cattles horse .
30mm x 60mm x 1.60mm -Cattle Yard Panels
Height :1800mm
Width : 2100mm
Vertical Post : RHS 40mm x 40mm x 1.60mm
Horizontal Rails : Ovals 30mm x 60mm x 1.60mm
TOTAL : 6 Bars
Accessories :2pcs caps + 2 pcs L lugs + 2 pcs U lugs + 2 Pins + 2 PCS foot plate
Finish :Hot Dipped Gavanzed 15 microns minimum then siliver painted
Note : We are cattle panels manufacturer ,accordingly we can customized any size of products as long as customer offer their idea we will weld it in real world
quality minimum 15 microns zinc layer galvanized steel 360 ° full welds pipes to make sure panels are stronger to face any impacr from cattles or horse,Horizontal Rails with the oval pipes design to avoid hurt of livestock .The advantage of Light Duty panels allow you to build a easy cattle yard at a fastest time ,It is a ideal solutions for quite cattles horse .
30mm x 60mm x 1.60mm -Cattle Yard Panels
Height :1800mm
Width : 2100mm
Vertical Post : RHS 40mm x 40mm x 1.60mm
Horizontal Rails : Ovals 30mm x 60mm x 1.60mm
TOTAL : 6 Bars
Accessories :2pcs caps + 2 pcs L lugs + 2 pcs U lugs + 2 Pins + 2 PCS foot plate
Finish :Hot Dipped Gavanzed 15 microns minimum then siliver painted
Note : We are cattle panels manufacturer ,accordingly we can customized any size of products as long as customer offer their idea we will weld it in real world

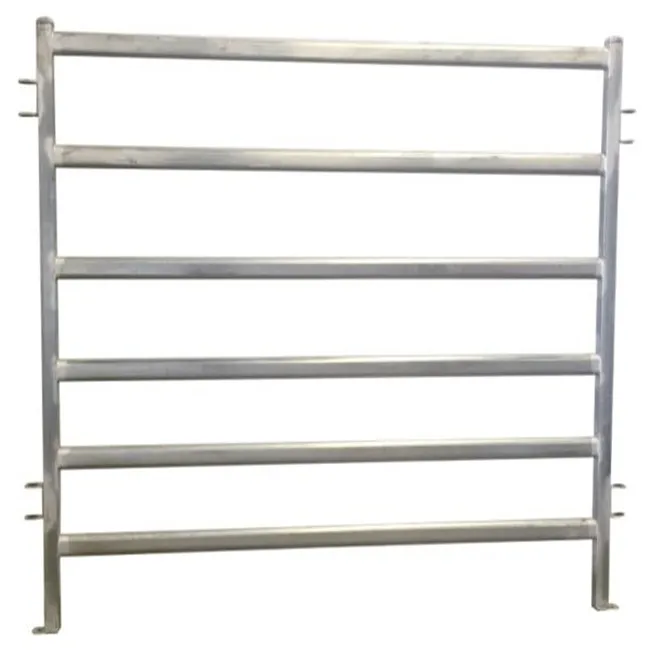

42x115mm 5 Ovals Heavy Duty Cattle Panel
Specification
– Weight: 45kg
– Dimensions: 1800mm(H) x 2100mm (W)
– Vertical Frame Posts:50 x 50 x 1.8mm Galvanized RHS
– Horizontal Rails:42 x 115mm 5 x 1.8mm Galvanised Oval Rail
– Lock Pins: 2 x Solid cold zinc coated
– Heavy Duty Cattle Panel also available: 30×60 and 40×80 Rail
– Heavy Duty Cattle Gate available: 2.3m H and 3.0m H
Specification
– Weight: 45kg
– Dimensions: 1800mm(H) x 2100mm (W)
– Vertical Frame Posts:50 x 50 x 1.8mm Galvanized RHS
– Horizontal Rails:42 x 115mm 5 x 1.8mm Galvanised Oval Rail
– Lock Pins: 2 x Solid cold zinc coated
– Heavy Duty Cattle Panel also available: 30×60 and 40×80 Rail
– Heavy Duty Cattle Gate available: 2.3m H and 3.0m H
2000mmx2200mm -cattle gates panel
* Door Size: 2000mm wide x 2200mm high with 6 rails
* Panel Size: 2100mm wide x 1800 mm high with 6 rails
* Rails: 80mm x 40mm x 2mm welded onto the posts on ALL FOUR SIDES to make them stronger
* Posts: 50mm x 50mm x 2mm with weather caps & footplates with drainage holes welded to top & bottom of the posts to protect from
weather & prevent posts from sinking.
* Lugs: 2 C lugs on one post & 2 L lugs on the other posts so panels can be joined together. These lugs are welded on ALL FOUR SIDES, not just tack welded.
* Door Size: 2000mm wide x 2200mm high with 6 rails
* Panel Size: 2100mm wide x 1800 mm high with 6 rails
* Rails: 80mm x 40mm x 2mm welded onto the posts on ALL FOUR SIDES to make them stronger
* Posts: 50mm x 50mm x 2mm with weather caps & footplates with drainage holes welded to top & bottom of the posts to protect from
weather & prevent posts from sinking.
* Lugs: 2 C lugs on one post & 2 L lugs on the other posts so panels can be joined together. These lugs are welded on ALL FOUR SIDES, not just tack welded.
Packing & Delivery
* There is a layer of bubble wrap at the bottom of pallet, which can protect the last barrier;
* There is a small piece of carton paper between each two barriers to prevent rubbing against each other;
* There is also carton paper under the pacing belt;
* Finally all barriers will be packed by several layers of plastic film.
* There is a small piece of carton paper between each two barriers to prevent rubbing against each other;
* There is also carton paper under the pacing belt;
* Finally all barriers will be packed by several layers of plastic film.
Company Profile
Cattle panel can be used as a portable or permanent fencing solution for livestock. The Panels are perfect for uneven or steep terrain and the measure 2.1m x 1.8m high and are made out of heavy duty hot dipped galvanised pipe to the Australia standard.

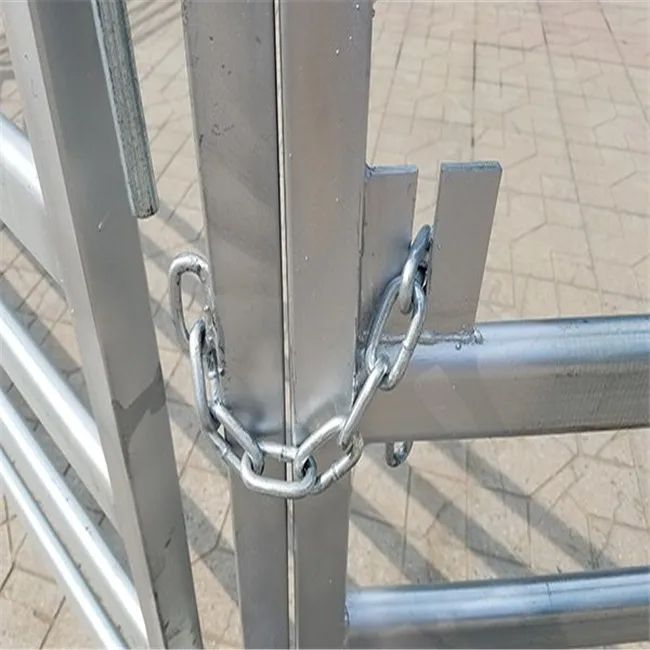

Cattle gates come with chain catches or slam catches. Our cattle gates are available with a post to concrete in the ground or in heavy duty frames to pin to the cattle panels. All our cattle gate frames have corner braces and are made with heavy wall steel.
Product range: Cattle Panel, Cattle Gate, Sliding Gate, Man Gate, Headbail, Race Bow, Vet Crush, Cattle Loading Ramp, Hay Feeder.
we supplies quality heavy duty cattle panel which is built from 50mm x 50mm or 40mm x 40mm uprights, with 30mm x 60mm, 40mm x80mm, 42mm x 115mm rails and all metals are 1.6mm/1.8mm thick. For custom made or bulk order or cattle yard design, please send us a messageProduct range: Cattle Panel, Cattle Gate, Sliding Gate, Man Gate, Headbail, Race Bow, Vet Crush, Cattle Loading Ramp, Hay Feeder.
