                     Best red clay brick making machine/best clay brick machinery

      Best red clay brick machine china  for clay brick factory  applies to clay, shale, coal gangue, fly ash, slag, mountain mud, silt, etc. to produce provisions cross-section of ordinary solid bricks, hollow bricks, and other products.





Production Strength:

machining production workshop to produce clay brick machine.

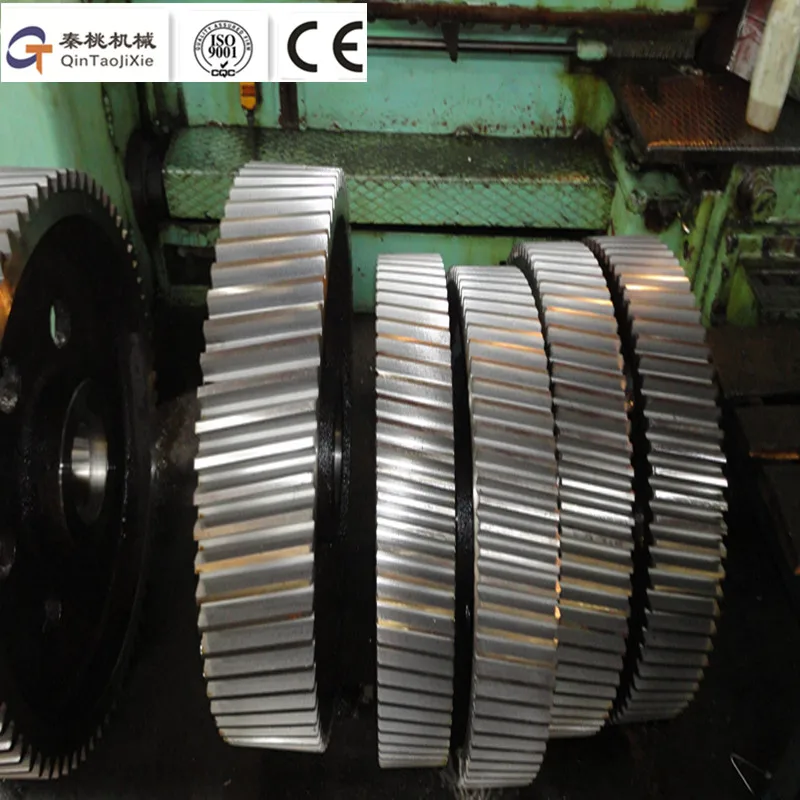

heat tempering treatment,high-frequency quenching to enhance the hardness of gears,axis,shaft and some other parts of clay brick machine.



  Best clay brick machine for clay brick factory

 Advantage:

    Best clay brick machine FOR clay brick factory main body is made from cast iron,main shaft and bearings one-time processing,good stability and long life service.

1)the steel material of shafts and gears in Best service vacuum extruder clay brick machine are adopt high quality carbon steel and alloy steel, the key parts are quenched and tempered treated so as to extend  fly ash bricks making machine life.

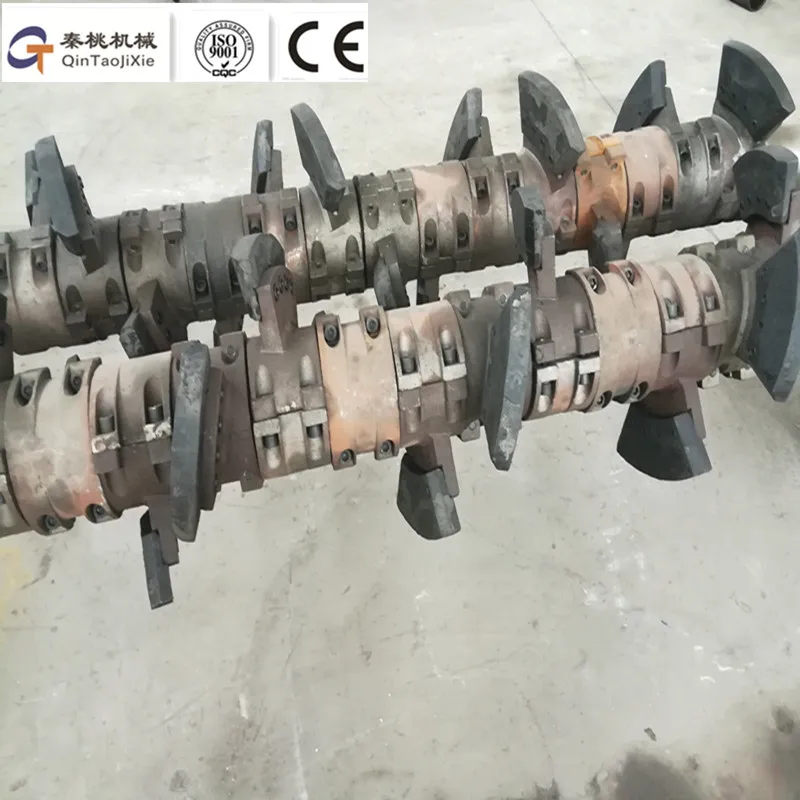

 2)The spiral cut reamer of  Automatic Best service vacuum extruder clay brick machine adopt wear-resistance metal spray painting technology; The upper stage mixing shaft, the cut reamer big shaft, the up-down body etc. are all passed the aging, quenching and tempering process.









clay brick production line:



   Best clay brick machine for clay  brick making process,including many different clay brick machinery.

1.taking clay with box feeder ,belt conveyor  carry clay to roller crusher to crush under 5 mm.clay brick machine





2.crushing clay under 5 mm, belt conveyor carry clay to double shaft mixer to mix clay.and then use fineness roller crusher to crush clay under 3 mm.clay brick machine

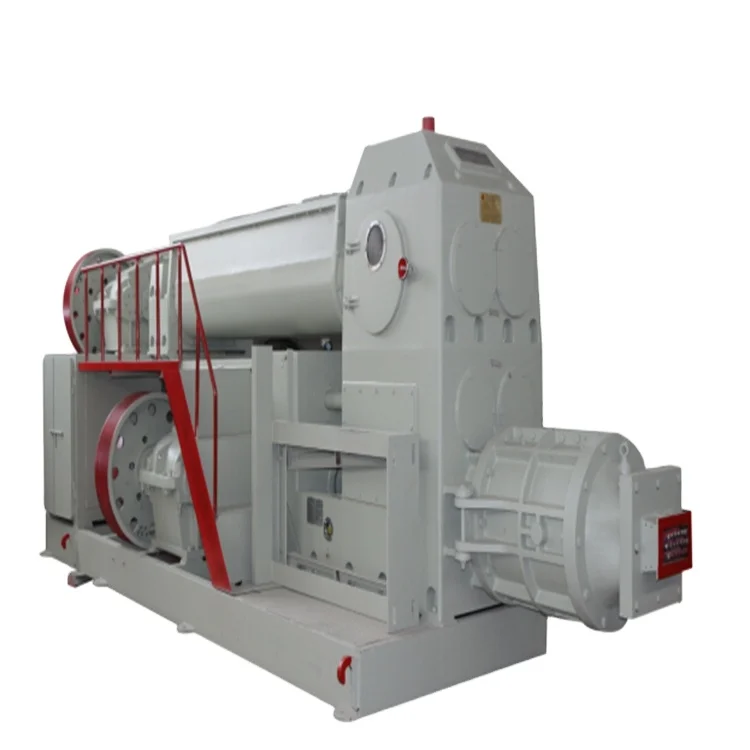

3.after fineness roller crusher,the clay is under 3 mm. belt conveyor  carry clay to extrusion mixer to mix again,which to enhance the plasticity to make good brick.and then extruding wet column brick with Best service vacuum extruder clay brick machine for clay brick factory





4.after extruding wet column brick,cutting column brick under 1.0-1.5 m,use the automatic brick cutter to cut piece brick.with different capacity.clay brick machine



FullyAuto Clay brick factory with red clay brick machinery

 1. Raw material & fuel preparation and handling

 1)Send clay raw material to box feeder with loader. Send the clay raw material to double-roll crusher for preliminary crushing .clay brick machine



 2. Molding

 1)The molding water content rate should be controlled within 16%-18%. clay brick machine

 2)The vacuum pump will take out the air that entered into the extruding machine together with pug. The vacuum extruder will extrude the pug from machine mouth and then, carry out slitting & parting according to the required dimension. clay brick machine

 3. Drying

 1)When the unfired bricks cut by cutter and arranged into groups. clay brick machine

 2) The drying chamber work system has heating system, regulating system and moisture excluding system. The drying quality is controlled by regulating system. clay brick machine

 4. Burning

 1)After drying , the unfired bricks are sent onto  kiln by the dried brick cart,stacking bricks onto the kiln car for burning. clay brick machine

 2)unloading system The properly burned bricks .



Before-sale services:

(1) tell customer how to build new brick factory, including clay brick  machine, drying and firing.(Confirm clay,power electricity,water,land area, fund)

(2) Guide customers to choose the best and economic plant, recover the investment within short time.

(3) site inspection

(4) provide the offer, flow chart, and detail specification of each clay brick machine.

In-Sale services:

(1)Quality of clay  brick machine control must be inspected strictly

(2)In accordance with the agreements stipulated in the contract

After-sale services:

(1) We will send the technicians about clay brick  machine to guide with device installation, debugging and training operators until customers are fully satisfied.

(2) Guarantee for brick machine, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:1. Daily wear and tear 2.mishandling or improper operation3. Incoming power supply fluctuation.clay brick machine,clay brick machinery.
