Чистое серебро провода 9999, акустический кабель провод
US $0.85-$1.20
Светодиодный провод UL1015 для освещения автомобильный жгут проводов 1 мм медный
- Категория: Провода, кабели и кабельные сборки >>>
- Поставщик: Cb,Xiamen,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.4 $* | 0.78 $* |
| Aug-17-2025 | 0.66 $* | 0.78 $* |
| Jul-17-2025 | 0.18 $* | 0.69 $* |
| Jun-17-2025 | 0.98 $* | 0.61 $* |
| May-17-2025 | 0.46 $* | 0.71 $* |
| Apr-17-2025 | 0.79 $* | 0.81 $* |
| Mar-17-2025 | 0.38 $* | 0.88 $* |
| Feb-17-2025 | 0.63 $* | 0.86 $* |
| Jan-17-2025 | 0.32 $* | 0.25 $* |
Характеристики
Product Description
UL1015 LED Lighting wire cable Automotive Wire Harness 1mm cable copper wire electrical cable
PRODUCT DESCRIPTION:
Rated temperature:105℃
Rated voltage:600V
According to:UL Subject758,UL1581,C22.2
Solid or stranded,tinned or bare copper conductor
30--2/0AWG
PVC insulation
Passes UL VW-1 FT1 vertical flame test
Uniform insulation thickness of wire to ensure
easy stripping and cutting
For general purpose internal wiring of appliance
| Conductor | Finished product |
| ||||
| AWG | NO.of Cond | Insulation Thick. | Outside Thick. | Packing | ||
| No./mm | mm | mm | m/r |
| ||
| 30 | 7/0.1 | 0.79 | 1.90 | 610 | 354.33 | |
28 | 7/0.127 | 0.79 | 2.00 | 610 | 223.75 | |
| 26 | 7/0.16 | 0.79 | 2.05 | 610 | 139.76 | |
| 24 | 11/0.16 | 0.79 | 2.20 | 610 | 88.36 | |
| 22 | 17/0.16 | 0.79 | 2.40 | 610 | 60.16 | |
| 20 | 21/0.178 | 0.79 | 2.55 | 610 | 38.58 | |
| 18 | 34/0.178 | 0.79 | 2.75 | 305 | 22.98 | |
| 16 | 26/0.254 | 0.79 | 3.10 | 305 | 15.06 | |
| 14 | 41/0.254 | 0.79 | 3.5 | 305 | 9.65 | |
| 12 | 65/0.254 | 0.79 | 3.95 | 305 | 6.07 | |
| 10 | 65/0.320 | 0.79 | 5.00 | 305 | 3.73 | |
| 8 | 55/0.45 | 0.79 | 6.50 | 305 | 2.23 | |
| 26 | 1/0.404 | 0.79 | 2.00 | 610 | 142.79 | |
| 24 | 1/0.511 | 0.79 | 2.10 | 610 | 89.39 | |
| 22 | 1/0.643 | 0.79 | 2.25 | 610 | 54.30 | |
| 20 | 1/0.813 | 0.79 | 2.40 | 610 | 33.90 | |
| 18 | 1/1.024 | 0.79 | 2.65 | 610 | 21.40 | |

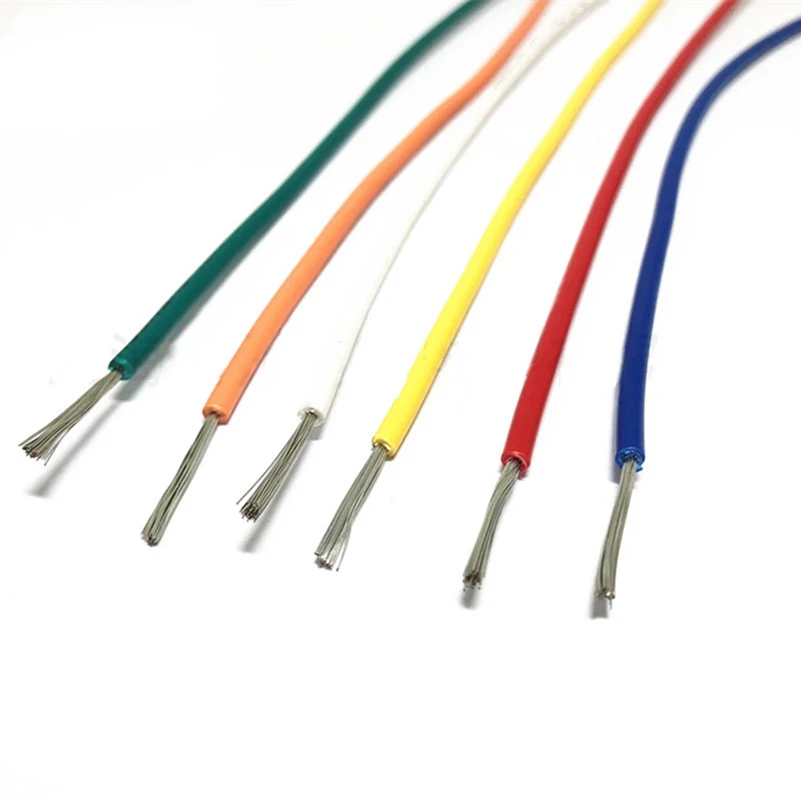

Features of Electronic Hook-Up Wire
The copper conductors are available in solid and stranded fashion.
The insulation can be color-coded and striped according to the client’s preference
We spool wire with short and long put-ups for added convenience.
The wire manufactured by us displays excellent uniformity, and it doesn’t fray easily. This allows for ease of use, installation, stripping, and replacement.
The variety of materials offer resistance to corrosion, abrasion, extreme temperatures, oils, and harsh chemicals.
