Передвижная электрическая подъемная платформа для подъема мачтовых


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.68 $* 0.93 $*
Aug-16-2025 0.96 $* 0.52 $*
Jul-16-2025 0.77 $* 0.5 $*
Jun-16-2025 0.24 $* 0.74 $*
May-16-2025 0.65 $* 0.44 $*
Apr-16-2025 0.99 $* 0.79 $*
Mar-16-2025 0.52 $* 0.88 $*
Feb-16-2025 0.94 $* 0.25 $*
Jan-16-2025 0.2 $* 0.3 $*

Характеристики



Building facade external use Mobile Mast climbing work platform climber cradle for painting cleaning maintenance





Product Description


MC650 High quality Mobile electrical scaffolding Mast climbing work platform mast climber

Shandong Xingdou Intelligent Equipment Co., Ltd, is a professional manufacturer and exporter of vertical access rack and pinionMobile electrical scaffolding Mast climbing work platform mast climber. We supply the whole solution for all customers based on their Mobile electrical scaffolding Mast climbing work platform mast climber, Industrial Rack Lift, small elevator for tower crane operators and many special purpose rack lift for mine, warehouse, elevator shaft, chimney, bridges or water plant and so on.. With constant technical innovation and development, our product can adapt to different customers from all over the world. .





Technical Data for Mobile electrical scaffolding Mast climbing work platform mast climber



MC 650
SINGLE
TWIN
Platform length (m) (min/max)
3/10.4
10.3/30.6
Platform width (m) (standard/with extension)
1.5/2.5
1.5/2.5
Max. payload (kg) (at max./min. platform length)
2,000/3,000
3,000/5,000
Speed (m/min) (50/60 Hz)
Mast (MM)
650*650*1508
Rack module
8
Motor rating drive unit (kW)
2 x 4kW
2X2x 4kW
Power supply
220V/380 V-480V / 50-60 Hz
Max lifting height (m)
150


MC 650
SINGLE
TWIN
Platform length (m) (min/max)
2.8 / 10.2
6.8/ 30.2
Platform width (m) (standard/with extension)
1.2
1.2
Max. payload (kg) (at max./min. platform length)
1,500/2,000
2,000/4,000
Speed (m/min) (50/60 Hz)
6
Mast (MM)
450*450*1508
Rack module
8
Motor rating drive unit (kW)
2X2.2KW
2X2X2.2KW
Power supply
220V/380 V-480V / 50-60 Hz
Max lifting height (m)
120
120




Safety Performance of Mobile electrical scaffolding Mast climbing work platform mast climber

1.Multiple insurance, safe and reliable Mobile electrical scaffolding Mast climbing work platform mast climber;
2.dual motor drive, drive double insurance Mobile electrical scaffolding Mast climbing work platform mast climber;
3.equipped with over speed anti-fall system;
4.equipped with automatic platform leveling system to ensure that the platform level of simultaneous movements;
5.equipped with gated safety system to ensure that the door is turned off when the power does not run;
6.with the upper limit switch, to avoid the normal use of the platform from the column;
7.with ultra-limit switch, to avoid the installation platform from the column;
8.with a manual drop switch, so that when the staff can safely evacuate;
9.control cabinet with anti-high voltage, low voltage and overload protection;
10.platform protection is complete, scaffolding punch hole anti-slip anti-falling objects hurt;
11.Telescopic platform can be extended to any desired position of the console, easy to operate protection





Product advantages


A.Mobile electrical scaffolding Mast climbing work platform mast climber platform, saving materials


Only erected a platform can be lifted, you can meet the needs of any location construction, can save a lot of steel. According to 1000m2 calculation, fastener steel scaffolding about 22T, while the star lift construction platform only 5T, can save 80%



B.Mobile electrical scaffolding Mast climbing work platform mast climber, Fast assembly and disassembly, saving labor

Member standardization, specifications small and light weight. Workers with low labor intensity, installed in the ground platform, installed on the platform column, easy disassembly. High efficiency, a group of 30X30m platform only need 2 people to complete in a day, and need no other equipment. 10 times faster than the fastener scaffold.



D.Mobile electrical scaffolding Mast climbing work platform mast climber, Not interfere with each other, duration can be guaranteed

The installation platform is not like the basket until the roof is completed. Structure construction can be installed from the bottom of the renovation work, with other processes do not interfere with each other, can shorten the construction period; renovation of existing buildings, unlike the floor scaffolding will affect the staff within the building life.



E.Mobile electrical scaffolding Mast climbing work platform mast climber, Can carry people and materials, comprehensive and efficient

Can transport materials and personnel, reduce the tower crane and construction elevator transport pressure, improve efficiency.

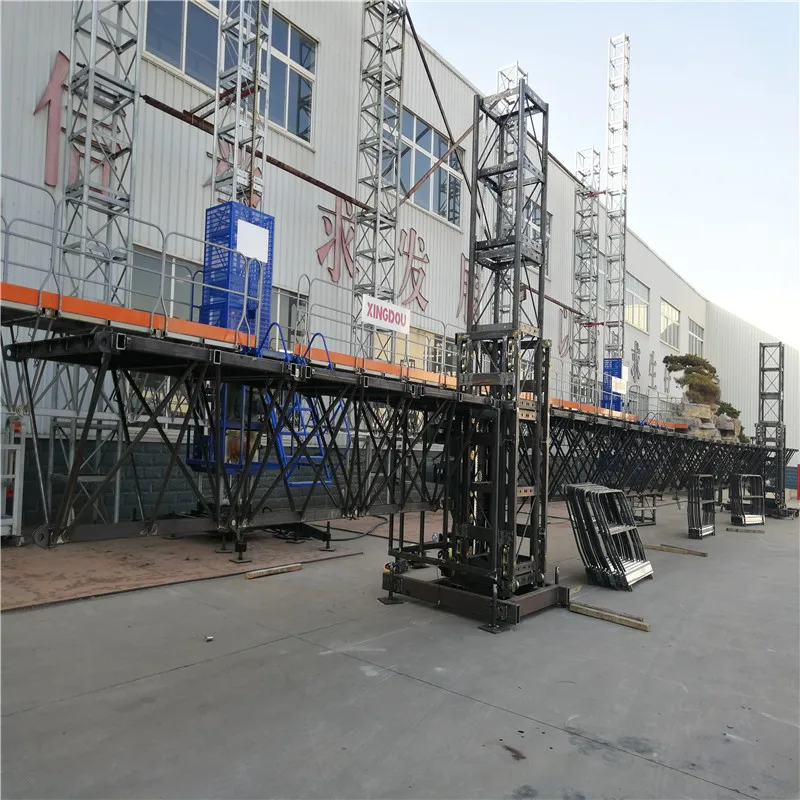

Factory Show


Proffessional Manufacturer of Mobile electrical scaffolding Mast climbing work platform mast climber.

1. -All Mobile electrical scaffolding Mast climbing work platform mast climber Production Line adopt special fixture, mould, gauge made by us to ensure all detailed size.
2.- Select high quality raw material from China Bao Steel Group, other purcharsing parts like motors ,reducers, gearbox, and safety device are from Chinese high quality guarantee companies,  electric components is Schneider or Siemens of world repute brand with reliable quality .
3.- Special design,compact and reasonable structure,easy to installation and adjustment.
4.- Each Mobile electrical scaffolding Mast climbing work platform mast climber should be test and make record in Factory, all details will be adjust like motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section erection test to ensure the completed equipment run well when take into use.



Robot welding

Mast section and wall tie of Mobile electrical scaffolding Mast climbing work platform mast climberuse robot welding to ensure welding quality and well appearance

CNC cutting machine

To ensure Efficent and high quality semi parts of Mobile electrical scaffolding Mast climbing work platform mast climber

Power spray painting line

Keep all the painting high quality and good appearance of Mobile electrical scaffolding Mast climbing work platform mast climber

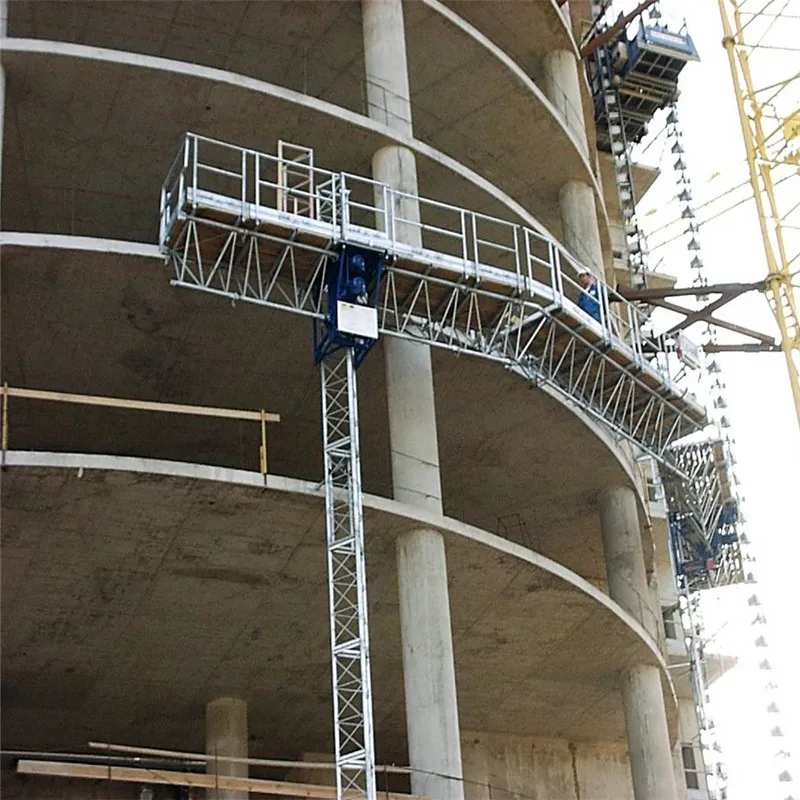

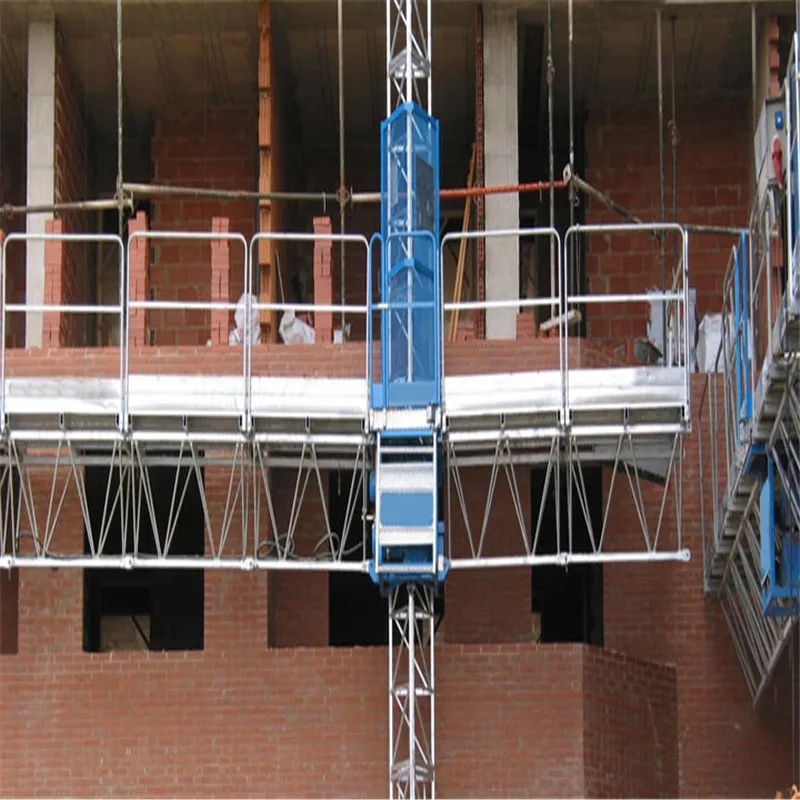

Application & Successful Case






Team Culture & Customer Relationship








\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t


1. Packing of Mobile electrical scaffolding Mast climbing work platform mast climber







2.Shipping

Usually ship by MAERSK/MSC/CMA/APL depending on customer requirement

For standard mast climber mast climbing work platform ,shipment will be arranged within 7-10 days after production.

B/L number will be provided about 5 days after shipment.





Certificate


Different certificates of Mobile electrical scaffolding Mast climbing work platform mast climber are avaliable


We can provide certificates to help customers do importation the Mobile electrical scaffolding Mast climbing work platform mast climber smoothly and save cost for them.  We have rich experiences in the exportation and importation procedures, and do our best to meet customers special requirements!




FAQ


Welcome to inquire and pay a visit to us, we are manufacturing experts of Mobile electrical scaffolding Mast climbing work platform mast climber!

1. After get your inquiry , will act within 12 hours

2. After confirming your exact requirement, we will give solution within 24 hours

3. Our salesman a all experienced and experts

4. We have strong sales support technicians team

5. We have strong manufacturing and quality control team

6. We have strong aftersale service team
