Энергоэффективная скользящая передвижная Конусная Дробилка


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.7 $* 0.23 $*
Aug-15-2025 0.37 $* 0.23 $*
Jul-15-2025 0.47 $* 0.17 $*
Jun-15-2025 0.88 $* 0.22 $*
May-15-2025 0.47 $* 0.57 $*
Apr-15-2025 0.24 $* 0.87 $*
Mar-15-2025 0.35 $* 0.63 $*
Feb-15-2025 0.24 $* 0.81 $*
Jan-15-2025 0.78 $* 0.50 $*

Характеристики

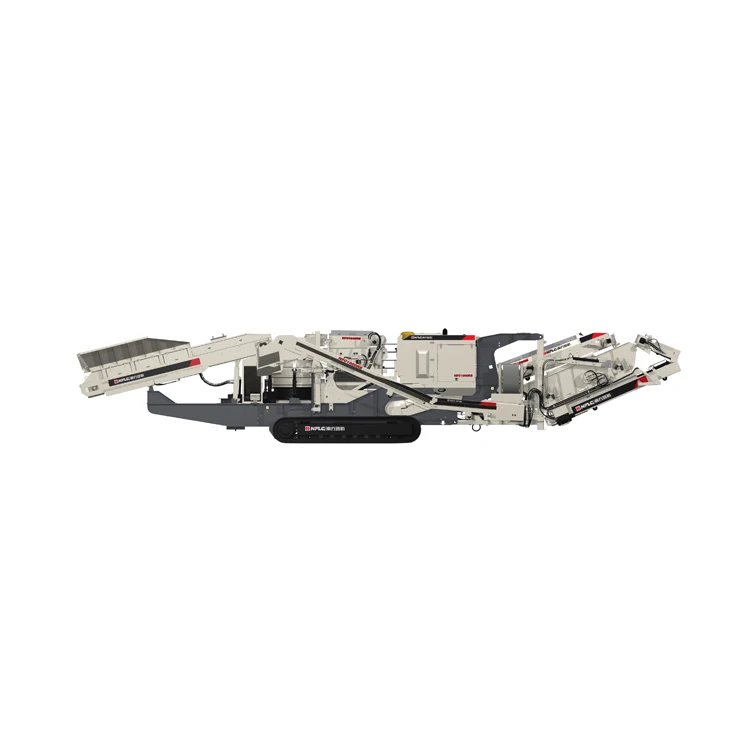

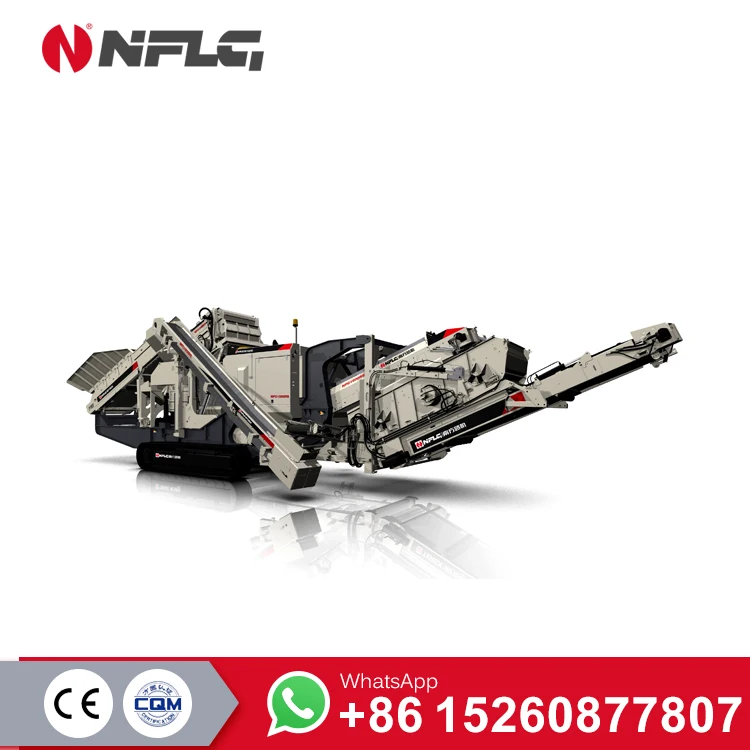

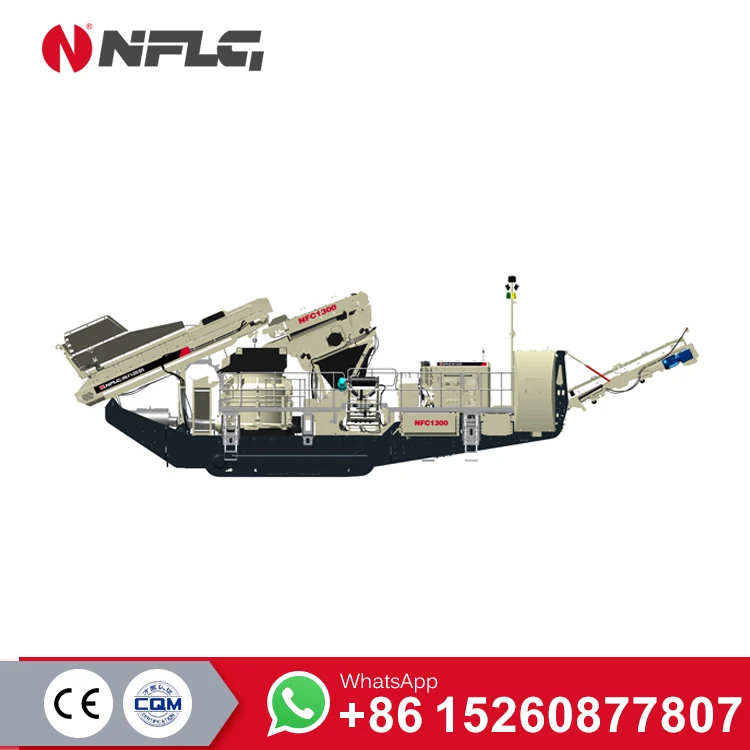

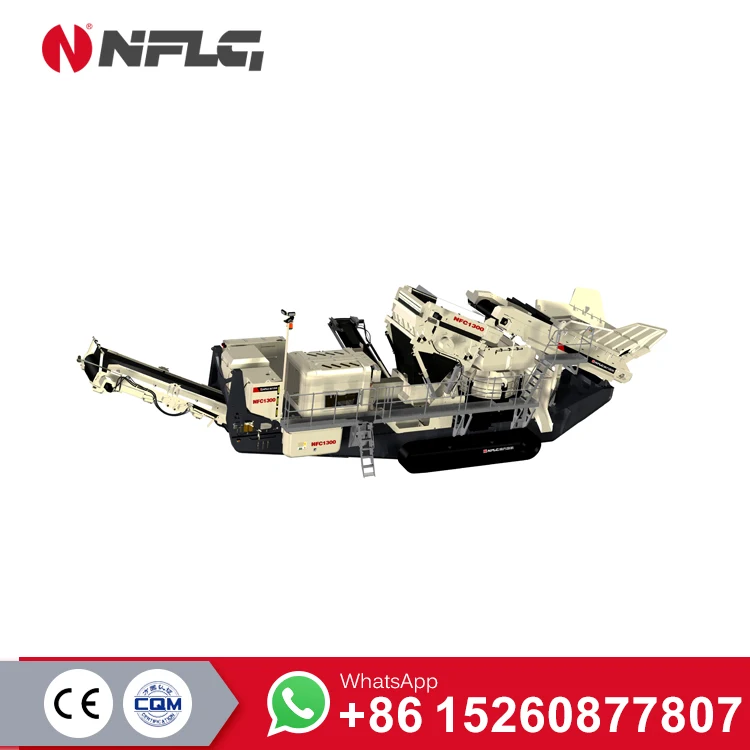

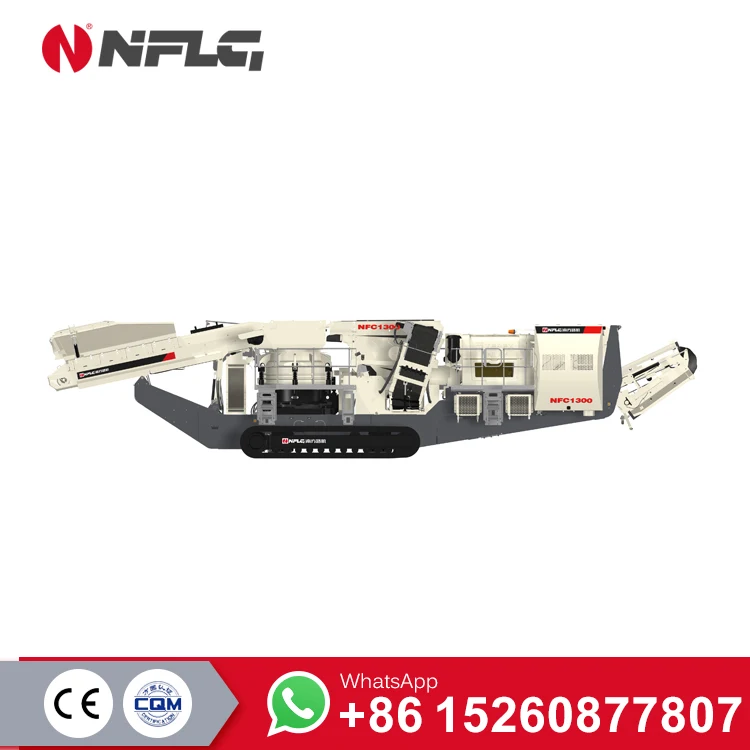

Tracked Mobile Cone Crusher


Energy-efficient skid mounted mobile cone crusher supplier





NFLG mobile crushing and screening equipment, divided into tracked and wheeled, with the international leading production technology as the design criteria, to provide users with a full range of equipment. Product technology is used in the crushing of rocks and ores in mines, stone processing, stripping crushing of cement concrete reconstruction, crushing of asphalt concrete before recycling and concrete construction waste.









































































































































































ModelNFC1000NFC1000ENFC1000RSNFC1300NFC1300ENFC1300S
ChamberTC1000TC1300
Cone head diameter(mm)10001300
Maximum feeding setting(mm)160(medium and coarse standard cavity)220(medium and coarse standard cavity)
Eccentric shaft speed (adjustable) (rpm)350-394323-357
Crusher drive shaft speed (rpm)936753
CSS range(mm)6-389-45
DriveHydrostatic pressureMotorHydrostatic pressureDrive shaft and V-beltMotorHydrostatic pressure
Engine/power (kw)Cat C9/261Perkins/74.5Cat C13/328Cat C15/390Cummins QSB6.7/127Cat C13/328
Rotational speed(rpm)19002200190022001800
Main belt bandwidth/discharge height (m)0.9/3.31.2/3.8
Side belt bandwidth/discharge height (m) 0.65/2.8(optional)
Transfer belt bandwidth of prescreening (m)11.2
Feeder belt bandwidth (m)1.051.2
Hopper Capacity(m³)58
Prescreen size (mm)1830x1220(single)2450x1520(single)
Total motor power ( kw)N/A207N/A310N/A
Actual fuel consumption (L/h)37.3N/A46.955.7N/A
Actual power consumption (kw/h)N/A155.25N/A232.5N/A
Finished size (mm)0-750-90
Maximum Capacity (mtph)260390
0-31.5mm aggregate production capacity (mtph)115-160190-225
Weight(t)38.345.640.6637049.8
Transportation state dimension LxWxH(m)16.9x2.8x3.516.8x2.8x3.518.8x3.1x3.518.3x3.0x3.818.3x3.0x3.815.3x3.0x3.7
Operation state dimension LxWxH(m)15.8x3.8x4.815.7x3.9x5.219.0x4.7x4.819.0x7.1x5.619.4x7.1x5.615.8x3.8x4.8








Mobile and flexible, transfer quickly and intelligently saves your mind





The mobile crushing station is light and small, no loading for the transfer site, and no infrastructure construction. After entering the site, the crushing station can be installed within 1 hour and directly delivered to the material department for a quick start. Stable performance, easy maintenance without a crane or special tools.






Thoughtful design, meets various production needs





Set feeding, crushing, transmission in one, through the combination of different models, form a crushing production line with strong capacity, complete a variety of material processing.








Structural upgrading, economy, and security





Through wireless remote control, can be automatically started and stopped within a safe distance of 100 meters, as well as the field movement, the overall operation is simple, effectively saving labor costs.






Energy - saving and environment-friendly adaptability is excellent





Mobile station transfer without truck consignment, and can reduce all kinds of noise, tail gas, dust pollution, and energy consumption. And the equipment input cost is only half of the ordinary fixed station; a smart structure can also easily meet the requirements of highway, tunnel, mining and other engineering crushing, the overall more economic, more environmental protection.












Crushing of building materials aggregate





NFLG mobile crushing equipment is used for limestone, basaltic stone, granite, pebbles and other rocks. the quality of finished products to meet the quality standards and are used for highways, railways, water conservancy, concrete mixing station and other industries to provide aggregate. The mobile crushing equipment can also use tunnel slag to process crushed stones and produce low-cost and high-quality building materials on site.








Construction waste disposal





NFLG mobile crushing equipment is used in the treatment of construction waste. Mobile crushing equipment set construction waste receiving, crushing, conveying, processing, reprocessing function in one, to complete a variety of demand construction waste treatment operations. It perfectly realizes the transformation of the new building materials industry chain and the production and operation mode of circular economy and low-carbon economy from the traditional " building materials → buildings → construction waste" to " building materials → buildings → construction waste →regenerated raw material→ new products".






Metal ore crushing





Through the organic combination of mobile crushing and screening equipment for operation, with large capacity, high efficiency, good maneuverability, greatly reduce cycle reversal, is a piece of ideal mining equipment.











Q: How is the quality of your products?


A: our machines are manufactured strictly according to national and intemational standards, and we take a test oneach equipment before delivery You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.


Q: How about the price?


A: We are factory and be able to give you the lowest price than market one, and we have a policy that for saving timeand absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.


Q: Do you provide after-sale service?


A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.


Q: Do you provide equipment operation training?


A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.


Q: Can you test our samples?


A: Yes. You can send your samples to us for test and analysis


Q: Service and Payment Terms?


A: We usually accept T/T, LC. T/T: 30% in advance as down payment, the balance before delivery We take pictures of finished products before delivery.
