Промышленная Электрическая Полиимидная Пленка для электрического нагрева PI
- Категория: Floor Heating Systems & Parts >>>
- Поставщик: Yancheng,Hongtai,Alloy,Electric,Apparatus,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.66 $* | 0.61 $* |
| Aug-16-2025 | 0.0 $* | 0.36 $* |
| Jul-16-2025 | 0.83 $* | 0.6 $* |
| Jun-16-2025 | 0.40 $* | 0.44 $* |
| May-16-2025 | 0.91 $* | 0.5 $* |
| Apr-16-2025 | 0.73 $* | 0.2 $* |
| Mar-16-2025 | 0.24 $* | 0.71 $* |
| Feb-16-2025 | 0.27 $* | 0.19 $* |
| Jan-16-2025 | 0.10 $* | 0.54 $* |
Характеристики
Product Description
Film polyimide kapton heater
Thickness:0.126-0.266MM
Max tamperature:200 degree
Voltage:5V 12V 24V 48V ....
3d printer polymide film heater 10mm
Flexible PI Heating Film is a clear amber colored polyimide film. It is a thin, translucent material, has excellent dielectric strength.The process for making polyimide heater is similar to that of Etched Foil Silicone heaters. It is a high-temperature flexible heating element with excellent dielectric properties capable of operating environments between -185 degree celsius to 200 degree Celsius.
In the narrow space or require lighter, heater exposed to vacuum, oil or chemicals application environment, polyimide heaters are ideal. Compared with silicone heating film, PET film or ceramic electric heating film, polyimide is more compact.Voltage | 12V to 480V | Thickness | 0.126~0.266mm |
Wattage | US/UK/Euro | Insulation Ohm | More than 5MΩ |
Min Size | 10*10mm | Max Temperature | 200 degree |
Max Size | 2000*10000mm | Wire Tension | 15N*15N |
Thermocouple Type | K/J/Without | J | Without | ||
Controller | Dial | Digital | Anti-explosion | ||
Plug | US/UK/Euro | European | British | ||
3M Back Adhesive | With | Without | |||
Product Show
How to make a order of PI polyimide heater.
Size, Wattage & Voltages are available on request.
Size, Wattage & Voltages are available on request.
1)size.
width,length,if special type, better have drawing for it.
2)Voltage
12V/24v/36v/48V/120v AND SO ON.
3)Wattage
10w 20w 100w AND SO ON.
4)Drawing if possible
width,length,if special type, better have drawing for it.
2)Voltage
12V/24v/36v/48V/120v AND SO ON.
3)Wattage
10w 20w 100w AND SO ON.
4)Drawing if possible
You can choose to add the following configuration according to your request.

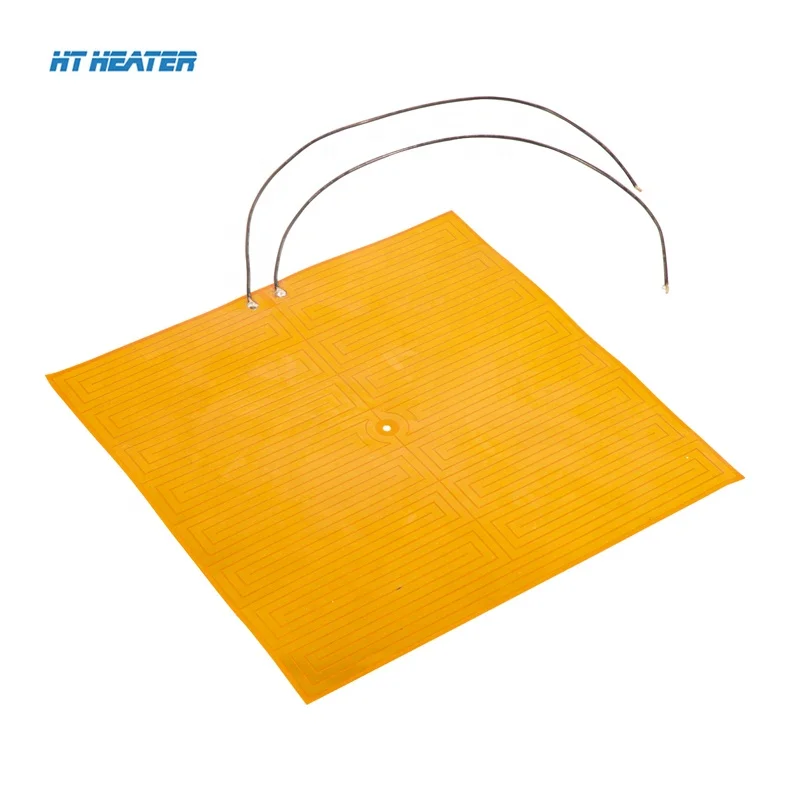

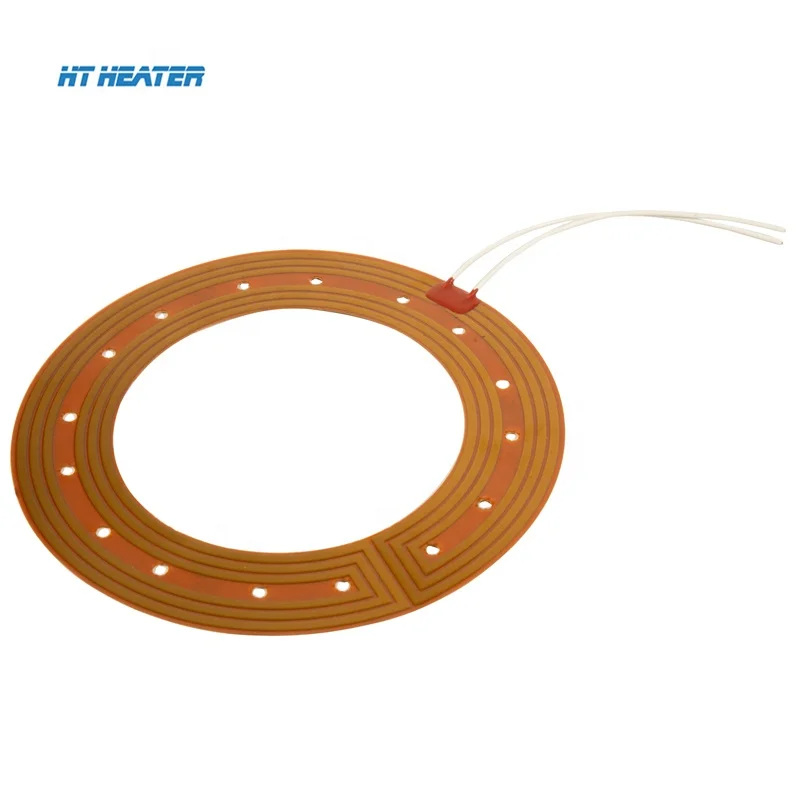

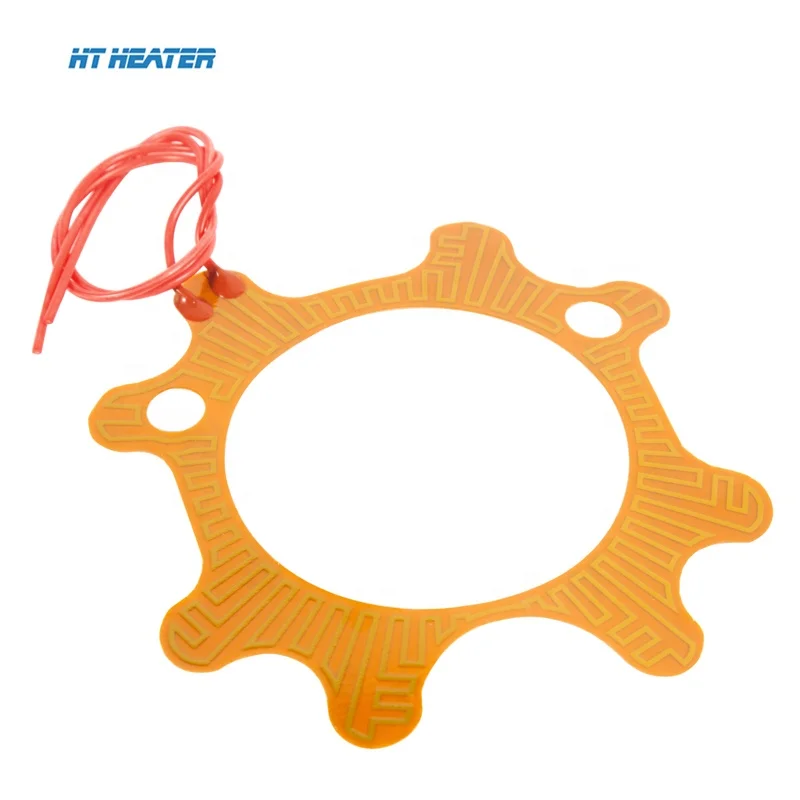

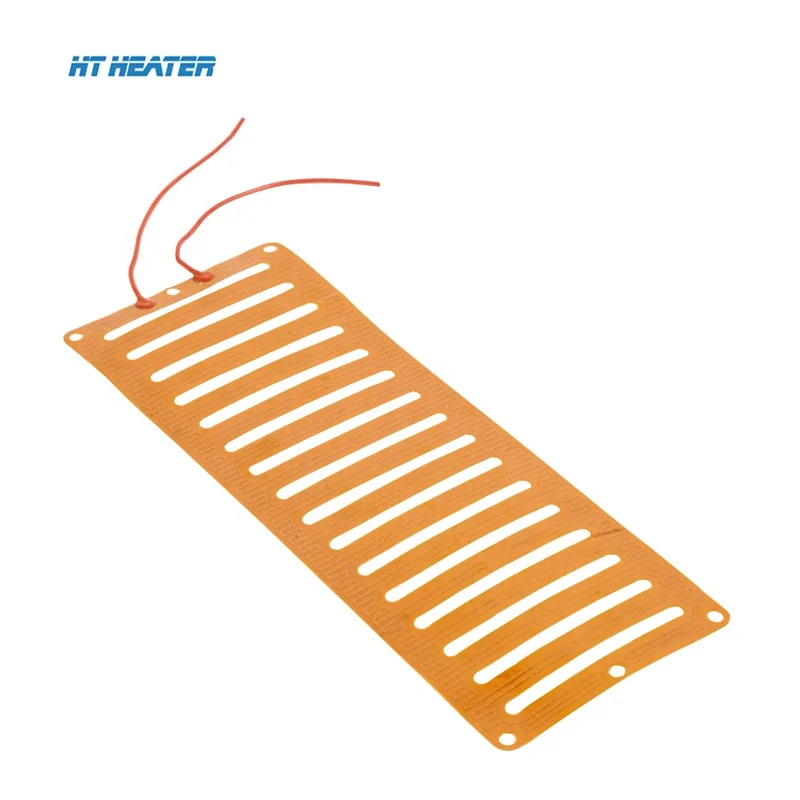

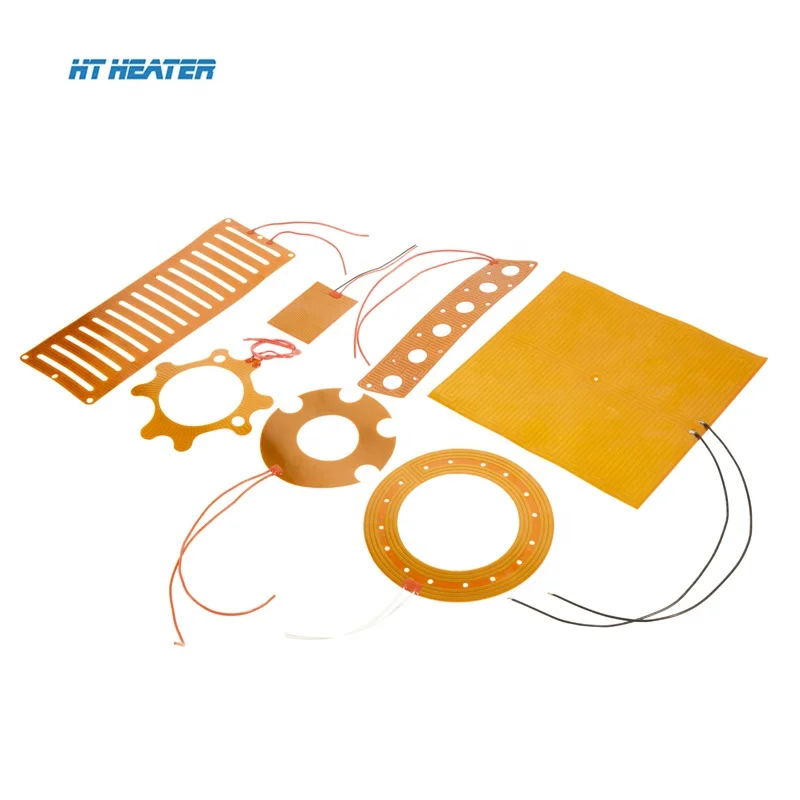

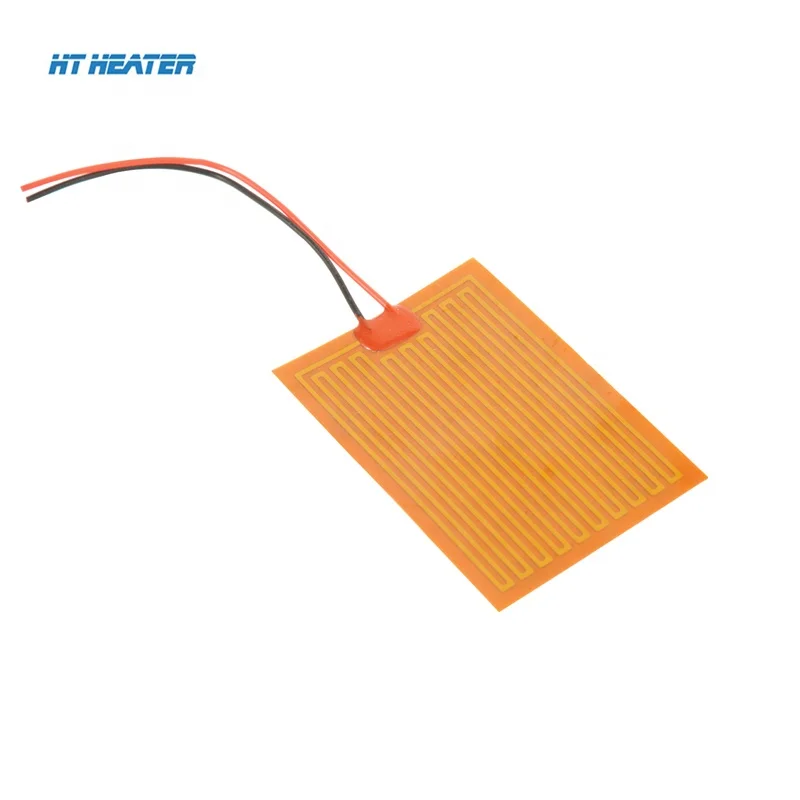

Some example for the PI Heating Film
Application
Hair Straighter Heating Film Warm Cup Heating Mat Hand Warmer Heating Element
Rear view mirrors anti-fog/Defrost Heater Heating car seat cushion Lithium battery heating Film
Cloth Heating film Eye mask heating Film heating insole heating pad
Pillow Heating Film Beauty Heater heating element Scrapping instrument heating film
3D printer Pad Heater Blood detector heating Film 3D Print Pen Heating element
Related Products
Our Company
Factory
Office
Sales Team
Engineer Team
Our Certifications
Packing & Delivery
Packaging
1) plastic bag + carton box for the Pi film Heater
2) wooden box for PI film Heater
Shipping
By express (sample order) or by sea(bulk order)
Bubble bag wrapped firstly
Right szie export Carton box then
Wooden packing for heavy goods
