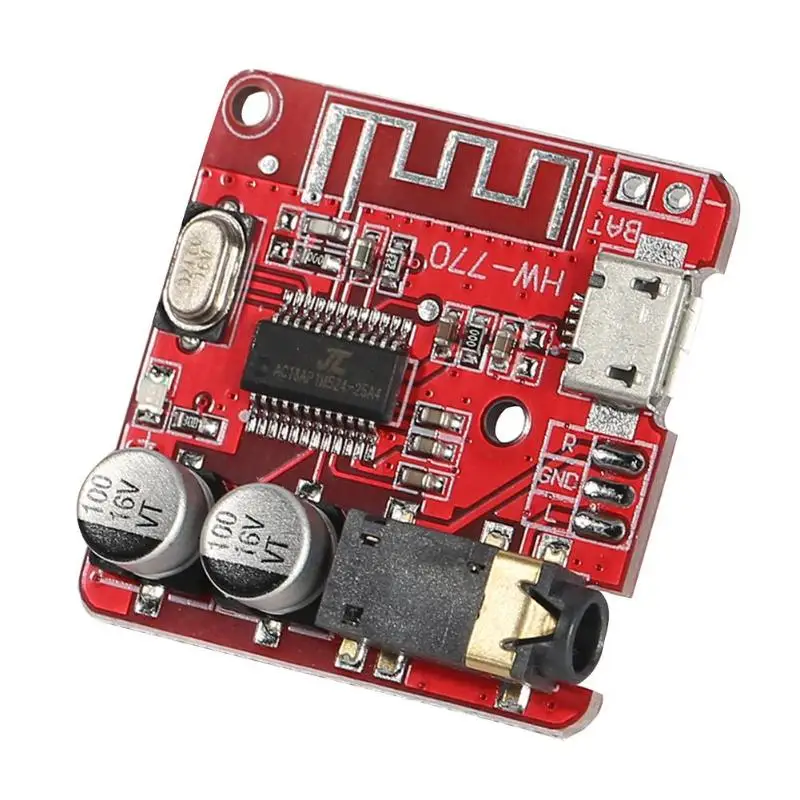

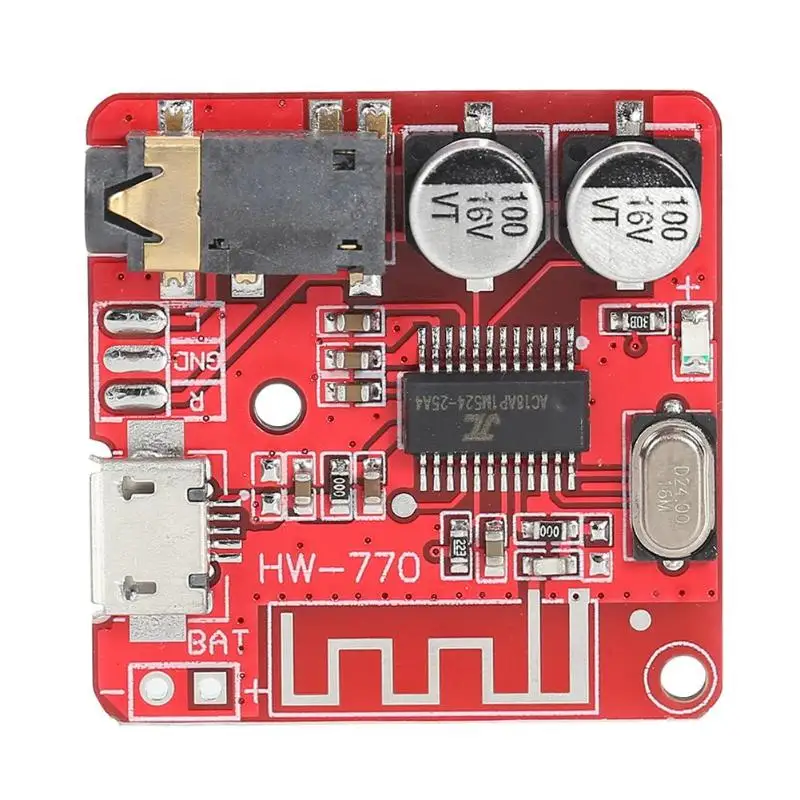

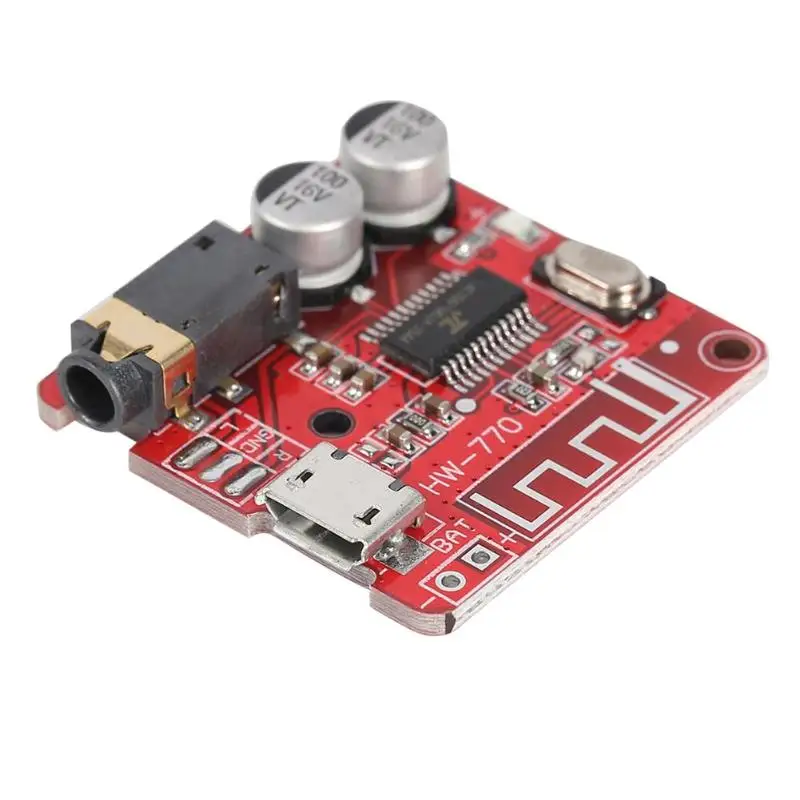

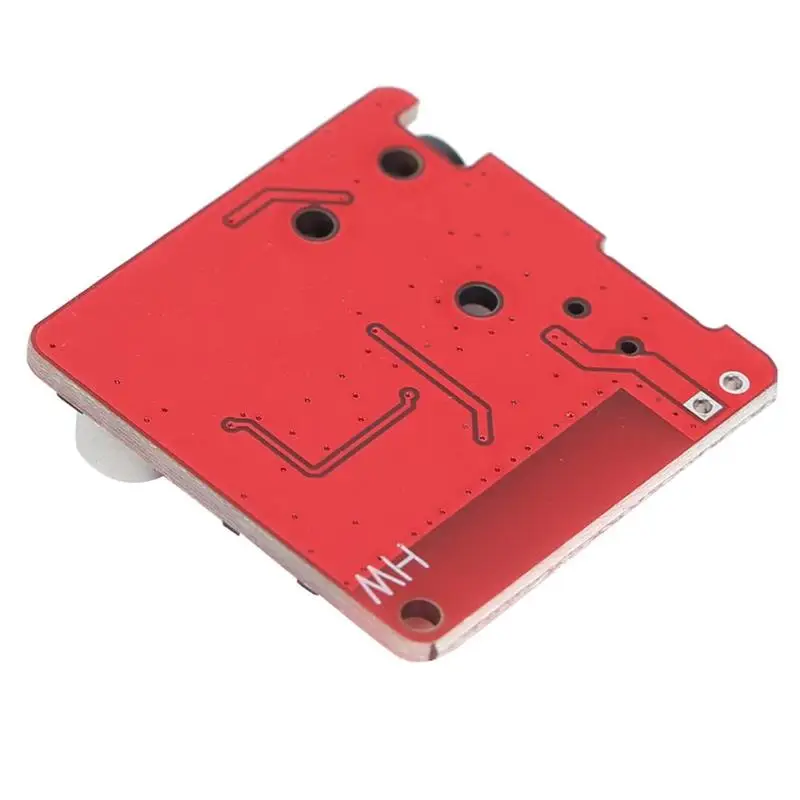

Function: Support 4.1, support automatic link back function, support WAV+APE+FLAC+MP3 lossless
decoding, stereo output.
Specification: Power Supply: 3.7V-5V SNR: 90dB THD+N: -70dB Crosstalk: -86dB DNR: 91dB Support Profile: A2DP/AVCTP/AVDTP/AVRCP/HFP LOS: >15m USB Power Supply: Universal Micro USB 5V Power Supply 3.7V-5V power supply pad: realizing external 3.7V-5V lithium power supply LED indicator: mode, long blue light 3.5mm Stereo Audio Interface: Standard 3.5mm Interface, Output Stereo Audio, Insert Headphones,

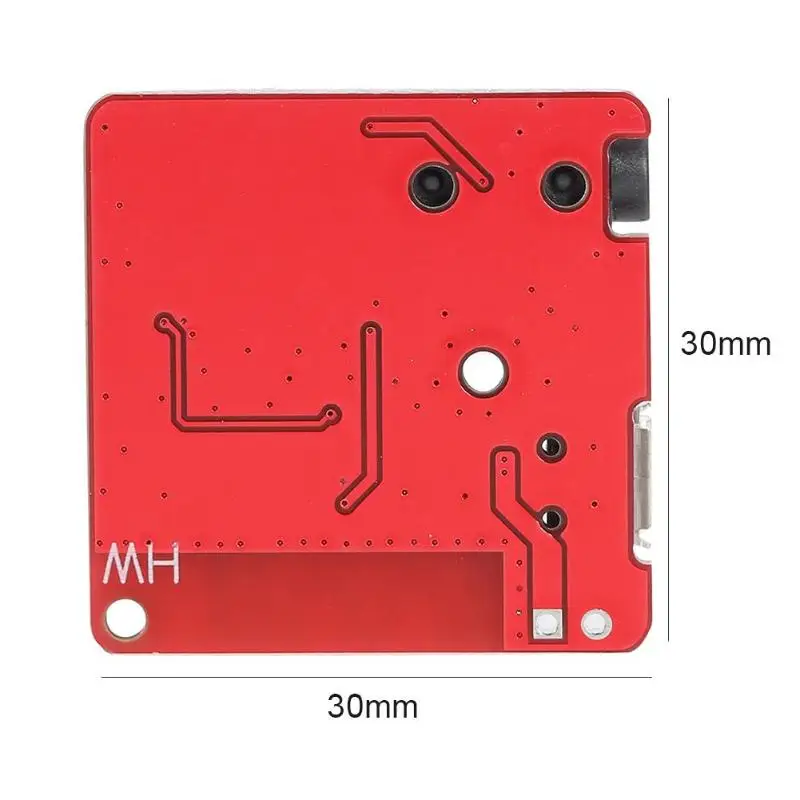

Connect Power Amplifiers and Other Equipment Product size: 30mm*30mm*5mm/1.18*1.18*0.19'' Packing weight: 5g
Operation Manual: 1. With USB power supply, the blue indicator flashes and enters mode; when you hear the
voice broadcast "The device is ready to pair", you enter mode and wait for pairing;
after searches for "XY_BT" (the name of the decoded device), you click on the connection. 2. When hearing the voice broadcast "The device is connected successfully", it means that
the decoder board is connected to the mobile phone successfully, and the blue indicator lights up long
enough to play music, then the blue indicator flashes.
Note: Please allow 1-3mm differs due to manual measurement.
1. Are these parts Original and New?
Yes, there are original and local factory products, if you have not mentioned, we will always sell you original and new parts.
2.When will parts ship after payment?
Normally parts we ship in 1-2 days after payment, if you are really urgent,please feel free to send me message, and we can push.
3.Are they real stocks? Can have discount if need large quantity?
Yes, parts you can order directly all have in stock. If you need large quantity, please message us first, we will apply best price for you.
