18 мм SFC18 WC18 WCS18 индукционный закаленный хромированный оптический осевой линейный стержень
- Категория: Linear Bearings >>>
- Поставщик: Changsha,Terry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5.67 $* | 5.94 $* |
| Aug-16-2025 | 5.12 $* | 5.64 $* |
| Jul-16-2025 | 4.50 $* | 4.89 $* |
| Jun-16-2025 | 5.90 $* | 5.54 $* |
| May-16-2025 | 4.60 $* | 4.11 $* |
| Apr-16-2025 | 5.26 $* | 5.98 $* |
| Mar-16-2025 | 5.36 $* | 5.96 $* |
| Feb-16-2025 | 4.77 $* | 4.22 $* |
| Jan-16-2025 | 4.59 $* | 4.45 $* |
Характеристики
18mm SFC18 WC18 WCS18 Induction Hardened Chrome Plated Optical Axis Linear Shaft Rod
Product Description
Features:
Product Name: shaft
Material: bearing steel, GCr15
hardness:HRC60°±2°
precision:g6
rough:less than 1.5μm(Rmax)
harden part:0.8μ~0.3mm
Diameter:4~60mm
length:400mm~6000mm
Cylindricity :less than 5μm by 500mm
Hard Chorme Thickness: 3μm~5μm
1.Linear shaft is widely used in Industrial automatic machine,such as Industrial Robot,Automatic Recording instrument,Computer,Precision Printers and so on.Optical axis can also extend the uselife of industrial automatic machine.
2.We can offer linear shaft with diameter 3mm-80mm,maximum length up to 6000mm.
When you have special requirements on length ,we can meet your machining requirements with different length.
3.When you have special requirements on machining,sush as threading,coaxial holes drilled and tapped,radial holes drilled and tapped,reduced shatf diameter etc.we can machining for you.And these special machining are after heat treatment and hard chromic so that ensure the precision of product.
Vertical-axis precision machining of aluminum activities in support units, follow the standardized design, with interchangeable, low cost, design efficiency and so on.
Packing term: Each waterproofed PE bag, wooden box outside, customer's request is kindly accepted
We can offer almost types of linear bearings (LM, LME, LMF, LMH, LMK, etc)Size range is from ID6-60mm
Linear motion bearings have the characterized of smooth movement, low friction, high rigidity and long life span, economical and easy to maintain or replace
Product Name | 18mm SFC18 WC18 WCS18 Induction Hardened Chrome Plated Optical Axis Linear Shaft Rod |
Material | SUJ2 |
Hardness | HRC62+-2 |
rigidity | more than HRC52 |
Surface Hard-thickness | 0.8-2.5mm |
Surface roughness | 0.8S-1.6S |
Packing | Plastic bag + wooden box / as customer's demand |
Straightness | 80μm/1000mm |
Diameter | 6mm--60mm |

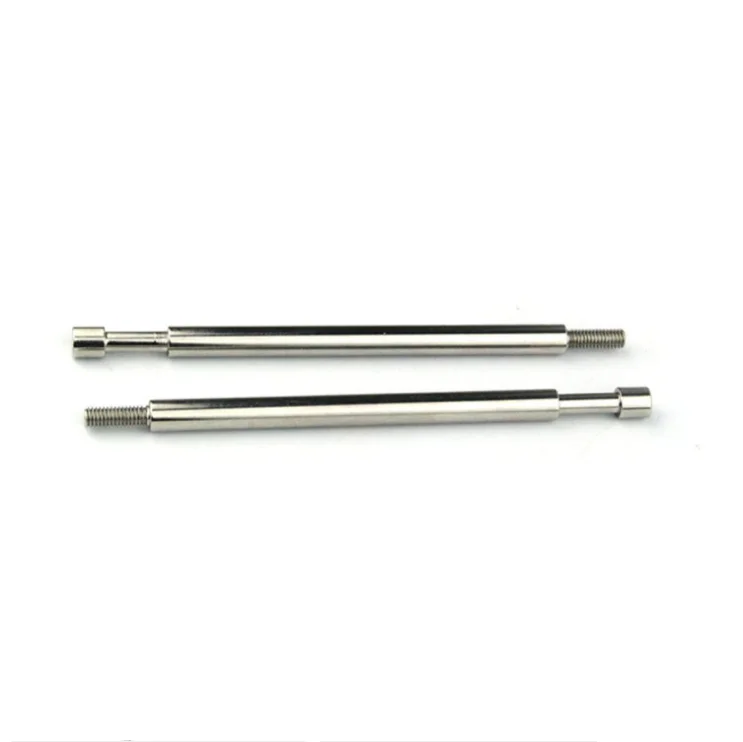

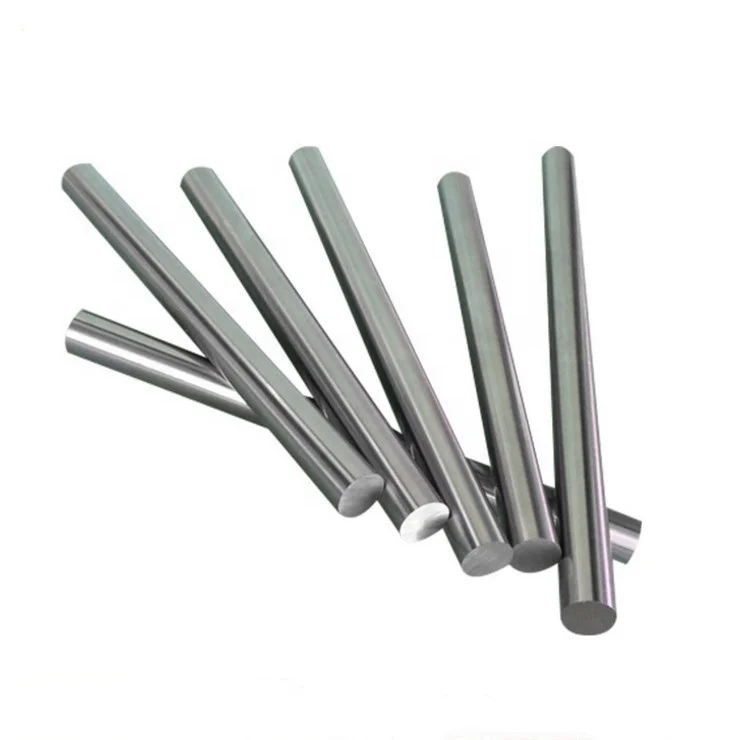

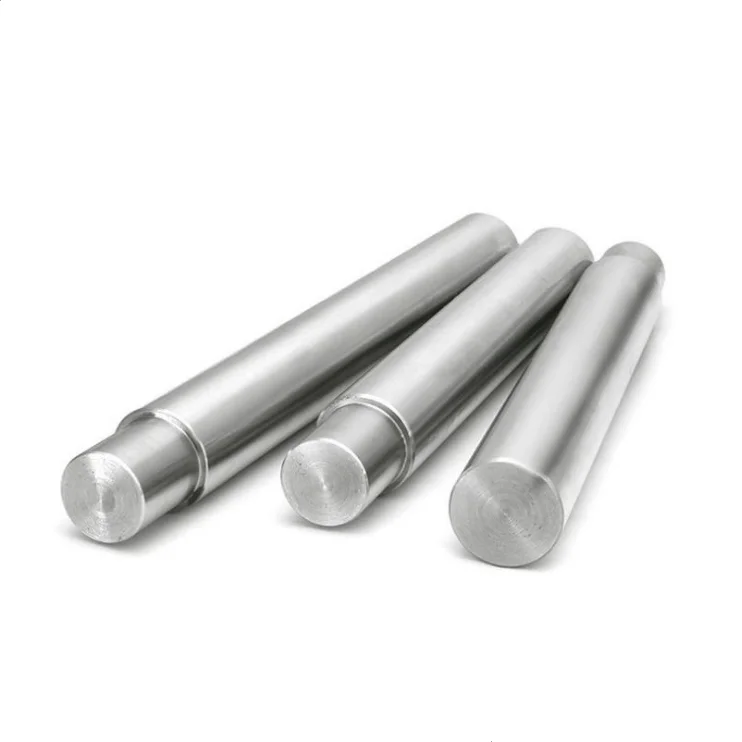

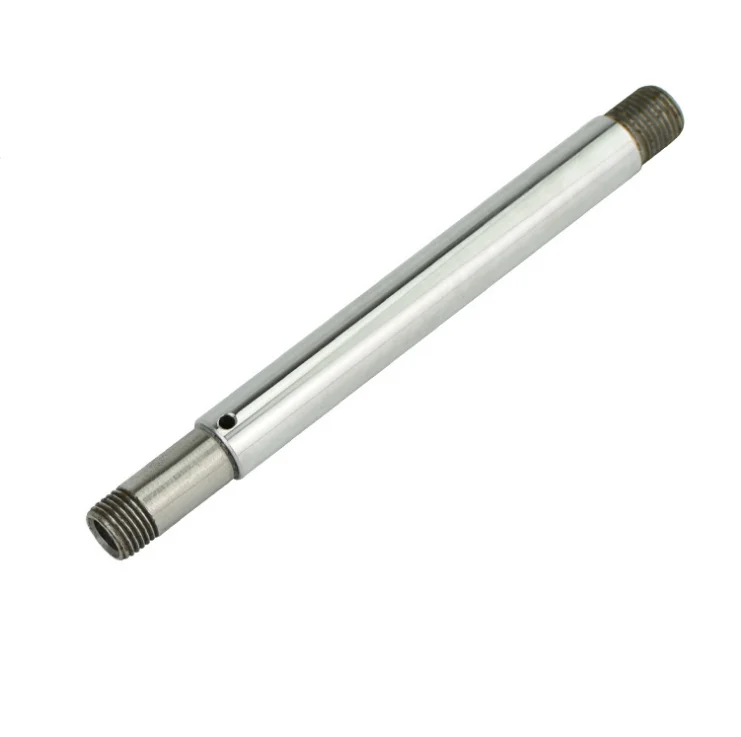

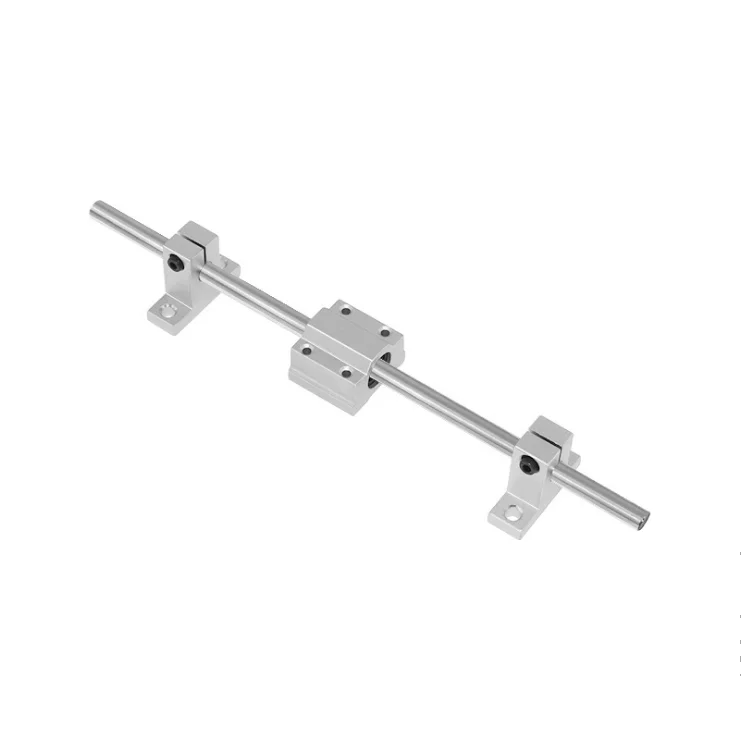

Products Show
\t\t\t\t\t\t\t\t\tPacking&Delivery \t\t\t\t\t\t\t
Packing Details : Carton+Pallet
Delivery Details : 3-30 days after order confirmation
1. Special Single Box
2. Cartob box
3. Single Pallet
4. Carton+Pallet
5. Complete Pallet
6. Complete package
Workshop
Warehouse Corner
Company Profile
Changsha Terry Machinery Co.Ltd is a leading supplier of bearings, linear motion system for CNC, ball transfer unit and transmission component. The growing industrial and favorable policy of Changsha benefit the development of Terry Machinery. Our products are utilized in industrial, motorcycle, vehicle and Automation applications. Now we are exporting to 46 countries including USA, GBR, Germany, Spain, Poland, Turkey ect. The goal of Terry Machinery to provide out customers with widest range of products at competitive prices, backed with the best Service.
Certifications
FAQ
1.What is the producing process?
-Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
2.How to control the products quality?
-Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
3. What is the transportation?
-If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
4. Can we design packaging?
-Yes. Default is regular packing, and we can make customer's own packing.
5. Can you provide OEM service?
-Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
6. Could you tell me the delivery time of your goods?
- 3-7 days stock goods and other goods according to the quantity about 3-21 days.
7. Can you give me discount on bearing?
-Yes, of course. Pls. send me your Email, you'll get more.
Contact Information
Sophia Xie
Changsha Terry Machinery Co.,Ltd.Email : sophia(at)ntl-bearing.com
Tel:0086-13667367982
Fax:0086-731-85515405
Skype:xieyuyun103 Whatsapp:0086-13667367982
Web:www.terry-machinery.com https://ntl-bearing.en.alibaba.com
Changsha Terry Machinery Co.,Ltd.
Tel:0086-13667367982
Fax:0086-731-85515405
Skype:xieyuyun103 Whatsapp:0086-13667367982
Web:www.terry-machinery.com
