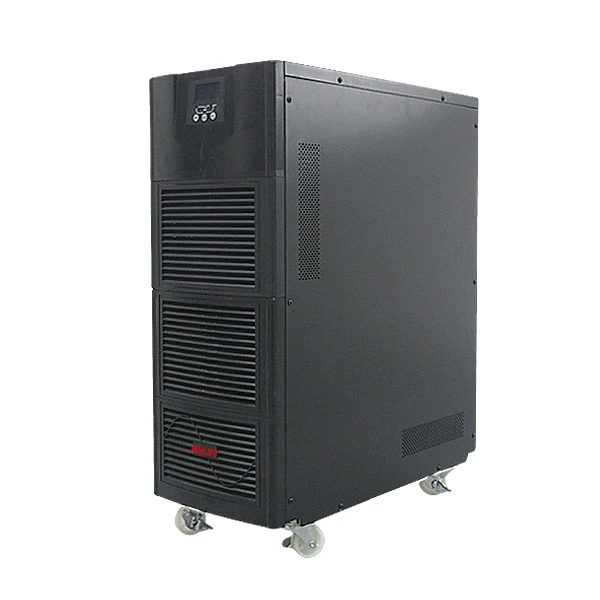

10 ква 15 20 кВА онлайн источник бесперебойного питания (UPS с 0 8

MODEL

MXG31 10KS PLUS

MXG31 15KS PLUS

MXG31 20KS

PLUS

Rated power

10KVA/8KW

15KVA/12KW

20KVA/16KW

Input

Range of voltage(full load)

207~475Vac  3P4W+G

Range of frequency

40-70Hz(adjusted)

Power factor

≥0.95

output

Rated voltage

220Vac(1±1%)  1P2W+G

Frequency

1.The output frequency synchronizes with the input frequency when the input frequency is in the range of 46 Hz~ 54 Hz.

2.The output frequency is 50Hz when the input frequency is not in the range of 40 Hz~ 46 Hz and 54Hz~60Hz.

    3.BAT mode:50Hz.

Rated current

45A

68A

91A

Power factor

0.8

Distortion

≤3%

Ratio

3:1

Over load

105% ±5% < Load ≤ 125% ± 5% 60s transfer to bypass

125% ±5% < Load < 135% ± 5% 30s transfer to bypass

Load > 135% ± 5%, 300ms transfer to bypass

Line—bat transfer time

0ms

Efficiency

> 92%

Battery

Rated voltage

192Vdc

Number

16

Charging current

5.5A

Size (L*W*H)mm

533*260*501

Weight

23kg

32kg

33kg

Work temp.(℃)

0℃~40℃

Work humidity

20%~95%

Noise(dB)

≤60dB
