Водонепроницаемая зарядная станция для электромобиля 7 кВт тип 2 портативное автомобильное зарядное устройство домашней
- Категория: ЗУ для авто >>>
- Поставщик: Sichuan,Weiyu,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 174.35 $* | 177.5 $* |
| Jul-18-2025 | 141.56 $* | 144.36 $* |
| Jun-18-2025 | 171.66 $* | 174.95 $* |
| May-18-2025 | 170.11 $* | 173.33 $* |
| Apr-18-2025 | 136.7 $* | 139.33 $* |
| Mar-18-2025 | 167.85 $* | 170.14 $* |
| Feb-18-2025 | 166.57 $* | 169.47 $* |
| Jan-18-2025 | 164.10 $* | 167.62 $* |
Характеристики
Product Description
Portable EV charging stations
IEC 62196-2 or SAE J1772
EV charger station
Current adjustable
✔ Customizable
✔ IP65 Waterproof
✔ Real-time Display
✔ Emergency Charging
Logo, Color or Function
✔ IP65 Waterproof
For indoor and outdoor
✔ Real-time Display
Indicators and OLED Screen
✔ Emergency Charging
Charging Anywhere Anytime
1 Electric parameter | Tomato&Potato | |
1.1 Rated Frequency | 50/60Hz | |
1.2 Rated current | 8/10/13/16/32A | |
1.3 Rated voltage | single-phase, 230V±15%, 50/60Hz | |
2 Mechnical Parameter | ||
2.1 IP Code | IP66 | |
2.2 Charging Adapter Cable | 5 meters cable or custom length | |
2.3 Dimensions | W × D × H = 240mm × 90mm × 70mm | |
2.4 Weight | ＜5kg | |
2.5 Input Plug Standard | Select one of the following options:Blue CEE, NEMA Plug, UK Plug, Schuko Plug or AU Plug | |
3 Functional Description | ||
3.1 Charging Control Model | Plug and play | |
3.2 Display Screen | OLED screen (display charging current, voltage, output energy, charging time, state information, fault information and etc.) | |
3.3 Indicator Light | 3 indicator lights (indicate 3 status include power, connect, charging and fault) | |
3.4 RCD type | Type A | |
3.5 Adjustable output current | Button options: 8A/10A/13A/16/32A | |
3.6 Preset function | Preset charging time trough the button | |
3.7 Safety Protection | surge protection, over temperature, leakage, over/under voltage, over current, ground protection | |
4 Environmental Conditions | ||
4.1 Operational environment | indoor or outdoor, good ventilation, no flammable, explosive or corrosive gases | |
4.2 Vibration | ＜0.5G, no violent vibration and impact | |
4.3 Altitude | ≤2000 meters | |
4.4 Storage Temperature | -30 ~ 75 ℃ (-22 ~ 167 ℉) | |
4.5 Operating Temperature | -30 ~ 55 ℃ (-22 ~ 131 ℉) | |
4.6 Operating humidity | 95%RH, no water droplet condensation | |
Details Images

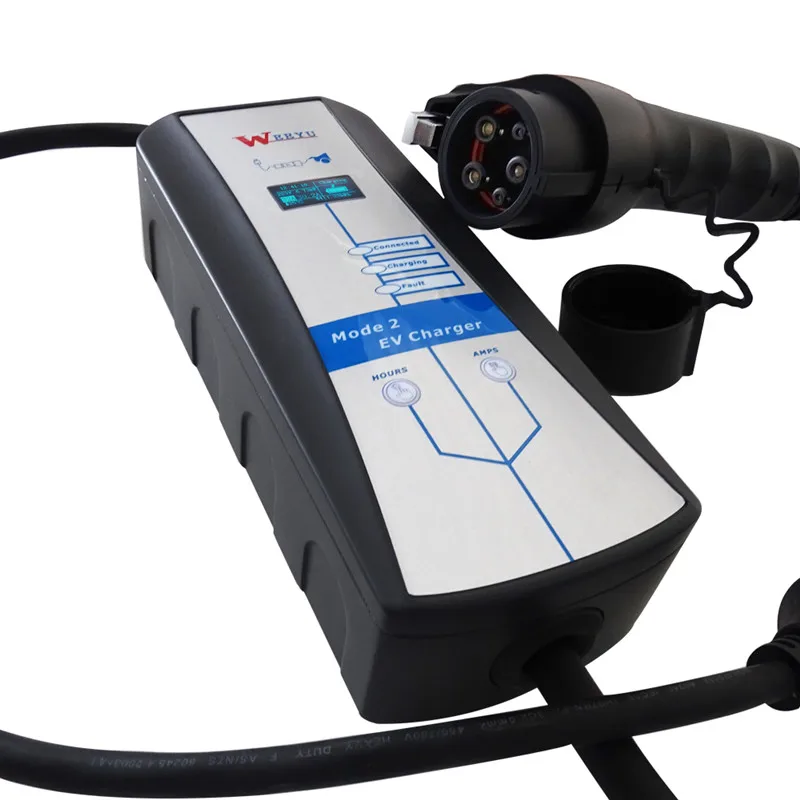

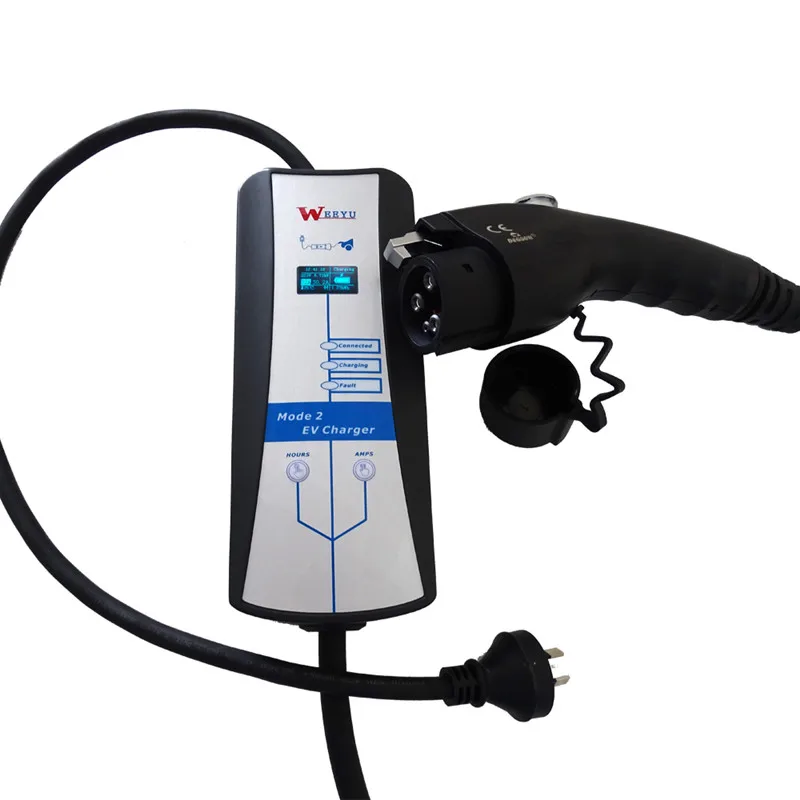

Portable EV Charger
✔ Customized LOGO.
✔ 3 indicator lights: indicate 3 status include power, charging and fault
✔ Current adjustment button: select an output current as follow, 8A/10A/13A/16A
✔ Delay Control Button: Pre-set charging time
✔ Current adjustment button: select an output current as follow, 8A/10A/13A/16A
✔ Delay Control Button: Pre-set charging time

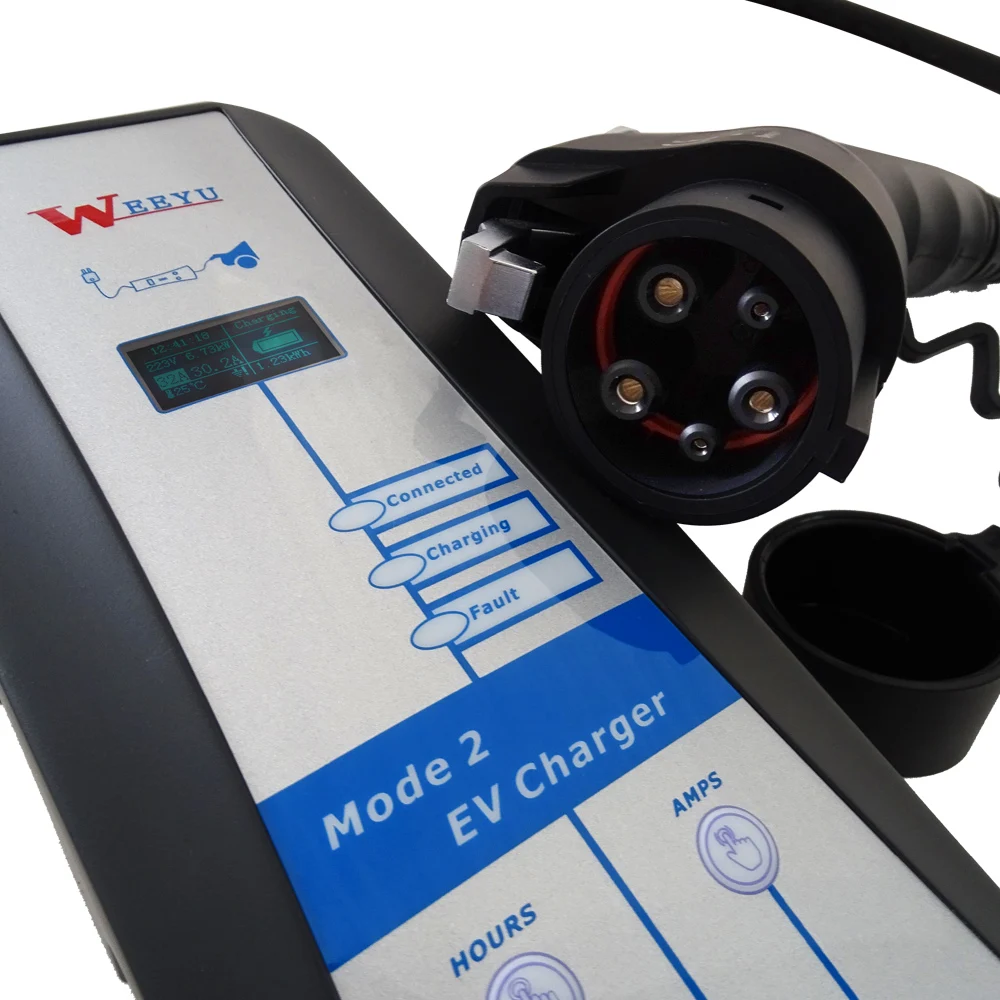

Portable EV charger OLED Screen
✔ OLED screen: display charging current, voltage, output energy, charging time, state information, fault information etc.
Portable EV Charging Plug
✔ We can offer UK Plug, Nema 5-15P and Schuko according to customer requirements.

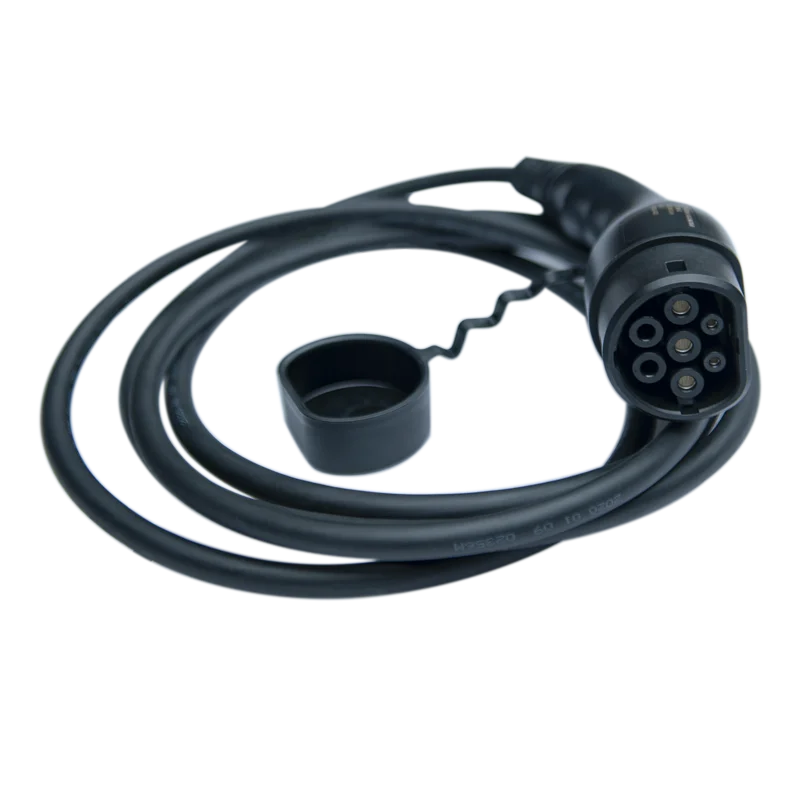

Charging adapter: IEC 62196-2

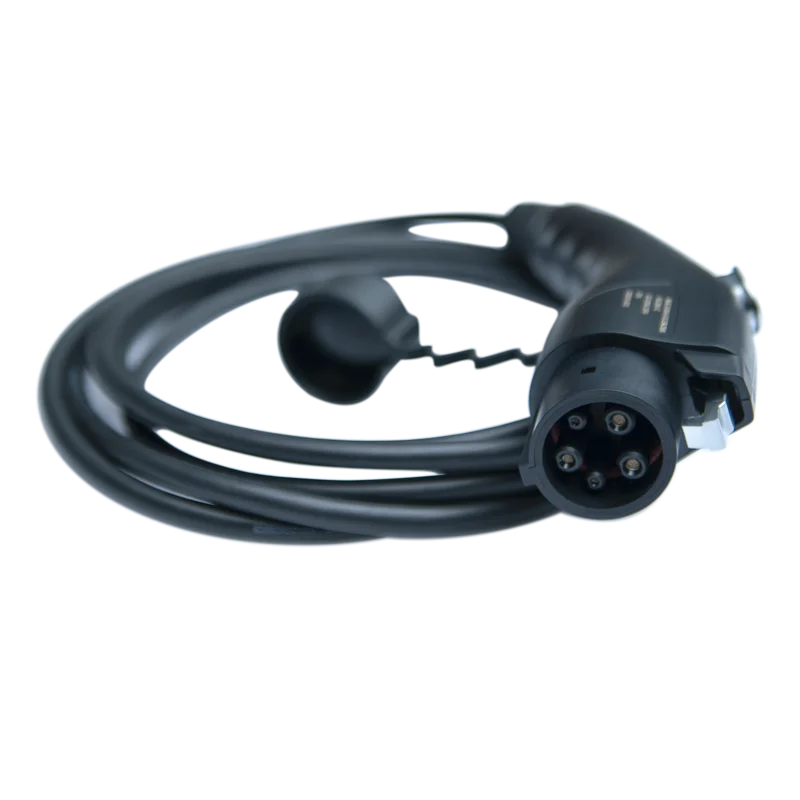

Charging adapter: SAE J1772
Recommend Products
Wall/Pole mounted EV Charger
√ 3.5kw & 7kw, 230V/60Hz, 1-phase
√ 11kw & 22kw, 380V/60Hz, 3-phase
√ IEC 62196-2 or SAE J1772
√ Black Plexiglas panel+Metal Plate Backcover
√ Black Plexiglas panel+Metal Plate Backcover
Our Advantages
WEEYU, an “EVSE” (electric vehicle supply equipment) brand of Sichuan Weiyu Electric Co., Ltd. Weiyu electric was founded in 2016. With the professional R&D and Sales & Service Team, we can not only provide the products mainly including all kinds of EV chargingstations, but also a complete solution. In addition, OEM&ODM or engineering application assistance are available.
WEEYU is the wholly-owned subsidiary of a listed company (Stock Code: 300820)-Sichuan Injet Electric Co., Ltd. With Over 500 workers, 22000 ㎡ non-dust workshop, 169 patent certifications, 24 years’ experience in electric power industry, Injet has received high praise from international renowned enterprises for the superior products and service like ABB, Siemens, Schneider, GE, GT, SGG and etc.
WEEYU has our own R & D team and we have applied more than 60 patents till now. For EV charging station, we can design and manufacture according to customer requirements.
We have our QC system, all the EV chargers would be tested before shippment, and the testing report will be sent together with electric car charging station. Our products are guaranteed for 12 months, in the warranty period and non-human damage can contact us to replace for new.
We have our QC system, all the EV chargers would be tested before shippment, and the testing report will be sent together with electric car charging station. Our products are guaranteed for 12 months, in the warranty period and non-human damage can contact us to replace for new.
Cases of Charging Stations In Operation
FAQ
Q1: What is your terms of packing of EV Charging point?
A: We pack our EV Charging Point in cartons.
Q2: What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific solutions for your requirements.
Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you can't find the exact product you need in the picture, don't walk away. Welcome to contact us at any time or send us the sample and we will reply you as soon as possible.
A: We pack our EV Charging Point in cartons.
Q2: What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific solutions for your requirements.
Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you can't find the exact product you need in the picture, don't walk away. Welcome to contact us at any time or send us the sample and we will reply you as soon as possible.
