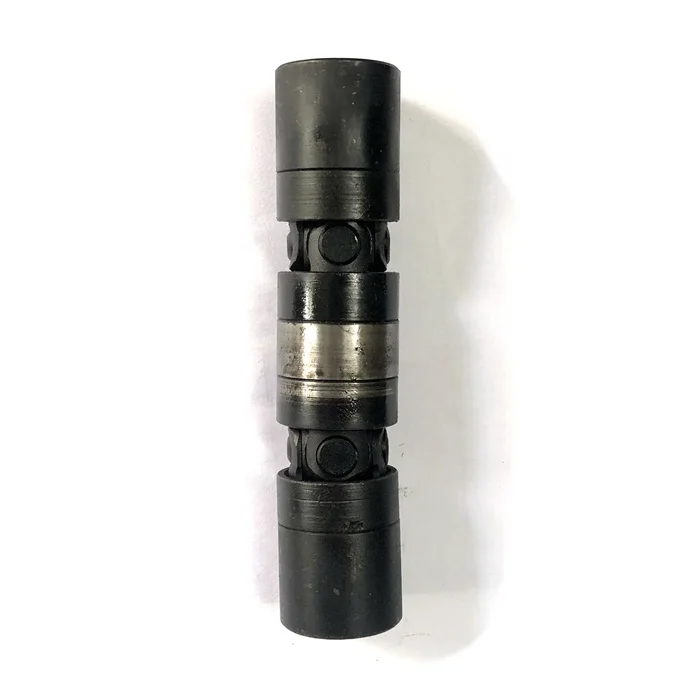

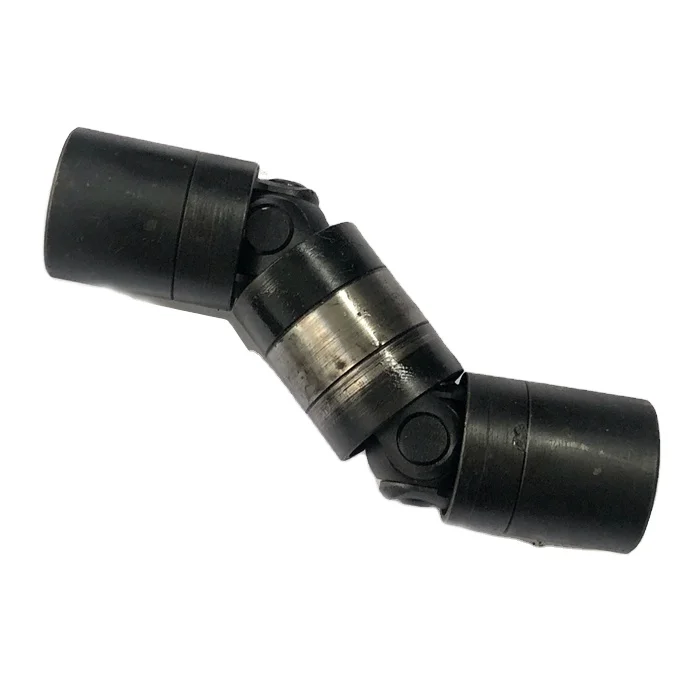

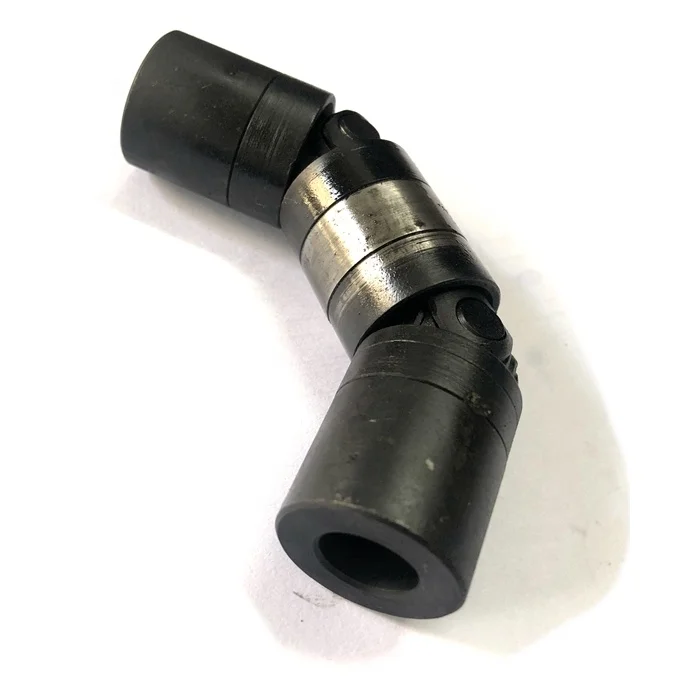

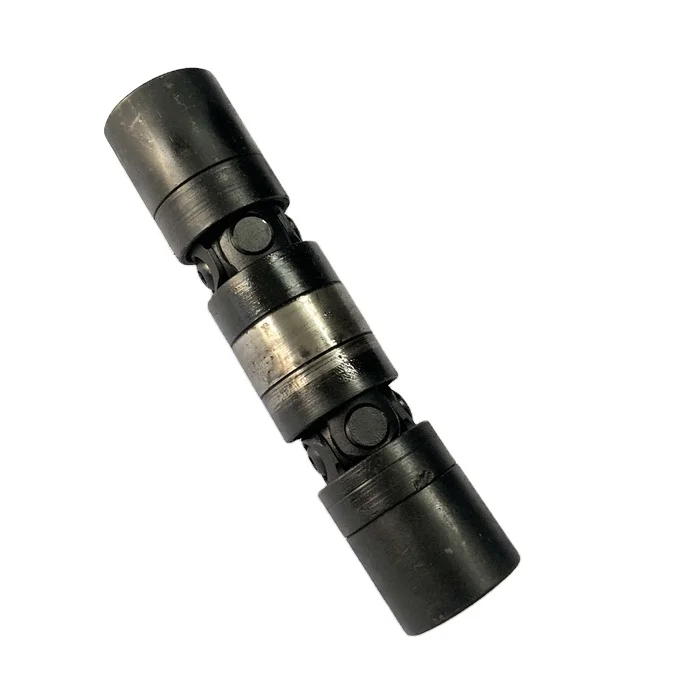

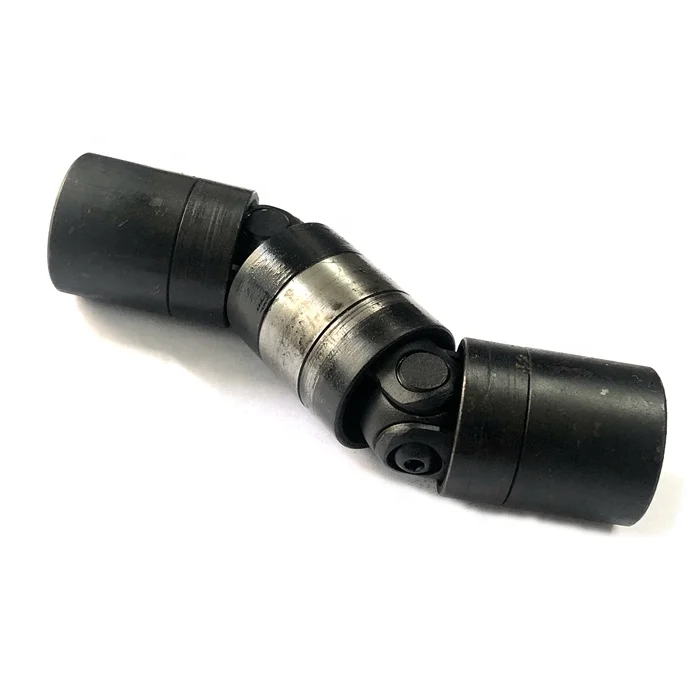

16mm Double Universal Joint for Automatic Packing

Категория: Универсальные шарниры >>>
Поставщик: Hangzhou,Chuanglian,Hardware,&,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.64 $*	0.45 $*
Aug-16-2025	0.63 $*	0.97 $*
Jul-16-2025	0.66 $*	0.63 $*
Jun-16-2025	0.46 $*	0.34 $*
May-16-2025	0.79 $*	0.59 $*
Apr-16-2025	0.35 $*	0.66 $*
Mar-16-2025	0.39 $*	0.30 $*
Feb-16-2025	0.22 $*	0.44 $*
Jan-16-2025	0.24 $*	0.47 $*

Характеристики

Product Description

Product Name	16mm Double Universal Joint for Automatic Packing Machines
Materials Available	Stainless steel 304/316, carbon steel, mild steel, aluminum, brass, copper etc
Application	Food packing machines, RC Cars, aquaculture, sewage water treatment equipment, 3D printer, sweeper, forklift, excavator, transport tape, multi-head drilling machine, industrial equipment, wood-working equipment, printing machines, some transmission system etc.
Quality Control	100% inspection before delivery Inspection report can be provided if customer request Pictures and videos can be sent to customer for inspection
Equipment	CNC lathes, milling machine, drilling machine, welders, general lathes, stamping machine, laser cutting machine, bending machine, etc
Features	* High grade material standards * Standard operating angles up to 45° * Wide choice of hub configurations * Broad selection of stainless steel, steel and specialty metals * Help design the good to match customer's product * All the subcomponents are precisely assembled * Both sides incorporate the pinch bolt design * Be notched for pinch bolt clearance

Pin and Block structure

U-joints work at slower speeds but transmit greater torque

Assembly of pin and block

Pin and block consists of two small pins(one thorough hole and another thread hole), one bigger pin with a thorough hole and milled flat in the middle, one screw connecting the two small pins. Before assembly, thread-locking adhesive will be used.

Special design to avoid any twisting plays.

When assembly, we will weld outside the yoke for reinforcement.

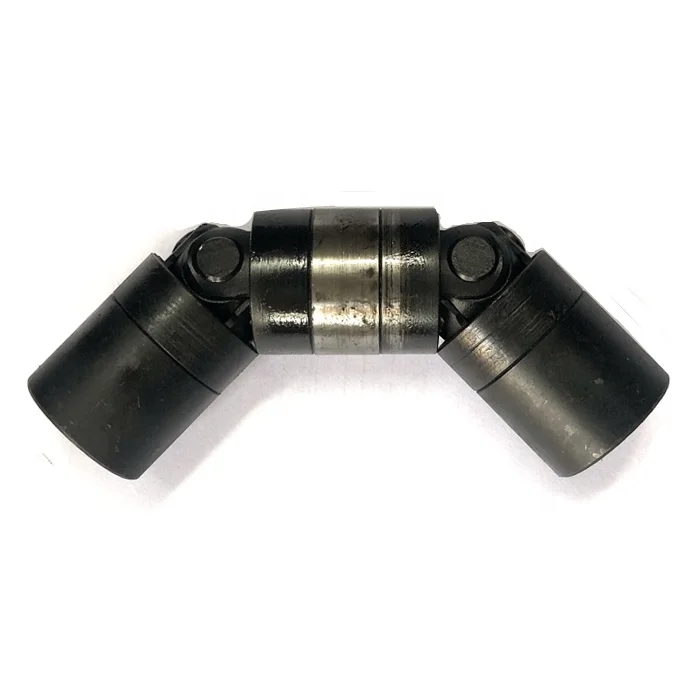

90 deg Double universal joint

We specially designed a double u joint. Each end can rotate at 45 degree to achieve 90 degree.

Product packaging

Packing Details: Plastic bag, carton, plywood case, pallets or as per customer's demands.

Delivery Time: 20-35 days

Chuanglian Hardware and Machinery

Established in 2008, we have been adhering to the "integrity, profession" business philosophy and "customer first, quality first" business principle. We are honored to serve a lot of clients. With a wealth of manufacturing experience, we are expecting to provide you with our professional production and processing technology in the future. We always welcome every customer and hope you are willing to provide us with a chance.

Equipment: We have cnc lathes, general lathes, stamping machines, etc

Other services: Bending, stamping, laser cutting etc services are available.

Our workers are diligent, oriented, skillful, and engineers are experienced, professional. We are confident in producing the high quality goods for customers.

Exhibition

PTC ASIA 2019 in Shanghai

We attended the Power Transmission and Control exhibition in Shanghai, displaying our universal joints, shafts, and cnc machined parts, bending welding and stamping parts. Many friends came to ask and discuss with us, communicating different opinions and ideas with each other.

Why Choose Us

* 3D-Drawing available after payment

* Flexible and helpful to suggest controlling budget

* Professional team makes high quality products

Positive Reviews

FAQ

1. WHAT TYPE OF UNIVERSAL JOINT DO I SELECT?

The slower the speed, the better suited are types with plain bearings. Single, double or telescopic are all available. These are better able to withstand torque peaks and reversals. Above 1000 r/min select models with needle roller cross bearing.

2. WHAT ABOUT LUBRICATION?

Universal joints with plain bearings will need lubrication (unless intermittent running at low speeds). This is normally achieved by adding grease filled rubber gaiters. Joints with needle roller bearings do not need lubrication or gaiters.

3.HOW DO I FIX UNIVERSAL JOINTS TO THE SHAFTS?

Pinning is the most common and economic method as it accepts both torque and axial loads. Keyways are possible, but additionalaxial fixing is needed. We can drill thread holes in two 90° positions, one of them on keyway. A number of special options are available on request, for example square or splined bores.

4. WHAT ARE THE ADVANTAGES OF TELESCOPIC UNIVERSAL JOINTS?

Telescopic universal joints are not suitable for cases where the centre distance moves during running - they are inclined to lock due to torque and friction. Instead they suit machines where horizontal or vertical adjustment is needed between sections and the adjustment is made when not running.

5. WHAT KIND OF CENTRE SECTION USED IN OUR TELESCOPIC U JOINTS?

We use splined both crossed centre section. It depends the customer's dimensions.

6. WHAT IS DIFFERENCE BETWEEN HIGH DUTY U JOINTS AND HIGH STRENGTH U JOINTS?

Heavy duty u joints consist of large hole yoke and small hole yoke, pin and block style, while heavy strength u joints consist of two large hole yokes, pin and block design with bushings rather than the traditional snap ring. The High Strength Joint is great for applications that require operating at a higher torque. The joint is also designed to accommodated larger shaft diameters.

7. WHAT IS ZERO BACKLASH?

Zero backlash refers to the amount of radial play within a coupling assembly.
