Прямая продажа ThingMagic M6e-Nano 120 мм * радиочастотная поляризационная антенна радиочастотный интегрированный считыватель UHF
- Категория: Устройство чтения для контрольно-пропускной системы >>>
- Поставщик: Shenzhen,Quanshunhong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 324.85 $* | 330.7 $* |
| Jul-18-2025 | 263.40 $* | 268.87 $* |
| Jun-18-2025 | 319.85 $* | 325.42 $* |
| May-18-2025 | 316.29 $* | 322.10 $* |
| Apr-18-2025 | 252.40 $* | 257.96 $* |
| Mar-18-2025 | 311.43 $* | 317.58 $* |
| Feb-18-2025 | 309.14 $* | 315.39 $* |
| Jan-18-2025 | 306.14 $* | 312.78 $* |
Характеристики
Product Parameters
Name | Desktop USB RFID Reader |
Network | USB 2.0 |
RFID Module | Thingmagic M6e-NANO |
RF Connectors | Internal circularly 6dbi antenna |
RF Power Output | 0 ~ +27dbm |
Max Tag Read Rate | 250 tag/s |
Power | USB （5V2A） |
RFID Protocol Support | EPC Gen2/ISO180-6C |
Frequency | • FCC (NA, SA) 917.4 – 927.2 MHz • ETSI (EU) 865.6 – 867.6 MHz • TRAI (India) 865 – 867 MHz • KCC (Korea) 917– 923.5 MHz • MIC(Japan) 916.8 – 923.4 MHz • ACMA (Australia) 920 – 926 MHz • SRRC-MII (P.R.China) 920.1– 924.9 MHz • ‘Open’ (Customizable channelplan; 859 – 873 MHz and 915 – 930 MHz) |
API Support | C, C# (.NET), Java |
Standard accessories | USB Cable *1 |
Dust and water immunity | IP54 |
Humidity | 5% to 95%, non-condensing |
Operating Temp | -20℃ to +60℃ |
Storage Temp | -40℃ to +80℃ |
Dimensions( mm) | 305*305*45mm（L*W*H) |
Weight(g) | 1780 |
Product introduction:
FU-M6-IR-NRFID reader is a high-performance four-channel RFID fixed reader, FU-M6-A supports EPC Gen2 & ISO18000-6B& 18000-6C&IP-X (18000-6D) UHF RFID protocol (ISO18000-6B&6D, which requires authorization to use); and supports multi-protocol automatic identification and mode switching. The FU-M6-A is designed according to the EMC IEC61000-4 standard and meets industrial-grade wide voltage input mode. The power input and signal are isolated with an isolation voltage of 2KV. The wide voltage input and industrial-grade wide temperature operating temperature meet ultra-long and stable work Time; industrial-grade serial port \\ network port output to meet high-speed automatic real-time data transmission.Features 1. FU-M6-A makes full use of the advantages of Thingmagic RFID module algorithm, its excellent tag chip compatibility, supports Alien H3, Impinj M series, NXP G2x* & G2i* series, ID Cool Log tag chip, tag compatible Uniqueness in the sex industry. Support multiple protocols including EPC Gen2 & ISO 18000-6C, EPC ISO 18000-6B, IP-X multiple RFID protocol standards.
2. FU-M6-A fully supports the ThingMagic Mercury API embedded operating system, provides .NET and Java SDK, and can easily customize the interface to control the reader as needed.

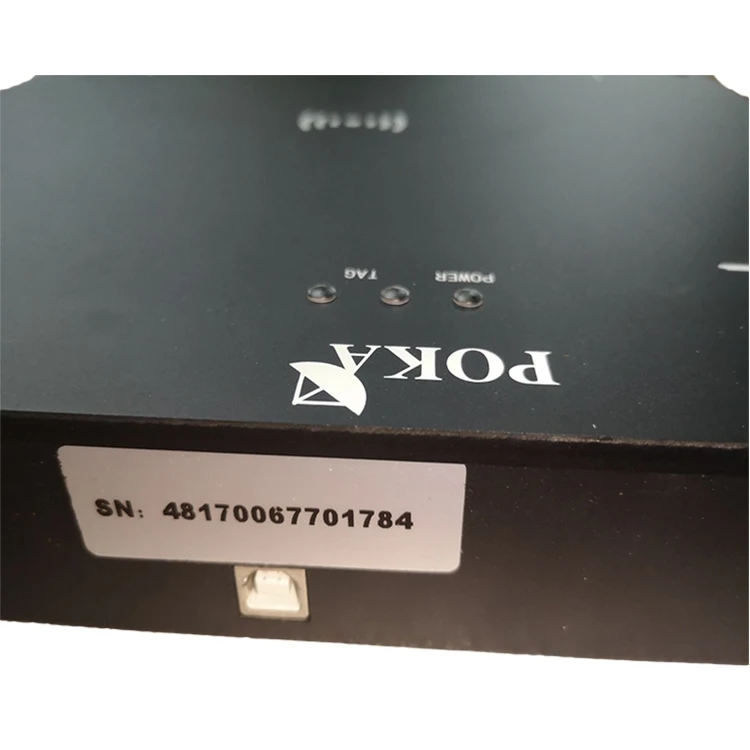

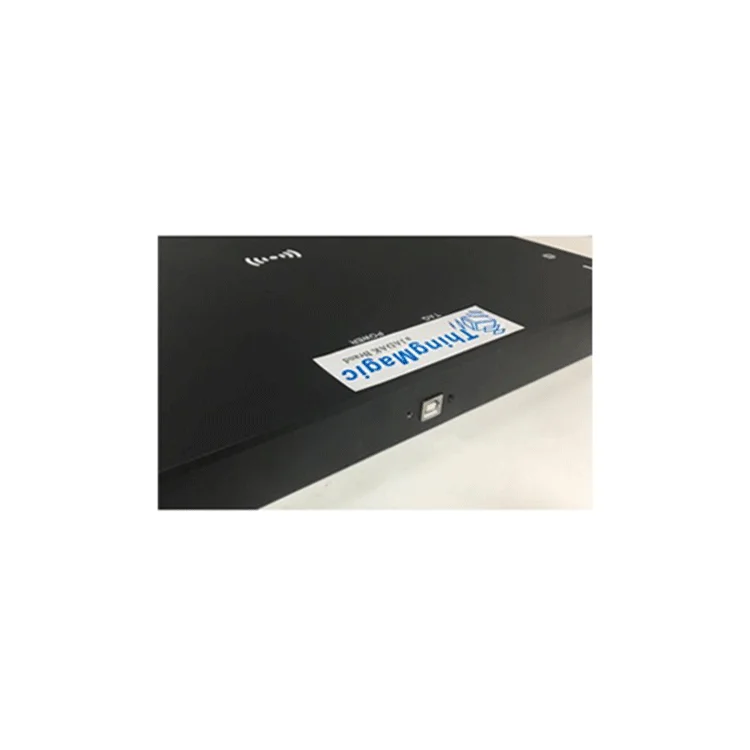

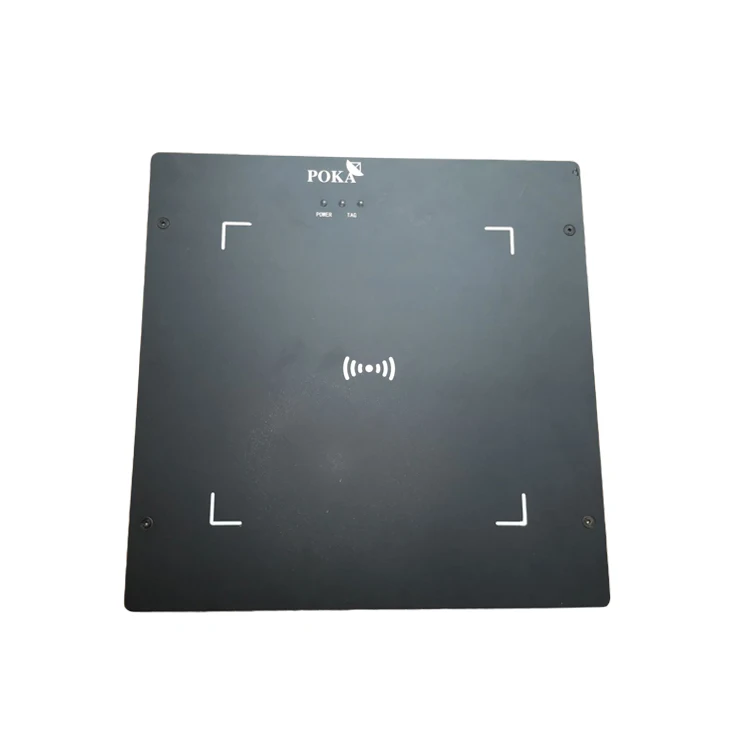

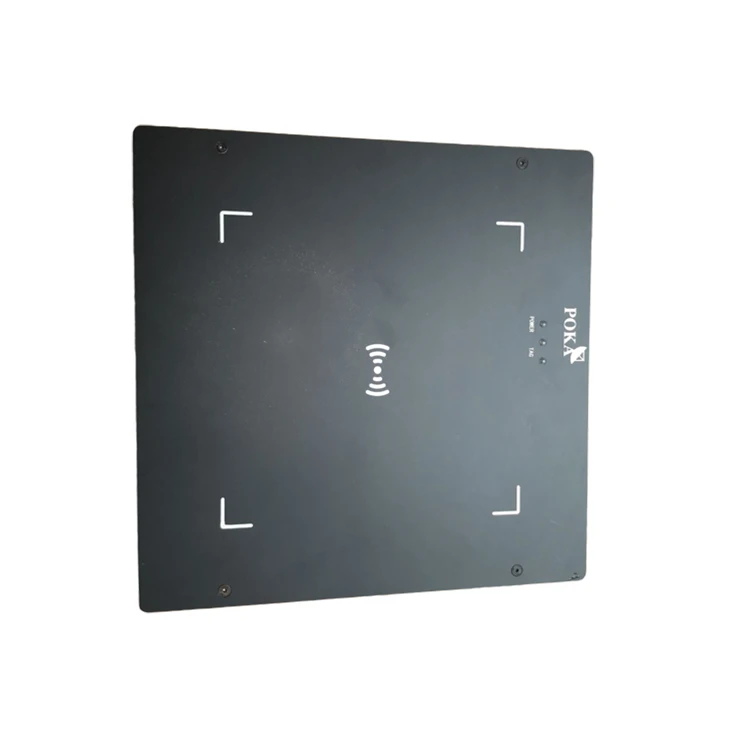

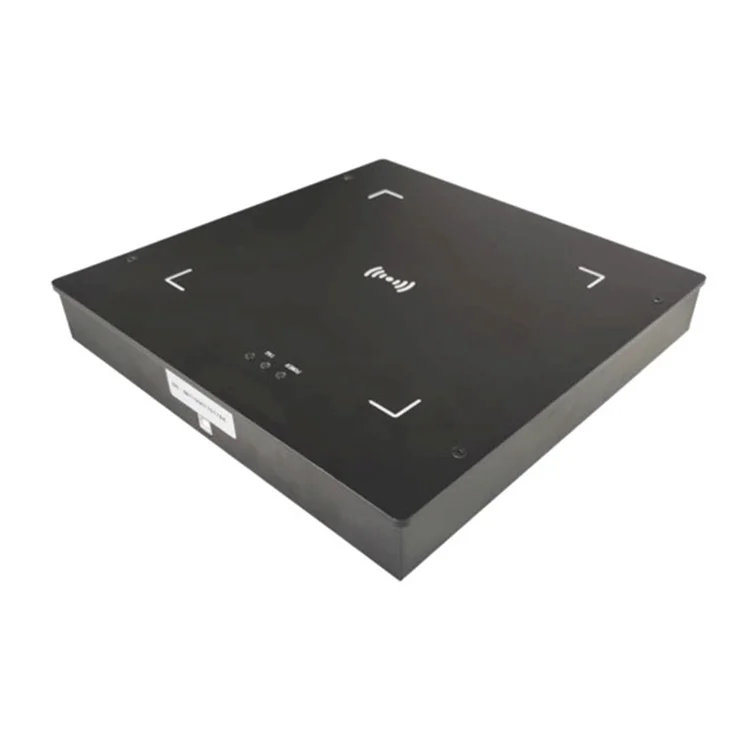

Product Display
