Прямая продажа с фабрики Высокое качество Usb 3 1 женский 6 Pin SMT C разъем


Поделиться:


Цена:3,83 ₽ - 11,48 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-16-2025 4.45 $* 4.71 $*
Jul-16-2025 3.15 $* 3.63 $*
Jun-16-2025 4.18 $* 4.44 $*
May-16-2025 4.32 $* 4.84 $*
Apr-16-2025 3.69 $* 3.24 $*
Mar-16-2025 4.46 $* 4.39 $*
Feb-16-2025 4.5 $* 4.87 $*
Jan-16-2025 4.77 $* 4.84 $*

Характеристики

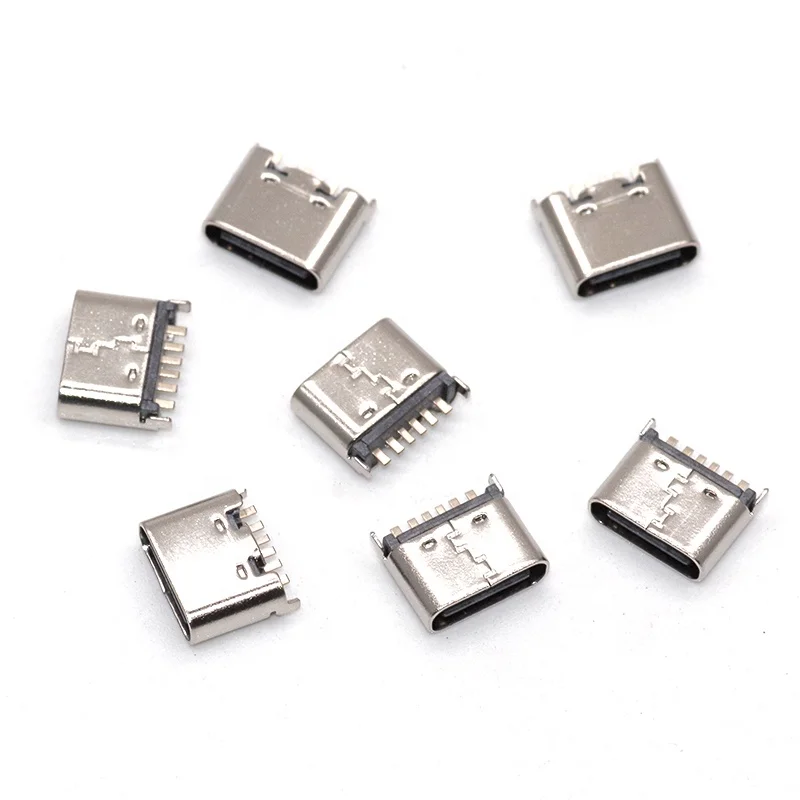

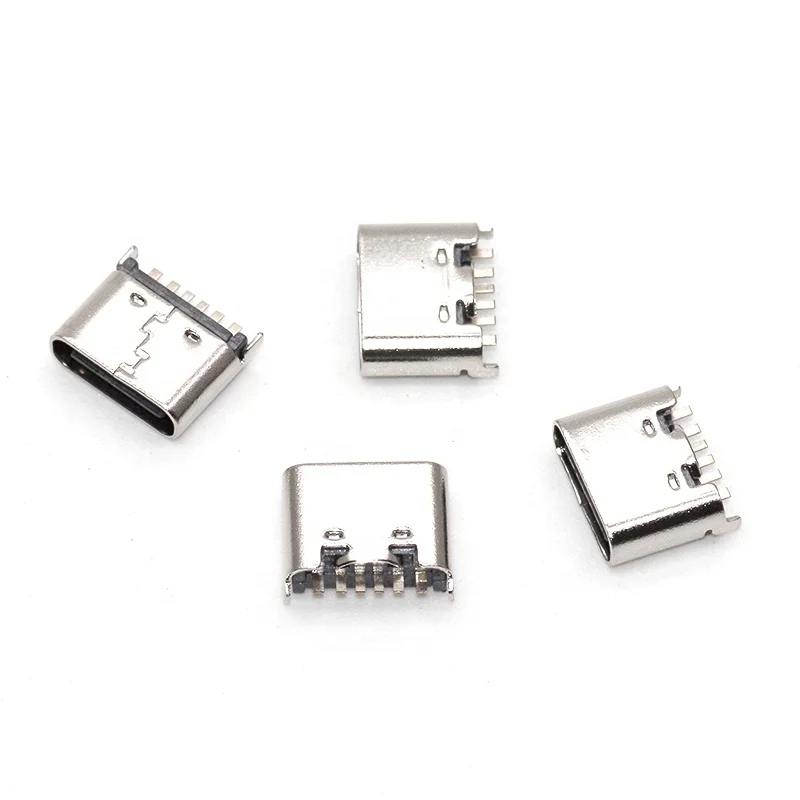

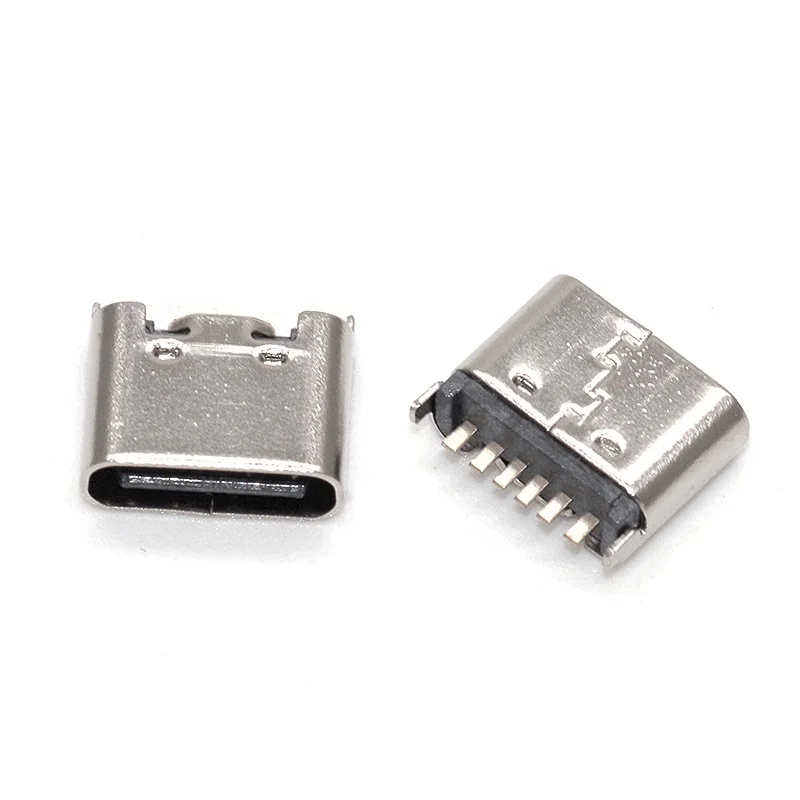

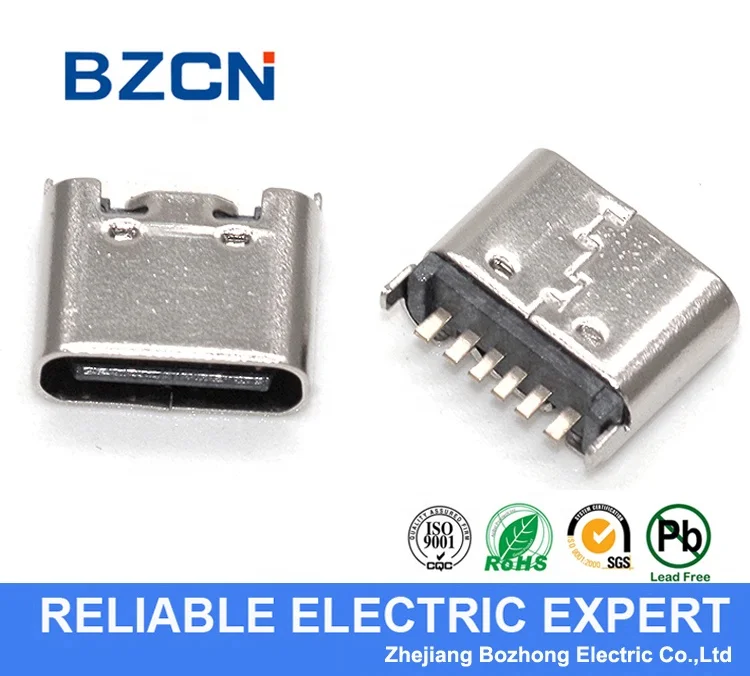

Factory Direct Sale High Quality Usb 3.1 Female 6 Pin SMT Usb C Type ConnectorTYPE-C-6PIN-6.5.jpg

Product Description

Type-C 6Pin-6.5(1).jpgTYPE-C-6PINDIP.jpg

Specification

NOTE:
1 .MATERIAL SPECIFICATION:
1.HOUSING:HIGH TEMPERATURE RESISTANT PLASTIC.UL94 V-O.
    2.CONTACTS:COPPER ALLOY
    3.MID PLATE: STAINLESS STEEL
    4.FR0NT SHELL: STAINLESS STEEL
2.PLATING SPECIFICATION:
    2-1.CONTACTS:
Ni 50u” MlN. UNDER PLATED OVER ALL.
        Au PLATED ON THE FUNCTIONAL AREA OF CONTACT.
   (GOLD PLATING THICKNESS FOLLOW THE P/N)
      PLATING SPECIFICATIONS OF THE SOLDER AREA FOLLOW THE P/N
    2-2.FRONT SHELL:
        SEE TABLE1.
    2-3.SHIELD PLATE&EMI PLATE:
        CLEAR ONLY
3.MECHANICAL PERFORMANCE:
    3-1.INSERTION FORCE: 0.5~2.0kgf.
    3-2.REMOVAL FORCE: 0.8kgf~2.0kgf.
    3-3.DURABILITY: 5000 CYCLES.
4.ELECTRICAL PERFORMANCE,
    4-1. CURRENT RATING:3.OA
         VOLTAGE RATING:5.OV
    4-2. LLCR:
         VBUS & GND PINS AND OTHER PINS: 40mΩ/PIN MAX.
         SHIELD: 50mΩ/MAX.
         LLCR MAX. CHANGE OF ALL PINS: 10mΩ.
    4-3.INSULATI0N RESISTANCE: lOOMΩ MIN
    4-4.DIELECTRIC WITHSTAND VOLTAGE,AC 100V FOR 1 MINUTE.
5.ENVIRONMENTAL PERFORMANCE:
    OPERATING TEMPERATURE: -25℃-+85℃.
6.IR REFLOW:
    THE PEAK TEMPERATURE ON THE BOARD SHALL
    BE MAINTAINED FOR 10 SECONDS AT 260℃.
Company Information

 CompanyInspection57Certificate for ELE

Packaging & Shipping

 Packing

FAQ

1. Q: Are you a factory or trading company?

A: We are factory and produce all the products by our self.



2. Q: I need your price list of all your products, do you have a price list ?

A: We do not have a price list of all of our products. Because we have so many items,and it’s impossible tomark all of their price on a list.And the price are always changing because of the producing cost.If youwant to check any price of our products, please feel free to contact us.We will send offer to you soon!



3. Q: I can’t find the product on your catalogue, can you make this product for me?

A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,

and how many do you want.If we do not have it,we can also design and make a new mould to produceit.For your reference,making a ordinary mould will take about 35-45days.



4. Q : Can you make customized products and customized packing?

A: Yes.We made a lot of customized products for our customer before.(mainly wire harness)

And we made many moulds for our customers already.

About customized packing,we can put your Logo or other info on the packing.There is no

problem.Just have to point out that ,it will cause some additional cost.



5. Q: Can you provide samples ? Are the samples free ?

A: Yes,we can provide samples.Normally,we provide free samples for test or quality checking.

But you have to pay for the shipping cos.If you need many items, or need more qty for each item,we will charge for the samples.



6. Q : What about your delivery time?

A: We have a lot of products in stock.We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.



7. Q : How to ship my order ? Is it safe?

A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS.That’s aDoor to Door service.

For big packages, we will send them by Air or By sea.We will use good packing and ensurethe safety.We will be responsible to any product damage caused on delivery.
