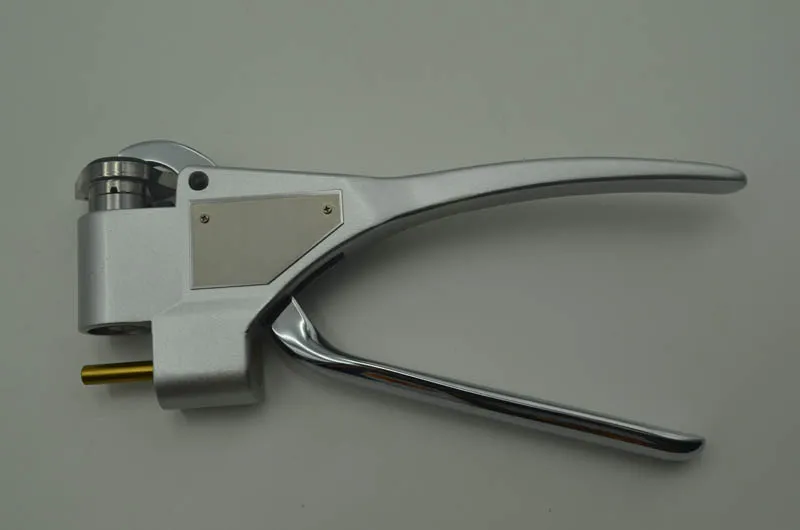

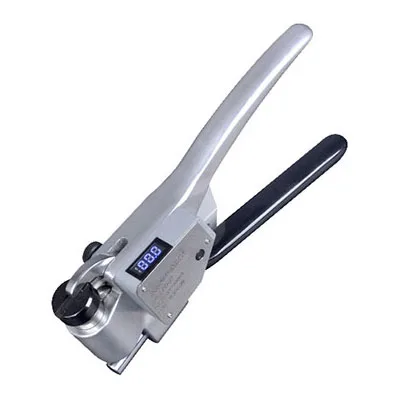

SW-20 series Digital Webster hardness tester

Description

SW-20 series Digital Webster hardness meter aluminum alloys Webster hardness meter (also known as clamp type hardness tester) is a lightweight, rapid field test of aluminum alloy Gold hardness instrument. The test is simple, rapid, a card can be read directly in line with the hardness, China colored YS/T420 standard and American Standard ASTM B647 is one of the two instruments standards recommended by YS/T420.

Features:

1. Aluminum alloys Webster hardness tester for testing aluminum alloy profiles, tubes, sheets, is especially suitable for in the production site, on-site sales or construction site on the hardness of the products for rapid and nondestructive inspection qualified. ;

2. Standard hardness block after standard hardness testing machine, with a test report;

3. Webster Hardness value can be converted into common Vivtorinox, Rockwell, Brinell hardness and tensile strength;

4. It can read the digital hardness value directly on the screen.

materials hardness testing.

Main purpose and scope of application:

1.Check the workpiece whether heat treatment and the effect of the heat treatment.

2. Check the workpiece whether is inappropriate alloy processing.

3. Test the workpiece and parts which are too long or overweight unsuitable for the lab testing.

4. For the production inspection, acceptance inspection and the quality inspection.

5. Mainly used to detect the hardness of the Aluminium alloy (1100~7075 series)

Technical parameter:

1. Range: 0-20HW

2. Accuracy: ±0.5HW

3. Resolution: 0.1HW

4. Measurement range: equivalent to 20~110HRE

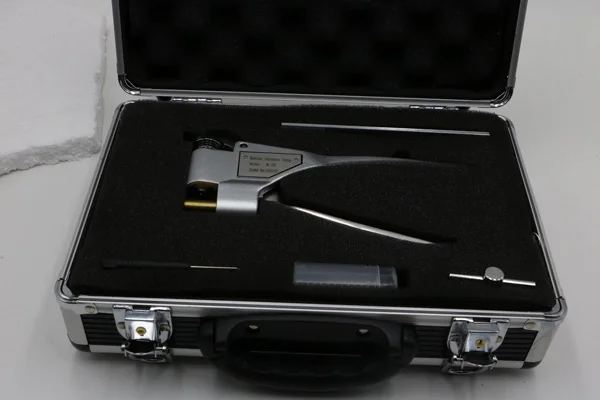

Standard accessories:

SW-20 Hardness tester 1pc

Standard block 2pc

Spare penetrators 1pc

Calibration wrench 1pc

Small screwdriver 1pc

Operation manual 1pc

Case 1pc

Charger 1pc

A: Usually we support the TT, Western Union, Paypal.

Q: Do you support after sales service?

A: Most products we provide warranty of 12months, some with the longer warranty of 24months.

Optional accessories:

Penetrators and Standard block

SW-20 series models:

Model	Sample size/diameter mm	N.W Kg	G.W Kg	Package size mm
SW-20	Plates Thickness≤6,Inner diameter≥10	0.5	1.1	280×230×80
SW-20a	Plates Thickness≤13,Inner diameter≥10	0.5	1.1	280×230×80
SW-20b	Plates Thickness≤8,Inner diameter≥6	0.5	1.1	280×230×80

Our company provides the different type Hardness tester, including of the Rockwell Hardness tester, Leeb Hardness tester, Barcol Hardness tester, Webster Hardness tester, Micro Hardness tester.

If you want to know more details, welcome to contact us.
