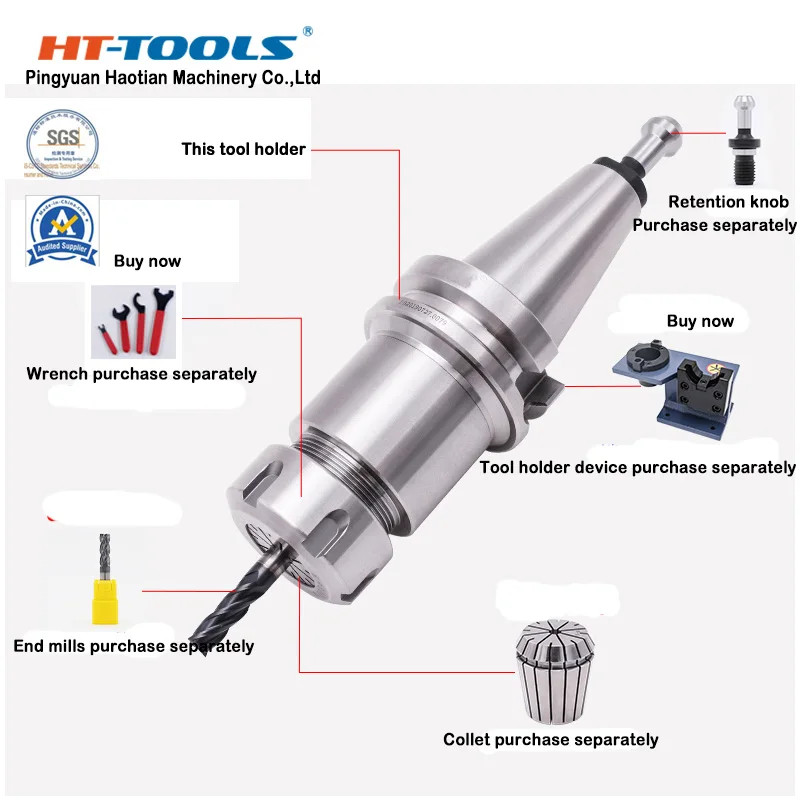

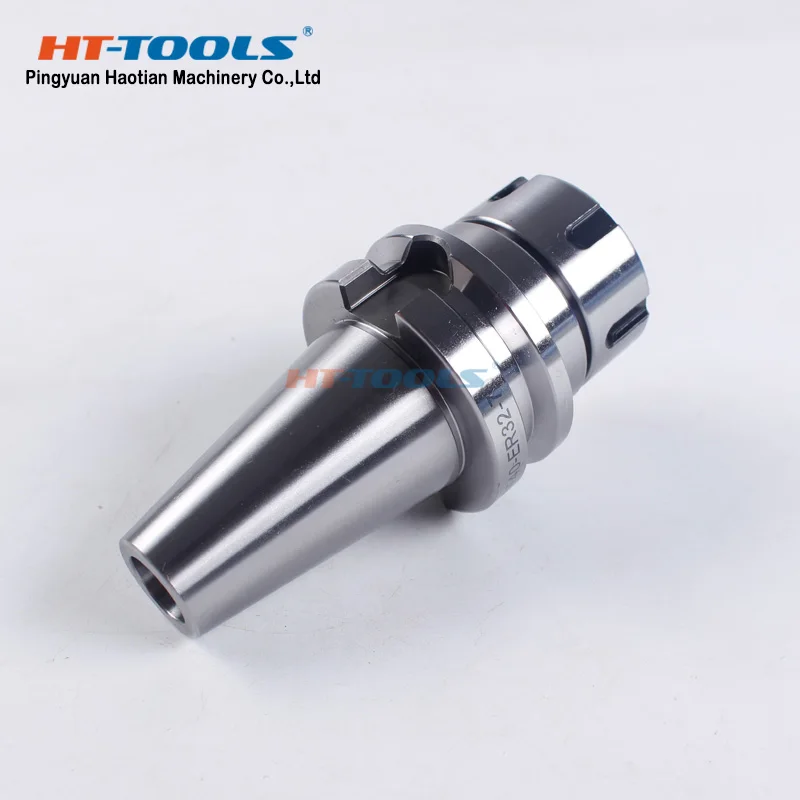

High speed high accuracy cnc milling machine tools DIN69871.40 ER32 collet chuck AD/B type with balanced 25000rpm



1.Collet chuck tool holders material 20CrMnTi  40Cr

2.Collet chuck tool holders hardnessHRC48-52

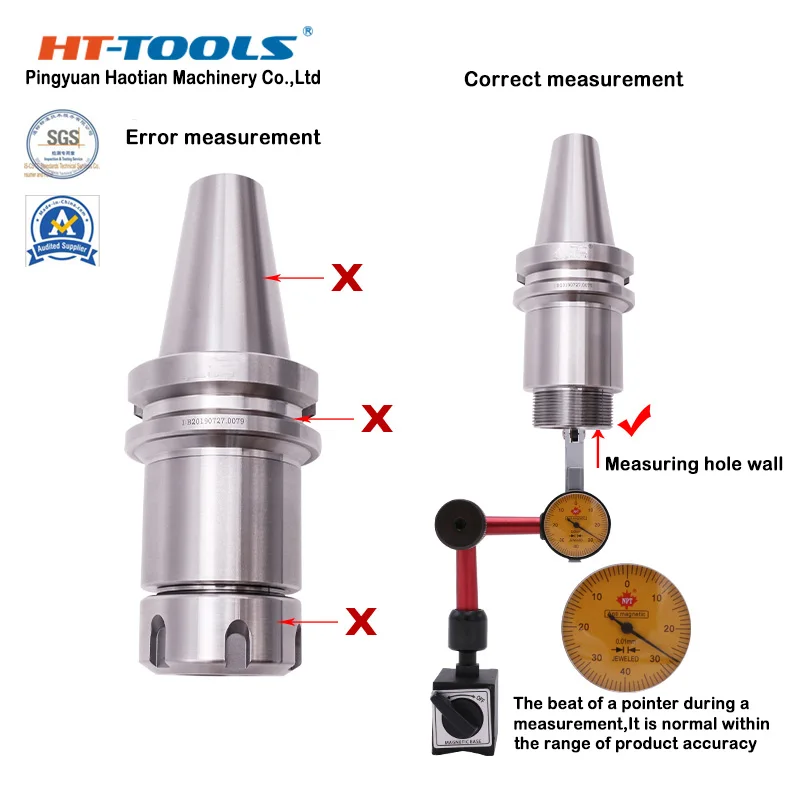

3.Collet chuck tool holders accuracy 0.003mm

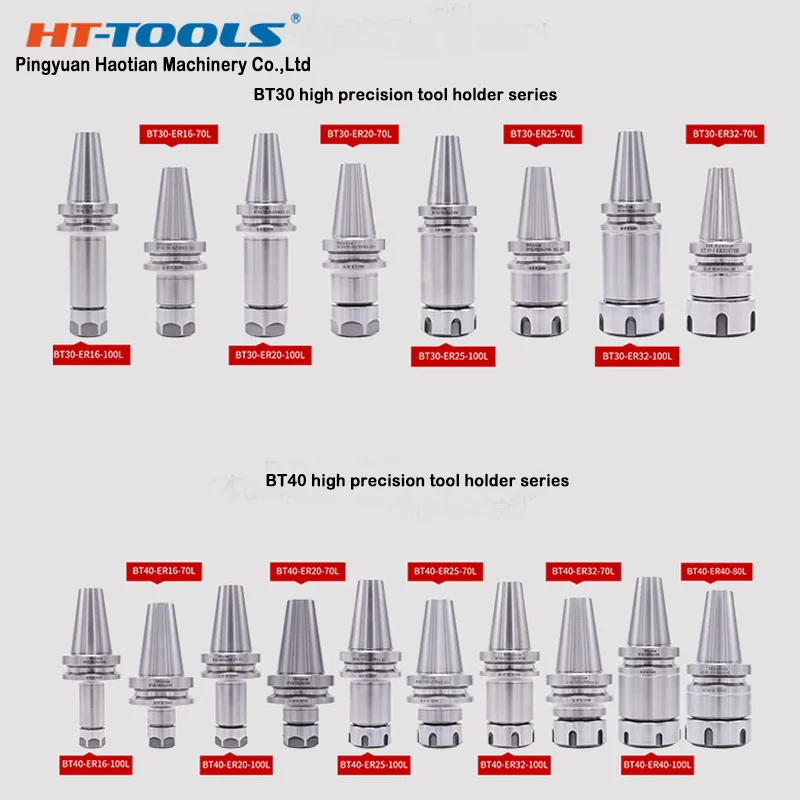

HT-0093	BT  MILLING  CHUCK  ARBORS
Order NO. BT×ER-L1		D	D1	Order NO.		D	D1
				BT×ER-L1
BT30×ER16-70		28	31.75	BT45×ER32-70		50	57.15
BT30×ER20-70		34	31.75	BT45×ER32-100		50	57.15
BT30×ER25-70		42	31.75	BT45×ER32-120		50	57.15
BT30×ER32-70		50	31.75	BT45×ER40-80		63	57.15
BT30×ER40-80		63	31.75	BT45×ER40-100		63	57.15
BT40×ER16-70		28	44.45	BT45×ER40-120		63	57.15
BT40×ER20-70		34	44.45	BT50×ER16-70		28	69.85
BT40×ER20-100		34	44.45	BT50×ER16-90		28	69.85
BT40×ER20-150		34	44.45	BT50×ER16-135		28	69.85
BT40×ER25-60		42	44.45	BT50×ER20-70		34	69.85
BT40×ER25-70		42	44.45	BT50×ER20-90		34	69.85
BT40×ER25-90		42	44.45	BT50×ER20-135		34	69.85
BT40×ER25-100		42	44.45	BT50×ER20-150		34	69.85
BT40×ER25-150		42	44.45	BT50×ER20-165		34	69.85
BT40×ER32-70		50	44.45	BT50×ER25-70		42	69.85
BT40×ER32-100		50	44.45	BT50×ER25-135		42	69.85
BT40×ER32-150		50	44.45	BT50×ER25-165		42	69.85
BT40×ER40-70		63	44.45	BT50×ER32-70		50	69.85
BT40×ER40-80		63	44.45	BT50×ER32-80		50	69.85
BT40×ER40-120		63	44.45	BT50×ER32-100		50	69.85
BT40×ER40-150		63	44.45	BT50×ER32-102		50	69.85

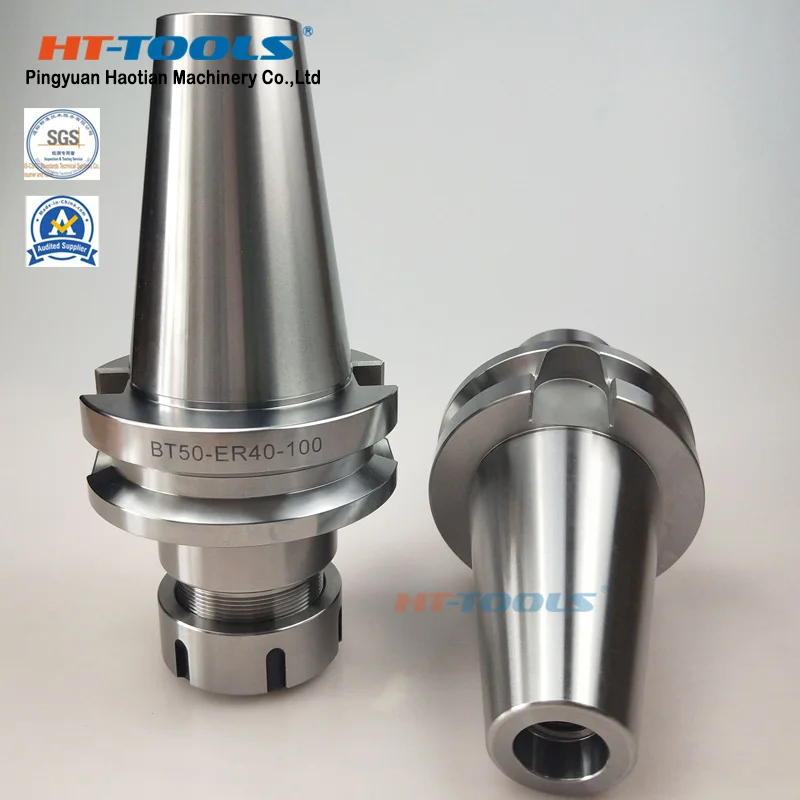

BT45×ER16-70		28	57.15	BT50×ER40-80		63	69.85
BT45×ER20-70		34	57.15	BT50×ER40-100		63	69.85
BT45×ER20-100		34	57.15	BT50×ER40-120		63	69.85
BT45×ER25-70		42	57.15	BT50×ER40-135		63	69.85
BT45×ER25-90		42	57.15	BT50×ER50-90		78	69.85
BT45×ER25-100		42	57.15	BT50×ER50-120		78	69.85

OrderNO. DIN69871.A×ER-L1	D	D1	OrderNO. DIN69871.A×ER-L1	D	D1
DIN69871.A30×ER11-80	19	31.75	DIN69871.A40×ER40-120	63	44.45
DIN69871.A30×ER16-63	28	31.75	DIN69871.A40×ER40-150	63	44.45
DIN69871.A30×ER20-63	34	31.75	DIN69871.A50×ER16-70	28	69.85
DIN69871.A30×ER25-63	42	31.75	DIN69871.A50×ER16-100	28	69.85
DIN69871.A40×ER11-80	19	44.45	DIN69871.A50×ER16-160	28	69.85
DIN69871.A40×ER16-63	28	44.45	DIN69871.A50×ER20-70	34	69.85
DIN69871.A40×ER16-70	28	44.45	DIN69871.A50×ER20-100	34	69.85
DIN69871.A40×ER16-100	28	44.45	DIN69871.A50×ER20-135	34	69.85
DIN69871.A40×ER16-120	28	44.45	DIN69871.A50×ER20-160	34	69.85
DIN69871.A40×ER20-70	34	44.45	DIN69871.A50×ER25-70	42	69.85
DIN69871.A40×ER20-100	34	44.45	DIN69871.A50×ER25-100	42	69.85
DIN69871.A40×ER20-160	34	44.45	DIN69871.A50×ER25-150	42	69.85
DIN69871.A40×ER25-60	42	44.45	DIN69871.A50×ER32-80	50	69.85
DIN69871.A40×ER25-70	42	44.45	DIN69871.A50×ER32-100	50	69.85
DIN69871.A40×ER25-100	42	44.45	DIN69871.A50×ER32-120	50	69.85
DIN69871.A40×ER25-150	42	44.45	DIN69871.A50×ER32-160	50	69.85
DIN69871.A30×ER32-70	50	44.45	DIN69871.A50×ER40-80	63	69.85
DIN69871.A30×ER32-80	50	44.45	DIN69871.A50×ER40-120	63	69.85
DIN69871.A30×ER32-100	50	44.45	DIN69871.A50×ER40-160	63	69.85
DIN69871.A30×ER32-120	50	44.45	DIN69871.A50×ER50-90	78	69.85
DIN69871.A30×ER32-150	50	44.45	DIN69871.A50×ER50120	78	69.85
DIN69871.A30×ER40-80	63	44.45	DIN69871.A50×ER50-160	78	69.85
DIN69871.A30×ER40-100	63	44.45	DIN69871.A50×ER50-200	78	69.85













Machine tool Accessories, please check below to know our main items.
Tool Holder Shanks:  BT Tool Holders, DIN69871 SK Tool Holders, NT Tooling, CAT30 CAT40 CAT50
Tool Holders, HSK Tool Holders, DIN 69880 VDI Tool Holders, Morse Taper, Straight Shank Tool Holders,
etc.

Tool Holders: Collet Chucks, Milling Chucks, Face Mill Holders, Weldon End Mill Holders,  Morse Taper
Adapters,
Drill Chucks, Tapping Chucks, Shrink Chucks, Thread End Mill Tool Holders, Screw in Milling Cutter
Holders, etc.

Collet: ER Collets, ERC Collets, ERG Collets,Milling Chuck set ,Straight Collets, OZ Collets, etc.





Pingyuan Haotian machinery Co.,Ltd is located in the largest production base of
machine tool accessories in China.We are specialized in researching,producing and developing many
kinds Of collets, drill chuck, CNC tool holders, retention knobs, ER nuts, ER spanners, machine vises,
parallel blocks  and so on. With high precision and full varieties. All of our products are deeply trusted
by customers both at home and abroad.





Machine tool Accessories, please check below to know our main items.
Tool Holder Shanks:  BT Tool Holders, DIN69871 SK Tool Holders, NT Tooling, CAT30 CAT40 CAT50
Tool Holders, HSK Tool Holders, DIN 69880 VDI Tool Holders, Morse Taper, Straight Shank Tool Holders,
etc.

Tool Holders: Collet Chucks, Milling Chucks, Face Mill Holders, Weldon End Mill Holders,  Morse Taper
Adapters,
Drill Chucks, Tapping Chucks, Shrink Chucks, Thread End Mill Tool Holders, Screw in Milling Cutter
Holders, etc.

Collet: ER Collets, ERC Collets, ERG Collets,Milling Chuck set ,Straight Collets, OZ Collets, etc.

1.Are you factory or Trade Company?
 We are Industry and trade integration.

2.Could you supply samples?
Yes, we can supply.

3.Where do you export?
The whole world.

4.Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.

5.What’s the accuracy of ER Collet?
We have three kinds. 0.005mm 0.01mm and 0.015mm.

6. What are the shipping ways?
By international express, by air, by sea are all ok.

7. Do you have minimum order quantity?
Conventional Products don’t have. The minimum order quantity of non-standard products is 50pcs.

8. What’s your payment way?
T/T, Pay pal, Western Union and so on.

9. What’s your delivery time?
5-20 days after order confirmed
