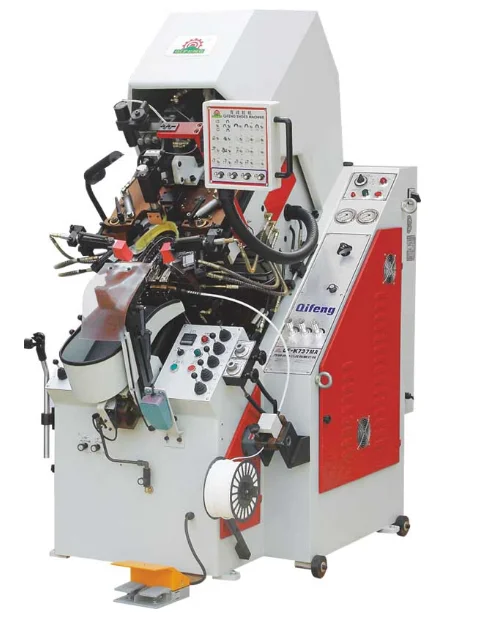

QIFENG гидравлический outo-цементирования затяжная машина для передней части обуви QF-K737MA

 operational approach

*The size of the middle sole shall match the last; in principle, it shall not exceed the last edge;

*The shape of the fastener needs to cooperate with the shoe last;

*The shape of the sweep blade is greater than that of the last heel;

*Only when the Angle of the last tree after it is placed on the tree support is parallel to the sweep blade surface, can the lasting effect be better.

*The height after the last is placed on the support should not be too high, so as to avoid the shoe upper hitting the positioning bar and causing the working height, which may affect the binding effect.

*The forward position of the brace should not be too forward or too backward to avoid damage to the vamp or the tightener;

*If the vamp for leather or the material of P.V.C, can open knife thermostat, heating to make sweeping knife, average temperature is about 70 ° C to hunt the effect;

*After the last is bonded, please do not take out the iron nails on the middle bottom on the machine to prevent the removed iron nails from falling into the oil cylinder of the support and causing oil leakage.

*This machine is suitable for all types of shoes, including: children's shoes, sports shoes, women's shoes, riding boots, leather shoes, labor protection shoes, etc.

Mechanical installation sequence: 1. Clean anti-rust oil;2. Fill in the hydraulic oil, open the sealing cover of the mailbox, and then fill in the hydraulic circulating oil (China petroleum corporation no. R-68#) about 60 liters inside the lower left sealing cover of the machine. 3. Connect the power supply and check the voltage. Professionals should be responsible for this work; 4. Check the rotation direction of the motor. When starting the motor, the pressure of the pressure gauge should rise to 40KG/ cm. 5. Lubricating oil should be injected into each lubrication nozzle before the operation of the machine. Please read the operation manual of the machine in detail before the formal operation of the machine.

* technical parameters:

Model no. : qf-k737a (MA) qf-k737b (MB)

Mechanical dimensions :(length, width and height) 1700*1000*1950mm

Packing size :(length, width and height) 1800*1160*2100mm

Weight: 1100 kg

Requirement: 1500 ~ 1800Pairs/8hrs

Power: 3 HP

Kindly Reminder :

1.If the number of the need for more, please contact us, we will help you to arrange more quantity

2. some country may be need to pay some duty fees,It depend on the receivers country policy.

3.we warranty our products for you.
