Характеристики
Product Paramenters

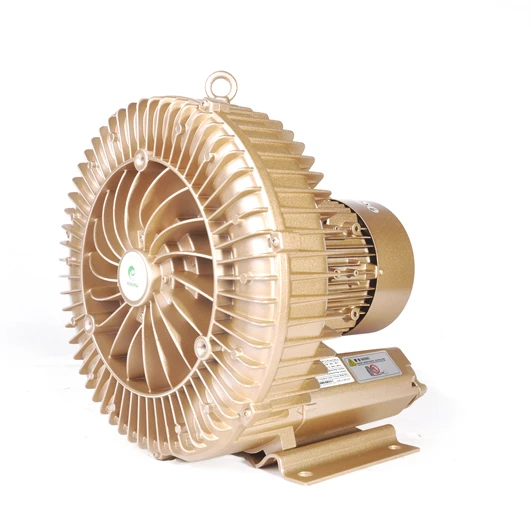

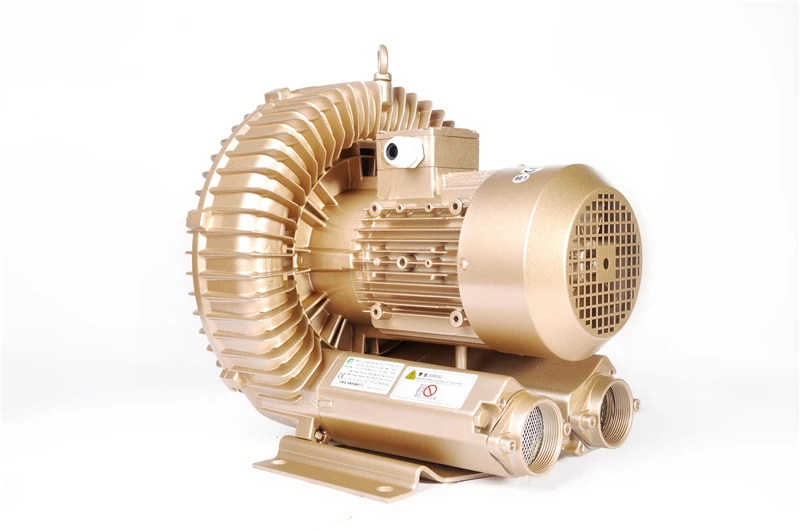

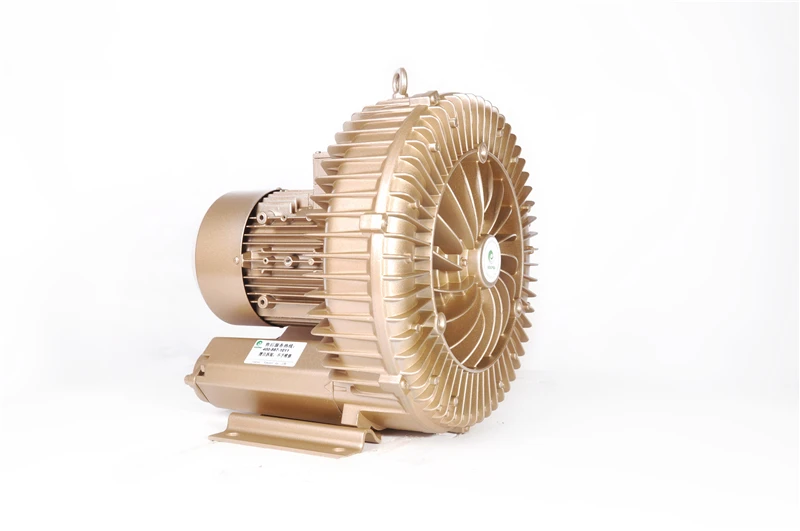

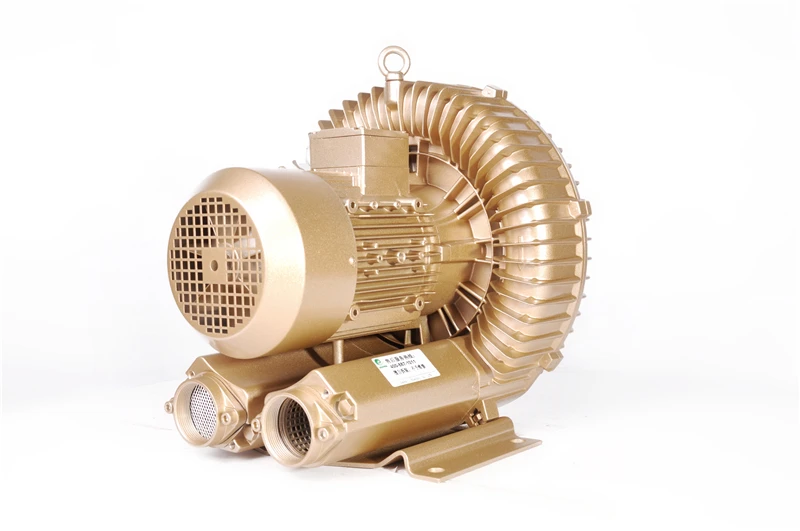

Product name | 3HP 3 Phase 2.2KW Ring Blower GHBH 003 34 AR7 | ||||||
Model number | GHBH 003 34 AR7 | Stage/Phase | single stage_3 phase | ||||
Frequency | 50Hz | 60Hz | |||||
Rated power | 2.2kw | 2.55kw | |||||
Rated voltage | 200-240△/345-415Y(V) | 220-275△/380-480Y(V) | |||||
Rated current | 9.7△/5.6Y(A) | 10.0△/5.8Y(A) | |||||
Max airflow | 420m³/h | 500m³/h | |||||
Max vacuum | -180mbar | -160mbar | |||||
Max pressure | 170mbar | 150mbar | |||||
Sound level | 70db(A) | 73db(A) | |||||
Products Description
High efficiency motor； IP55 & Insulation class H； Built-in Thermal Protector(PTC)； High Temperature-Resistance bearing； Special customized blower and OEM available； 24 months warranty and long-term technical support； CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved. | ||||||||
Side channel blowers are used in these industry sectors:
·Pneumatic conveying ·Transport und handling
·Packaging industry ·Electrical engineering and electronics
·Pastics industry ·Food industry
·Drinks industry ·Printing and paper industry
·Wood processing industry ·Textile industry
·Medical technology
·Packaging industry ·Electrical engineering and electronics
·Pastics industry ·Food industry
·Drinks industry ·Printing and paper industry
·Wood processing industry ·Textile industry
·Medical technology
GOORUI Side channel blowers are maintenance-free:
·External, permanently lubricated bearings ·Contactless rotating impellers
·Fan-cooled motors
·Fan-cooled motors
GOORUI Side channel blowers are user-friendly:
·Weight-optimised design through aluminum pressure casting parts
·Possibility for a vertical or horizontal installation
·Suitability for converter operation
·Possibility for a vertical or horizontal installation
·Suitability for converter operation
GOORUI Side channel blowers are environmentally friendly:
·Oil-free operation ·Low energy requirement ·Low noise emission
GOORUI Side channel blowers can be used world-wide:
·50/60Hz voltage range motors of the Iso class F
·Protection type IP55 with an integrated thermal protection switch (standard)
·CE, TUV, RoHS, CCC and ISO9001 certifications
·Protection type IP55 with an integrated thermal protection switch (standard)
·CE, TUV, RoHS, CCC and ISO9001 certifications
Our advantages:
·A large selection of sizes ·Extensive accessoires
·100% check prior to delivery ·Spare parts are in stock
·Service in our facilities or on site ·Fast and reliable delivery
·100% check prior to delivery ·Spare parts are in stock
·Service in our facilities or on site ·Fast and reliable delivery
Working principle of regenerative blower
The impeller of Goorui Regenerative Blower was directly installed to the rotor, compress without contact. The bearing was out of turbine to make sure the stability.
Air gets in through inlet 1,then enters side channel 2,impeller will push the air under high speed. Meanwhile, centrifugalization makes the air speed outward and pressure rises.Air power increase under rotating, and the pressure rises further. At last,air gets out from outlet 4.
1. It should be placed in a relatively stable place, and the surrounding environment should be clean, dry and ventilated.
2. The direction of rotation of the impeller must be consistent with the direction of the pointed tip marked on the fan cover.
3. When working, the working pressure should not be greater than 8 kPa, so as to avoid excessive heat generation of the air pump and damage to the air pump caused by motor overcurrent.
4. It is strictly forbidden for solid, liquid and corrosive gas to enter the pump body.
5. The filters and silencers at both ends of the air inlet and outlet should be cleaned in time according to the situation to avoid clogging and affecting use. 6. The external connection of the air inlet and outlet must be connected by a hose (rubber tube, plastic spring tube).
1. Flat washers and spring washers must be used to tighten the screws.
2. It is best to use rubber buffer rubber to bear the weight of the air pump, especially the high-power air pump, which is indispensable.
3. For some occasions that require noise, a silencer can be installed to reduce the noise (generally down, about 5 dB), the silencer is installed at the end of the inlet duct or outlet duct. 4. For some occasions with high requirements for noise, you can add a layer of silencer cotton according to the conditions of the machine itself to meet the noise requirements on site. For details, please consult our customer service.
5. When using silencing cotton to silence the sound, pay attention to the distance between the air pump and the box, pay attention to the ventilation and heat dissipation of the air pump, and pay attention to using rubber cushioning to bear the weight of the air pump.According to the picture, you need to consult customer service.
6. The air inlet and outlet of the air pump For pipe connection,hose connection should be used to isolate vibration.
Packaging & Shipping
Power≤3KW, we will pack it in high quality and high strength cartons.
Shipping way: By sea or By air or By your agent in China.
Company Profile
Founded in 2002, Dongguan Foersheng Industrial M&E Co,.Ltd. is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts. Products are sold widely in the demestic and overseas market.GOORUI is the brands of our products,with many years of development, our brands are more and more popular with people.
Our factory is over 60,000 square meters,it has the advanced production equipment,Such as DOOSAN CNC machines,automatic robot painting line,three-coordinate measuring machine.We have perfect lectrical Performance Testing System,Blower Performance Testing System,Ensure product quality. Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
Due to premium products and considerate service, our products are extensively used in aquaculture, wood-working machinery, injection mold machinery, Sewage Treatment, Printing, Paper Industry, Pneumatic Conveying etc. Our products have won support and trust from customers through the world and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success !
Our factory is over 60,000 square meters,it has the advanced production equipment,Such as DOOSAN CNC machines,automatic robot painting line,three-coordinate measuring machine.We have perfect lectrical Performance Testing System,Blower Performance Testing System,Ensure product quality. Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
Due to premium products and considerate service, our products are extensively used in aquaculture, wood-working machinery, injection mold machinery, Sewage Treatment, Printing, Paper Industry, Pneumatic Conveying etc. Our products have won support and trust from customers through the world and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success !
