Китайская Высококачественная светодиодная печатная плата сборка и дизайн от

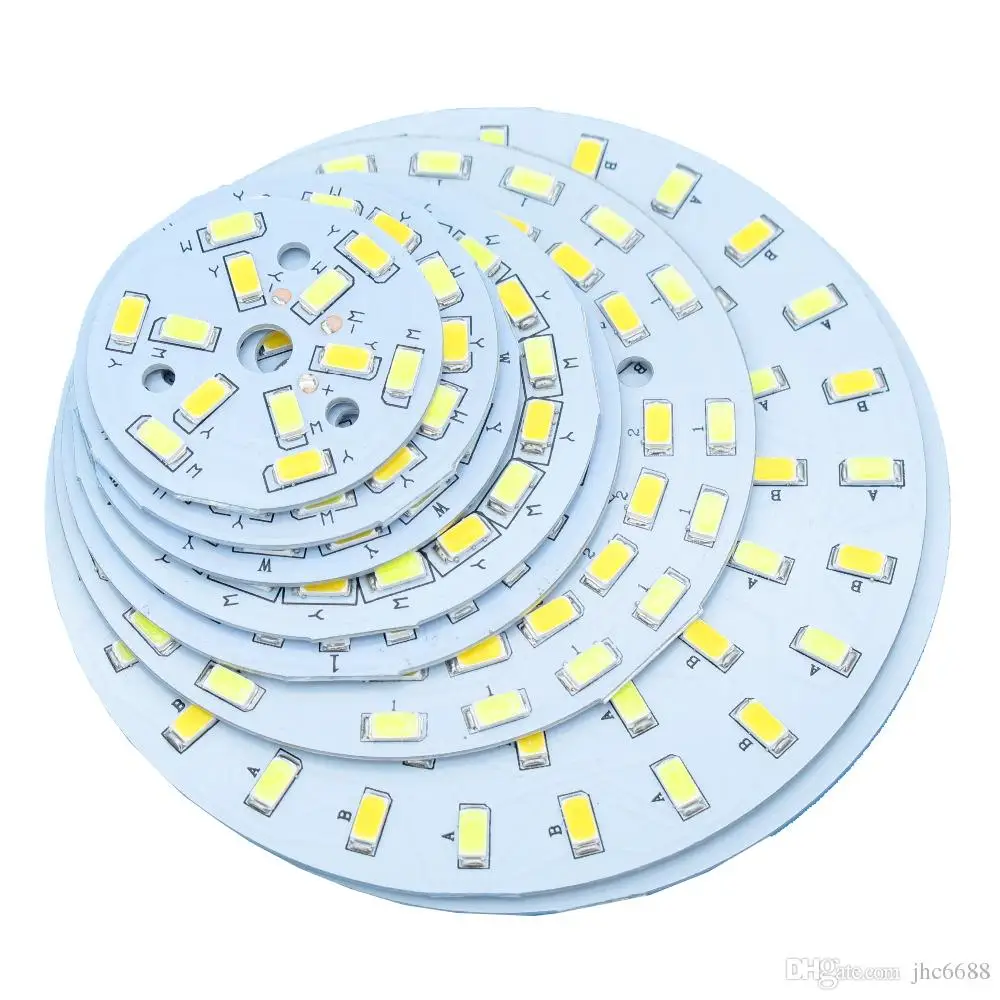

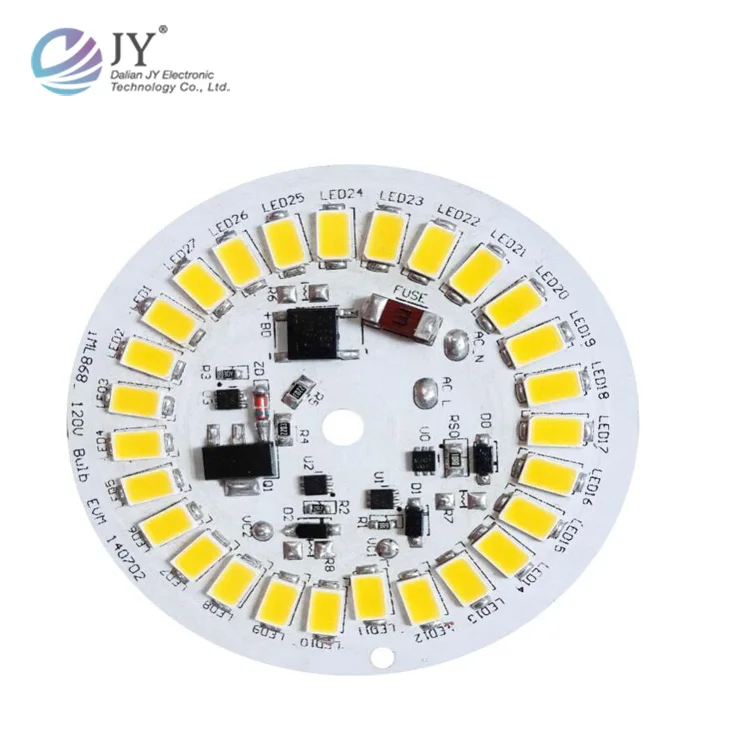

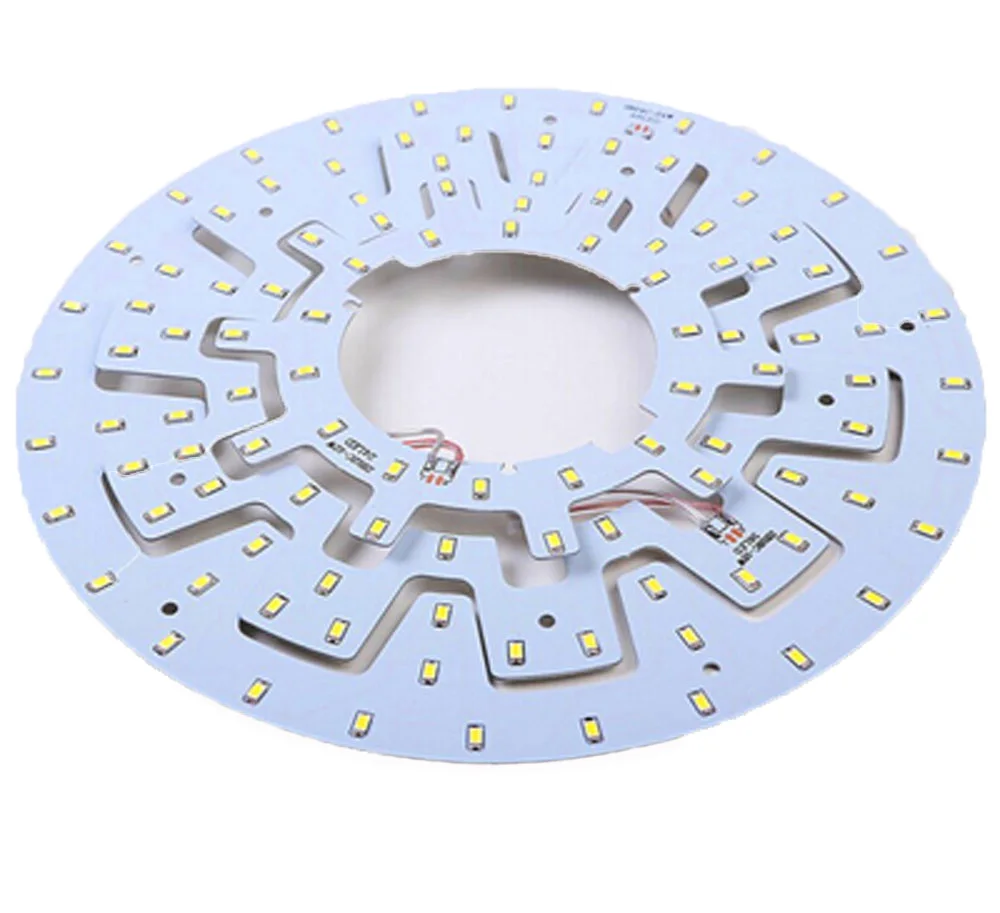

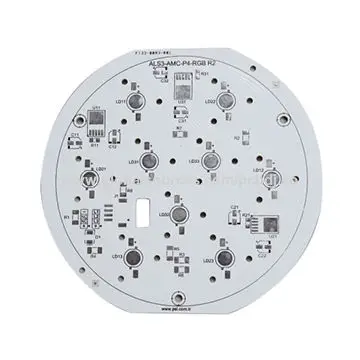

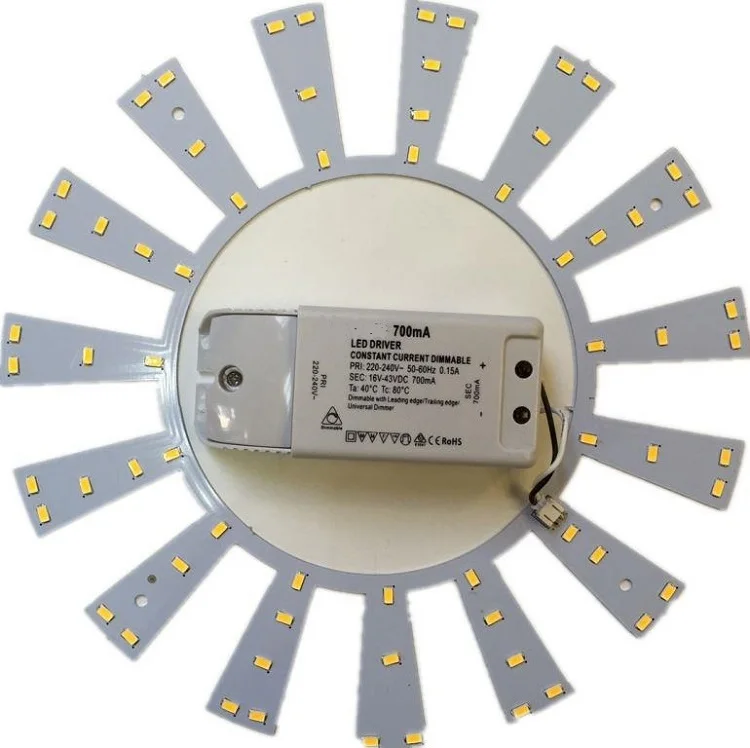

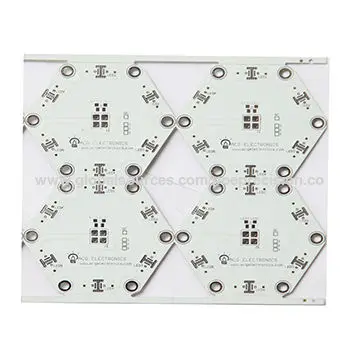

Aluminium PCB
1. Aluminium PCB Circuit Layer
The circuit layer (commonly used electrolytic copper foil) is etched to form the printed circuit, Compared to FR4 material, Aluminium PCB can bear higher electric current when same thick circuit layer and same trace width.
2. Aluminium PCB Insulating Layer /Dielectic Layer
The insulating layer is the core technology of the Aluminium PCB, which mainly serves as the function of adhesion, insulation and heat conduction.
The better the thermal conductivity of insulation is, the quicker the components spread the heat when they work, which can realize the purpose like improving power loading of the modules,reducing volume, extending life span and increase the output power.
JY has rich experience in manufacturing aluminium PCB with high thermal conductivity.
3. Aluminium PCB Metal Base Layer
Usually, considering the cost and technical characteristic, aluminium is the ideal choice. The available aluminum plates are 6061,5052,1060 etc.
If there is a higher heat transfer performance, mechanical properties, electrical properties and other special performance requirements, copper, stainless steel plate, iron plate, silicon steel plate, etc can also be used.

Packaging & Shipping

Packaging:

Our company is not only trying to give customers a good product, but also pay attention to offering a complete and safe package. And here we prepare some personalized services for all the orders.

Common packaging:

PCB: Sealed bag, Anti-static bags, Suitable carton.

PCBA: Antistatic foam bags, Anti-static bags, Suitable carton.

Refular Cartons Specification.

No.	Dimension(L*W*H)
small size	33cm*28.5cm*18.5cm
medium size	44.5cm*30cm*15cm
big size	51.5cm*32.5cm*17.5cm

Customized Cartons: Carton outside according to the requirements of customers printed the name of the customer address, mark, the customer needs to  specify the destination and other information. Our Common Packaging Process.

FAQ

Q: What does JY need for a customized PCB order?

A: When you place a PCB order, the customers need to provide Gerber or pcb file.If you do not have the file in the correct format,

Q: What is your quotation policy?

A: For the PCB order in large quantity, JY will send you the quotation based on the MOQ of the products concerned, and the price will be reasonable with good quality.

Q: What does JY need for other services?

A: For PCB clone service, the customer needs to send us the printed circuit board concerned,and also the sharp photos of its front side and the back side.

Q: How about the service JY offered to the customers?

A: If you have any questions about our products or company, do not hesitate to send us your inquiry toour customer service representatives, Your satisfaction is our pursuits.
