105j 250v полипропиленовая пленка Rohs Сертификация Cbb21 цена на конденсатор
- Категория: Capacitors old >>>
- Поставщик: Guangzhou,Zhongzheng,Electronic,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.65 $* | 0.67 $* |
| Aug-20-2025 | 0.38 $* | 0.63 $* |
| Jul-20-2025 | 0.5 $* | 0.80 $* |
| Jun-20-2025 | 0.74 $* | 0.73 $* |
| May-20-2025 | 0.94 $* | 0.55 $* |
| Apr-20-2025 | 0.42 $* | 0.84 $* |
| Mar-20-2025 | 0.30 $* | 0.63 $* |
| Feb-20-2025 | 0.13 $* | 0.80 $* |
| Jan-20-2025 | 0.2 $* | 0.74 $* |
Характеристики
Our Services
The largest manufacturer of ultra small size film capacitors inchina
Company Information
Product Description

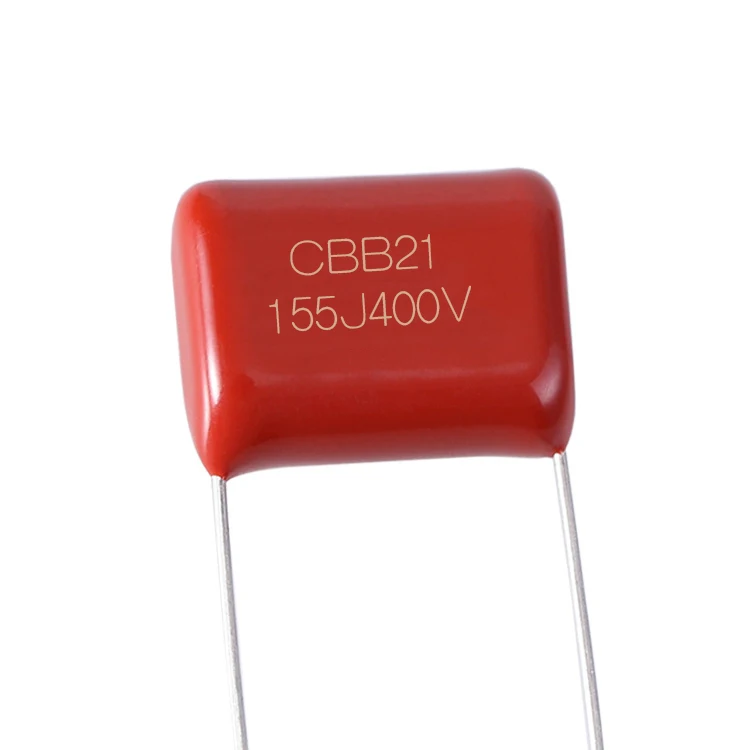

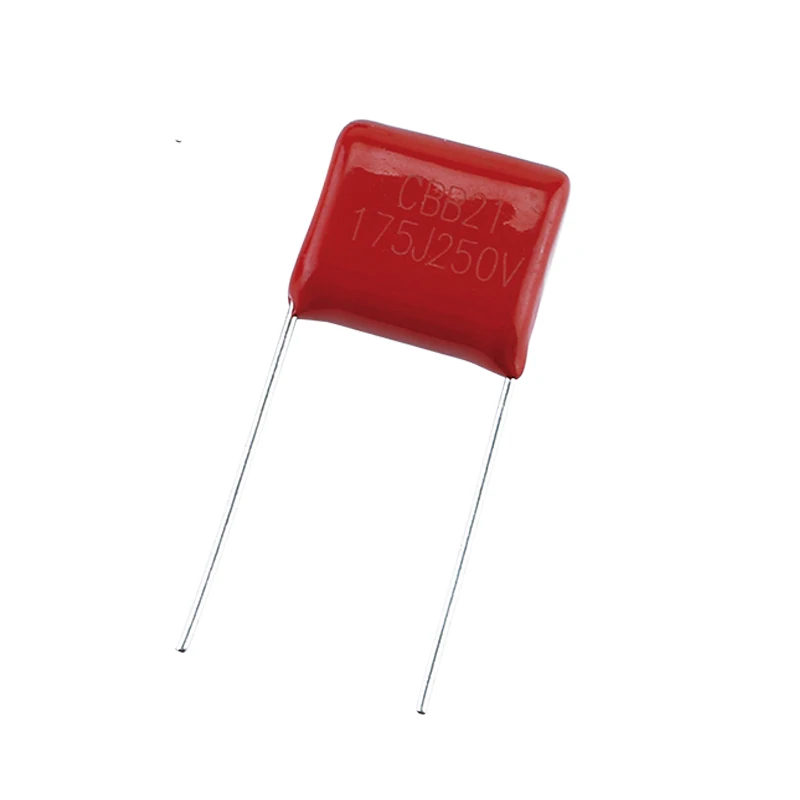

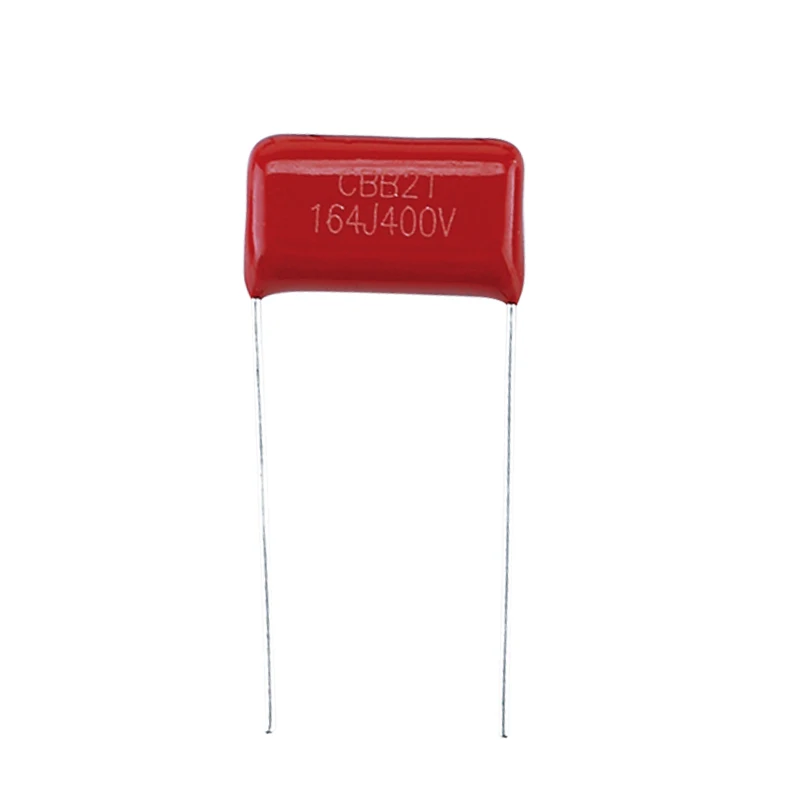

CBB21(MPP)FEATURES
- High quality super polypropylene film ,non-inductive,epoxy resin coating
- Very low dissipation,suitable for high frequency application
- Negative temperature coefficient
- Good stability and reliability, high insulation resistance
* Outline Drawing:
* Specification:
Climatic Category | 55/085/21 |
Rated Voltage | 160v 250v 400v 630V |
Capacitance Range | 0.0010uf~3.3uf |
Voltage Proof | 1.6 UR |
Insulation Resistance | ≥15000MΩ, CR≤0.33μF |
≥5000S, CR>0.33μF | |
(20℃, 1min) | |
Disspation Factor | ≤0.0008(20℃, 1kHz) |
Capacitance Tolerance | ±5%(J), ±10%(K) |
* Usage:
- Widely used in humidifier , fragrance lamp, high frequency, high voltage,DC and pulse circuits
- Widely used in high frequency oscillating circuit
- Supersmall size of the products
- The frequency can reach 2.7hz
CBB21(MPP) Capacitor STANDARD SIZE
Dimensions(mm) and special specifications can product according to your demand.
FAQ
Q:Are you a trading company or a manufacturer?
A:This's GUANGZHOU ZZEC Electronic. It's a professional manufacturer in the field of Subminiature Metalized Polyester & Polypropylene Film Capacitor
Q;Materials of products?
A;A metallized film for A + grade capacitors. Besides we accept customization
Q;Samples are free?
A:yes!
Q;Quality Control?
A;Quality is first,We has passed ISO9001and ROHS REACH certification,As an important part of quality management, quality control is the key to proving the effectiveness of quality certification.
Q:Delivery time?
A;7-15 working days
A:This's GUANGZHOU ZZEC Electronic. It's a professional manufacturer in the field of Subminiature Metalized Polyester & Polypropylene Film Capacitor
Q;Materials of products?
A;A metallized film for A + grade capacitors. Besides we accept customization
Q;Samples are free?
A:yes!
Q;Quality Control?
A;Quality is first,We has passed ISO9001and ROHS REACH certification,As an important part of quality management, quality control is the key to proving the effectiveness of quality certification.
Q:Delivery time?
A;7-15 working days
