Электромагнитный клапан для мойки автомобилей SUS304 SUS316 напряжение 220 В переменного тока 24
- Категория: Электромагнитные клапаны >>>
- Поставщик: Hangzhou,Darhor,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.18 $* | 0.26 $* |
| Aug-17-2025 | 0.38 $* | 0.62 $* |
| Jul-17-2025 | 0.77 $* | 0.85 $* |
| Jun-17-2025 | 0.89 $* | 0.78 $* |
| May-17-2025 | 0.40 $* | 0.57 $* |
| Apr-17-2025 | 0.84 $* | 0.13 $* |
| Mar-17-2025 | 0.99 $* | 0.67 $* |
| Feb-17-2025 | 0.10 $* | 0.61 $* |
| Jan-17-2025 | 0.65 $* | 0.88 $* |
Характеристики
Product Description

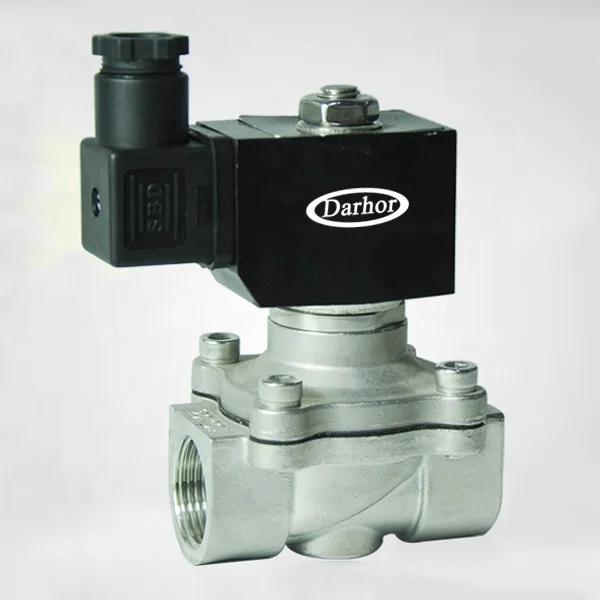

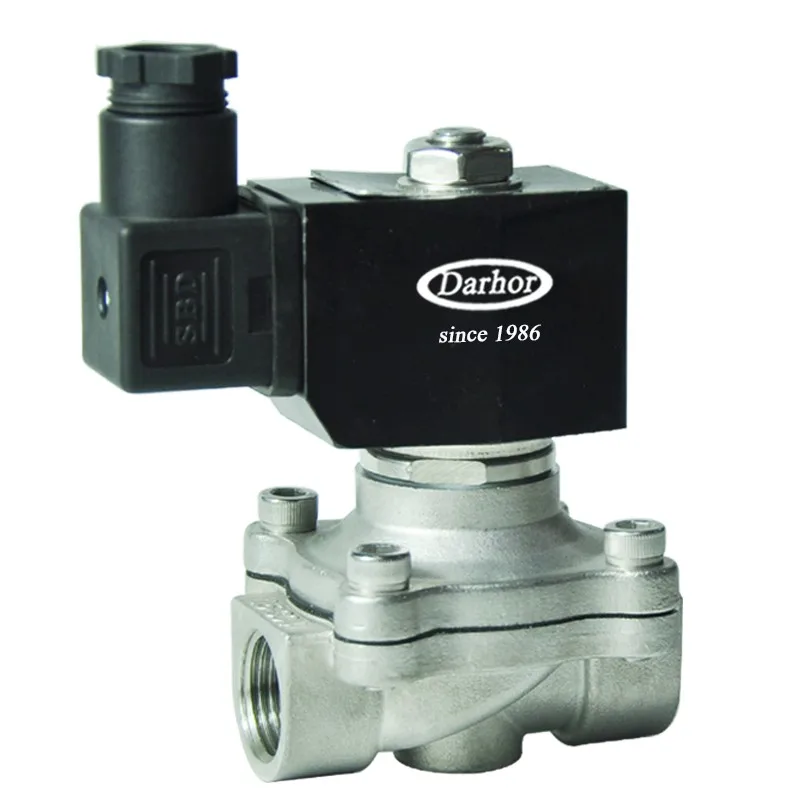

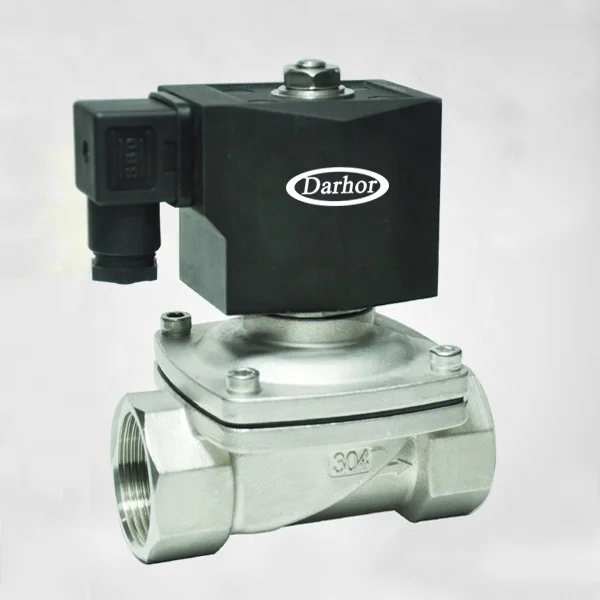

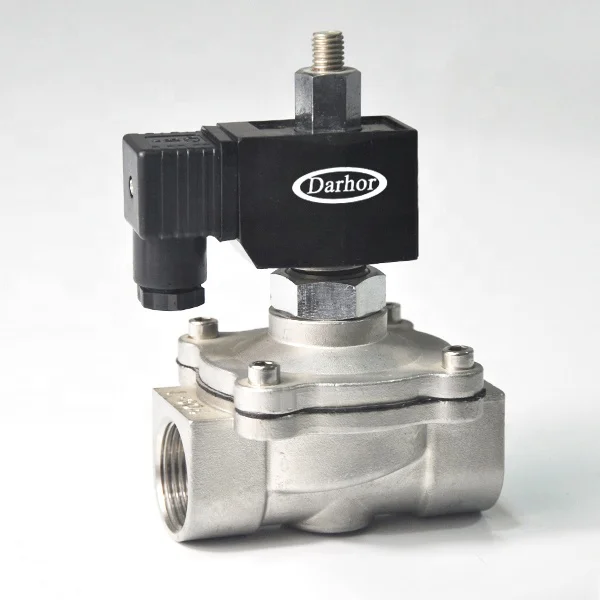

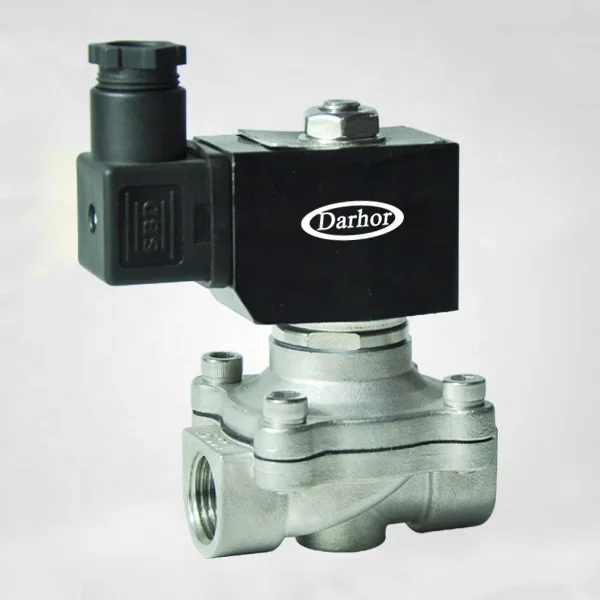

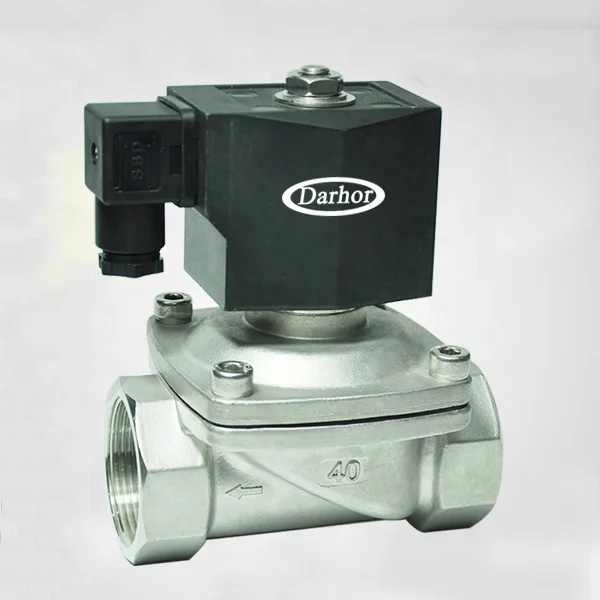

Direct acting SS304 SS316 220VAC 24VDC 1/2 inch stainless steel water solenoid valve
Characteristic:
1. Direct lifting diaphragm construction;
2. Open from zero bar for low pressure system use;
3. High frequency of flying lead coil.
Material:
Body-Brass,Stainless steel
Seal- NBR, EPDM or VITON
Armature Tube-Stainless Steel 304
Plunger- Stainless Steel 430F
Stop- Stainless Steel 430F
Springs- SS304
Shading Rings- Copper
Medium: | Air, Gas, Water, Light oil, etc. |
Temperature: | NBR Seal:-10℃ to 80℃ EPDM Seal: - 10℃ to 120℃ VITON Seal: -10℃ to 150℃ |
Pressure: | 0-1.0 MPa |
Port Size: | 3/8'',1/2'',3/4'',1'',1 1/4'',1 1/2'',2'' |
Port Thread: | G, BSP, NPT, Flange |
Orifice(mm): | 12,15,20,25,32,40,50 |
Voltage: | DC -6V,12V,24V AC -12V,24V,120V,240V/60Hz'110V,22V/50Hz Tolerance:+/-10% |
Coils: | S51B,30VA(AC),24W(DC),IP65,100%ED SD01B,28VA(AC),36W(DC),IP65,100%ED |
Specifications
2W21 series stainless steel solenoid valve, with Coil S51B/SD01B,DIN | ||||||||||||||||
Valve Body | Port Size | Orifice | Cv | Min Pressure (MPa) | Max Pressure(MPa) | Seals Material | Body Material | |||||||||
AC(30VA) | DC(24W) | |||||||||||||||
2W2112XXX | 3/8'' | 12 | 4.5 | 0.0 | 1.0 | 1.0 | NBR, EPDM, or VITON | Brass,or Stainless steel | ||||||||
2W2115XXX | 1/2'' | 15 | 4.5 | 0.0 | 1.0 | 1.0 | ||||||||||
2W2120XXX | 3/4'' | 20 | 9.3 | 0.0 | 1.0 | 1.0 | ||||||||||
2W2125XXX | 1'' | 25 | 12 | 0.0 | 1.0 | 1.0 | ||||||||||
AC(28VA) | DC(36VA) | |||||||||||||||
2W2132XXX | 1 1/4'' | 32 | 24 | 0.0 | 1.0 | 1.0 | ||||||||||
2W2140XXX | 1 1/2'' | 40 | 29 | 0.0 | 1.0 | 1.0 | ||||||||||
2W2150XXX | 2'' | 50 | 48 | 0.0 | 1.0 | 1.0 | ||||||||||
Related Products
Detailed Image
\t\t\t\t\t\t\t\t\tCertifications \t\t\t\t\t\t\t
Our Company
Each Darhor Valve pass 10 testings to ensure high quality!
Valve testing: Coil testing:
high pressure test low pressure test
leak detection water hammer test lifecycle test
resistance test current test
power test temperature test noise test
Packing & Delivery
Shockproof Bag to protect valve
Strong Cartons
1.English neutral packaging
2.with Darhor logo
3.with your logo (Charged)
membrane outside protect rain
Package more than 40kgs,use
Fumigated wooden case or pallet.
We will compensate to the damage!pls contact within 3 days when you receive.
