Product Description

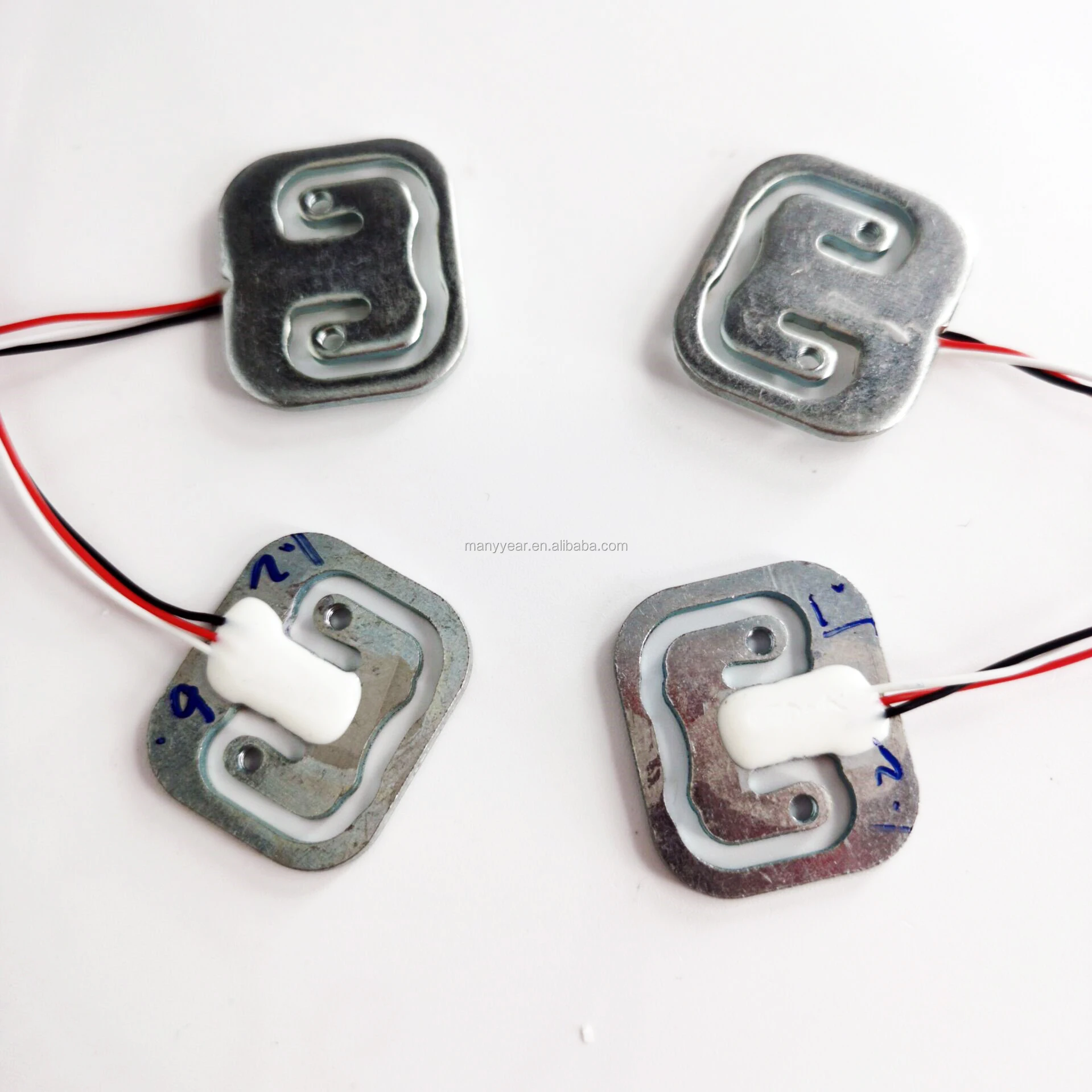

Low cost bathroom scale load cell 50kg

Catalogue: Micro load cell

Rated load: 50kg

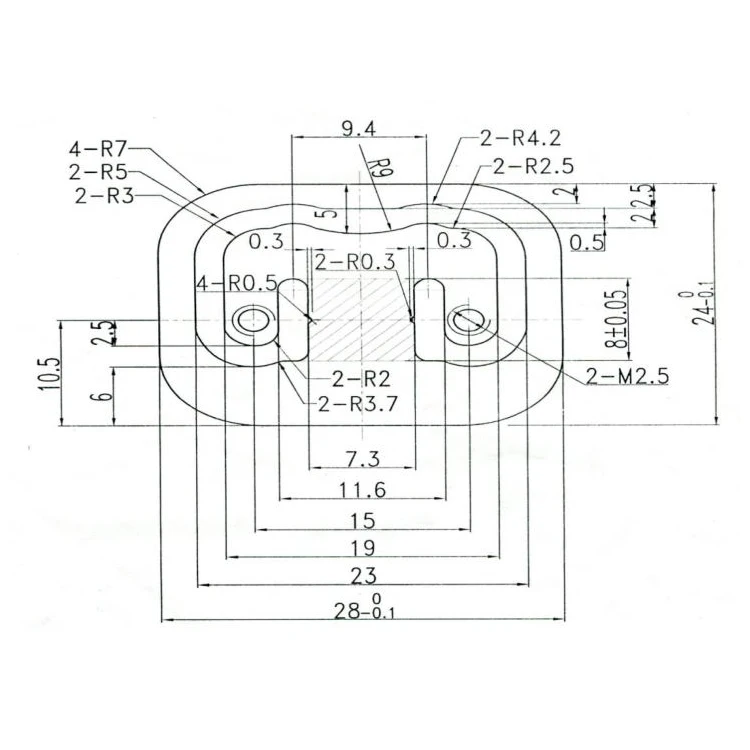

Dimension:28*24*2.0mm
Safe overload:150%；Ultimate overload: 200%
Material: Alloy steel
Apply to: handle scale, body scale, micro force test equipment

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

Specification
Comprehensive error:	0.3%FS	Output resistance:	1000±10Ω
Rated output:	1.0±0.15mv/v	Insulation resistance:	≥2000MΩ(100VDC)
Non-linearity:	0.2%FS	Excitation voltage:	5~10VDC
Hysteresis:	0.2%FS	Compensated temp:	-10~+40ºC
Repeatability:	0.1%FS	Use temperature:	-20~+55ºC
Creep:	0.1%FS/10MIN	Temp effect on zero:	0.3%FS/10ºC
Zero balance:	1±0.1%FS	Temp effect on span:	0.3%FS/10ºC
Input resistance:	1000±10Ω	Defend grade:	IP66

Product Assembly Structure

Blow force structure is for reference.

Product Process

for the load cell product process, include total 26 word step, take about 20days.

Product Application

this load cell can apply to pricing scale, packing scale, platform scale.

Delivery and Shipment

this load cell can apply to pricing scale, packing scale, platform scale.
