Мини турбины колесо водяное Колесо генератор турбины воды крыльчатки
US $38000-$45000
Миниатюрный турбинный генератор электрическая ветряная турбина 4000 Вт 5000 10000 цена в
- Категория: Альтернативные генераторы электроэнергии >>>
- Поставщик: Wuxi,Longmax,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 6095.15 $* | 6217.8 $* |
| Jul-16-2025 | 4943.96 $* | 5042.84 $* |
| Jun-16-2025 | 5999.44 $* | 6119.68 $* |
| May-16-2025 | 5951.92 $* | 6070.9 $* |
| Apr-16-2025 | 4751.64 $* | 4846.87 $* |
| Mar-16-2025 | 5855.44 $* | 5972.68 $* |
| Feb-16-2025 | 5807.32 $* | 5923.84 $* |
| Jan-16-2025 | 5759.61 $* | 5874.17 $* |
Характеристики
Product Paramenters
Model | XTL-1000 | XTL-2000 | XTL-3000 | XTL-4000 | XTL-5000 | XTL-10000 | |||||
Rated power | 1000W | 2000W | 3500W | 4000W | 5000W | 10000W | |||||
Working voltage | 48V | 48/96V | 96/120V | 120/220V | 220/380V | 220/380V | |||||
Start-up wind speed | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | |||||
Rated wind speed | 10m/s | 10m/s | 10m/s | 10m/s | 10m/s | 10m/s | |||||
Safe wind speed | 40m/s | 40m/s | 45m/s | 45m/s | 45m/s | 45m/s | |||||
Net weight | 32 KG | 49 KG | 92 KG | 185 KG | 360 KG | 680 KG | |||||
Wind rotor diameter | 2.4 M | 2.8 M | 4 M | 4.2 M | 5.4 M | 7.2 M | |||||
Gross weight | 40 KG | 55 KG | 110 KG | 160 KG | 420 KG | 780 KG | |||||
No. of blades | 3 | ||||||||||
Blade material | FRP strengthened | ||||||||||
Body material | 8A3 | ||||||||||
Generator style | Permanent magnet, three phase, AC | ||||||||||
Control system | Electromagnetic / automatic adjustment of windward angle | ||||||||||
Yaw mode | Folding tail | ||||||||||
Lubrication method | Self lubrication | ||||||||||
Tower | Inhaul cable / Independent tower | ||||||||||
Speed regulation method | Electromagnetic brade+yawing | ||||||||||
Working temperature | -40℃-80℃ | ||||||||||
Product Description
Advantages
Safety: the main stress point of the blade is concentrated in the hub, so the problems such as blade falling off, fracture and blade flying out have been solved;
Wind resistance: the horizontal rotation makes it under low wind pressure, which can resist the super typhoon of 45 meters per second;
Radius of gyration: due to different design structure and operation principle, it has smaller radius of gyration than other forms of wind power generation, saving space and improving efficiency;
Characteristics of power generation curve: the starting wind speed is lower than other types of wind turbines, and the rising range of power generation is relatively gentle. Therefore, within the range of 5-8m wind speed, its power generation is 10% - 30% higher than other types of wind turbines;
Brake device: the blade has speed protection, and can be equipped with mechanical manual and electronic automatic brake. In areas without typhoon and strong gust, only manual brake is required;
Wind resistance: the horizontal rotation makes it under low wind pressure, which can resist the super typhoon of 45 meters per second;
Radius of gyration: due to different design structure and operation principle, it has smaller radius of gyration than other forms of wind power generation, saving space and improving efficiency;
Characteristics of power generation curve: the starting wind speed is lower than other types of wind turbines, and the rising range of power generation is relatively gentle. Therefore, within the range of 5-8m wind speed, its power generation is 10% - 30% higher than other types of wind turbines;
Brake device: the blade has speed protection, and can be equipped with mechanical manual and electronic automatic brake. In areas without typhoon and strong gust, only manual brake is required;
The shell is made of A3 steel, small in size, light in weight, beautiful in appearance and low in operation vibration.
Flange installation, good strength, easy to install and maintain.
With the optimized aerodynamic shape design and structure design, the GRP wind turbine blade has low start-up wind speed, high wind energy utilization coefficient and increased annual power generation.
The tail rudder adopts automatic yaw design, tail folding type, stronger anti typhoon ability, safe and reliable operation.

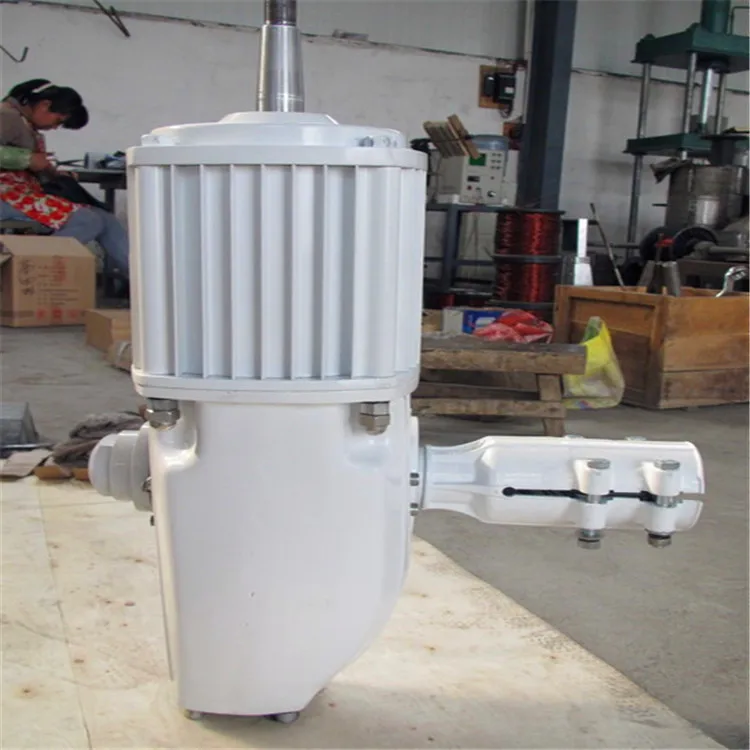

The Nd-Fe-B permanent-magnet rotor alternator with patented technology is used for power generation, with special sub design, which can effectively reduce the resistance torque of the generator. At the same time, the use of wind wheel and the generator has better matching characteristics and the operation reliability of the unit.
The maximum power tracking intelligent controller can be selected to effectively adjust the current and voltage.
Flange installation, good strength, easy to install and maintain.
With the optimized aerodynamic shape design and structure design, the GRP wind turbine blade has low start-up wind speed, high wind energy utilization coefficient and increased annual power generation.
The tail rudder adopts automatic yaw design, tail folding type, stronger anti typhoon ability, safe and reliable operation.
The Nd-Fe-B permanent-magnet rotor alternator with patented technology is used for power generation, with special sub design, which can effectively reduce the resistance torque of the generator. At the same time, the use of wind wheel and the generator has better matching characteristics and the operation reliability of the unit.
The maximum power tracking intelligent controller can be selected to effectively adjust the current and voltage.
Company Advantage
