Фабричная медная травильная пластина с фоточувствительным сухим
- Категория: Листовая медь >>>
- Поставщик: Yantai,Enhen,Printing,Materials,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 37.91 $* | 38.57 $* |
| Jul-17-2025 | 30.42 $* | 31.82 $* |
| Jun-17-2025 | 36.90 $* | 37.95 $* |
| May-17-2025 | 36.39 $* | 37.43 $* |
| Apr-17-2025 | 29.98 $* | 30.94 $* |
| Mar-17-2025 | 35.35 $* | 36.0 $* |
| Feb-17-2025 | 35.62 $* | 36.3 $* |
| Jan-17-2025 | 35.39 $* | 36.35 $* |
Характеристики
Products Description

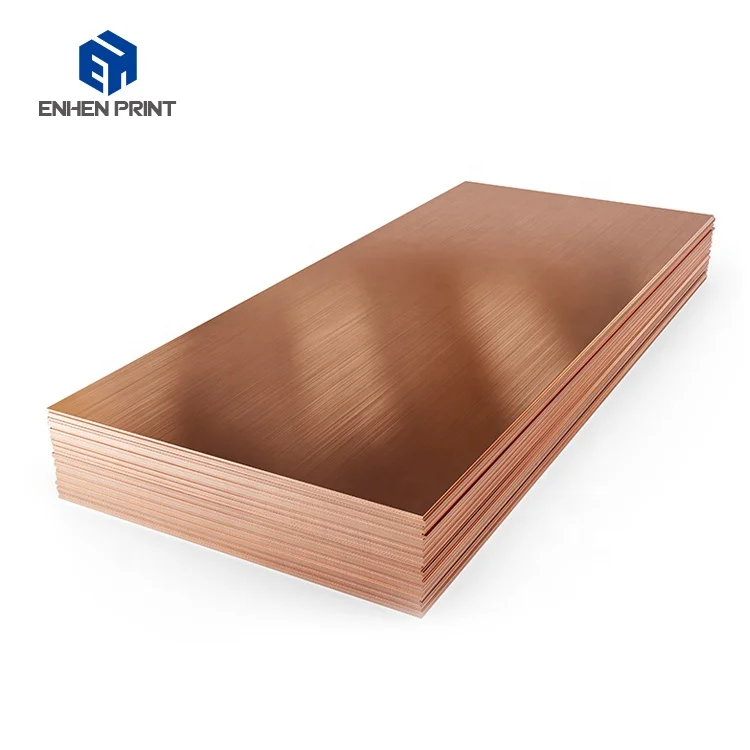

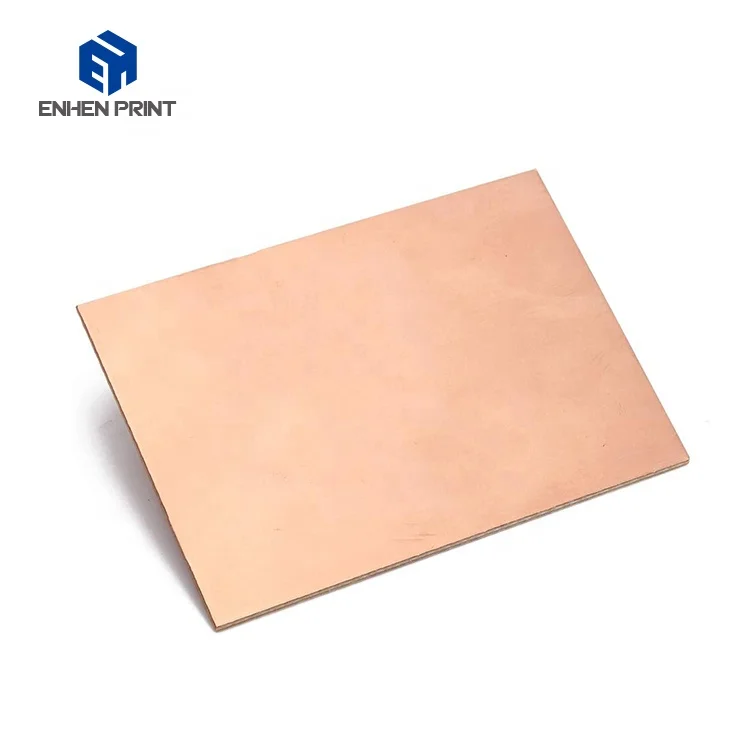

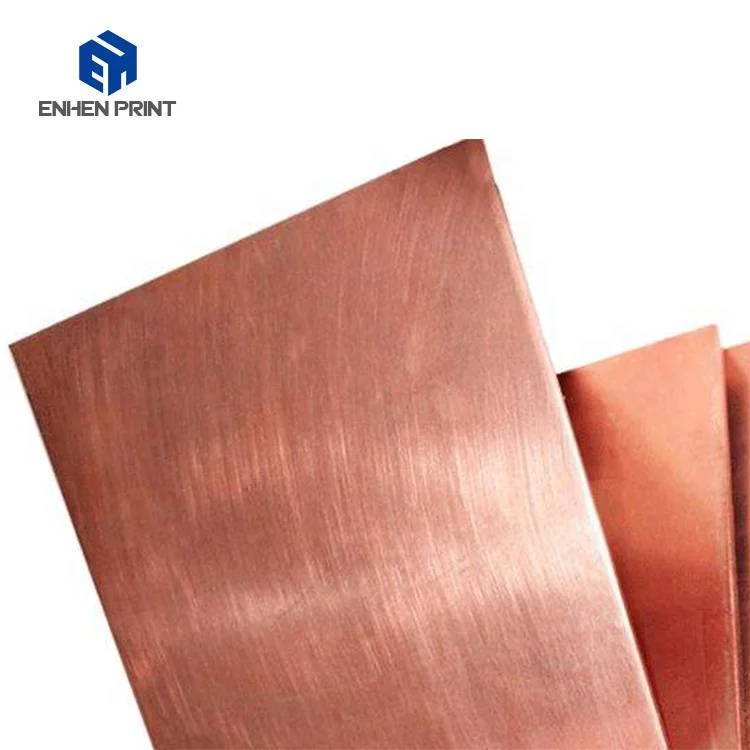

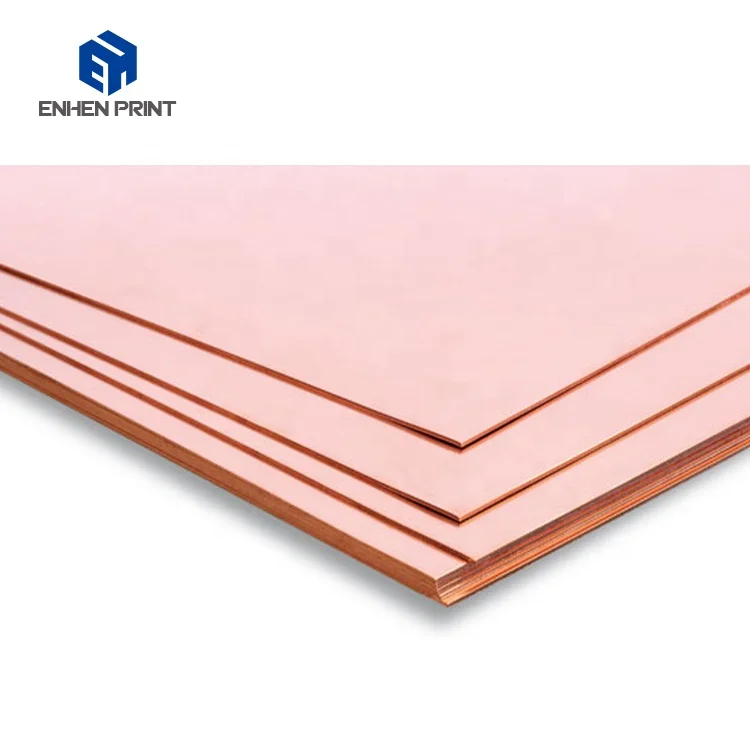

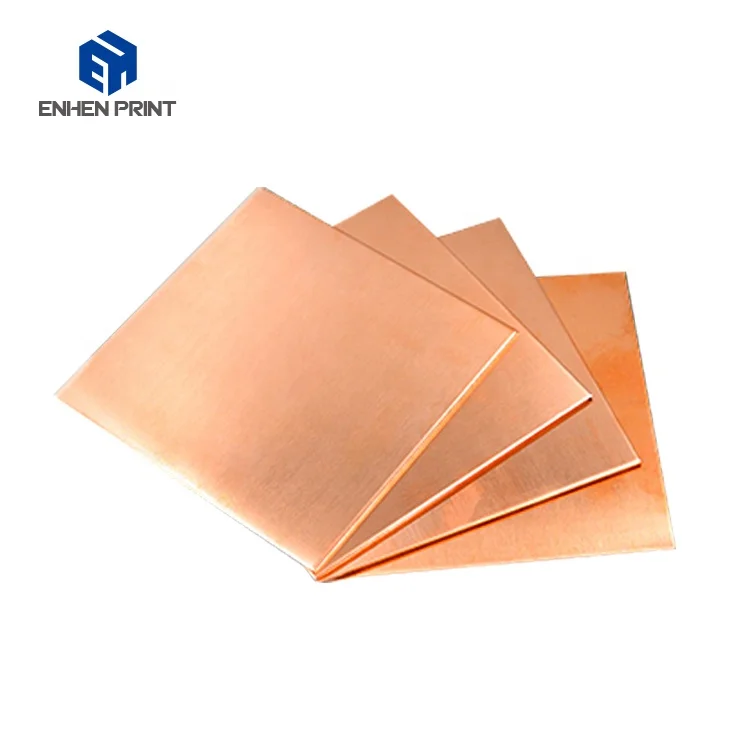

Copper Photoengraving Plate
Copper photoengraving plate occupies a pivotal position in relief printing, packaging printing, and anodized aluminum
hot stamping industry. Its platemaking process is more complicated than zinc plate and magnesium plate. It needs to adjust the etching parameters constantly to achieve a perfect etching dies.
Copper Photoengraving Plate Datasheet
Item | Thickness (mm) | Size (mm) | Weight (kg) |
Copper Photoengraving Plate | 1,40 | 1000 x600 | 7,40 |
Copper Photoengraving Plate | 2,00 | 1000 x600 | 10,50 |
Copper Photoengraving Plate | 3,00 | 1000 x600 | 15,80 |
Photoengraving Copper Plate Etching in Chemical Etching Machine

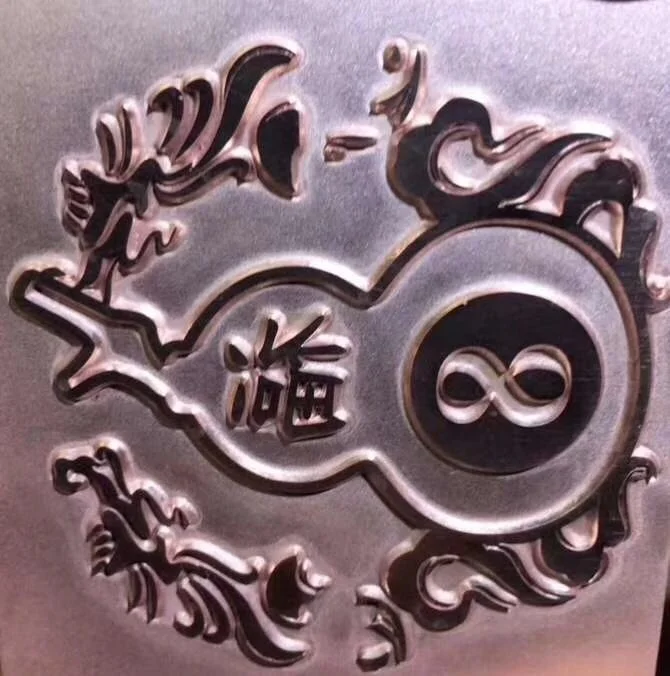

Etching Principle: The copper plate is to be corroded clamped on the turntable of the machine. Copper plate is also subjected to vertical impact of the corrosive liquid while making a rotary motion. The unexposured part of copper plate is corroded and dissolved, then a graphic copper plate dies is made.
Chemical Etching Process
How to finish a good Copper Plate etched dies?
1. Exposure: Exposure machine power should be above 2kw; exposure time no less than 300 seconds. Use of 21 step
sensitivity guide and 9~11 range exposure is recommended.
2. Developing: Use NaOH solution, suggested solution temperature is 21-29℃.
3. Touch up: Examine the developed plate for flaws and touch up as needed.
4. Etching bath preparation: Prepare it for different etching plate accordingly.
5. Etching settings: Set the etching data for different plates.
6. Bath acid replenishment.
7. Top coating removal (optional).
If You Want To Know more details on Copper Plate Etching... ...
If You Want To Know more details on Copper Plate Etching... ...
Contact Us For Further Free Guide.
FAQ
Quick Knowing !
1.--- Can I get free sample?
3. --- Can you give technology training?
--- Yes, we can. We base our company
--- Yes, we can supply free samples, also
give you free etching guide.
2. --- What's the copper plate quality?
--- Our copper plate is top quality
2. --- What's the copper plate quality?
--- Our copper plate is top quality
in China.
3. --- Can you give technology training?
--- Yes, we can. We base our company
values on integrity, on doing what is
right rather than what is expedient.
No question is too small to ask.
right rather than what is expedient.
No question is too small to ask.
