Линейный 4-координатный фрезерный станок с
- Категория: Metal Engraving Machinery >>>
- Поставщик: Jinan,Chentuo,Industry,And,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.90 $* | 0.9 $* |
| Aug-15-2025 | 0.37 $* | 0.38 $* |
| Jul-15-2025 | 0.82 $* | 0.20 $* |
| Jun-15-2025 | 0.57 $* | 0.65 $* |
| May-15-2025 | 0.57 $* | 0.74 $* |
| Apr-15-2025 | 0.92 $* | 0.47 $* |
| Mar-15-2025 | 0.26 $* | 0.86 $* |
| Feb-15-2025 | 0.81 $* | 0.61 $* |
| Jan-15-2025 | 0.61 $* | 0.81 $* |
Характеристики
Product Description
High Accurancy and Quality Milling Machine SM-6090A on sales!
Features of the machine:
1. Structures : integrally cast lathe bed, solid and stable ,high rigidity and high accuracy.2 . Movement parts : High accuracy square linear rails make high speed . We offer best dust protection for upgrade to achieve longer working lifetime.
3. Spindle motor: 2.2kw water-cooling spindle, low noise, vigorous cutting strength.
4. Software: Compatible software: Open style software interface. Our software is compatible with TYPE3/ARTCAM/CASTMATE/UG and many other kinds of CAD/CAM software, can change the working file into G code, guarantee that the design does not have the barrier.
5. Working table: T slot added on the Aluminum profile table， just process the materials by using clamping on the table. Better for small materials.
Please first figure out the followings if you want a perfect recommend of the machine:
1. What is your main work using our machine? engrave or cut or both?
2. What is the Max size of the processing material?
3. What is the MAX cutting or engraving thickness that you need?
4. Whether you have the interest of upgrading the type you want now ?
Anything i can help will be glad: )
1. What is your main work using our machine? engrave or cut or both?
2. What is the Max size of the processing material?
3. What is the MAX cutting or engraving thickness that you need?
4. Whether you have the interest of upgrading the type you want now ?
Anything i can help will be glad: )
Specifications
XYZ axis travel diatance | 600*900*150mm |
Feeding height | 150mm |
Spdindle power | 2.2kw water cooling(0-24000RPM) |
Rail type | Linear rails |
Control system | Mach3 |
Drive type | Stepper |
Transmit | Ballsrew |
Table type | Aluminum profile T slot clamping |
Max travel speed | 12000mm/min |
Working precision | 0.05mm |
Power | AC220±10%/ 50-60Hz |
Compatible Software | Type3/ Artcam /UG etc |
Command code | HPGL， G code |
Machine/ packing size | 1.35*1.1*1.3m/1.49*1.24*1.5m |
Net/ Gross weight | 300kg/350kg |
Detailed Images
Our stepmores machine use high quality parts, make sure long lifetime of the whole cnc router machine.

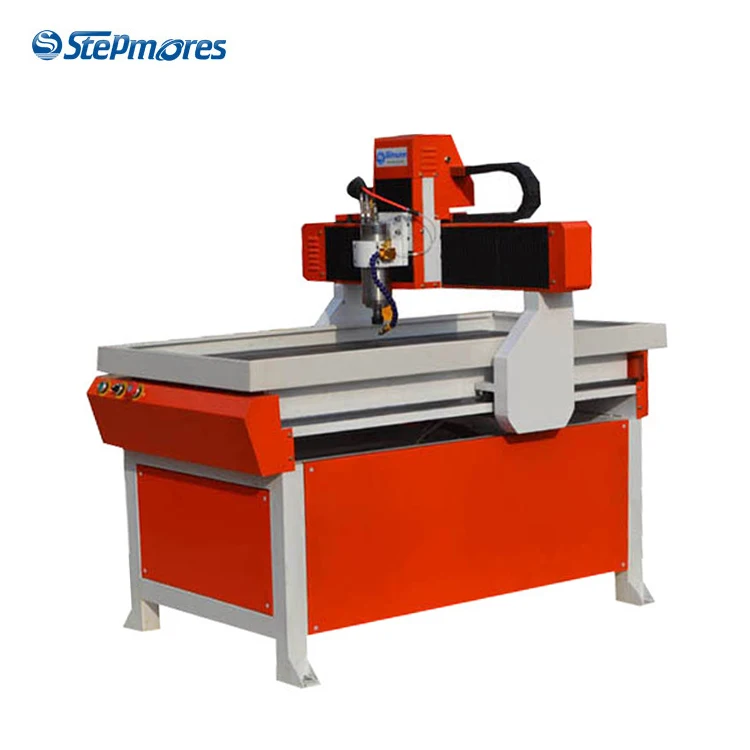

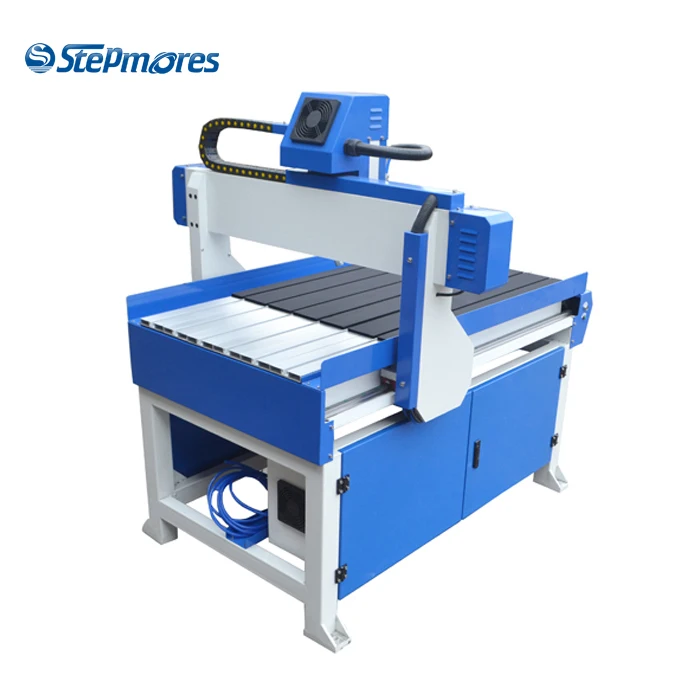

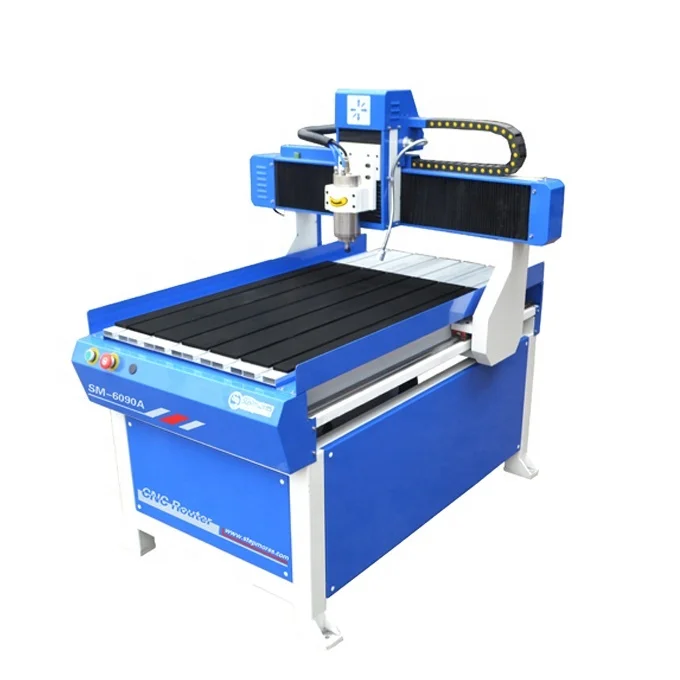

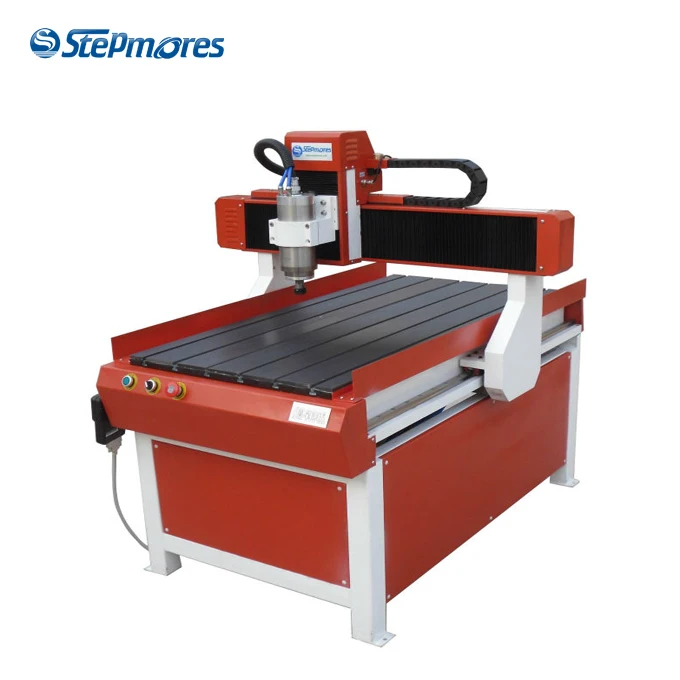

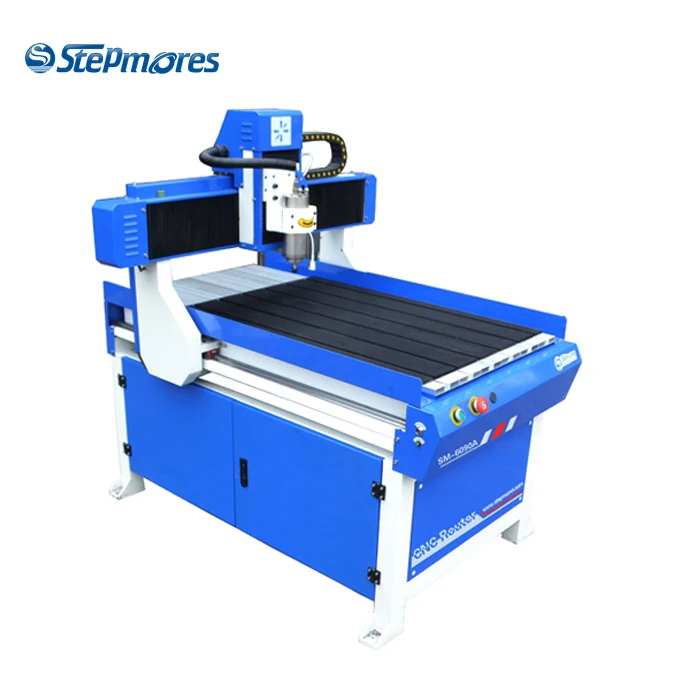

Here is the Details of SM-6090A Advertising CNC Router:
Here is the Details of SM-6090A Advertising CNC Router:
Attachments :
Upgrade Options:
Samples Exhibition
Wide range of application:
Except for advertising work.It's mainly designed for woodworking,any kinds of wood and plastic material processing work, door making,furniture making etc
Suitable for Materials:
Engrave and cut on hard wood, MDF,Acrylic sheet, ABS double color sheet, PVC foam sheet,
metal, Aluminum and plastic composite panel, wooden sheet, PCB Aluminum sheet etc.
Except for advertising work.It's mainly designed for woodworking,any kinds of wood and plastic material processing work, door making,furniture making etc
Suitable for Materials:
Engrave and cut on hard wood, MDF,Acrylic sheet, ABS double color sheet, PVC foam sheet,
metal, Aluminum and plastic composite panel, wooden sheet, PCB Aluminum sheet etc.
Packing&Shipping
we use strong non-fumigation wooden case. we buy the insurrance for the shipping and machine.
Packing | ||
Size | 1.49*1.24*1.5m | |
Weight | 350kg | |
Packing Details | 1.Outside package:Standard marine export plywood cases 2.Inner package:Stretch film and plastic film for humidity | |
Certifications
We promise the good quality for our machine with long lifetime, our machine is cerificated by Ente Certificazione Macchine SRL as European quality, here is CE certification of SM-6090A ：
Company Introduction
Jinan chentuo industry and trade co.,ltd was established in 2011.
we are well known for our superior quality and service in the field of engeering and
manufacturing of CNC Router and Laser Equipment that includes CNC Router,Laser
engraving machine,CNC Laser cutting machine, CNC Plasma metal cutting machine
and so on.
our company is famous for high quality and best after sales service as the competiive
price. our products are widely used in the following industry, such as woodworking,
advertising, artmarking, model,electric,CAD CAM industry Model, clothing, packing
printing, marking,laser sealing and so on.
our company has sold cnc machines to a lot of countries such as US,Argentina,France,
Columbia,UK, EU,Australia, Russia, spain, Morocco, Esthonia, and so on.
we are well known for our superior quality and service in the field of engeering and
manufacturing of CNC Router and Laser Equipment that includes CNC Router,Laser
engraving machine,CNC Laser cutting machine, CNC Plasma metal cutting machine
and so on.
our company is famous for high quality and best after sales service as the competiive
price. our products are widely used in the following industry, such as woodworking,
advertising, artmarking, model,electric,CAD CAM industry Model, clothing, packing
printing, marking,laser sealing and so on.
our company has sold cnc machines to a lot of countries such as US,Argentina,France,
Columbia,UK, EU,Australia, Russia, spain, Morocco, Esthonia, and so on.
Our products are very popular and our after-sales service is very comprehensive.
FAQ
1. How should i pay for my order ? What is the procession of this purchase ?
We accept T/T, Western Union, Paypal, Escrow,Trade assurance and so on.
If TT by bank,you can do 30% prepayment at first,then we'll start to make production.
when the machine is ready,we will take picture to you, then you can make up the balance.
after we got your payment. we will send the machine to you.
2.How about your service after sales ?Can your engineer speak fluent English?
We offer the after sales service when you got the machine, including how to install the machine,
how to use machine, how to let machine work and so on. Usually we will teach you how to do by email or by Skype .
Our engineer has many years of experience for CNC machine service,he can speak English well which can solve the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer. Only the machine made by ourselves then the quality can be trusted,
and the most important thing is that we can do better service after sales.
We know how to fix the problem in each parts easily, so welcome to visit to our factory
4 How long is the delivery time?
For standard machines, it would be in 7-10 days;
For non-standard machines or customized machine according to client's specification
requirements, it would be 15 to 30 days.
5 How about the documents after shipment?
After shipment,we'll send all original documents to you by DHL,including Packing list,Commercial Invoice, B/L, and other certificates as required.
We accept T/T, Western Union, Paypal, Escrow,Trade assurance and so on.
If TT by bank,you can do 30% prepayment at first,then we'll start to make production.
when the machine is ready,we will take picture to you, then you can make up the balance.
after we got your payment. we will send the machine to you.
2.How about your service after sales ?Can your engineer speak fluent English?
We offer the after sales service when you got the machine, including how to install the machine,
how to use machine, how to let machine work and so on. Usually we will teach you how to do by email or by Skype .
Our engineer has many years of experience for CNC machine service,he can speak English well which can solve the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer. Only the machine made by ourselves then the quality can be trusted,
and the most important thing is that we can do better service after sales.
We know how to fix the problem in each parts easily, so welcome to visit to our factory
4 How long is the delivery time?
For standard machines, it would be in 7-10 days;
For non-standard machines or customized machine according to client's specification
requirements, it would be 15 to 30 days.
5 How about the documents after shipment?
After shipment,we'll send all original documents to you by DHL,including Packing list,Commercial Invoice, B/L, and other certificates as required.
