Japan Original NSK 29412 Thrust Roller Bearing 29412 for Oil Rig Sizes 60*130*42mm
Product Information>
Brand Name
Japan NSK
item name
Japan Original NSK 29412 Thrust Roller Bearing 29412 for Oil Rig Sizes 60*130*42mm
Bearing Seals
OPEN ZZ ZR
Material
GCr15,chrome steel, stainless steel,Iron
Guarantee
1YEAR
Size
60*130*42mm
Package
Pallet,wooden case,commercial packaging or as customers' requirement.
Bearings weight
2.6kg
Payment Item
T/T ,Western Union , Paypal ,Credit card
Delivery time
3-10day
Product Display>Saifan Advantages>

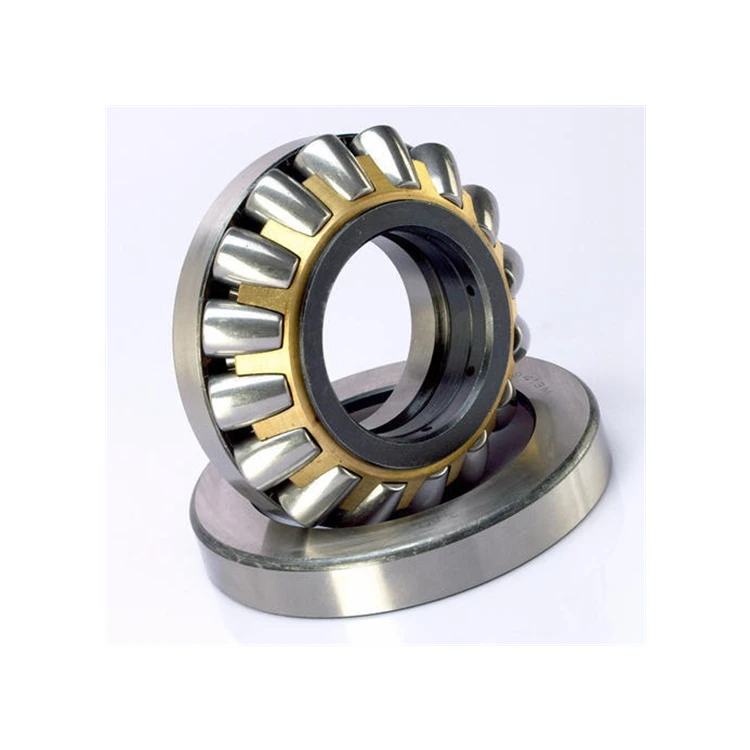

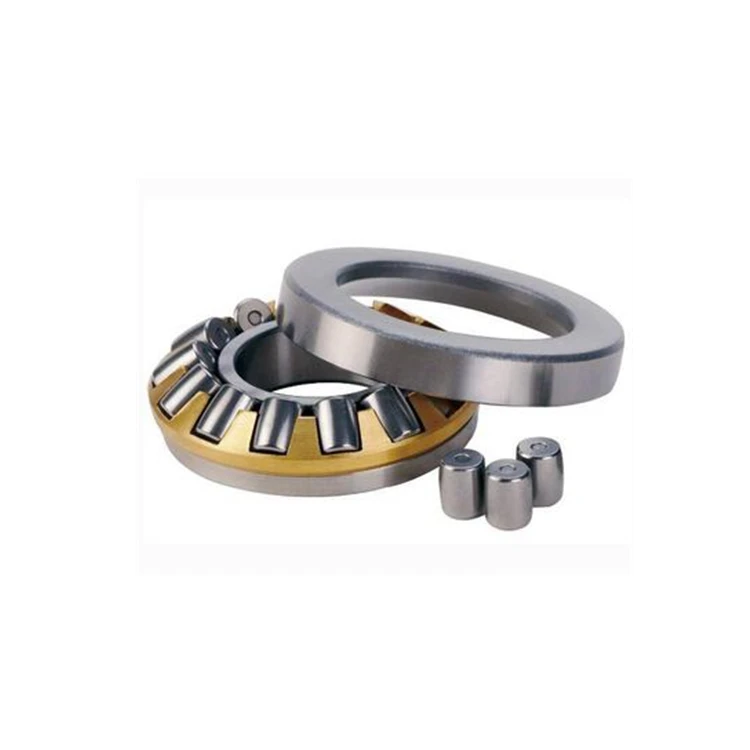

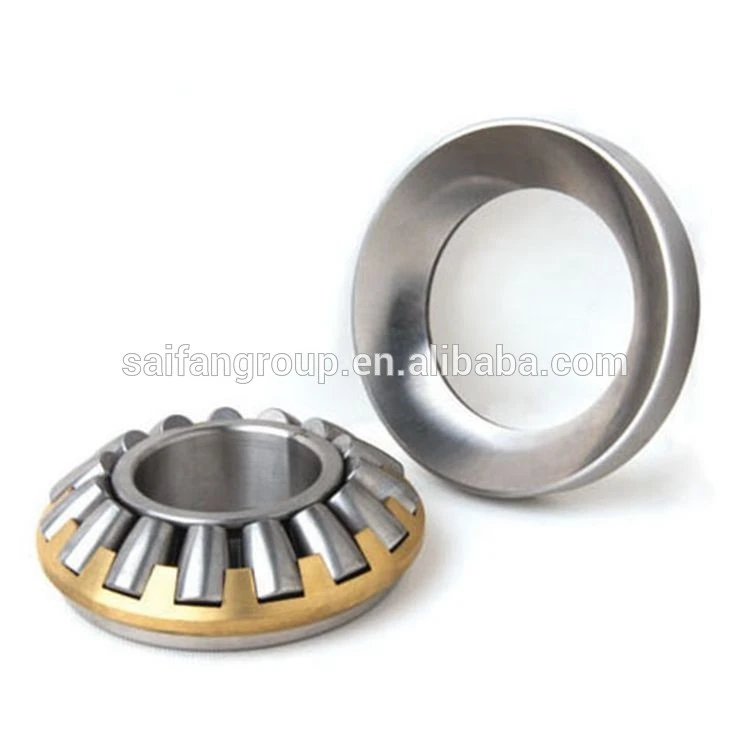

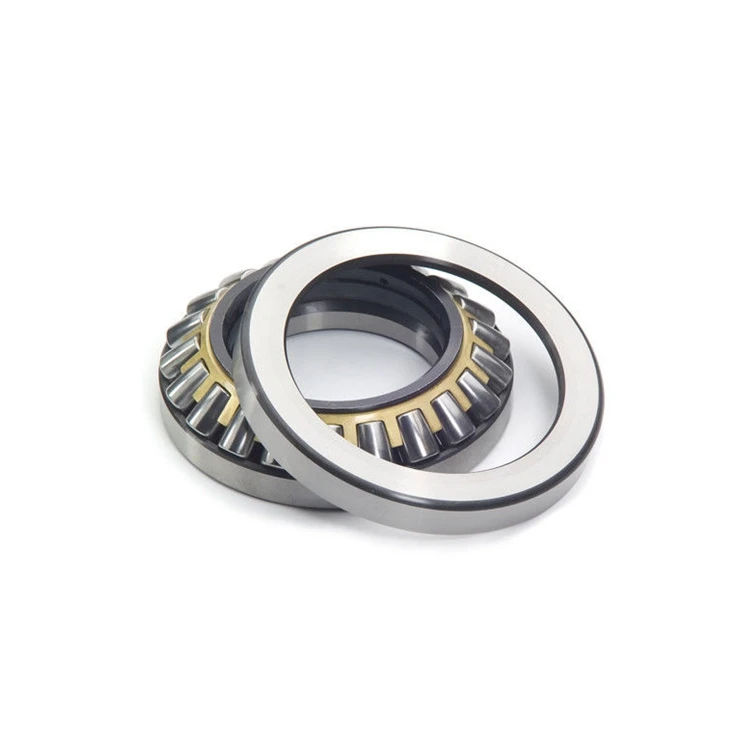

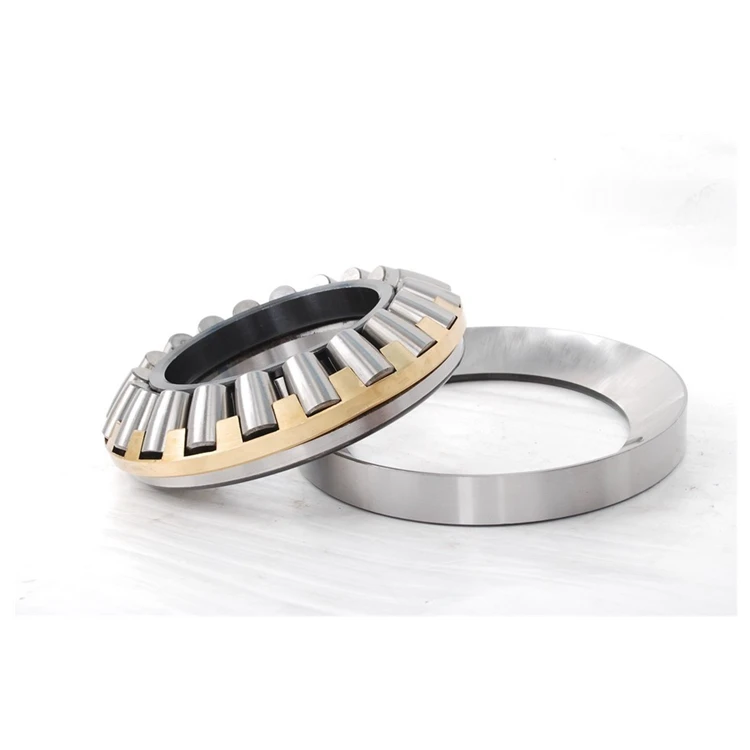

1.Thrust spherical roller bearing Information:
Thrust spherical roller bearings are single row, self-aligning roller bearings. They comprise solid shaft and housing locating washers and asymmetrical barrel rollers with cages. The cage holds together the roller and cage assembly and the shaft locating washer. The bearings can be dismantled. As a result, the bearing components can be fitted separately.
Spherical roller thrust bearings can support very high axial loads and permit relatively high speeds. Since the raceways are at an angle to the bearing axis, the bearings can also support radial loads.
2.Thrust Spherical Roller Bearing Features:
1.Unlike other thrust bearings in the sample, the axial load capacity of these bearings is very large, while under axial load, it can withstand several radial loads, but the radial load must not exceed 55% of the axial load.
2.As long as the load P and P0 does not exceed 0.05C0 and the shaft rotates, the bearing allows the centering angles listed in the table below.
3.Bearing Diameter Series Caliber Corner Bearing Diameter Series Centering Angle 200 Series 1 ° ~ 1.5 ° 300 Series 1.5 ° ~ 2 ° 400 Series 2 ° ~ 3 ° Small value For larger bearings, and the load is allowed to increase The angle of mind will be reduced.
4.used in general use of oil lubrication.
5.Thrust tapered roller bearings can only withstand one-way axial load, can limit the axial displacement of the bearing, it can be used as a one-way axial positioning. Compared with the thrust cylindrical roller bearings, bearing capacity, relatively small sliding, but the limit speed is low.
3.Thrust roller Bearing Application :
Thrust spherical roller bearings are mainly used in oil rigs, iron and steel machinery, hydroelectric generators, vertical motors, propeller shafts for ships, tower cranes, extruders and so on.
Hot Sale>
Dimension
Bearing Model
Weight
d
D
T
mm
mm
mm
kg
60
130
42
29412 bearing
2.6
65
140
45
29413 bearing
3.33
110
190
48
29322 bearing
6.94
110
190
48
29322/YAD bearing
5.08
110
230
73
29422 bearing
18.1
120
210
54
29324 bearing
7.45
120
250
78
39424 bearing
17.1
120
250
78
29424 bearing
33.3
120
250
156
29424D/YA7 bearing
33.3
180
250
42
29236 bearing
7.05
ABOUT SAIFAN>
High Quality Bearings, Choose Saifan. Jinan Saifan Bearing Co., Ltd is a professional bearing manufacture located in Jinan, Shandong.
We are established in year 2008 and we have 10 years experience in bearing manufacture. We mainly produce wheel hub bearings, ball bearings, roller bearings etc.
Saifan Production >
Saifan Workshop >
Saifan Exhibition >
PAYMENT & TRANSPORT>
FAQ >
Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and sizes in different brands, we also customize circuit board & packaging box as per your requirements.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
Q:Do you offer free samples?
A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight.
We DO NOT offer free samples to end users.
Q:How to place orders?
1. Email us the model, brand and quantity, consignee information, shipping way and payment terms;
Saifan Advantages>
