Двухколесные тракторы BCS technology сельскохозяйственная техника 9 0 л.с. дизельный двигатель с прикрепленной поворотной плугой

  Discount Prices for the two wheel walking tractor model 740PS(9.0hp Kama diesel engine, electric start)

  and the attached swivel rotary plow

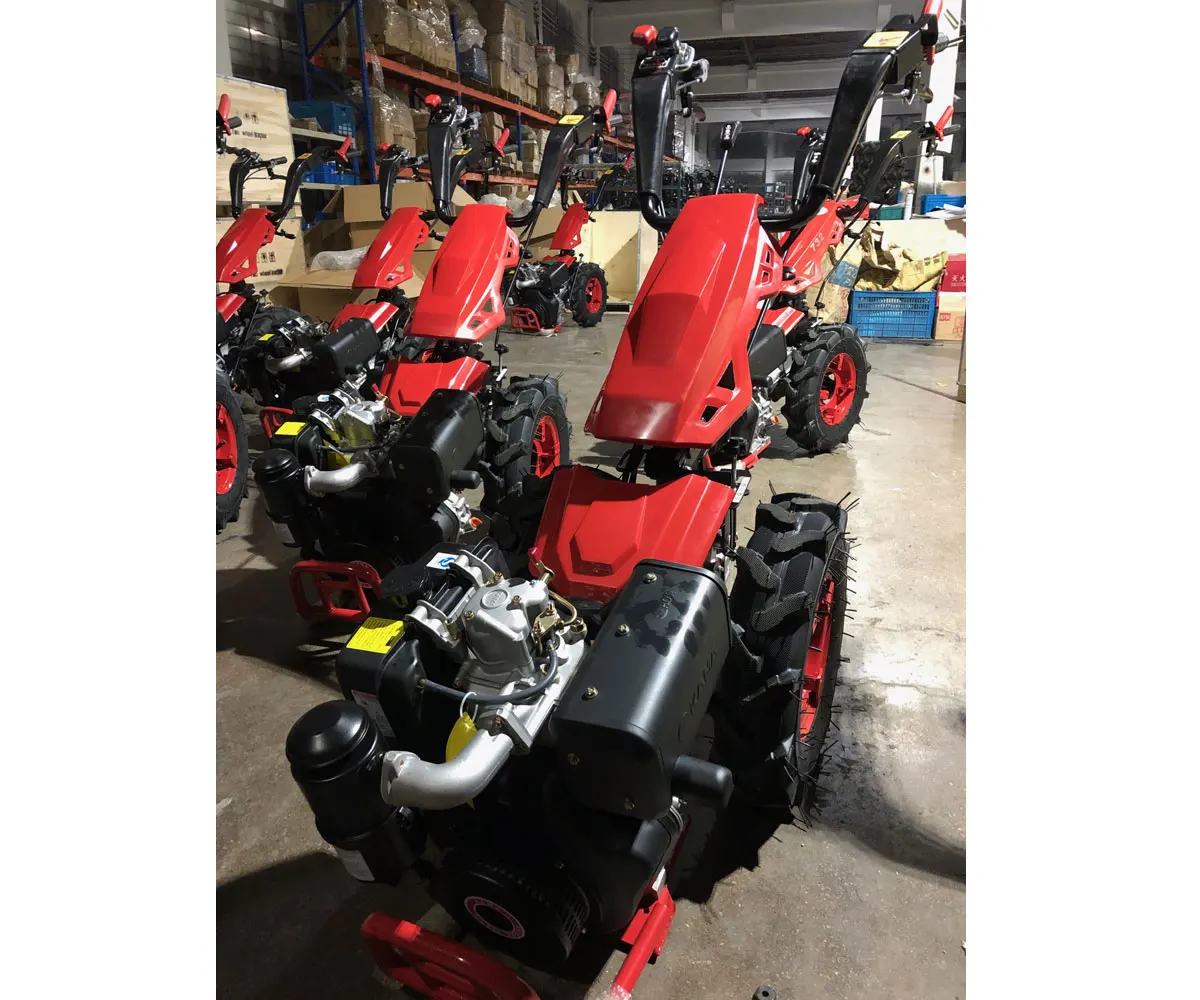

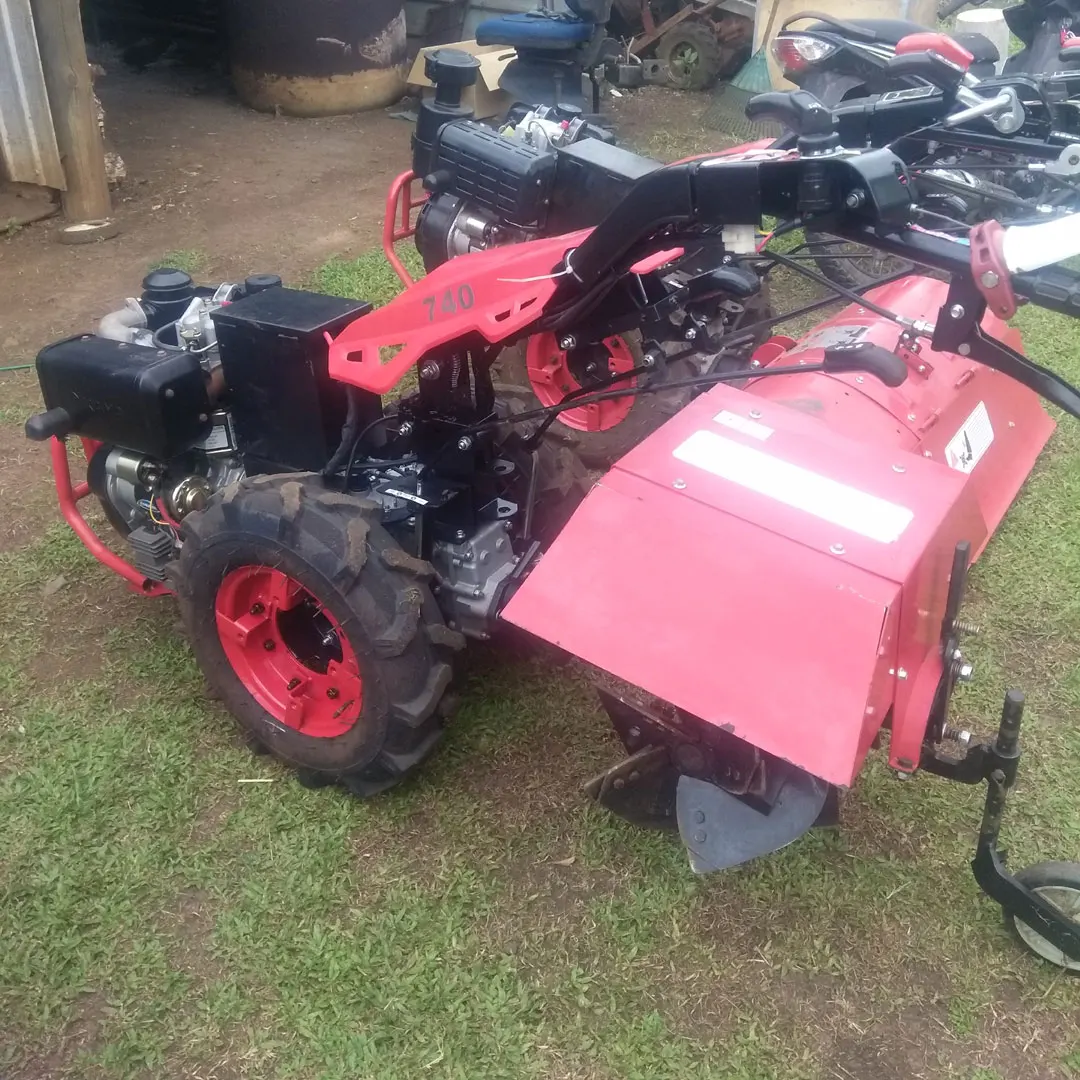

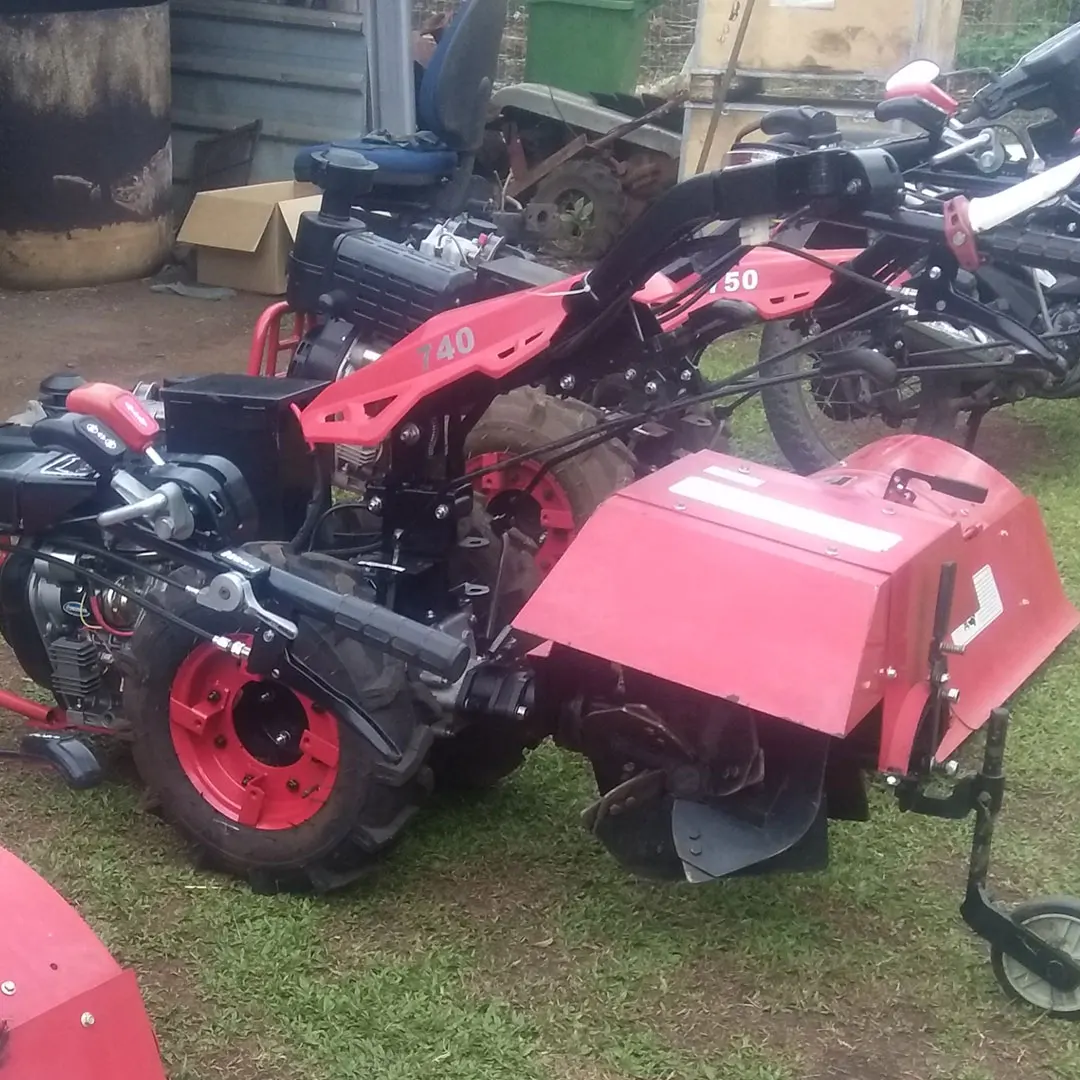

  Two wheel walking tractor 740PS(Diesel 9.0HP Kama engine, electric start)

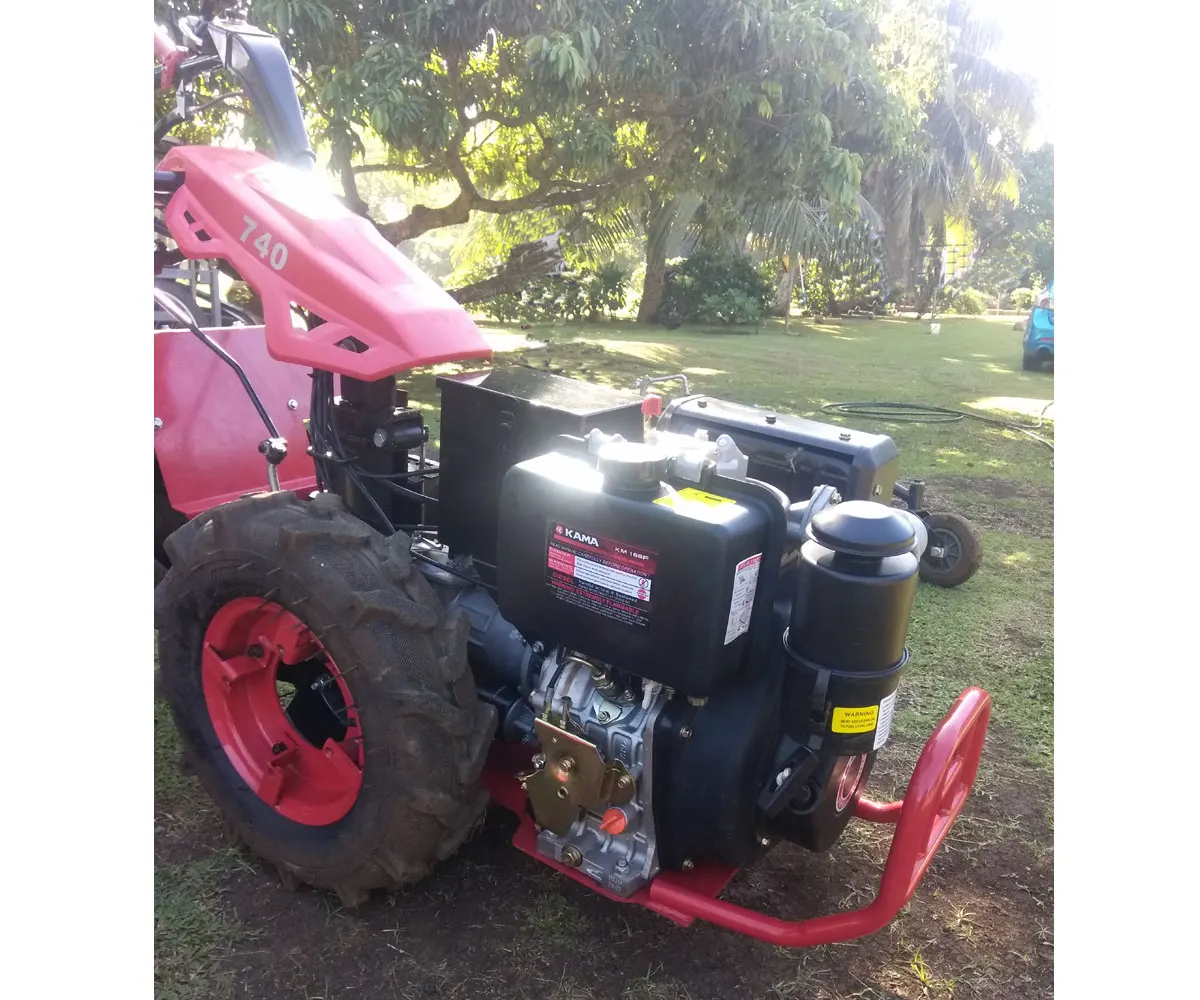

  Engine: Kama, 9.0HP diesel, electric start

  Net power: 6.8kw/3000rpm

  Bore * stroke: 88 x 75mm

  Displacement: 456cc

  Dimensions for engine: 420 x 440 x 495mm

  3 forward, 3 reverse speed

  Working wheel speed: 0.8, 1.8, 2.7mph

  Standard wheel size: 5.0-10"

  Transmission: all gear drive

  Clutch type: hydra-mechanical, oil cooled

  Axle configuration: differential drive with lock out

  Parking: with the independent brake

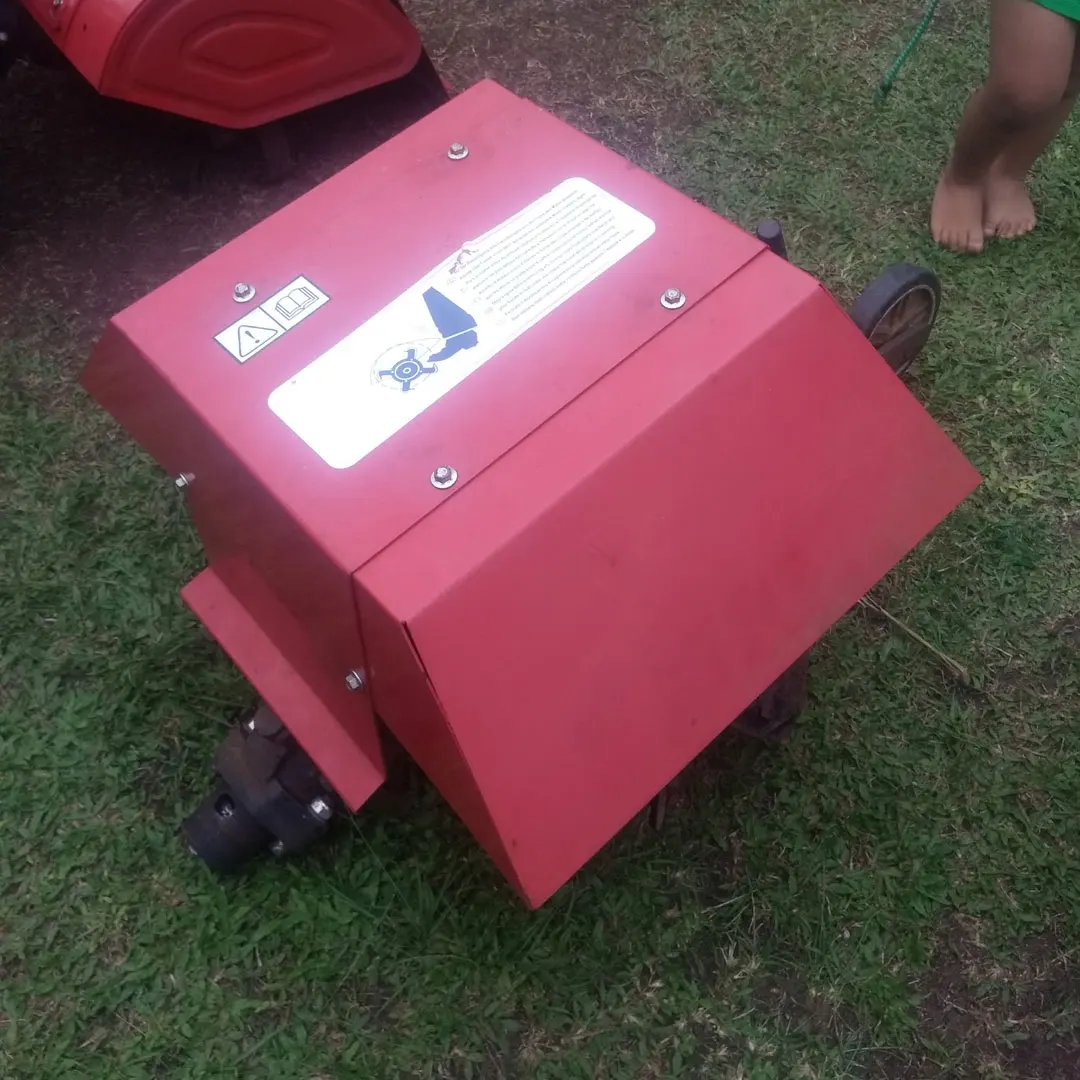

  Swivel rotary plow attachment specification:

  Model: BFRP01

  Digs up to 12" deep and can be regulated by removable wheel.

  Discharges soil to right side and can be controlled by removeable side flap.

  Four spiral blades turning up to 300rpm.

  Each pass works up to 10" wide

  Packing: by carton board 87 x 72 x 40cm

  The swivel rotary plow works similarly to the rotary plow, but instead of one plowshare throwing soil to the right, the

  swivel plow has a rotating 180 degrees between the two plowshares.

  Each plowshare has 4 spiral blades that spin up to 300rpm on a vertical shaft, digging effortlessly into all types of soil

  including hardened, rock-filled dirt that has yet to be broken. Debris is discharged to the left or right side(not simultaneously)

  allowing the operator to build raised beds with the multiple passes.

  Like the rotary plow, the swivel rotary plow can break new ground, power compost cover crops, build raised beds, creat drainage

  ditches and more. The swivel plow is designed for use on slopes, tight spaces and extensive operations.

Multi implements:

Operation levers:

Spare parts:
